Description
Description

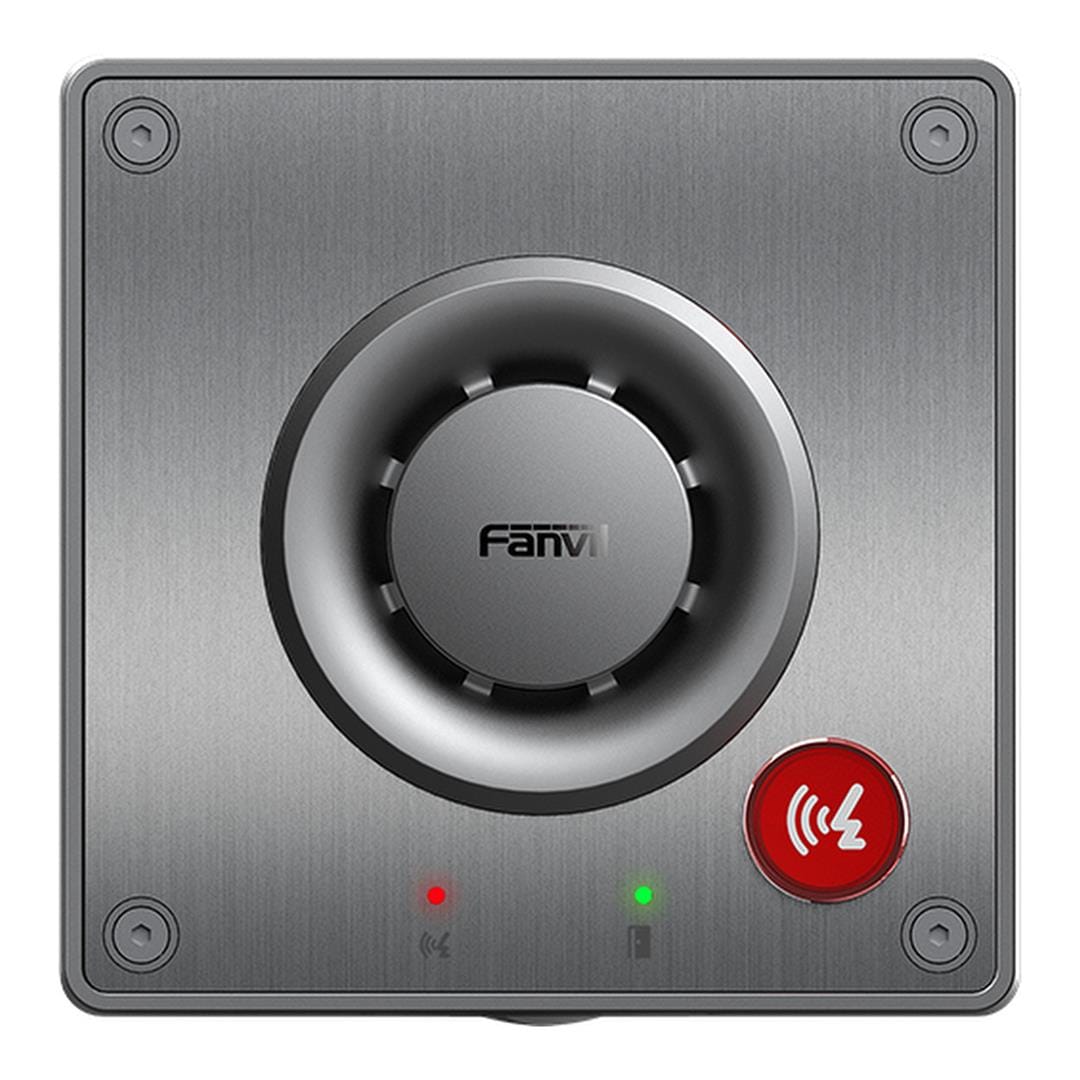

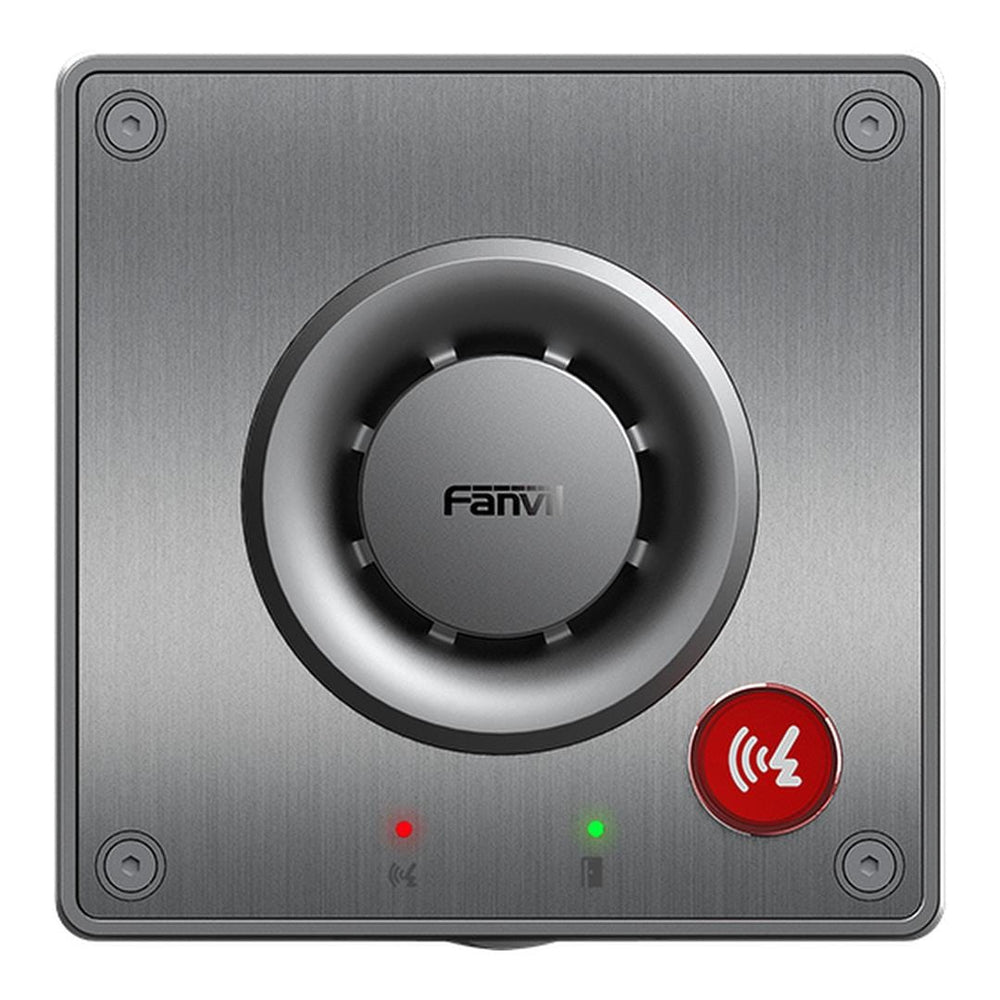

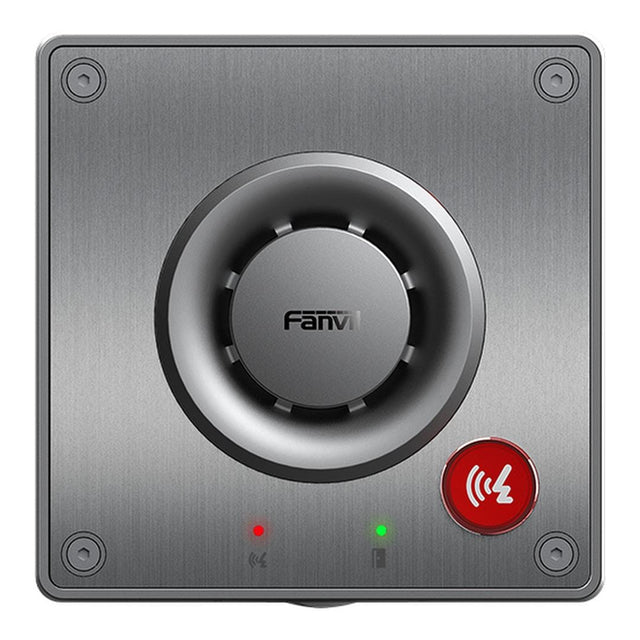

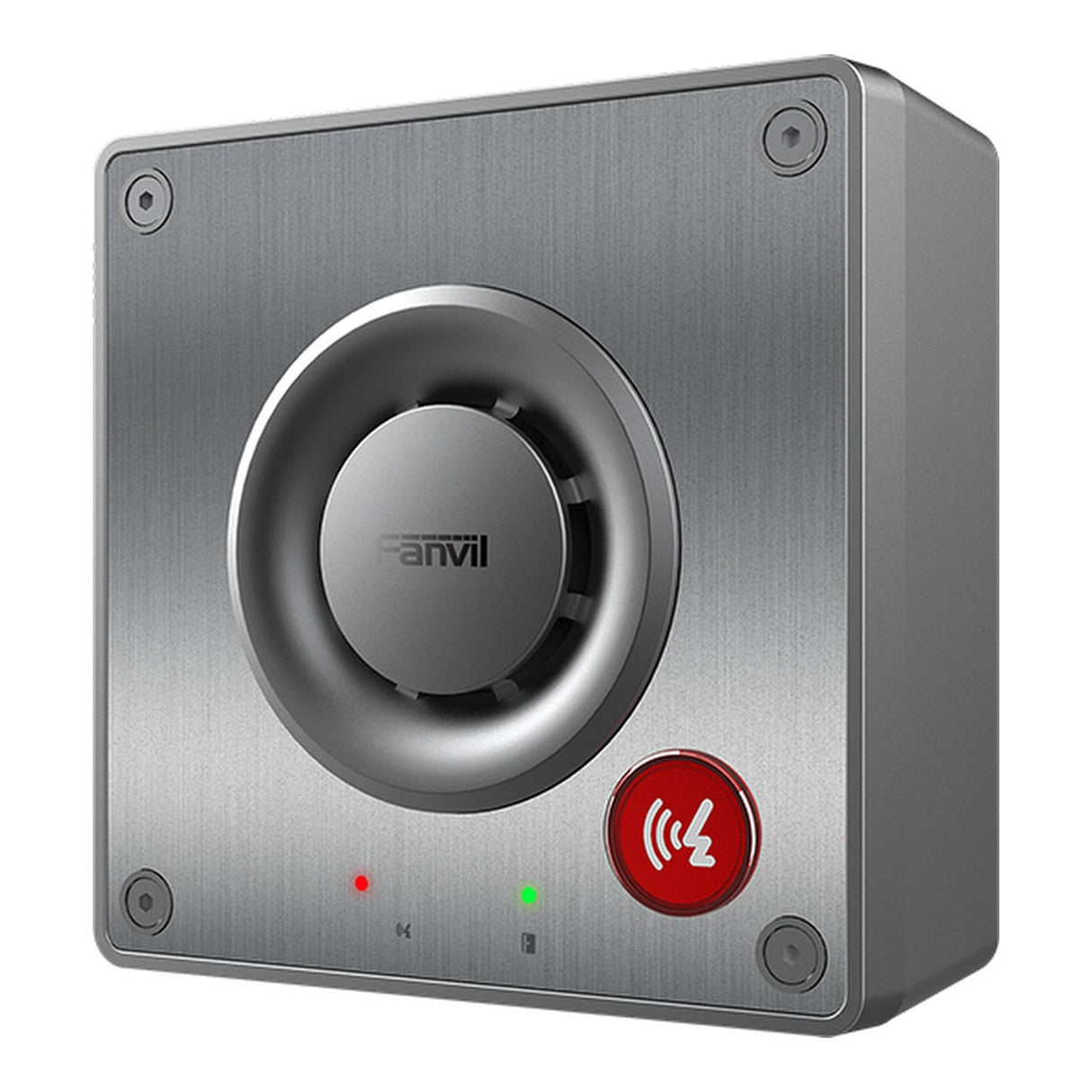

Fanvil A11 SIP Audio Intercom
The Fanvil A11 is a robust SIP audio intercom developed for outdoor communication in demanding environments. Its 5 W speaker, dual-microphone noise reduction and full-duplex audio help users communicate clearly in noisy locations, while an IP66-rated enclosure and IK10 impact resistance provide dependable protection against weather and vandalism.
Clear Communication in Challenging Environments
A turbine-style acoustic chamber works with the 5 W speaker to deliver strong, intelligible audio. Dual microphones and AEC, ANR, AGC and AVC audio processing help reduce noise, manage volume and improve two-way communication in complex environments.
Remote Voice Pickup
The A11 can pick up speech from a distance of up to 5 metres, making it practical for entrances, industrial sites, loading areas and other locations where users may not be standing directly beside the intercom.
Designed for Outdoor Installation
A stainless-steel front panel and integrated aluminium-alloy housing provide resistance to corrosion and impact. IP66 protection guards against dust and powerful water jets, while an IK10 rating provides a high level of protection against deliberate or accidental impact.
Flexible SIP Communication
Support for two SIP lines allows the A11 to integrate with compatible SIP-based IP PBX, softswitch and IMS platforms. Fanvil lists compatibility with platforms including Asterisk, BroadSoft, 3CX, Metaswitch, Elastix and Avaya.
Broadcasting and System Integration
The intercom supports MP3 broadcasting, scheduled tasks, multicast and SIP call forwarding to multicast. Its memory-card slot can be used for recordings and preset broadcasts, while an audio line output allows connection to a compatible active speaker or amplifier.
Practical Control Interfaces
Two short-circuit inputs, a relay output, active switching output and tamper alarm switch allow the A11 to form part of a wider communication, security or access-control installation. HTTP API, Action URL and Active URI support provide additional integration options for compatible systems.
Key Features:
- 5 W high-power speaker with a turbine-style acoustic chamber for clear, powerful audio.
- Dual-microphone noise reduction with voice pickup at distances of up to 5 metres.
- AEC, ANR, AGC and AVC audio processing supports intelligible full-duplex communication.
- IP66 dust and water protection with IK10 impact resistance for demanding outdoor locations.
- Two SIP lines with broad compatibility across SIP-based communications platforms.
- Supports MP3 broadcasting, multicast, scheduled tasks and preset audio broadcasts.
- PoE+ or 12–24 V DC power options provide flexibility during installation.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Fanvil |
| Model | A11 |
| Product Type | SIP audio intercom |
| SIP Lines | 2 |
| Speaker Output | 5 W |
| Microphones | Dual microphones with noise reduction |
| Voice Pickup Distance | Up to 5 metres |
| Audio Processing | AEC, ANR, AGC and AVC |
| Hands-Free Audio | Full-duplex hands-free speakerphone with acoustic echo cancellation |
| Narrowband Codecs | G.711a/u, G.729, iLBC, G.723 and G.726 |
| Wideband Codecs | G.722 and Opus |
| DTMF | In-band, RFC2833 and SIP INFO |
| Call Features | Call, answer, reject, call waiting, speed dial, anonymous calling, intercom and multicast |
| Broadcast Features | MP3 broadcasting, preset broadcasting, dynamic multicast and SIP call forwarding to multicast |
| Programmable Key | 1 DSS key |
| Ethernet | 1 × RJ45 10/100 Mbps Ethernet port |
| IP Support | IPv4, IPv6 or combined IPv4/IPv6 |
| IP Configuration | Static IP, DHCP and PPPoE |
| SIP Support | SIP v1 and SIP v2 over UDP, TCP or TLS |
| Network Security | TLS and SRTP |
| VPN | L2TP and OpenVPN |
| Network Protocols | RTP, RTCP, SRTP, STUN, DHCP, PPPoE, SNTP, FTP, TFTP, HTTP, HTTPS and TR-069 |
| System Integration | HTTP API, Action URL, Active URI, switch inputs and relay output |
| Audio Output | 1 × two-pin line-out connection for an active speaker or amplifier; 1,000 Ω output impedance |
| Switch Inputs | 2 × short-circuit inputs |
| Switch Output | 1 × built-in relay; maximum DC 30 V/2 A or AC 125 V/0.5 A |
| Active Switching Output | 12 V DC/500 mA; supported by one relay |
| Tamper Protection | 1 × tamper alarm switch |
| Memory-Card Support | 1 × card slot for recording and preset broadcasts |
| Power over Ethernet | PoE+, IEEE 802.3at Class 4 |
| DC Power Input | 12–24 V DC, 2 A |
| PoE+ Power Consumption | 1.38–9.1 W |
| DC Power Consumption | 0.83–7.4 W when powered by a 12 V/2 A adaptor |
| Protection Rating | IP66 and IK10 |
| Construction | Stainless-steel front panel and aluminium-alloy housing |
| Installation | Wall mounting as standard; optional flush mounting with the Fanvil EX611 |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Operating Humidity | 10% to 95% |
| Device Dimensions | 100.95 × 100 × 45 mm, including wall-mounting bracket |
| Box Contents | Fanvil A11 audio intercom, quick installation guide, wall-mounting bracket, mounting template and screw pack |
Choose the Fanvil A11 for reliable SIP voice communication in demanding outdoor environments and add it to your cart today.
