EZVIZ X5S 8W Wireless NVR CS-X5S-8W

EZVIZ X5S 8W Wireless NVR CS-X5S-8W

The X5S is a large-capacity storage solution tailored to support multi-camera security systems for 24/7 recording in even high video quality. Users can confidently save and keep important footages on the local NVR device, which ensures smooth storage and strict data protection.

A reliable center for your important footages

The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB², the X5S also receives data and video files from up to 8 connected Wi-Fi cameras³ at the same time.

No detail is overlooked

Connecting the X5S to an additional monitor offers even more convenience for multi-camera viewing – the user can display the footages collected by all connected cameras simultaneously on one screen. It supports up to 3K resolution for live or history videos, so you’ll hardly miss a thing.

Use H.265 to store and play large files efficiently

The X5S uses the H.265 video technology to compress high-resolution video files while maintaining the same video quality and smooth viewing experience for playbacks. You won’t have to worry about large video files taking up too much of your storage space or being too big to load fast – the H.265 technology reduces their sizes by up to 50%¹ and requires only 50% of the bandwidth when compared to H.264.

Specifications

Model: CS-X5S-R100-8W

Wireless/Wired IPC Access Capability: 3K *8W

Wired IPC Access Capability: 3K *8 (X5S-8W)

Antenna Number: 2

Max Wireless Range: 100m

Radio Frequency: 2.4G

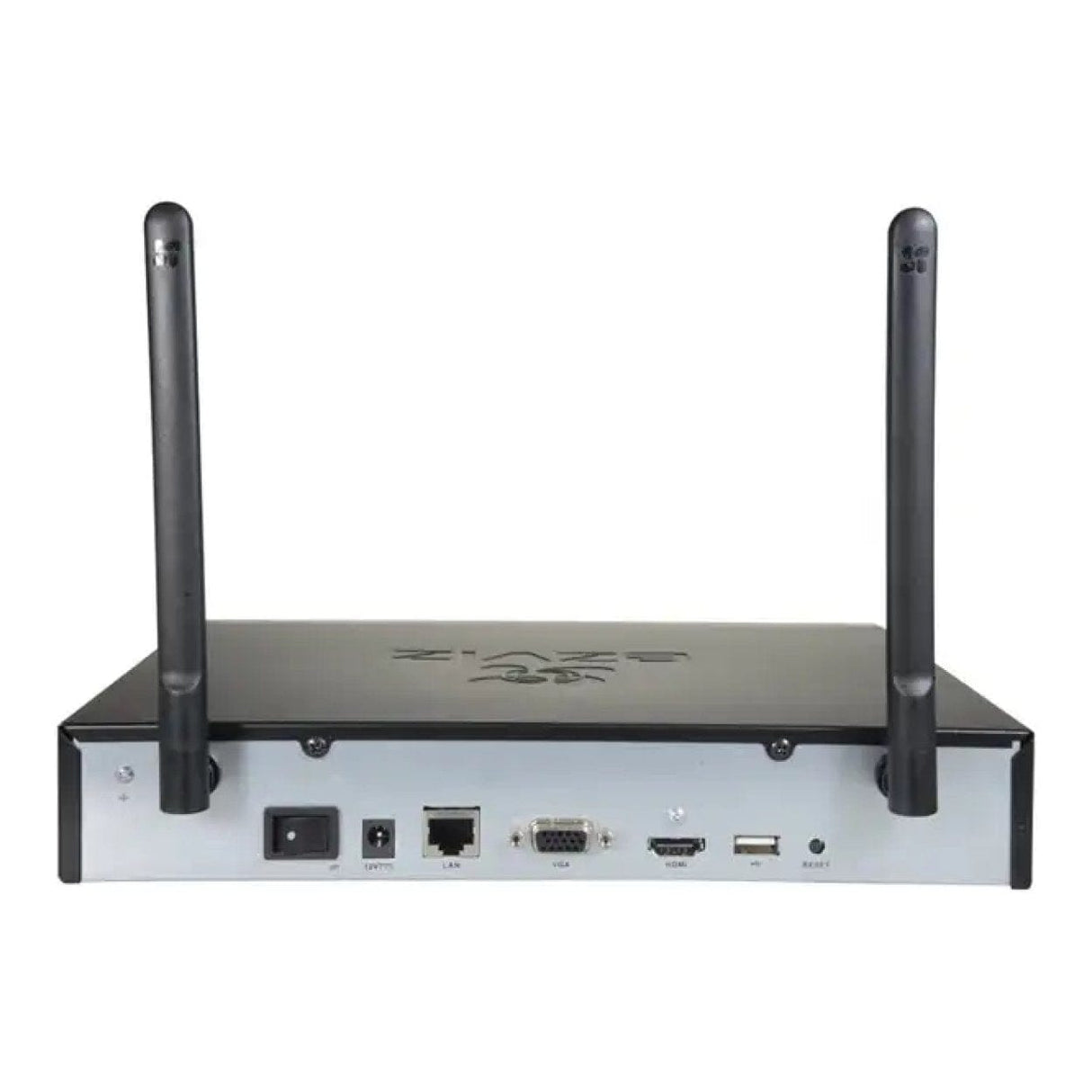

Ethernet Port: One 10/100M adaptable Ethernet interface

Required Access Bandwidth: 100 Mbps

VGA: 1 channel (identical to HDMI output) resolution up to 1920x1080 / 60Hz

HDMI: 1 channel resolution up to 2592x1944 / 30HZ

Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

Video Encoding: H.265, H.264

Decode Playback: Supports 8*3K

Open Protocol Support: HIKVISION, ONVIF (V.2.5)

Interface Type: One built-in SATA port

Capability: Supports 1TB to 8TB 3.5-inch HDD

USB2.0 Interface: 2
