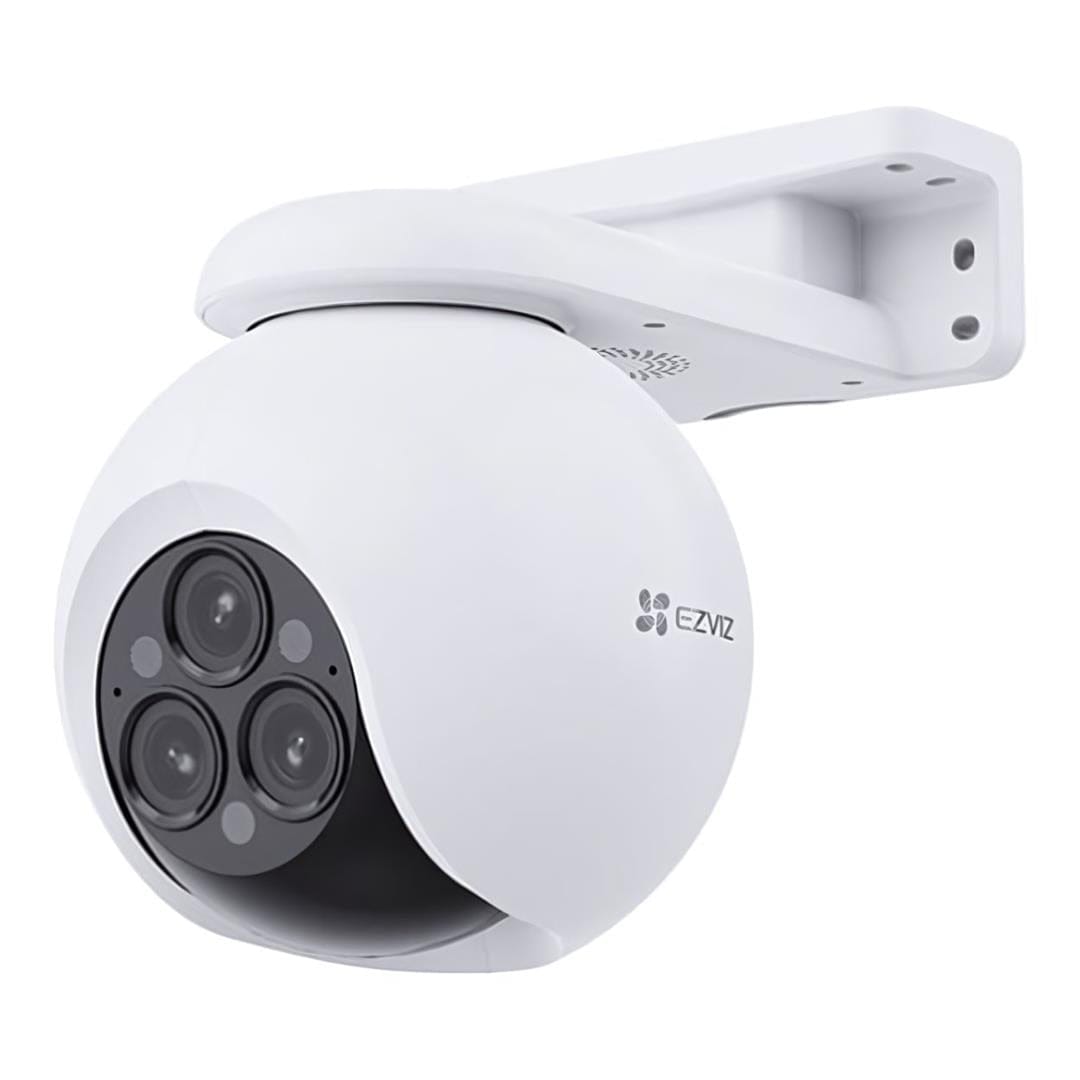

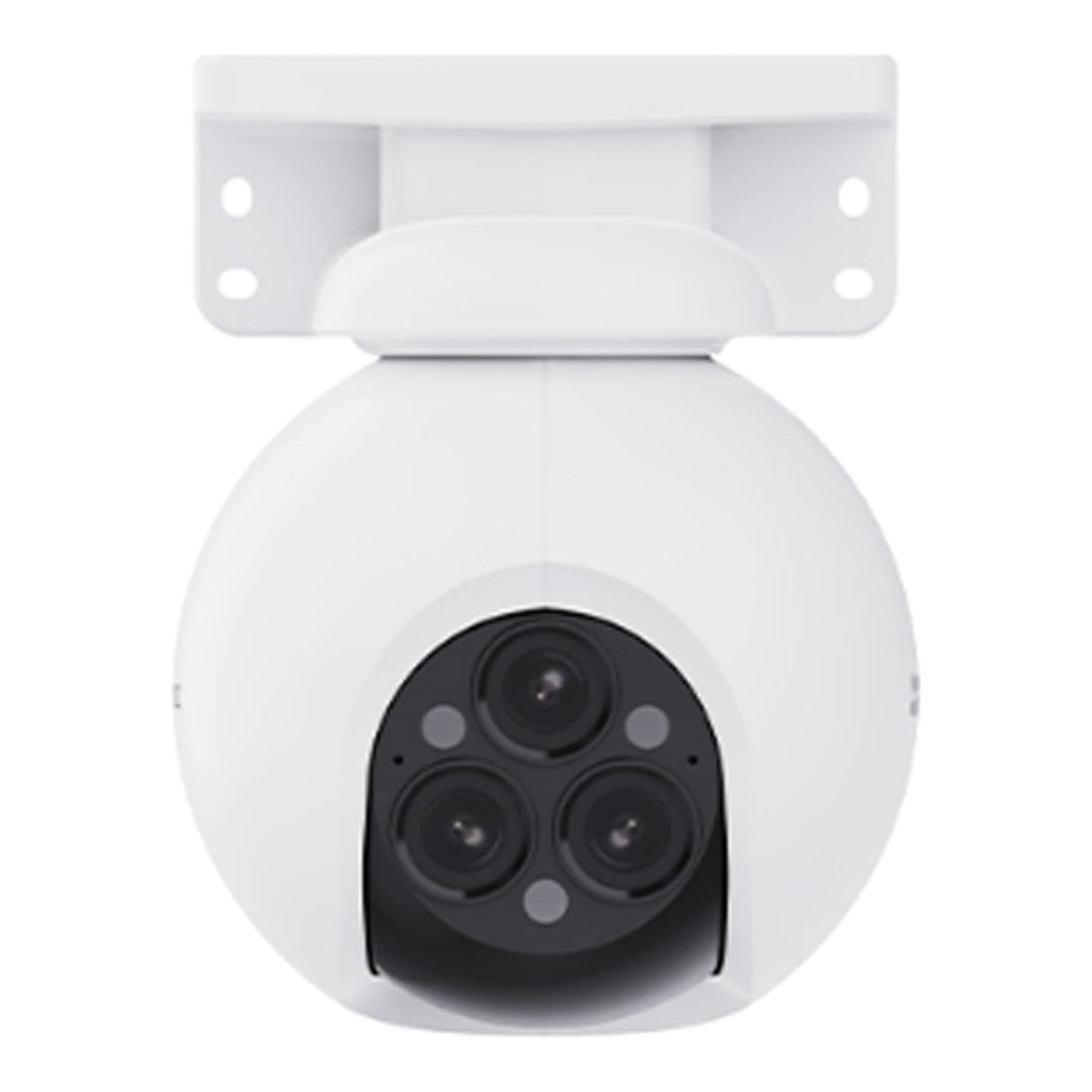

EZVIZ H80f Multi 4MP Triple-Lens Smart Home Wi-Fi Camera CS-H80F-R100-8G444WKFL

EZVIZ H80f Multi 4MP Triple-Lens Smart Home Wi-Fi Camera CS-H80F-R100-8G444WKFL

See, zoom and protect, like never before

The H80f Multi, EZVIZ‘s first triple-lens outdoor camera, is designed to provide exceptional outdoor security with unseen professionalism. The integrated capability of three powerful 2K+ lenses allows the camera to capture a wide view and close-up details simultaneously, supported by an incredible, non-blurry 12-times zoom. Its embedded AI can effectively detect and lock on both people and vehicles to record an ongoing activity from left to right, while you receive more informative mobile alerts accompanied by double snapshots of both the visitor and the car.

Triple the lenses, more 360 degrees of protection

EZVIZ unprecedentedly brings the professional-level, advanced triple-lens technology to a wider application scenarios of homes and businesses. Combining three lenses of different focal lengths, respectively on a motorized body, the H80f Multi upgrades visibility, versatility and functionality to a greater extent.

01 360° plus 12× zoom, for every detail that matter

With the rotational triple-lens camera, you no longer need to install multiple cameras for different angles at difference distances. With the H80f Multi, you can control the camera to see from all directions, while smoothly zooming in and out with impressive clarity for even tiny details that need extra attention.

02 Big or small, seen on one screen

Whether you need to focus on distant objects or keep an eye on nearby activities, the H80f Multi camera has them in focus. It uses an advanced image processing technology to render both the wide-angle picture and the close-up details simultaneously on your phone screen. You can easily control the camera to patrol areas of interest, and adjust the zoom to check in-depth.

03 Control in a way that’s incredibly smooth

With its sophisticated functions and technology, the H80f Multi ensures satisfying user experience with simple controls. Even you zoom in fast for very far objects, the camera completes the tasks accurately even at night, without making loud noises. It also automatically adjusts how fast and wide it rotates based on how clear it sees, providing as much visual information as possible in a wiser way.

Smarter vison, better detection

The H80f Multi is smart enough to distinguish moving people and vehicles from other objects. You no longer need to constantly watch your camera or go through long video files to find an crucial moment – set up the detection preferences and let the camera inform you when it’s important.

Keep you better informed on both people and cars

It’s easy and smart to stay in the know with key visuals of important events triggered by people, cars or both. All detection videos, without being played in full length, are summarized and compiled in a list shown by their snapshots for quick understanding and browsing. You can filter the snapshots by different detection types.

Patrol automatically for areas that matter

The H80f Multi monitors your property vigilantly with its unique patrol mode. It pans and tilts precisely to your pre-set viewpoints, automating the whole security check routines for greater peace of mind.

Designed to make protection last all night

01 Impressive, far-reaching night vision

The H80f Multi camera ensures that no one sneaks in under the cover of darkness. It helps you see far enough to know what’s going on around your home.

02 Three useful night vision modes will suit any need

Full-color night vision
With its triple built-in spotlights, the H80f Multi adds lights to video for improved clarity, resulting in vibrant and detailed color imaging for enhanced home security.

Black-and-white night vision
If you don‘t want the lighting to disturb your neighbors, just go with the infrared night vision by changing on the EZVIZ App.

Smart night vision
Or, let the camera decide. In smart mode, the camera will automatically light up the environment upon detection of human motion.

Built to withstand harsh weathers

Designed for the outdoors, the camera maintains its performance even through rain, storm, and snow.

Active defense to deter & safeguard

Upon detection of intruders, the camera will set off a loud siren and flash dazzling spotlights to let the uninvited strangers know they have been detected.

Technical Specifications:

Camera
Image Sensor: 1/3” Progressive Scan CMOS × 3
Shutter Speed: Self-adaptive shutter
Lens:

• 2.8mm @ F1.6, view angle: 54° (Vertical), 96° (Horizontal), 110° (Diagonal)

• 6mm @ F1.6, view angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)

• 12mm @ F1.6, view angle: 14° (Vertical), 25° (Horizontal), 29° (Diagonal)
  PT Angle: Pan: 340°, Tilt: 70°
  Minimum Illumination: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
  Lens Mount: M12
  Day & Night: IR-cut filter with auto-switching
  DNR: 3D DNR
  WDR: Digital WDR
  BLC: Supports
  Night Vision: 30 m / 98 ft

Video & Audio
Max. Resolution: 2560 × 1440
Frame Rate: Self-adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD; Full HD; HD adaptive bit rate
Audio Bit Rate: Self-adaptive

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function
Smart Alarm: AI-Powered Human Shape Detection / Vehicle Detection
Customized Alert Area: Supports
Two-Way Talk: Supports
Auto Zoom Tracking: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)

General
Operating Conditions: -30°C to 50°C, Humidity 95% or less (non-condensing)
IP Grade: IP67
Power Supply: DC 12 V / 1.5 A
Power Consumption: Max. 18 W
Dimensions: 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 in)
Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 in)
Weight: Product: 575.7 g (20.31 oz), With Package: 979.89 g (34.56 oz)

Certifications
CE / UL / WEEE / RoHS / REACH

What's in the Box:

• Camera
• Drill Template
• Waterproof Kit
• Screw Kit
• Power Adapter
• Regulatory Information × 2
• Quick Start Guide
•
