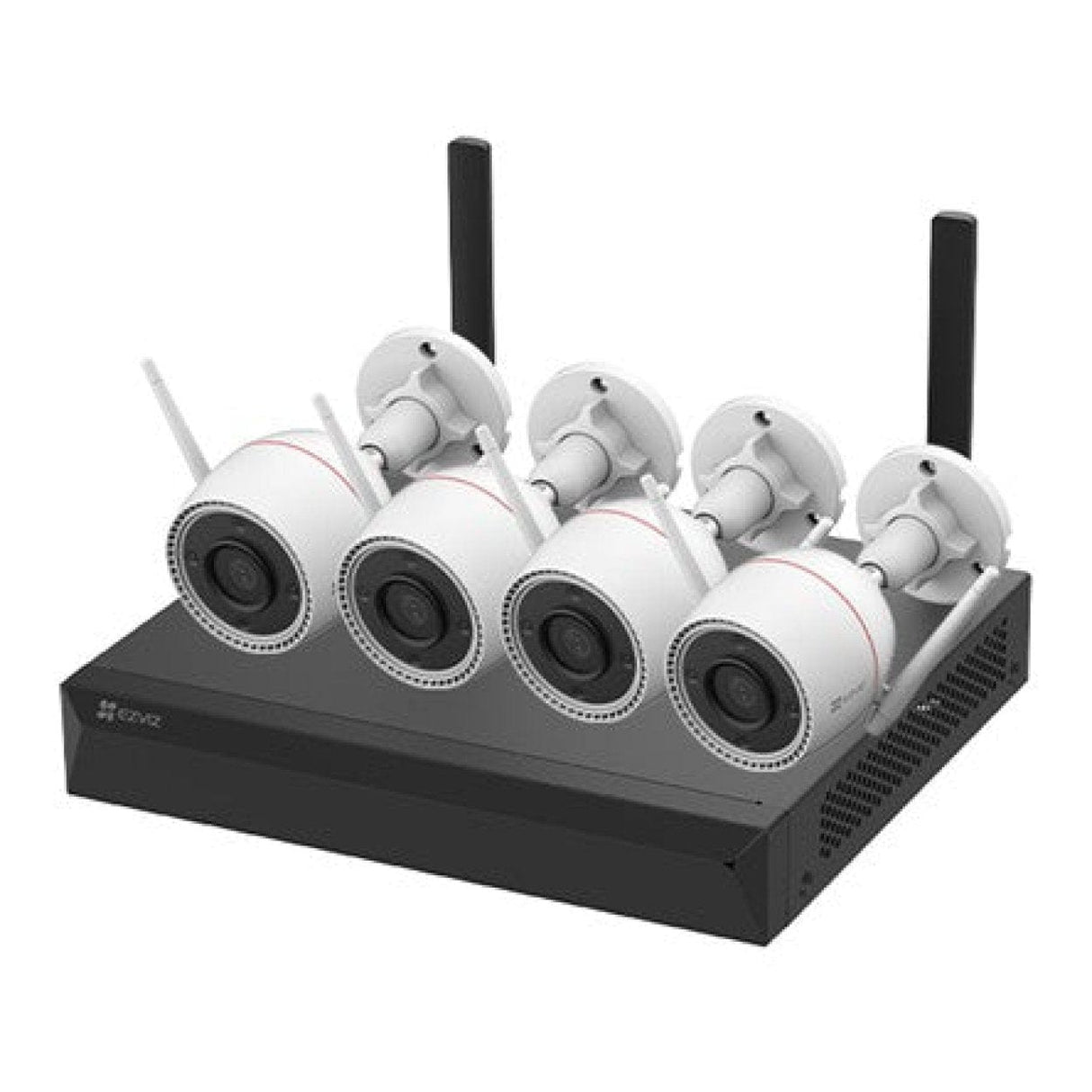

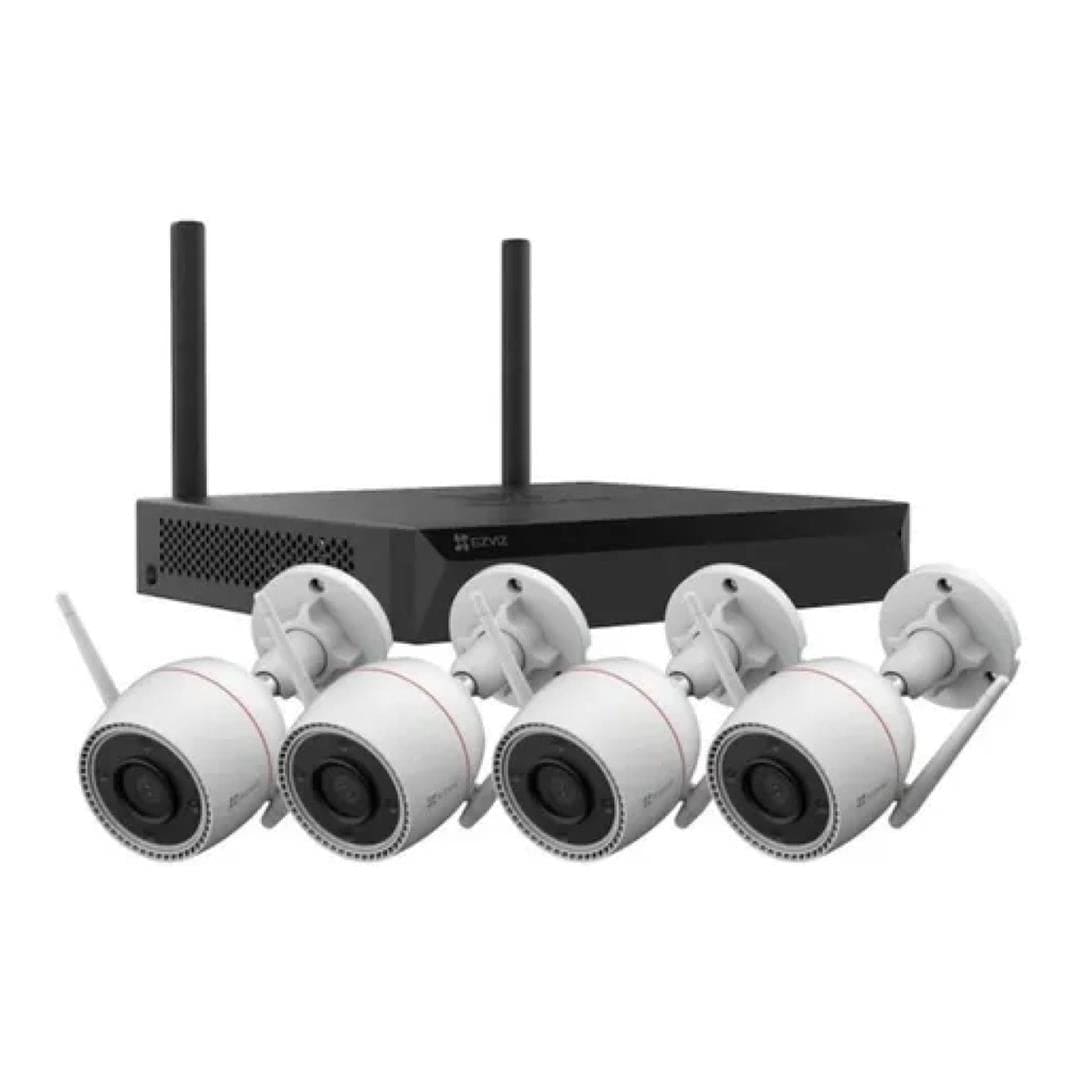

EZVIZ H3c 2K Smart Wi-Fi Camera Security System NVR Kit CS-BW3844-A0E60

EZVIZ H3c 2K Smart Wi-Fi Camera Security System NVR Kit CS-BW3844-A0E60

With this latest kit from EZVIZ, it’s easy to create a professional outdoor security system for your home or business. The four H3c 2K cameras run over Wi-Fi connections and have weatherproof housings, allowing them to be installed more flexibly around your property to provide a high level of protection thanks to their smart features. The included X5S NVR provides reliable centralized storage for all the footages from the four-camera system, so you always have all the important videos inside the house backed up in one place.

Specifications

Image Sensor: 1/2.7”Progressive Scan CMOS

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision Distance: Up to 98 ft / 30 m

Shutter Speed: Self-adaptive shutter

Lens: 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

Lens Mount: M12

DNR: 3D DNR

WDR: Digital WDR

Day / Night Switch: IR-Cut filter with auto-switching

Max. Resolution: 2K+ (2560 × 1440)

Frame Rate: Self-adaptive during network transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 2 Mbps

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

NVR Specifications

Model: CS-X5S-R100-8W

Wireless/Wired IPC Access Capability: 3K × 8

Antenna Number: 2

Max Wireless Range: 100m

Radio Frequency: 2.4G

Ethernet Port: One 10/100M adaptable Ethernet interface

Required Access Bandwidth: 100Mbps

VGA: 1 channel (identical to HDMI output) resolution up to 1920 × 1080/60Hz

HDMI: 1 channel resolution up to 2592 × 1944/30HZ

Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

Video Encoding: H.265, H.264

Decode Playback: Supports 8 × 3K

Open Protocol Support: EZVIZ; HIKVISION; ONVIF (2.5)

In the Box:

• H3c 2K+ Camera × 4
• X5S NVR- HDMI Cable
• Power Adapter × 5
• Mouse- Drilling Template × 4
• Waterproof Kit × 4
• Screw Kit × 4
• Regulatory Information
• Quick Start Guide
