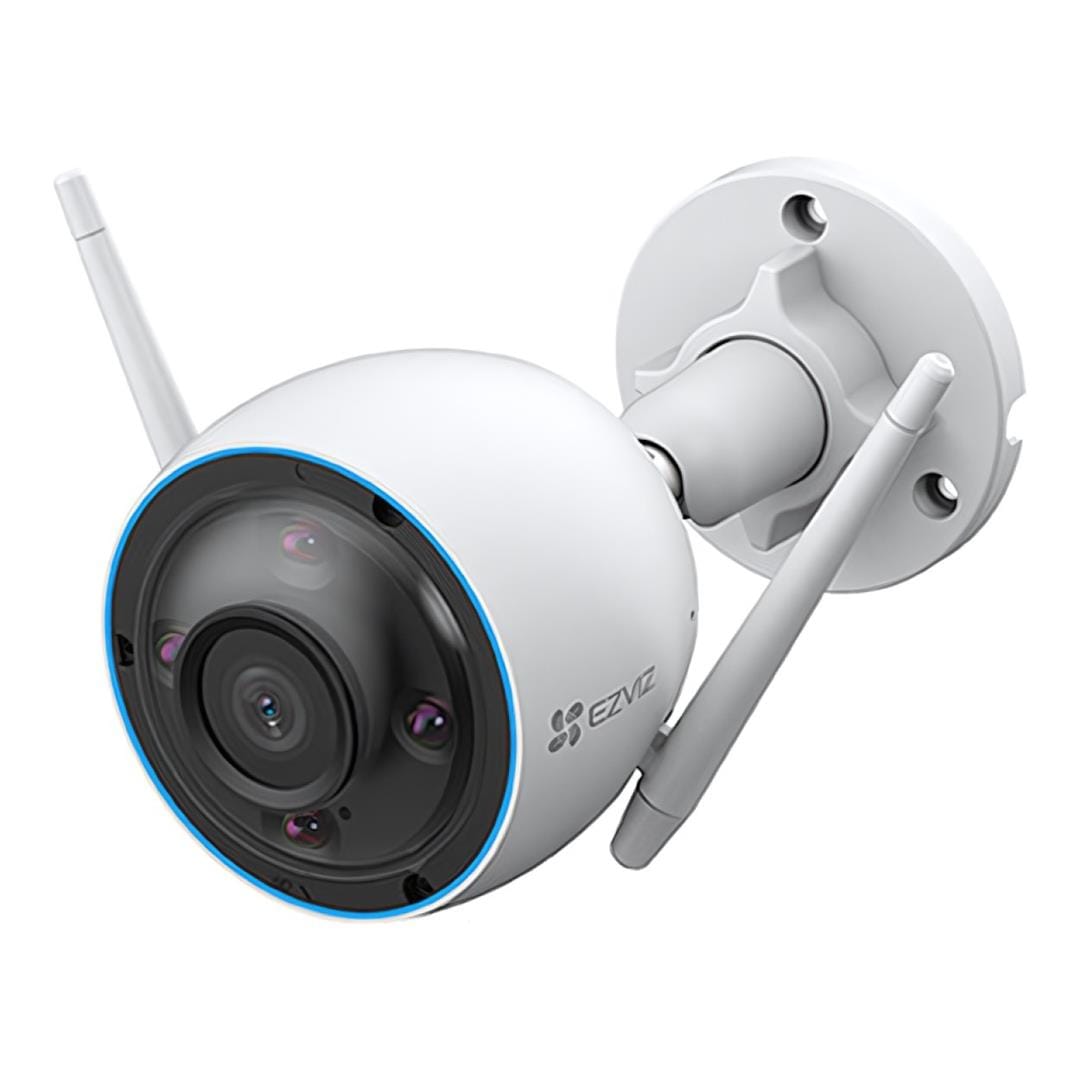

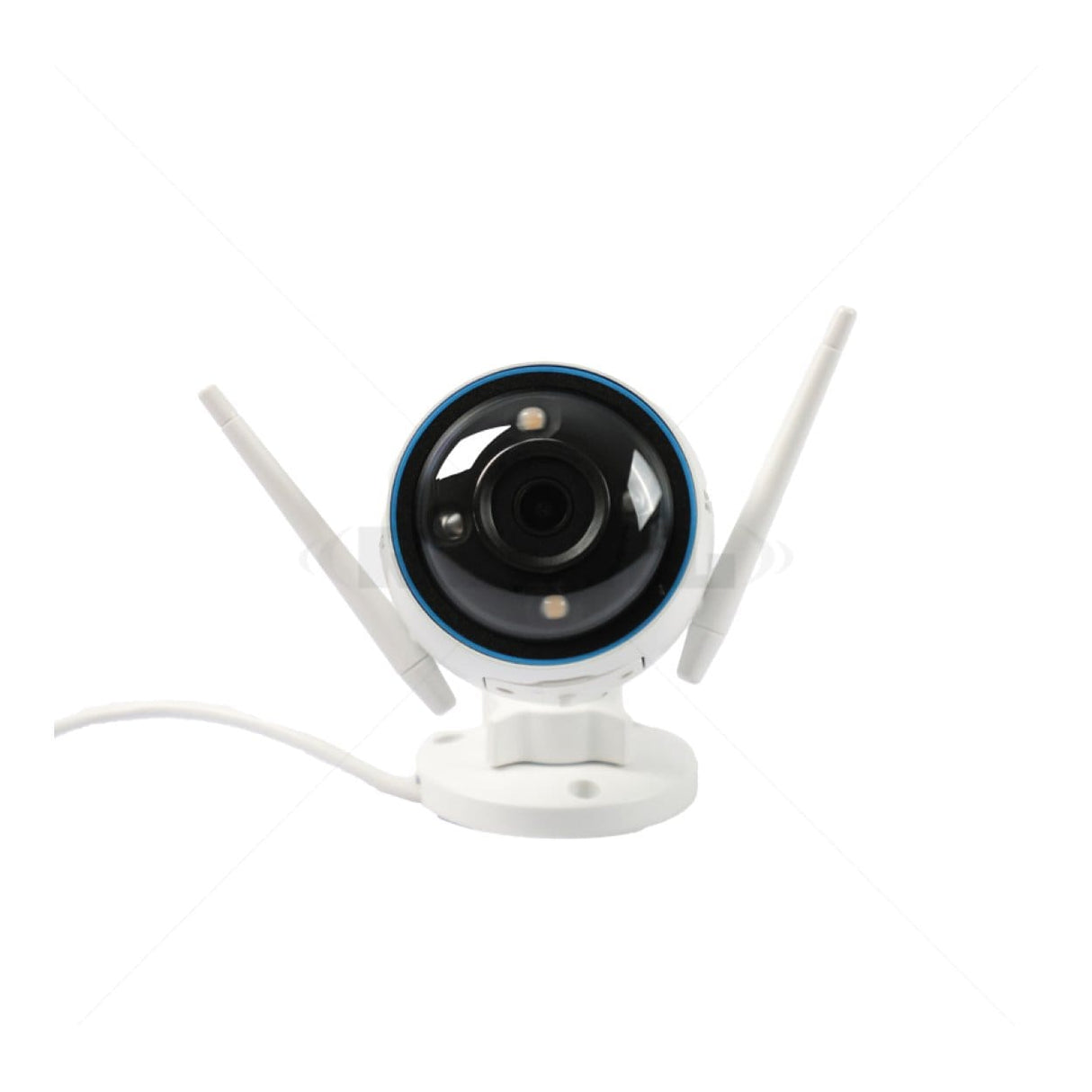

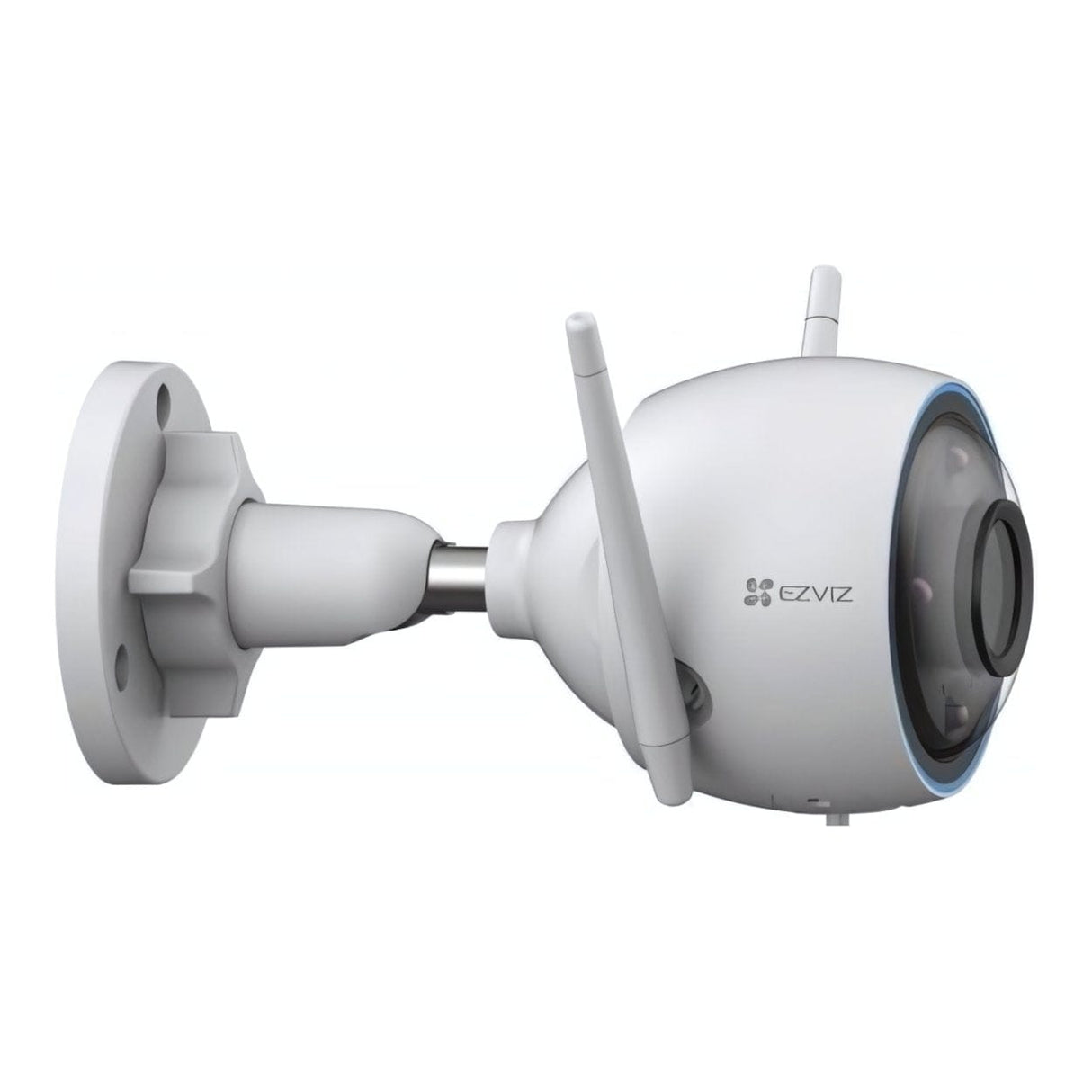

EZVIZ H3 3MP 2K Wi-Fi Smart Home Camera CS-H3-R100-1H3WKFL(2.8mm)

EZVIZ H3 3MP 2K Wi-Fi Smart Home Camera CS-H3-R100-1H3WKFL(2.8mm)

Trusted outdoor protection with added smarts

Don’t miss the H3 2K camera if you want everything essential for home protection alongside some additional, useful smart features. The H3 2K sends smarter notifications particularly on walking people or moving cars, and provides you with the option to customize your detection area. Rendering everything in 2K clarity with color night vision available, it is also the right one to pick if you need a clearer vision on large outdoor spaces – from backyard and home entrance, to family farms and parking lots.

It makes it hard to lose an important detail

Bringing its vision to 2K, the camera can render vivid, clear images in all lighting conditions. Even visitors backlit by the sun can be seen in clarity, without appearing dark with an overly exposed background.

On-device AI for smarter detection

The camera’s on-board AI algorithm helps it identify moving people and vehicles in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

Rest assured, knowing your night is well protected

The camera makes sure that no one can easily sneak in under the cover of darkness. Choose between the color mode or the infrared mode as you’d like. Or, you can set the camera to the “smart night vision” mode so its vision can automatically switch from black-and-white to full color upon motion detection.

A vigilant guard that works 24/7

The camera features the active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights³ for on-site deterrence.

Greeting can be this easy

Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages that automatically playwhen people are detected on camera.

Durable in any weather

With an IP67-rated enclosure, the H3 2K ensures long-lasting performance even under the toughest weather conditions-whether it is rainy, stormy or snowy.

Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.

Technical Specifications:

General
Dimensions: 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch)
Package Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Weight: Net weight: 438 g (15.45 oz), With package: 676 g (23.84 oz)
IP Grade: IP67
Operating Conditions: -30 °C ~ 60 ºC (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 2.8mm @ F2.0, viewing angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical); 4mm @ F2.0, viewing angle: 102° (Diagonal), 86° (Horizontal), 44° (Vertical)
Minimum Illumination: 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Mount: M12
Day / Night Switch: IR-Cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
IR Night Vision Distance: Up to 98 ft / 30 m

Video & Audio
Max. Resolution: 2304 × 1296 pixels
Frame Rate: Max: 30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; Full HD; HD; Standard. Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 3 Mbps

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function
Detection: AI-Powered Human / Vehicle Shape Detection, Motion Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant, IFTTT
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

Power
Wiring: Hard-Wired
Power Supply: DC 12V / 1A
Power Consumption: Max. 7W

Certifications
CE / FCC / UKCA / UL / WEEE / RoHS / REACH

What's in the Box:

• EZVIZ H3 2K Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
