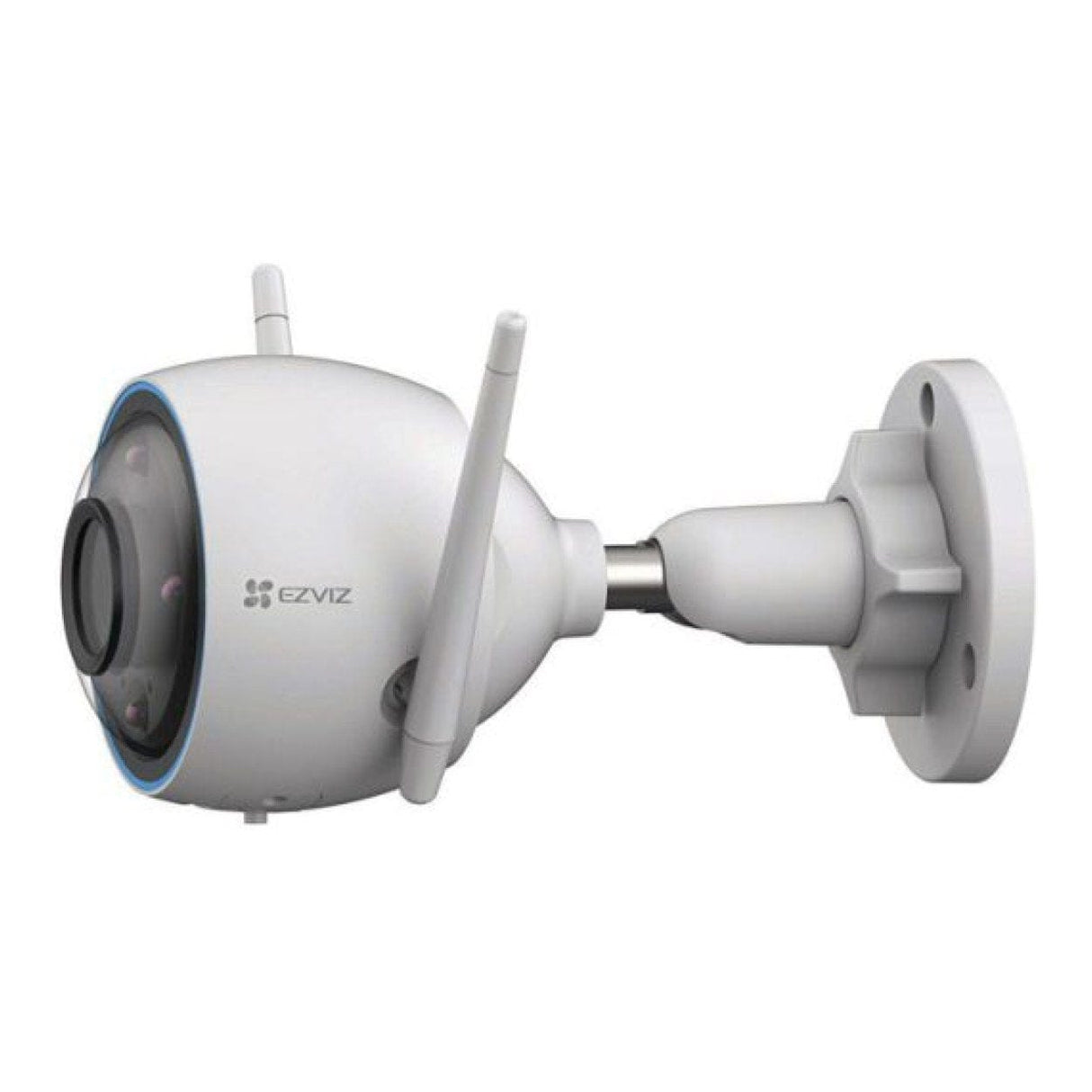

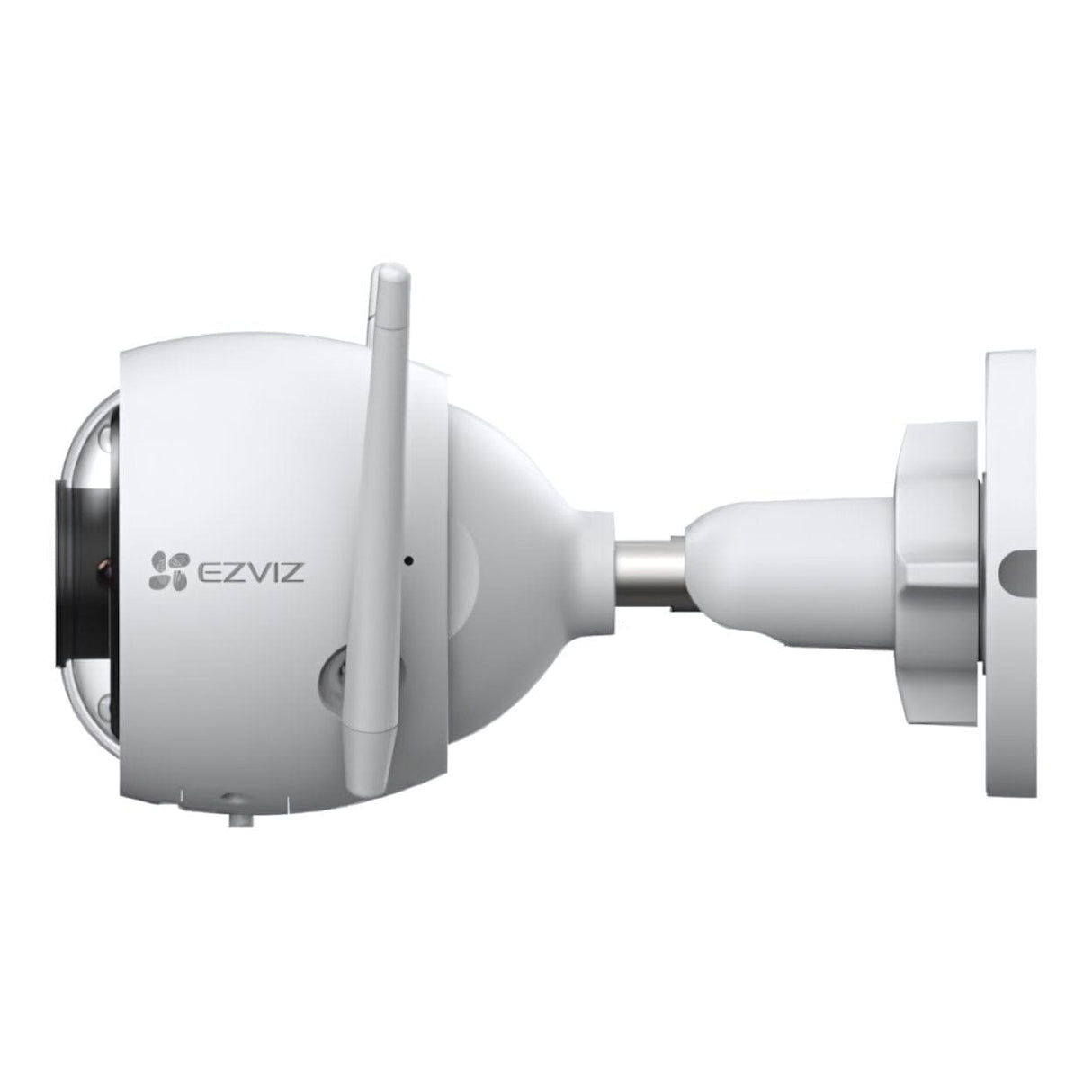

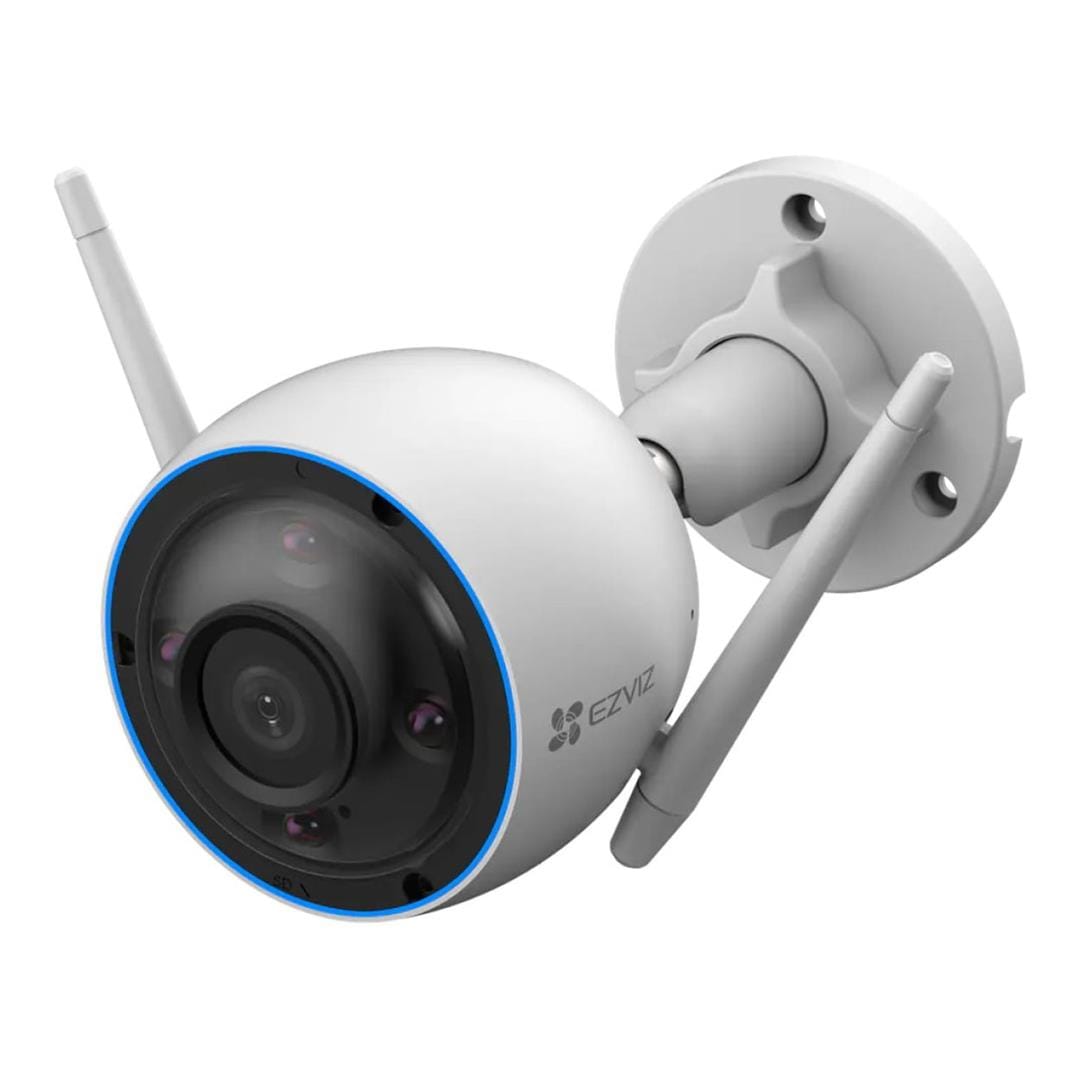

EZVIZ H3 3K Wi-Fi Smart Home Camera CS-H3-R100-1J5WKFL(2.8MM)

EZVIZ H3 3K Wi-Fi Smart Home Camera CS-H3-R100-1J5WKFL(2.8MM)

Trusted outdoor protection with added smarts

It's possibly one of the most durable and feature-rich home cameras made for 24/7 home protection. Thanks to the built-in AI, the H3 3K sends smarter notifications on detected people, vehicles, and even a waving hand. Rendering everything in 3K clarity with color night vision, it is the right one to pick if you need a clearer view on large outdoor space – from backyard and home entrance, to family farms and parking lots.

See much more and stay more in the know

With stunning 3K video clarity, it’s hard to miss an important detail. Wherever and whenever, you can view important activities happening at home as if you were right there.

Receive smarter notifications

The camera’s on-board AI algorithm helps it identify moving people and vehicles in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

Get in touch by simply waving your hand

People can wave at the camera to initiate a video call to your phone². Whenever your kids come home from school, they can let you know.

Rest assured, knowing your night is well protected

The camera makes sure that no one can easily sneak in under the cover of darkness. Choose between the color mode or the infrared mode as you’d like. Or, you can set the camera to the “smart night vision” mode so its vision can automatically switch from black-and-white to full color upon motion detection.

A vigilant guard that works 24/7

The camera features the active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights³ for on-site deterrence.

Greeting can be this easy

Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages that automatically play when people are detected on camera.

Metal-bodied for tough conditions

The H3 3K features an IP67-rated enclosure made of strong Aluminum alloy. The camera is ready and sturdy for any weather, whether it is rainy, stormy or snowy.

Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.

Enhanced viewing pleasure with smaller video files

Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded 3K videos. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology reduces their sizes by up to 50%⁵.

We do our best to protect data and privacy

We design the H3 3K to respect every private space, and to secure every byte of your data. You can set up no-filming privacy zones⁶ on EZVIZ App to make sure recording only happens when it’s appropriate and allowed. Meanwhile, your recordings is fully encrypted from end to end to stay private and secure.

Technical Specifications:

General
Dimensions: 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 in)
Package Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 in)
Weight: Net 433 g (15.27 oz), With Package 652 g (23.00 oz)
IP Grade: IP67
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity ≤95% (Non-condensing)

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens:

• 2.8 mm @ F2.0, Viewing Angle Diagonal 114°, Horizontal 96°, Vertical 51°

• 4 mm @ F2.0, Viewing Angle Diagonal 95°, Horizontal 80°, Vertical 42°
  Minimum Illumination: 0.01 lux @(F2.0, AGC ON), 0 Lux with IR
  Lens Mount: M12
  Day / Night Switch: IR-Cut filter with auto-switching
  DNR: 3D DNR
  WDR: Digital WDR
  BLC: Supports
  IR Night Vision Distance: Up to 30 m / 98 ft

Video & Audio
Max. Resolution: 2880 × 1620 pixels
Frame Rate: Max 30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD+, Full HD, HD, Standard (Adaptive bit rate)
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2.5 Mbps

Network
Wi-Fi Standard: IEEE802.11b / g / n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions
Detection: AI-Powered Human/Vehicle Shape Detection, Waving-Hand Detection, Motion Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant, IFTTT
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage
Local Storage: MicroSD card (Up to 512 GB)
Cloud Storage: EZVIZ CloudPlay storage (Subscription required)

Power
Wiring: Hard-Wired
Power Supply: DC 12V / 1A
Power Consumption: Max 8W

Certifications
CE / FCC / UKCA / UL / WEEE / RoHS / REACH

What's in the Box:

• EZVIZ H3 3K Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
