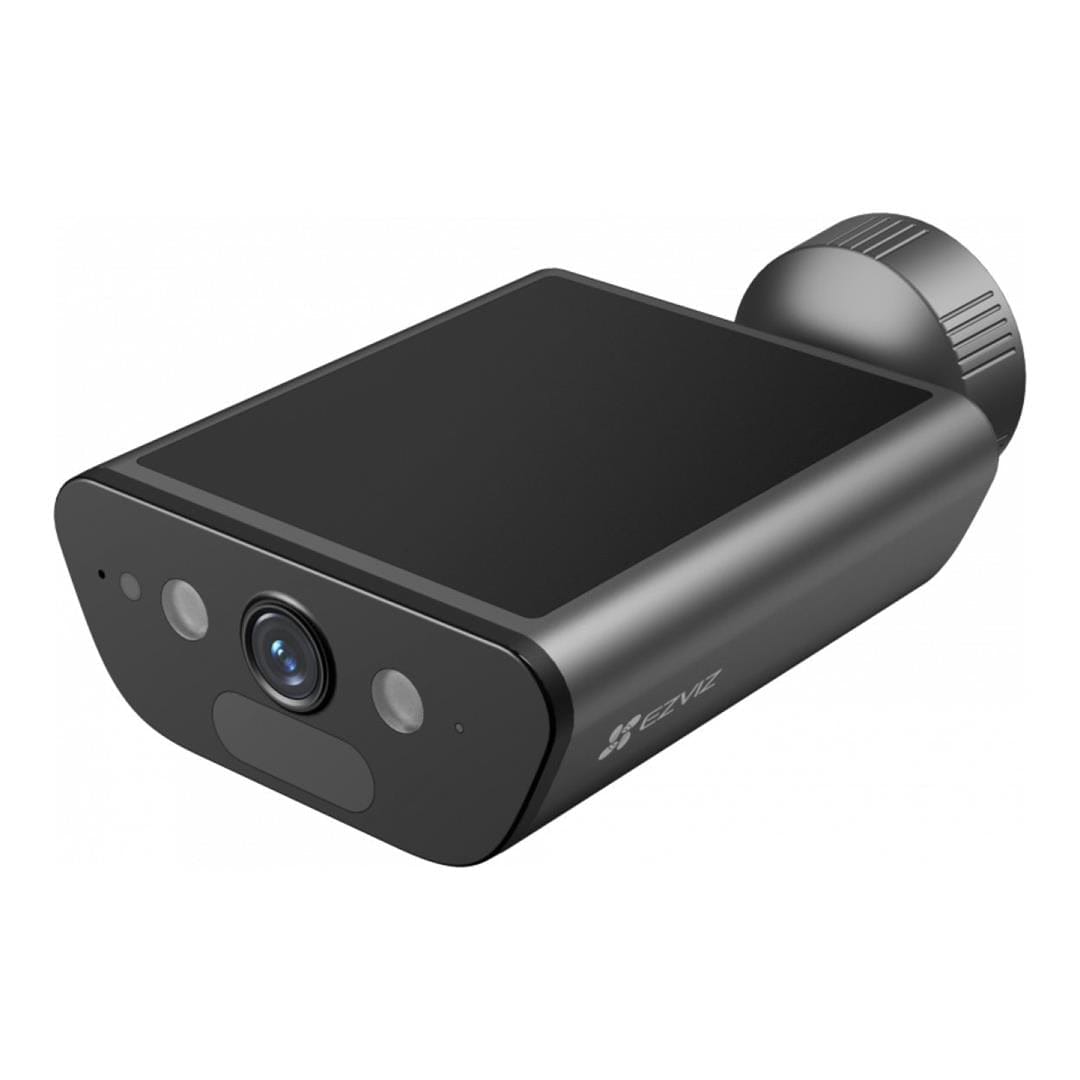

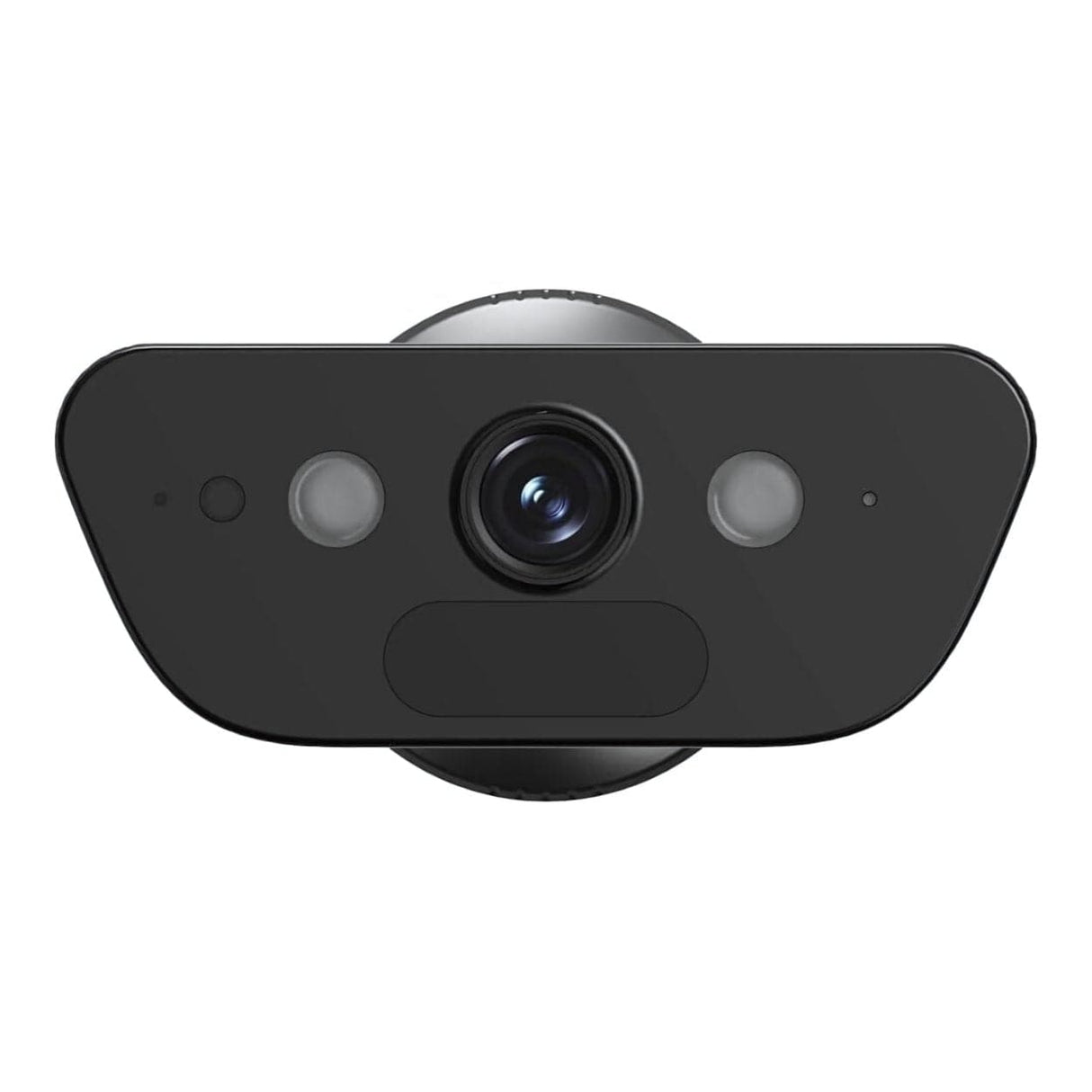

EZVIZ CSHB8 4MP Smart Home Solar Battery Camera CS-EB5-R100-2F8WFL

EZVIZ CSHB8 4MP Smart Home Solar Battery Camera CS-EB5-R100-2F8WFL

Solo. Solar. Sophisticated.

The EB5 presents itself with the highest functionality and smartness of EZVIZ, but the least concerns regarding installation and daily maintenance. It comes packed with an intuitive collection of smart detections upon human and vehicle, sends instant alerts and records important moments in 4K video. With its sleek and gray appearance, it fits well into low-key exterior house design. By consuming green solar energy instead of wired power, the family no longer has to worry about the security-related electricity bill.

Non-stop power. Unprecedented easiness.

Solar style, green lifestyle

No electricity wiring available but desire continuous power? The EB5 turns every ray of the sunshine as its free source of energy. Only two hours of direct sunlight every day keep the camera running nonstop.² Even when it’s rainy season, the onboard 10,400mAh large battery ensures the EB5 operates up to 180 days uninterruptedly.

Wire-free, hassle-free

Install EB5 effortlessly – no wires, no hubs and no extra solar panels. Its compact design makes it easy to change its location to find the best sunny spot.

Exceptional vision. Go beyond details.

Time for 4K Ultra HD

We advance the lens of the EB5 to render stunning 4K videos, so even the smallest detail that usually slips your attention now becomes crystal clear. Use the EB5 to oversee expansive outdoor landscapes with precision, and relive precious family moments like never before.

True-to-life night vision

The EB5 delivers vibrant, full-color live feeds at night with its integrated spotlights. Equipped with the F1.6 aperture, it ensures crisp visuals in low-light condition, too. You can set the camera on a smart mode to auto-switch between the two night visions.

The power to protect, now always on

With EZVIZ’s innovative AOV technology, the EB5 provides a plenty of recordings beyond PIR-triggered events, while managing power consumption much more efficiently.

02Always protects, far or near

When the AOV is on, the camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears in the camera, even if they are outside the range of the PIR sensor, the camera will notice that and inform you immediately.

Powerful detection without a subscription

The EB5 starts detecting important activities around your home the moment that you have it installed, without any hidden fee to lock out advanced features. It smartly distinguishes people and cars from other trivial moving objects, so you do not receive tons of unwanted notifications.

Extra-large storage for everyday videos

Even huge video files and detection clips in a busy day can be properly and safely stored without a problem. You can use a large microSD card to keep everything locally without any commitment to a monthly plan. Or, simply enjoy the services provided by the EZVIZ CloudPlay⁶ for less hassles.

Trusted performance. Ready for the outdoors.

Enhanced connectivity in even large houses

Even when installed outside of houses with thick walls and large transmission range, the EB5 is able to remain vigilant and responsive with a stable Wi-Fi network, thanks to the Wi-Fi 6 technology.

Built to last long

The EB5 is made with a durable, weatherproof enclosure. You can always trust on its performance against rain, dust and snow.

Technical Specifications:

Camera
Image Sensor: 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8mm @ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical)
Day & Night: IR-Cut filter with auto-switching
DNR: 3D DNR
Night Vision: IR Distance 15m, Color Night Vision Distance 15m

Video & Audio
Max. Resolution: 3840 × 2160
Frame Rate: 15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 4 Mbps

Network
Bluetooth: Supports
Wi-Fi Standard: IEEE802.11b / 802.11g / 802.11n / 802.11ax
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK / WPA2-PSK, WPA3-Personal
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps, 11ax: 114 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud proprietary protocol
Interface Protocol: EZVIZ Cloud proprietary protocol
Minimum Network Requirement: 8 Mbps

Function
Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
Two-way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: EZVIZ Cloud storage

General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), humidity 95% or less (Non-condensing)
IP Grade: IP65
Power Supply: DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity: 10400 mAh
Power Consumption: Max. 10W
Product Dimensions: 166 × 103 × 54 mm
Packaging Dimensions: 227 × 167 × 64 mm
Weight: Net 466 g, With Package 822 g

Certifications
Certifications: CE / REACH / WEEE / RoHS

What's in the Box:

• Camera
• Power Cable
• Screw Base
• Drill Template
• EZVIZ Screw Kit
• Regulatory Information
• Quick Start Guide
