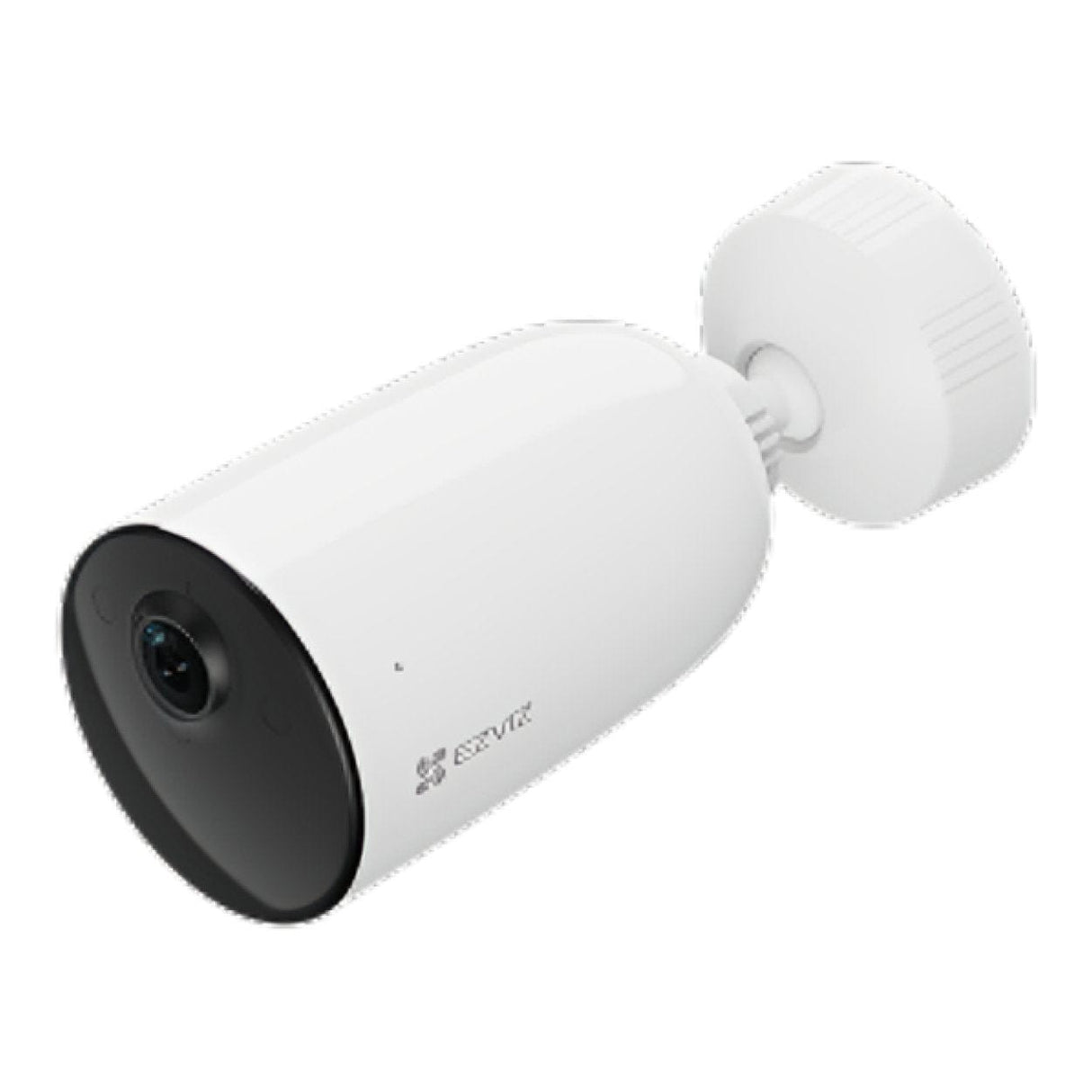

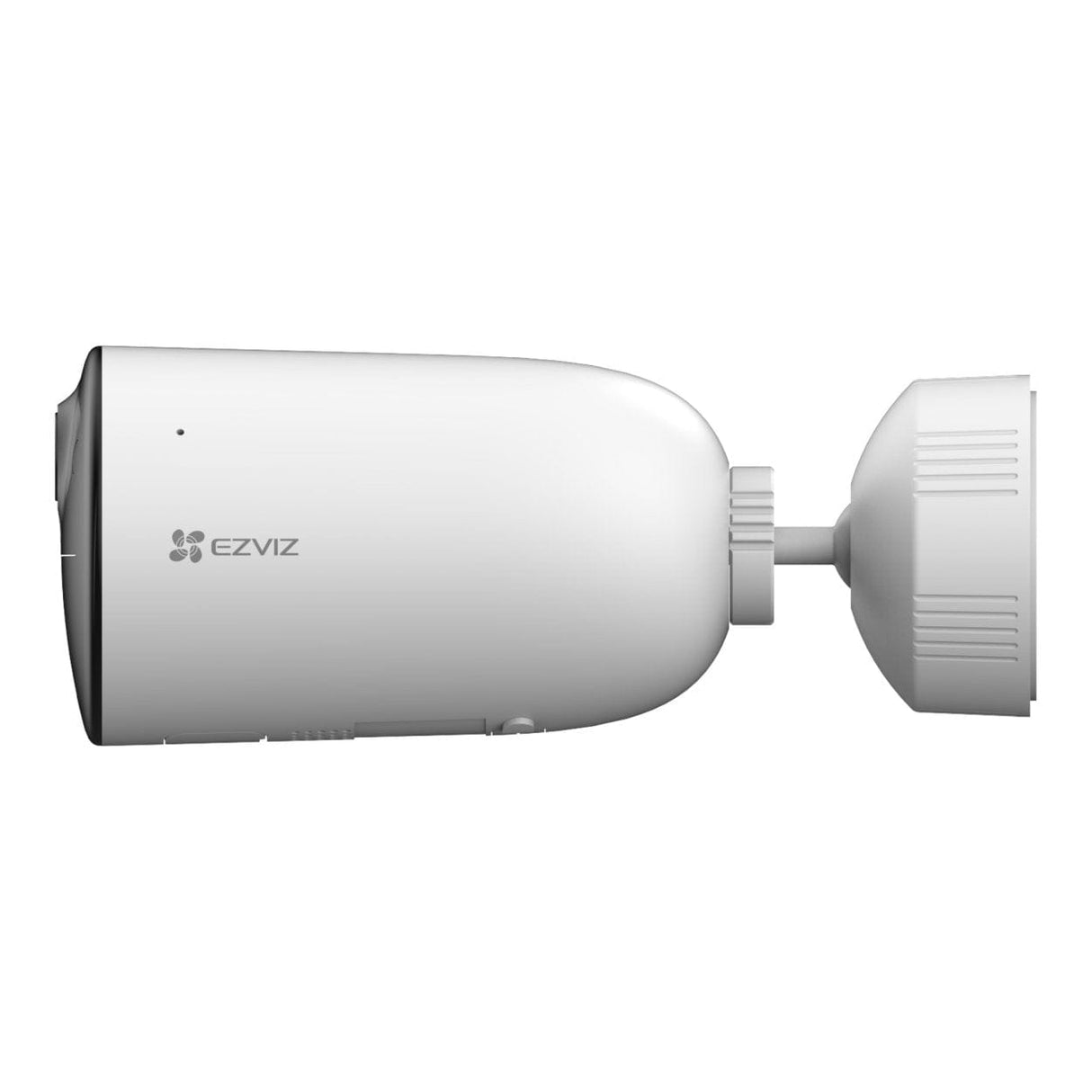

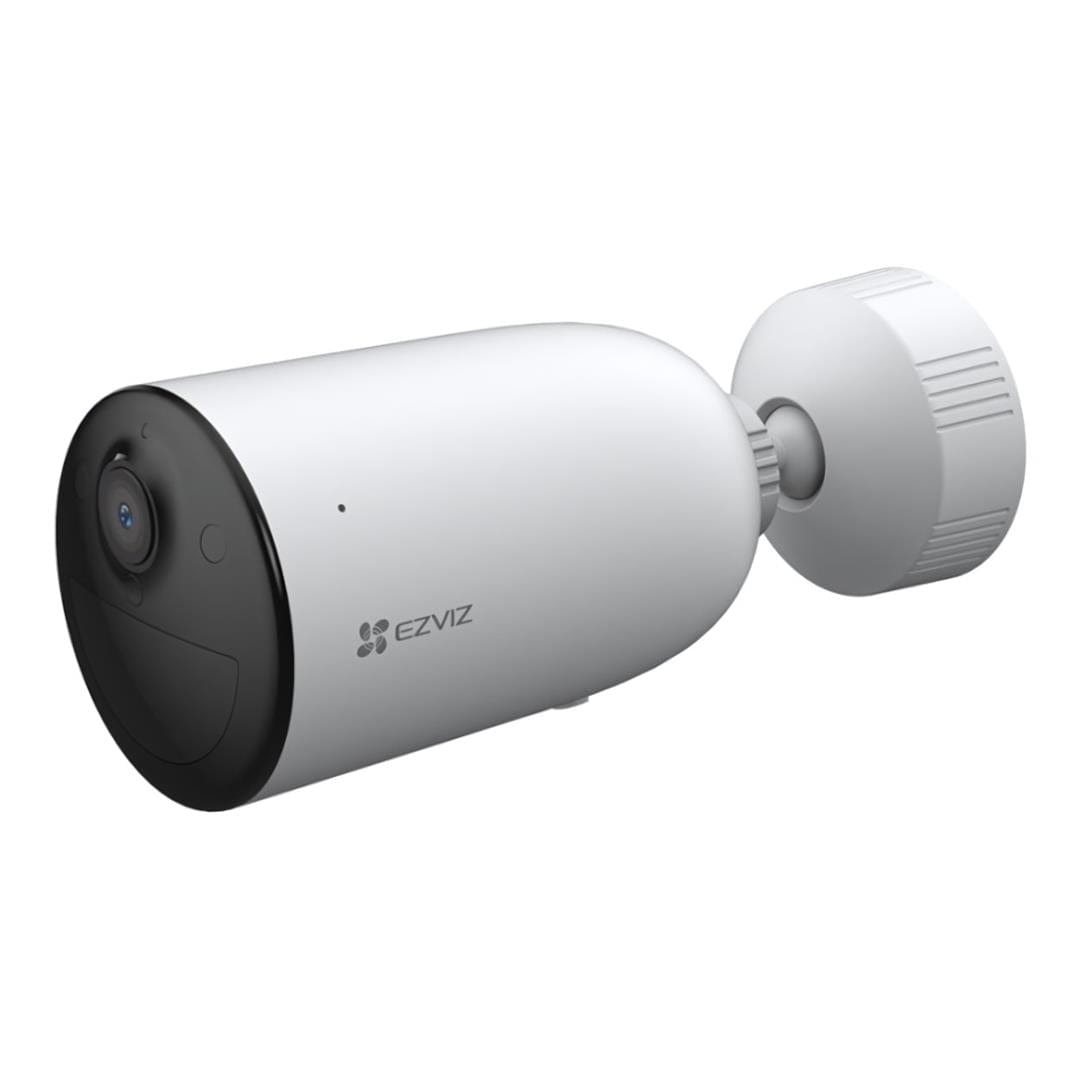

EZVIZ CB3 AOV Version 2K Smart Home Battery Camera CS-CB3-R200-1K3WFL

EZVIZ CB3 AOV Version 2K Smart Home Battery Camera CS-CB3-R200-1K3WFL

Reliable protection made simple and flexible

Enjoy enhanced outdoor protection in a smarter way with the upgraded EZVIZ CB3, now equipped with EZVIZ’s latest Always-On Video (AOV) feature to enable 24/7 recording on a battery-powered camera for extended peace of mind. Boasting various features such as advanced detection, colorful night vision, active defense and more, it actively guards what’s valuable to you with versatile remote controls and requires only extremely easy installation for long-lasting performance.

The power to protect, now always on

With EZVIZ’s innovative AOV technology, the CB3 provides a plenty of recordings beyond PIR-triggered events, while managing power consumption much more efficiently.

01 Always records, scenes or events

Want all-day recording video but worry about the battery will run out too quickly? Use the AOV mode. The CB3 can connect and process the images captured at preset time intervals to render a continuous time-lapse video that shows you changes in the environment.⁴ When an important human activity happens, the camera starts recording a normal video, so you don't miss an important detail.

02 Always protects, far or near

When the AOV is on, the camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears in the camera, even if they are outside the range of the PIR sensor, the camera will notice that and inform you immediately.

Cost-saving and hassle-free security solution

The CB3 camera completely eliminates the hassle of electricity wiring and frequent recharging – it has a large built-in battery, and supports working with a flexible range of the EZVIZ Solar Panels². It is a greener option for those who’re eco-conscious about building their home security system.

Smarter detections are unlocked for free

Say goodbye to a long list of annoying alerts that only capture flying insects or falling leaves. The CB3 is capable of detecting people and cars in particular, while providing flexible settings for you to customize the detection area and sensitivity. It pushes notifications to your phone when it’s truly worthy of your attention.

Stunning detail with 2K resolution

The EZVIZ CB3 features crystal clear 2K resolution to provide advanced detail capturing. It makes sure you never miss a single important moment happening at home.

Night is now bright and colorful

Blurred and pixelated night vision is now a thing of the past. The CB3 uses a large F1.6 aperture lens to capture more light when the sun goes down and uses two spotlights to brighten up a completely dark space to render colorful view.

Faster connections, boosted coverage

Being Wi-Fi 6-enabled means that the CB3 is far less likely to face network challenges when operating outside your house. In addition to enhanced Wi-Fi connection stability, you can enjoy smoother 2K video streaming and faster camera response when controlling it remotely.

Technical Specifications:

Camera
Image Sensor: 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8 mm @ F1.6
Diagonal angle: 130°
Horizontal angle: 108°
Vertical angle: 56°
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
Night Vision: IR Distance: 15m, Color Night Vision Distance: 15m

Video & Audio
Max. Resolution: 2304 × 1296
Frame Rate: 15 fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad-HD; Full HD; Hi-Def; Standard Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1.5 Mbps

Network
Bluetooth: Supports
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement: 4 Mbps

Function
Smart Alarm: AI-powered human shape detection, AI-powered vehicle shape detection
Two-way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade: IP65
Power Supply: DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity: 5200 mAh
Power Consumption: Max. 10W
Product Dimensions: 153.3 × 62.95 × 62.95 mm
Packaging Dimensions: 103 × 103 × 186 mm
Weight: Net Weight: 222.7 g, With Package: 569 g

Certifications: CE / REACH / WEEE / RoHS

What's in the Box:

• CB3 (AOV Version) Camera
• Screw Base
• Pin
• Power Cable
• Drill Template
• Screw Kit
• Regulatory Information × 2
• Quick Start Guide
