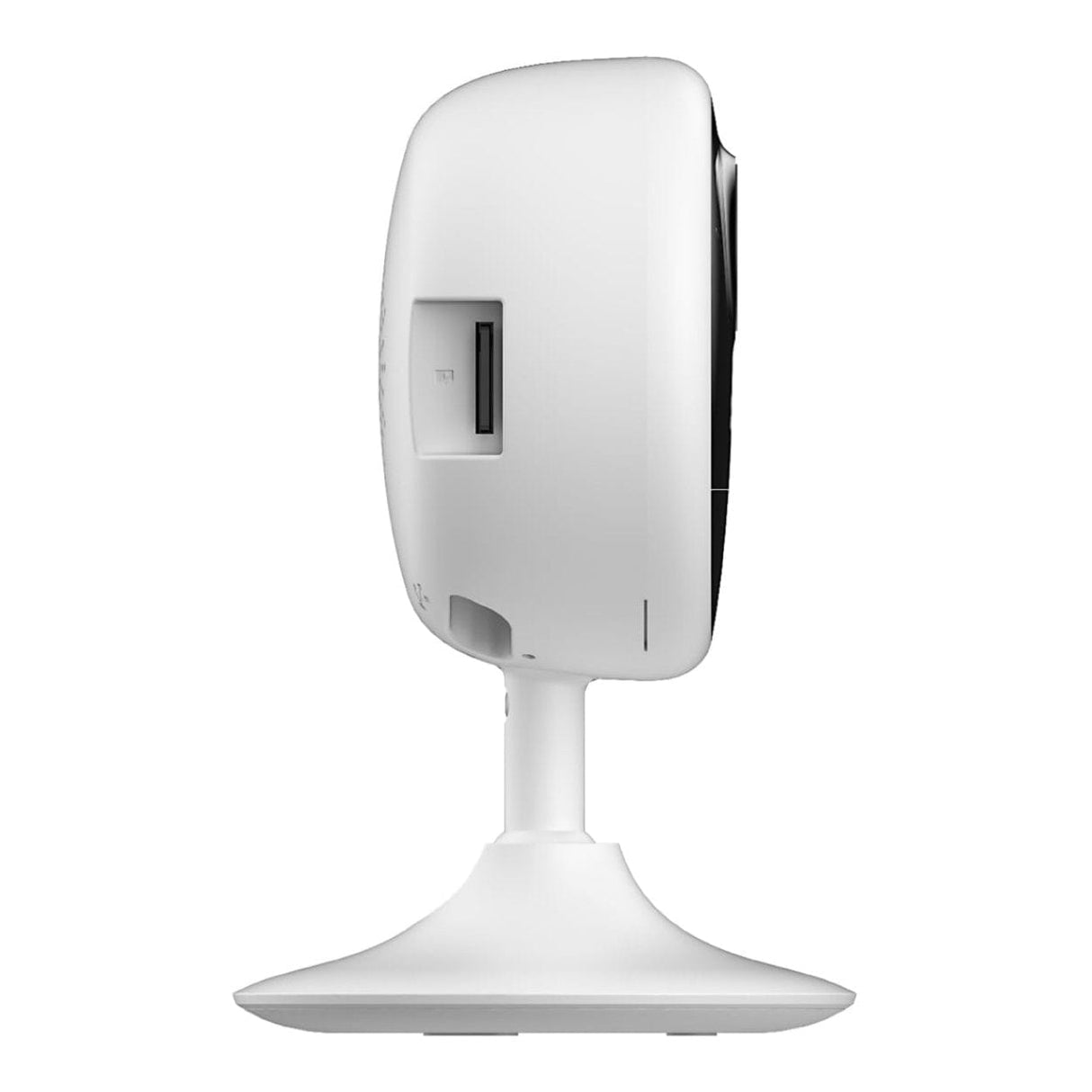

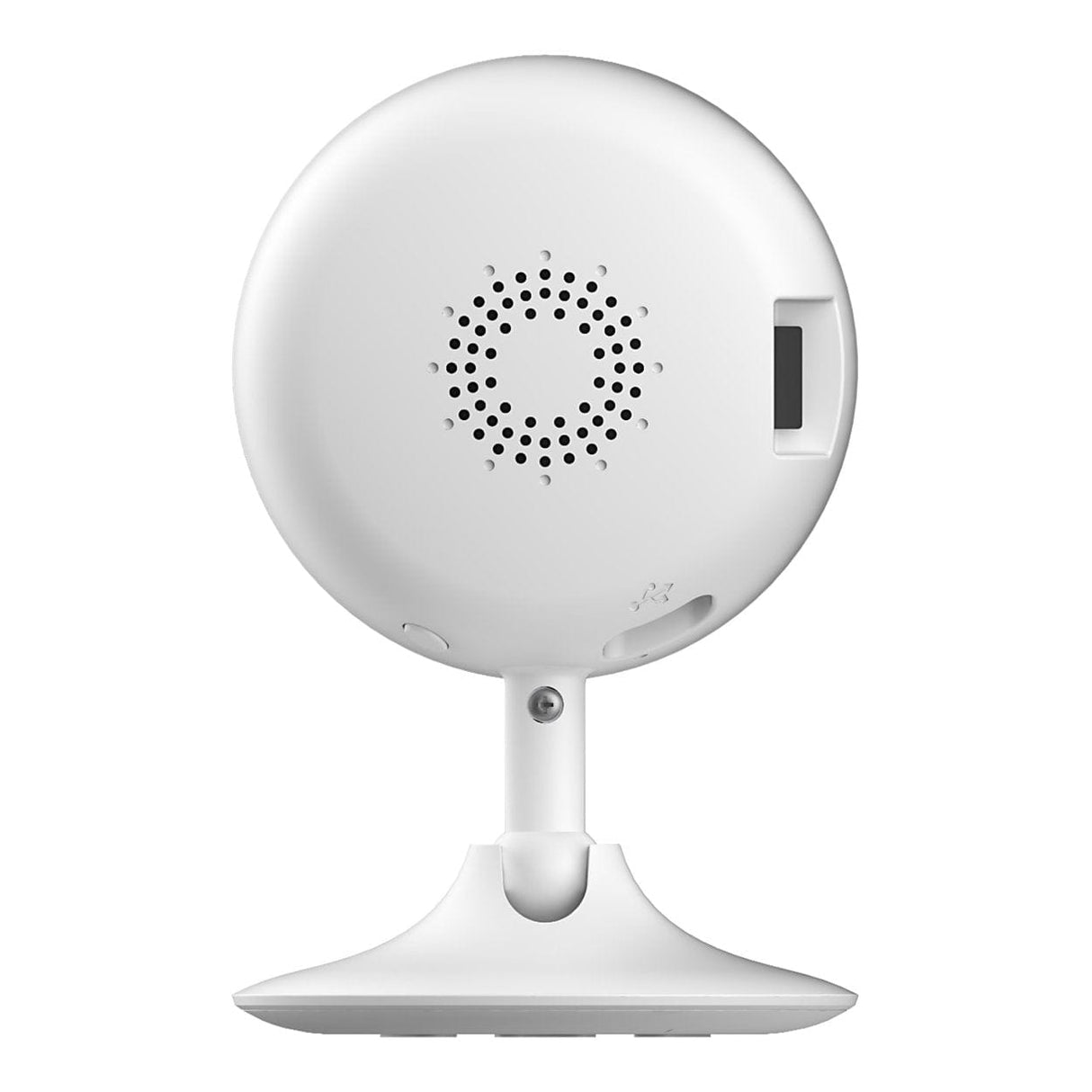

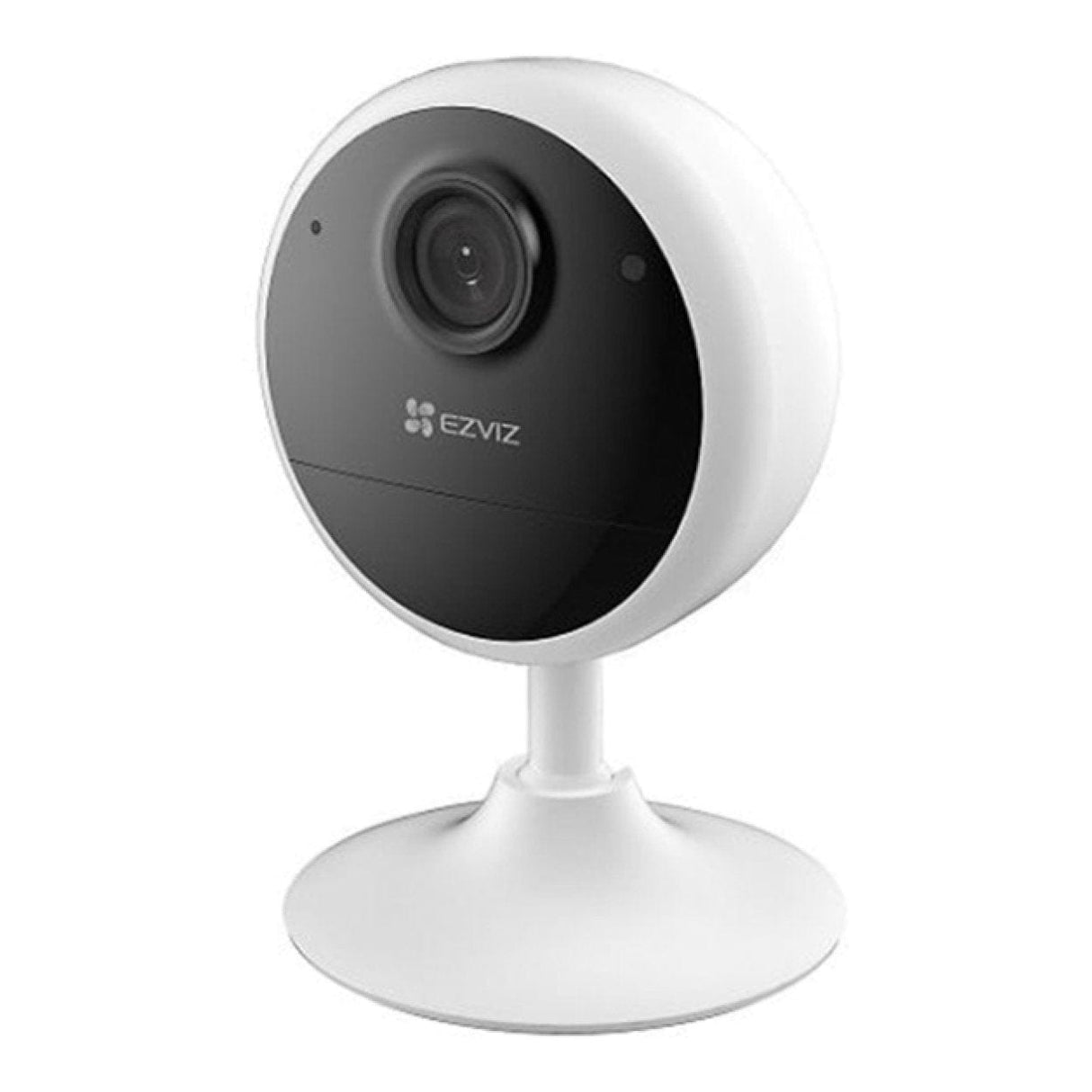

EZVIZ CB1 Wi-Fi Smart Home Battery Camera CS-CB1-R100-1K2WF

EZVIZ CB1 Wi-Fi Smart Home Battery Camera CS-CB1-R100-1K2WF

A versatile choice for simpler protection

The CB1 is EZVIZ’s new flexible and reliable indoor battery camera that can basically go anywhere inside your home. Thanks to its wire-free design and adjustable magnetic stand, you will easily find the perfect spot to get the most areas in your living space. This camera also comes packed with several essential features, including great video quality and night vision, human motion detection, two-way communication, sleep mode, and more.

No strings attached

Powered by a built-in 1,600 mAh battery, the CB1 helps you add peace of mind anywhere indoors. It requires no power or data cables to set up, and runs up to 40 days on a full charge¹ to deliver reliable protection – even during electrical outages.

Installation simplified

With the CB1, you can enjoy multiple placement options. Put it on a flat surface, snap it onto any metallic surface in your garage or living room, or mount it to the ceiling to get optimal coverage.

Technical Specifications:

Camera
Image Sensor: 1/3” 2-Megapixel Progressive Scan CMOS Sensor
Shutter Speed: Self-Adaptive Shutter
Lens: 2.8mm @ F2.2; Viewing angle: Diagonal 113°, Horizontal 90°, Vertical 50°
Minimum Illumination: 0.1 Lux
Lens Mount: M12
Day & Night: IR-cut Filter with Auto Switch
DNR: 3D DNR
Night Vision: Up to 5 m / 16 ft

Function
Smart Alarm: Supports smart human motion detection
Customized Alert Area: Supports
Two-way Talk: Supports

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)

Video & Audio
Max. Resolution: 1920 × 1080
Frame Rate: 15 fps; Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Full HD; Hi-Def; Standard
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1 Mbps

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: Does not support
Minimum Network Requirement: 2 Mbps

General
Operating Conditions: -10°C to 45°C (14°F to 113°F), Humidity 95% or less (Non-condensing)
Power Supply: DC 5V / 1A (Purchased Separately)
Battery Capacity: 1600 mAh
Dimensions: 67 × 63 × 105 mm (2.64 × 2.48 × 4.13 in)
Packaging Dimensions: 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 in)
Bare Weight: 135 g (4.76 oz)

Certifications
CE / WEEE / RoHS / REACH / UL

What's in the Box:

• CB1 Camera
• Power Cable
• Foam Sticker
• Mounting Metal Plate
• Regulatory Information
• Quick Start Guide
