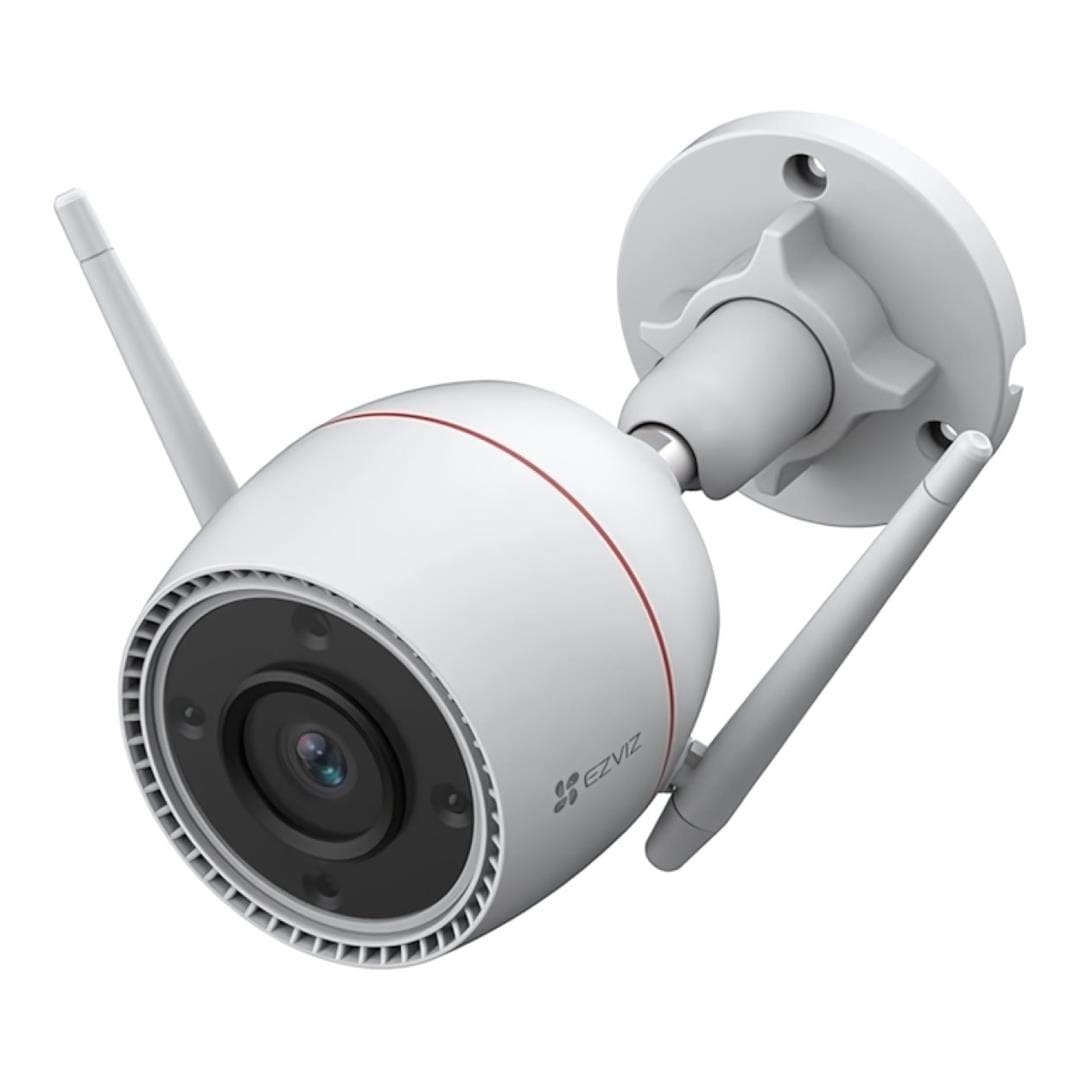

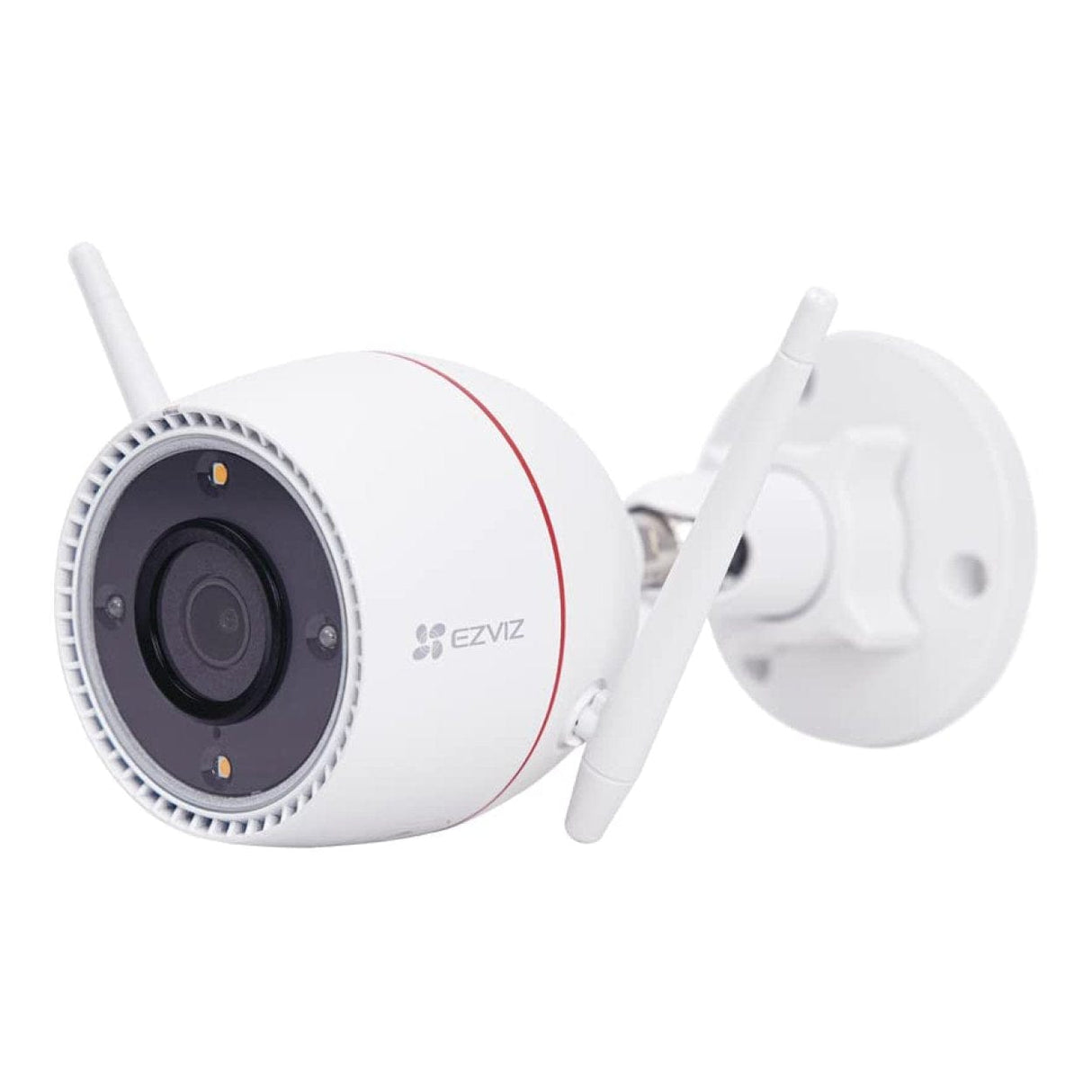

EZVIZ C3TN 3MP 2K Wi-Fi Smart Home Camera CS-C3TN (3MP)

EZVIZ C3TN 3MP 2K Wi-Fi Smart Home Camera CS-C3TN (3MP)

Simple in use, but powerful in action.

The EZVIZ OutPro is designed to deliver round-the-clock home protection with multiple advanced camera technologies, such as ultra-sharp 2K video quality, AI-powered human shape detection, color night vision and more. Compact in size and durable in any weather, the EZVIZ OutPro is the go-to option for any family who seeks 24/7 peace-of-mind.

Stunning details with 2K resolution.

The EZVIZ OutPro excels at providing vivid imaging. Its advanced design makes sure you capture every important detail and relive every important moment in ultra-clear 2K resolution.

See in color, even at night.

Struggling to see clearly in the dim light around your backyard at night? The EZVIZ OutPro makes late-night surveillance a lot easier. At night, the camera renders sharp black-and-white video, and can illuminate the surrounding area with its built-in spotlights to capture pictures in full color.

AI algorithm for alerts that matter.

The EZVIZ OutPro comes embedded with a built-in AI algorithm, which means it can identify and distinguish people from pets or other objects. This level of intelligence helps to greatly reduce insignificant alerts you might often receive with other cameras.

Actively guard your home.

The EZVIZ OutPro features the active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights for on-site deterrence.

Hear and talk, as if you were there.

Via the EZVIZ App, you can easily greet your visitors, talk to the postmen, or verbally warn any unwanted trespasser at any time – even if you are away from home.

Durable in any weather.

With an IP67-rated enclosure, the EZVIZ OutPro ensures long-lasting performance even under the toughest weather conditions – whether it’s rainy, stormy or snowy.

Save on storage space and reduce network loads.

With the advanced H.265 video compression technology, the camera achieves same or even better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard*.

Store videos locally or on the cloud.

You can secure your recorded videos on a local microSD card of up to 256 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8 mm @ F2.0; Horizontal 109°, Diagonal 126°
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR

Compression
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; Full HD; HD; Standard. Adaptive bit rate
Max. Bitrate: 2 Mbps

Max. Resolution: 2304 × 1296
Frame Rate: Max 30 fps; Self-Adaptive during network transmission

Network
User Defined Alarm Tones: Supports
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Interface
Storage: Micro SD card slot (Max. 256 GB)
Wired Network: RJ45 × 1 (10M/100M Adaptive Ethernet Port)
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

General
Operating Conditions: -20ºC to 50ºC (-4°F to 122°F); Humidity 95% or less (non-condensing)
Power Supply: DC 12V/1A
Power Consumption: Max 6 W
IP Grade: IP67
Night Vision Distance: Max 30 m (98 ft)

Dimensions & Weight
Product Dimensions: 72 × 84 × 152 mm (2.83 × 3.31 × 5.98 in)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 in)
Net Weight: 253 g (8.9 oz)

Certifications
CE / FCC / UL / RoHS / WEEE

What's in the box:

• EZVIZ OutPro Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
