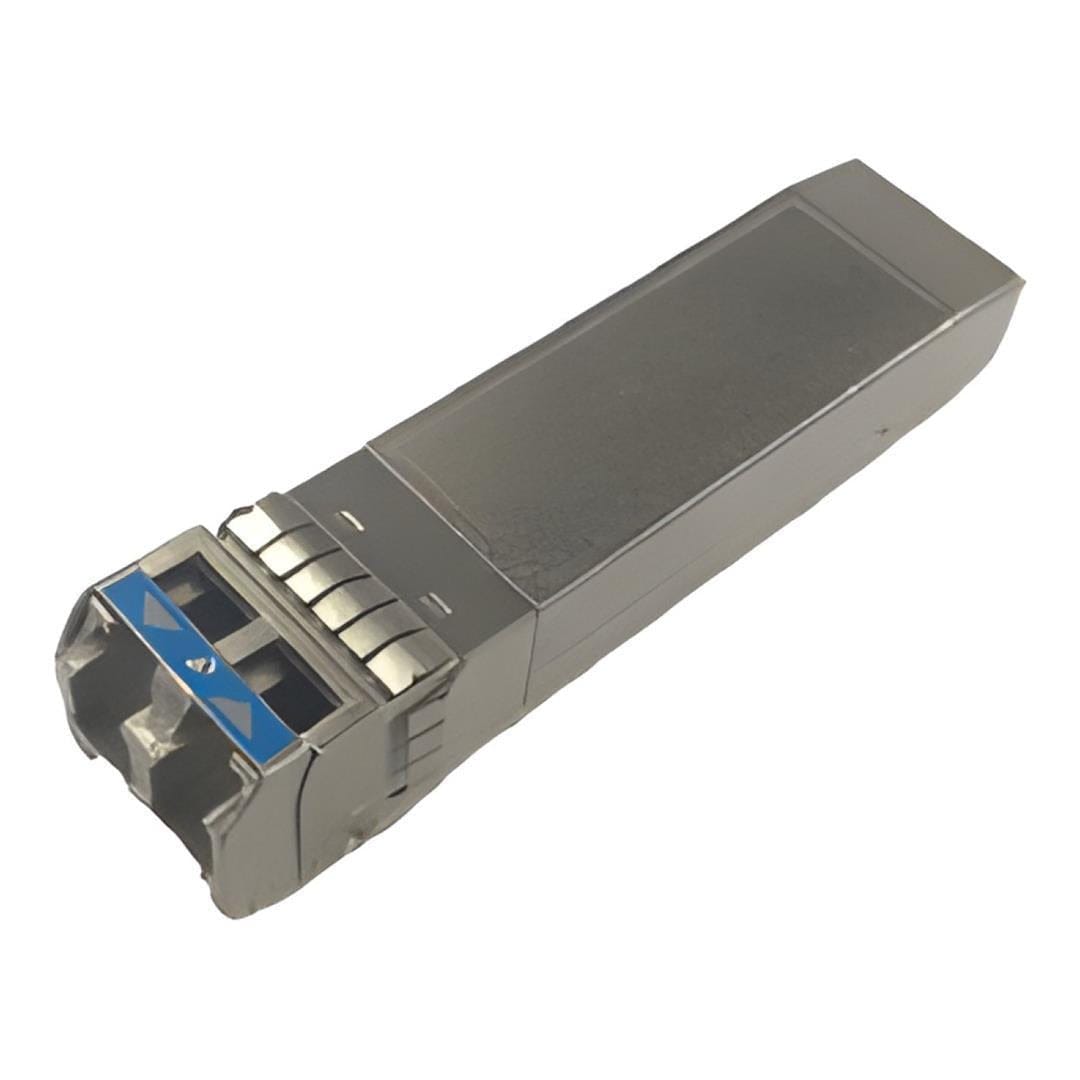

Extreme Networks 10501 Compatible 25G SR SFP28 DOM Duplex LC/UPC MMF Optical Transceiver Module

Extreme Networks 10501 Compatible 25G SR SFP28 DOM Duplex LC/UPC MMF Optical Transceiver Module

Features:

• Supports 10G ~ 25.78Gb/s bit Dual rate
• 850nm VCSEL laser and PIN photo-detector
• Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
• Digital diagnostics functions are available via the I2C interface Operating case temperature: 0°C to +70 °C
• +3.3V single power supply
• Power consumption less than 1W
• RoHS compliant

Applications:

25GBASE-SR Ethernet

32G Fiber Channel

Other optical links

Technical Specifications:

Optical Transmitter Characteristics
Bit Rate (BR): 8.5–25.78125 Gbps
Center Wavelength Range (λc): 820–850 nm
Average Launch Power Tx_off (Poff): -4.5 dBm
Average Optical Power (P0): –5.0 to 2.4 dBm
Extinction Ratio (ER): ≥ 2.0 dB
Optical Eye Mask: 5%

Optical Receiver Characteristics
Bit Rate (BR): 8.5–25.78125 Gbps
Sensitivity @ BER=5E-5: –10.33 dBm
Sensitivity @ BER=1E-12: –5.23 dBm
Overload Input Optical Power (PIN): 2.4 dBm
Center Wavelength Range (λc): 820–880 nm
