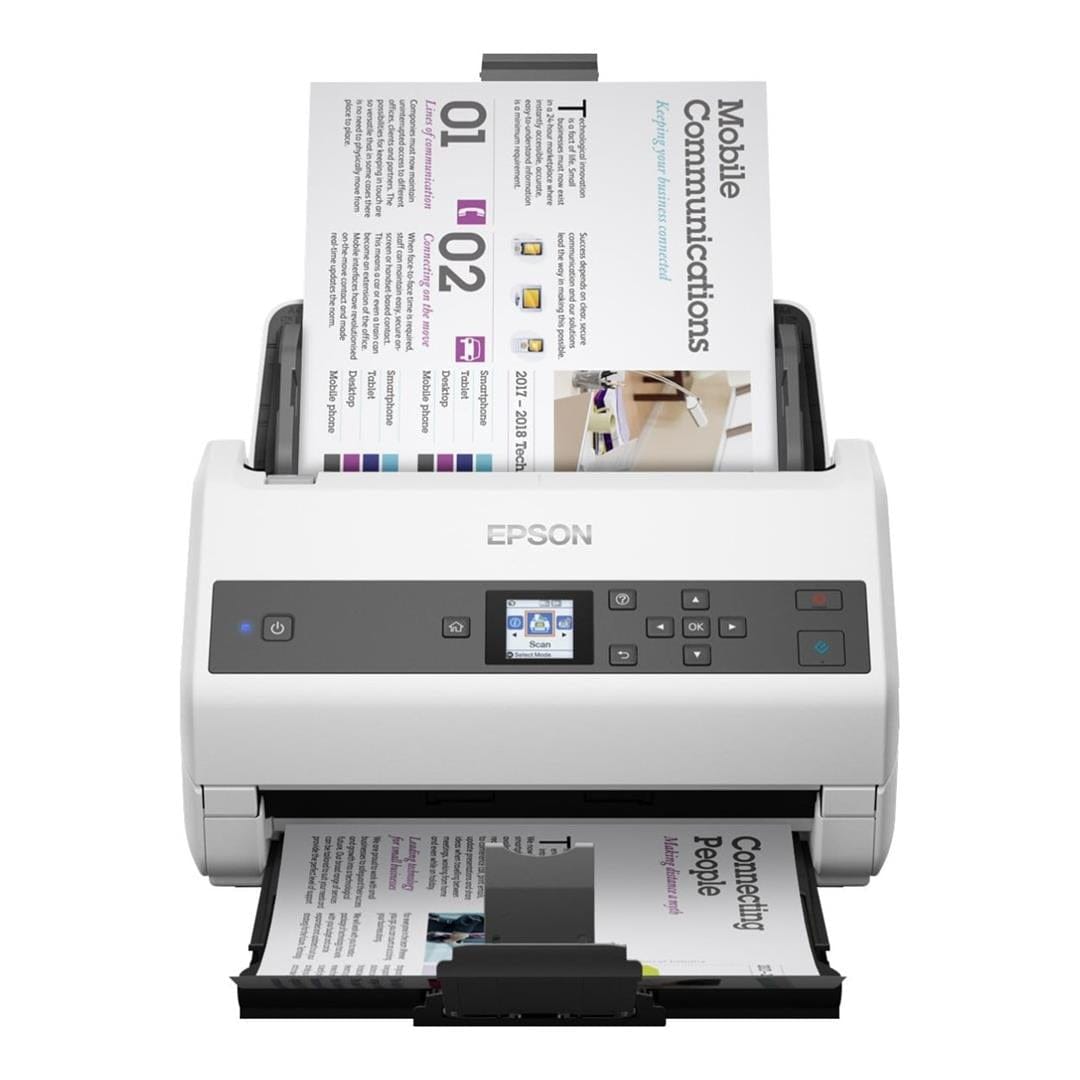

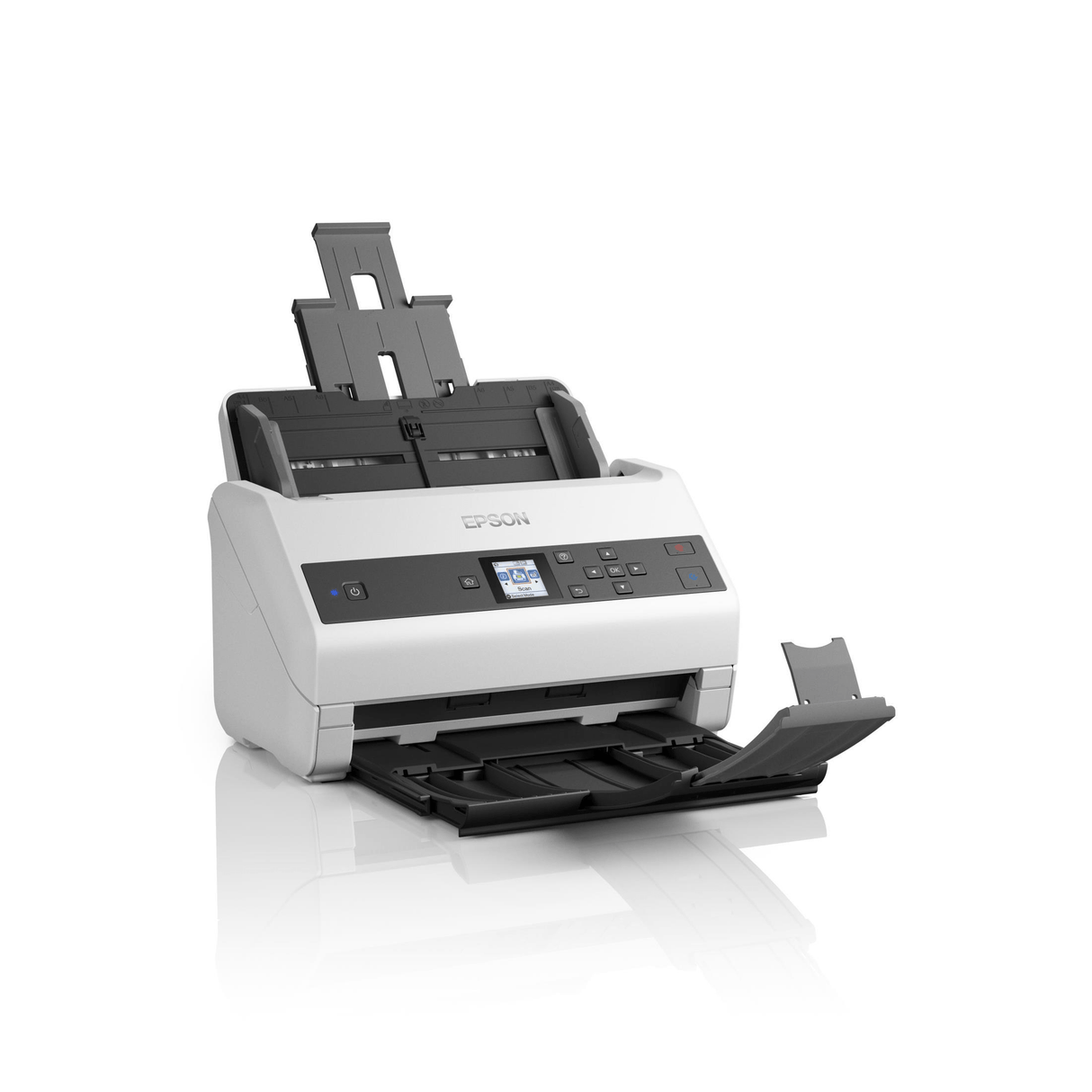

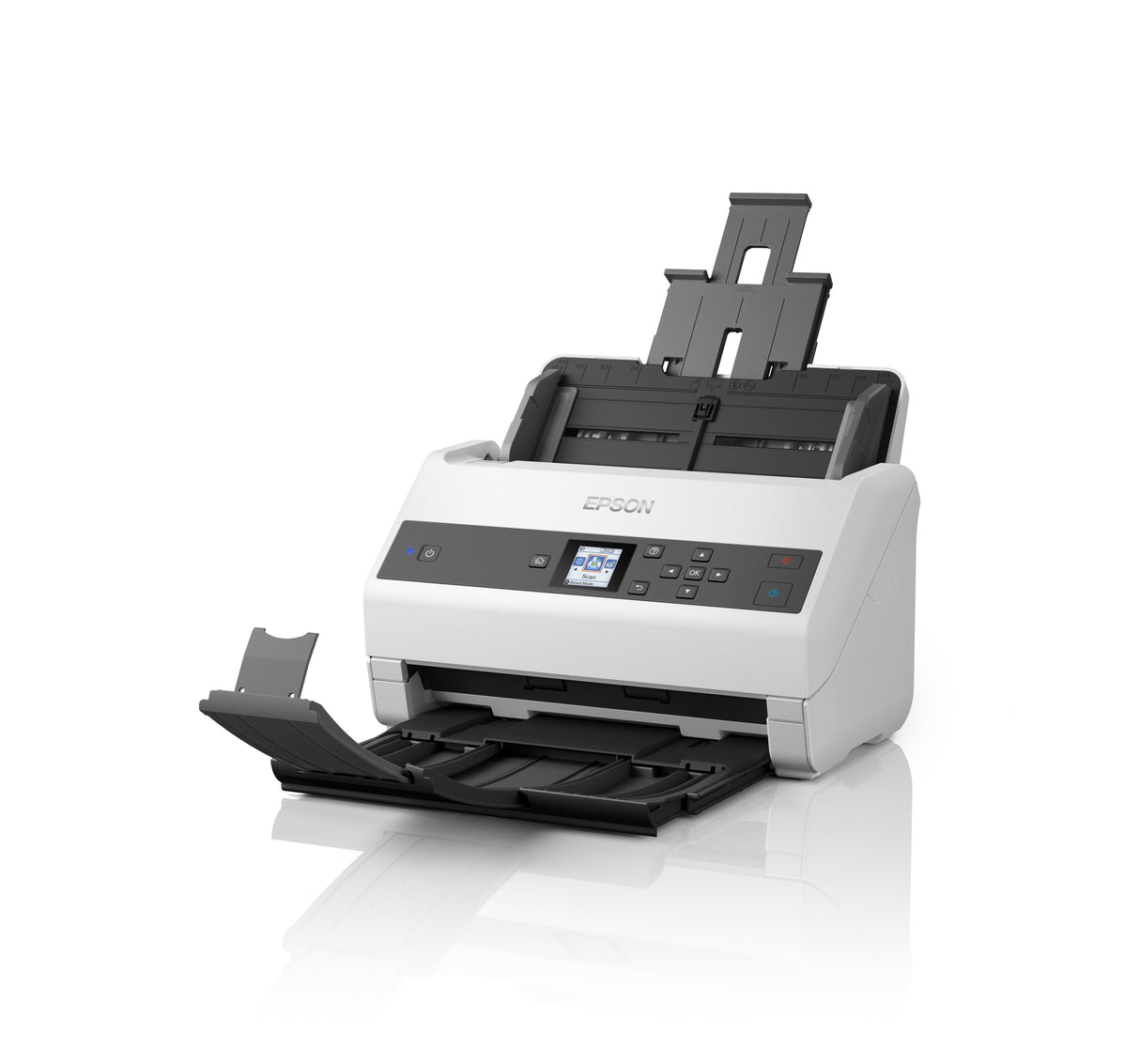

Epson WorkForce DS-870 A3 Sheet-fed Scanner B11B250401

Epson WorkForce DS-870 A3 Sheet-fed Scanner B11B250401

Durable, High-speed Scanning

Designed for fast, high-volume scanning, enjoy scanning speeds of up to 65ppm/130ipm on the DS-870. With a 100-sheet Automatic Document Feeder and daily duty cycle of 10,000 sheets pages, DS-870 provides the robust reliability that businesses need.

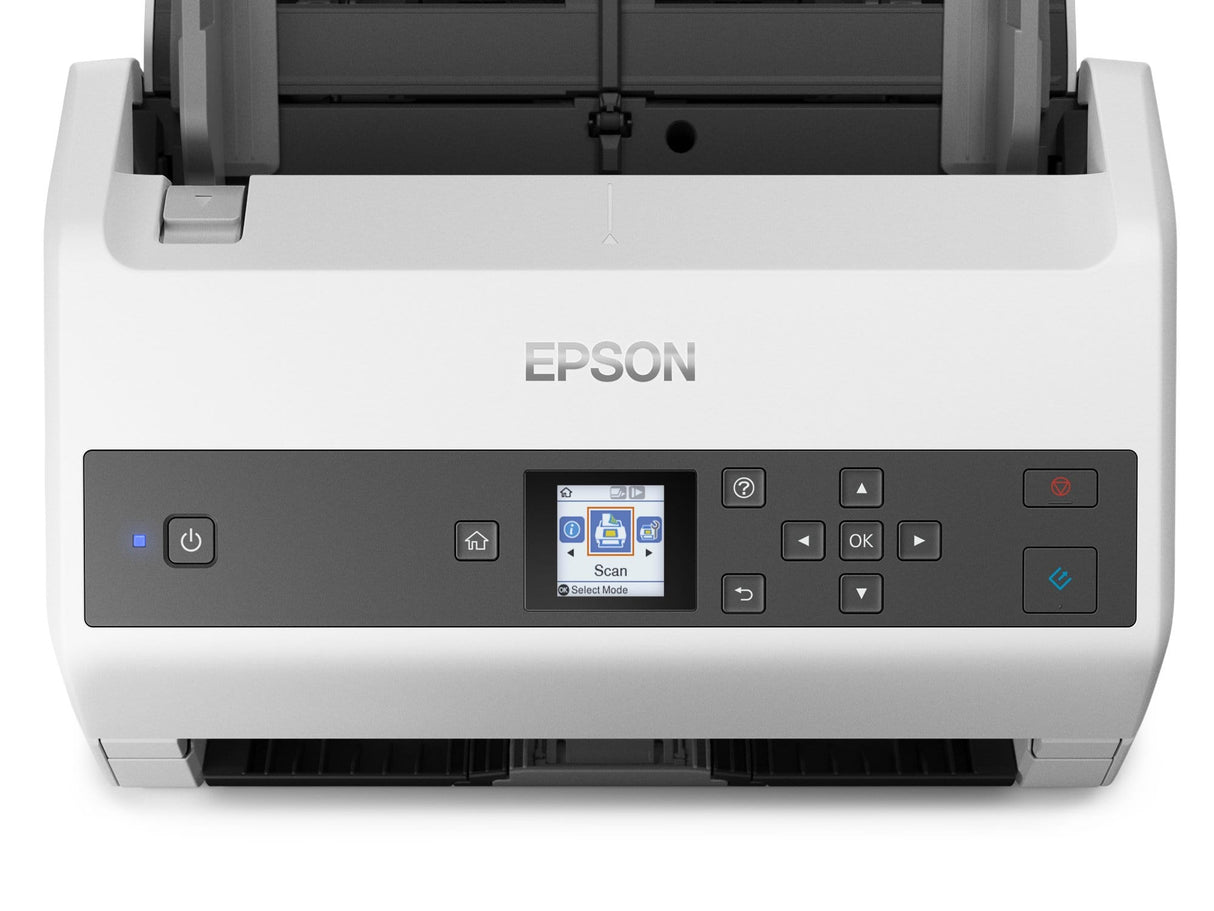

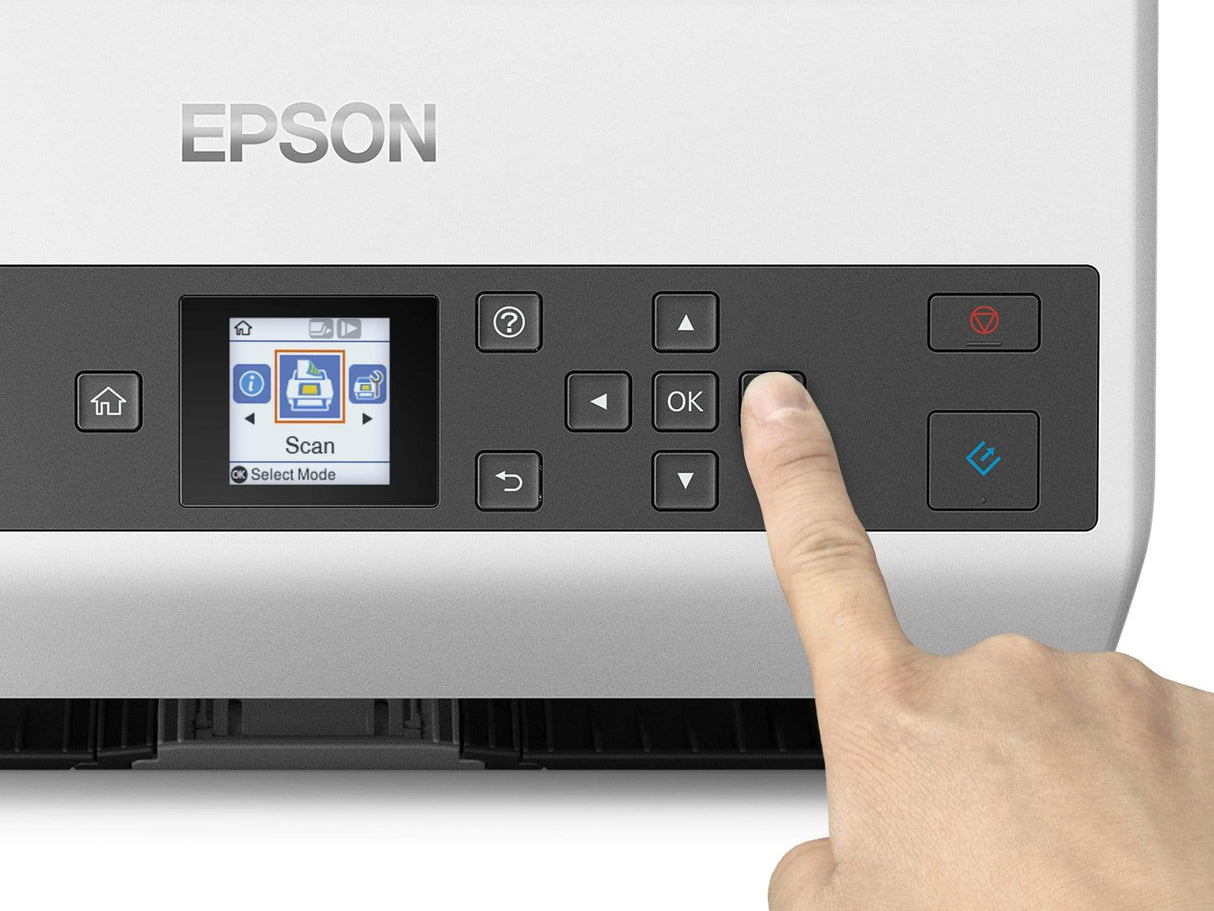

1.44” Colour LCD

With a screen size of 1.44”, users get a clear display of job contents at a glance and can even view and assign up to 30 jobs at a time on the panel. Operate the scanner easily using push scan functions and change scan settings directly from the panel without having to use a PC.

Automatic Size Recognition

Place documents of different sizes ranging from A6 to A4 in the middle of the feeding tray and the DS-870 will automatically detect and scan everything in the correct size, all in a single batch.

Scan Fragile and A3 Documents Easily

Scan small and fragile documents, as well as A3-sized documents, using a carrier sheet that can be automatically detected by the scanners. Alternatively, you may scan fragile documents without using a carrier sheet by turning on the Slow Scan Mode.

User-friendly Features
Automatic Feeding Mode

The Automatic Feeding Mode enables large volumes of documents to be scanned continuously. In addition, this mode allows you to scan documents one at a time without needing to arrange them by size and they will be saved into a single PDF.

Double Feed Detection Skip Function

Activate the Double Feed Detection Skip function to scan documents with stickers and labels.

Paper Protection Function

With automatic stop upon detection of abnormal paper feeding or stapled/folded paper, you decrease and prevent damage to your important documents.

Epson Scan 2
Text Enhancement

Improves text recognition when scanning text documents, whether in colour, greyscale or black-and-white. Removes background for better clarity, which is especially useful for double-sided printed documents.

Document Skew Correction

Automatically adjusts and straightens scanned images.

Colour Enhancement & Colour Dropout

Remove or enhance the visibility of ink signatures such as “Confidential” and “Urgent” stamps. Users can pick one of the preset colours (red, green, blue, pink, purple, yellow, orange, or all colours except black), or use the customised settings to dropout or enhance up to 5 colours of your choice with a single scan. Up to 10 preset colours can be saved for reuse.

PDF Features for Added Convenience

The built-in OCR enables searchable PDF files. Secure your PDF files by setting a password to prevent unauthorised viewing, editing or printing.

Document Management
Document Capture Software*

Easily scan, view, edit, save and transfer scanned documents. The software optically recognises barcodes, characters and blank pages in scanned documents to separate them into different folders. It allows you to create up to 30 customised job settings, making multiple scan jobs a breeze.

*Limited functionality for Mac version of Document Capture software.

Compatible with Epson Device Admin

With Epson Device Admin, you can now manage, monitor and configure your Epson device fleet easily. It is compatible with a large range of networked printers and scanners, and all information can be viewed via one smart, intuitive interface.

Epson Device Admin Functions

• Manage Epson devices in groups
• Receive automatic alerts for quick response when the device faces an error or when it runs out of consumables
• Generate reports automatically for cost-savings activities
• Configure multiple devices efficiently with templates to simplify large deployments

Specifications:

Power

Rated Voltage: AC 220-240 V

Rated Frequency: 50 – 60Hz

Power Consumption:

• Operating: 18W
• Ready: 8.5W
• Sleep: 1.4W
• Off: 0.1W

Supported OS and Applications

Supported OS:

• Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016
• Mac OS X 10.6.8 or later

Scanner Driver Compatibility: TWAIN, SANE, WIA, ICA, ISIS

Bundled Applications:

• Epson Scan 2
• ISIS Driver (Web Download)
• Epson Scan OCR Component
• Epson Scan PDF Extensions
• Document Capture Pro (Windows)
• Document Capture (Mac)

File Format:

• Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG
• Document Capture Pro (Win): JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX

Scanning

Scanner Type: A4 sheet-fed, one-pass duplex colour scanner

Sensor Type: Contact Image Sensor (CIS)

Scanning Method: Fixed carriage & moving document

Light Source: RGB LED

Optical Resolution: 600 x 600 dpi *1

Output Resolution: 50 - 1,200 dpi (in 1 dpi increments)

Bit Depth: Each colour (RGB): 10 bit input / 8 bit output

Min Document Size: 50.8 x 50.8 mm

Max Document Size: 215.9 x 6,096 mm

Supported Paper Weight: 27 - 413 g/m2 (A8 or less 127 - 413 g/m2)

ADF Capacity: 100 sheets (80g/m2)

Daily Scan Volume: Up to 10,000 sheets / day

Multi-feed Detection: Ultrasonic Sensor and Length Detection

Interface: USB 3.0

Scan Speed

Resolution (Colour/Greyscale/Mono):

• 200dpi: 65ppm / 130ipm (Simplex / Duplex) *2
• 300dpi: 65ppm / 130ipm (Simplex / Duplex) *2
• 600dpi: 16ppm / 32ipm (Simplex / duplex)

Dimensions and Weight

Dimensions (W x D x H): 296 x 169 x 167 mm

Weight: 3.6kg
