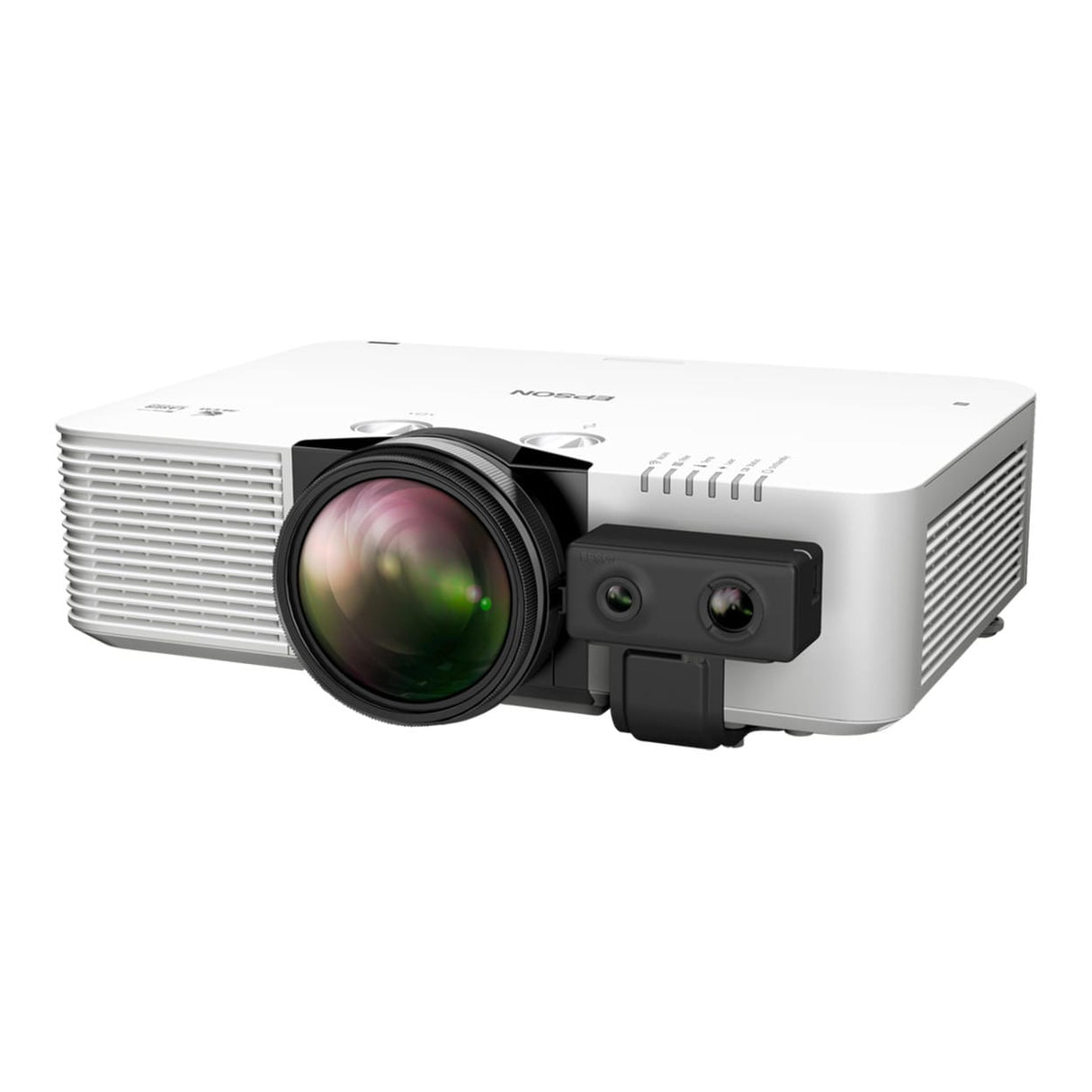

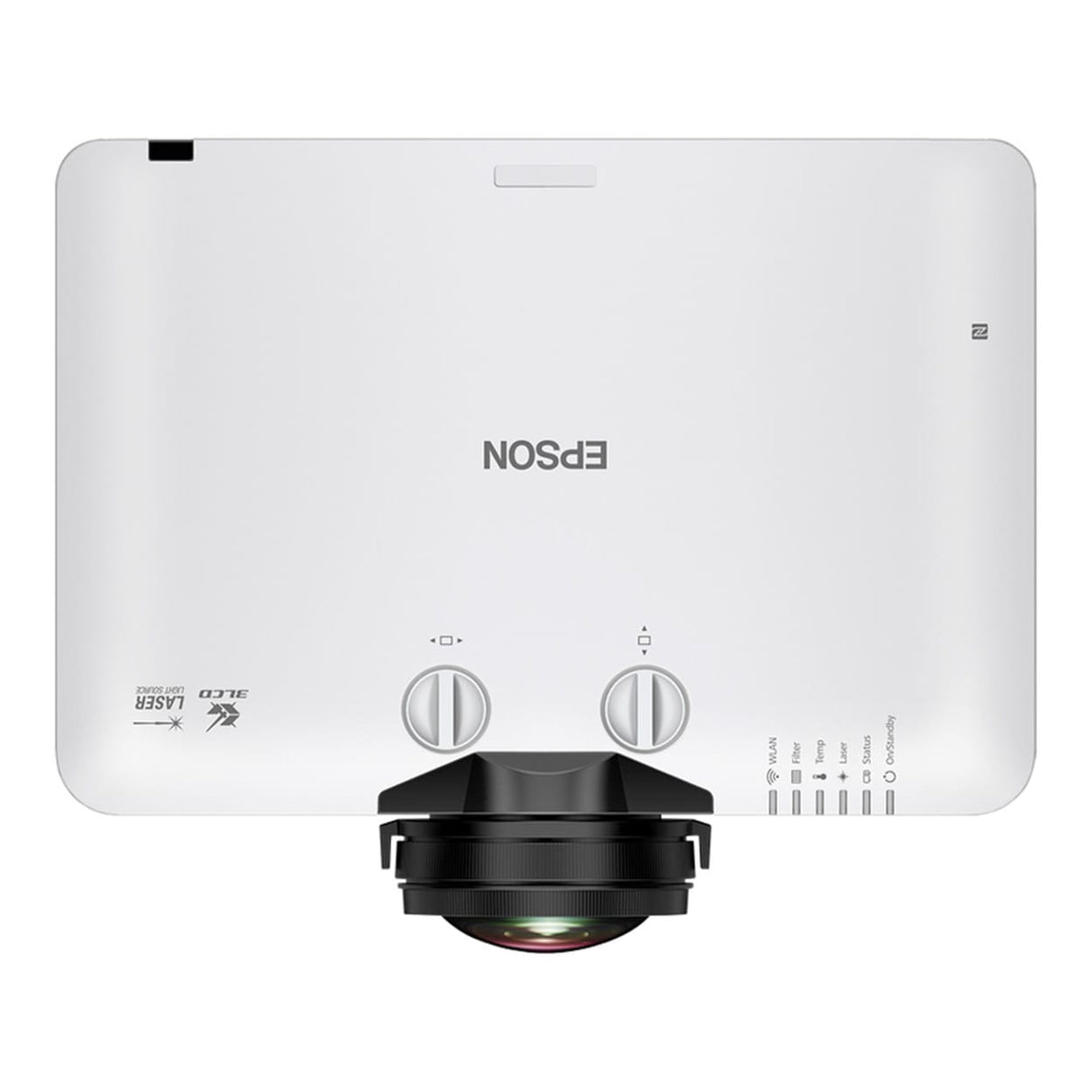

Epson EB-L690SU 6200 Lumens WUXGA Short Throw 3LCD Laser Projector V11HB31080ZA

Epson EB-L690SU 6200 Lumens WUXGA Short Throw 3LCD Laser Projector V11HB31080ZA

The Epson EB-L690SU is a professional short-throw laser projector designed to produce bright, large-format visuals in compact spaces. Its 6,200-lumen colour and white light output, WUXGA resolution and flexible optical system make it suitable for meeting rooms, classrooms, visitor attractions, retail displays, sports simulators and immersive installations.

Bright, Detailed WUXGA Projection

Epson’s 3LCD projection system delivers 6,200 lumens of both colour and white light output, helping presentations, signage and immersive content remain clear in well-lit environments. Native WUXGA resolution provides a detailed 1,920 × 1,200 image with a practical 16:10 aspect ratio, while HDR support helps compatible content display a broader range of light and dark detail.

Large Images from a Short Distance

A short throw ratio of 0.79–1.36:1 allows the EB-L690SU to create large images while keeping the projector closer to the display surface. It supports image sizes from 60 to 400 inches, while the 1.7x optical zoom gives installers additional flexibility when working with different room layouts.

• Short throw ratio helps reduce shadows and glare in compact installations.
• Projects scalable images from 60 to 400 inches.
• Manual 1.7x optical zoom provides greater placement flexibility.
• Manual vertical and horizontal lens shift supports precise image positioning.
• Corner focus adjustment helps maintain clarity across a large projected image.

Flexible Installation for Professional Environments

Manual lens shift, horizontal and vertical keystone correction, point correction, Quick Corner and edge blending help simplify single- and multi-projector installations. Support for 360-degree projection, split-screen displays and ultra-wide 16:6 and 21:9 formats also makes the projector suitable for more specialised visual environments.

The optional Epson ELPEC01 camera can provide additional installation and calibration assistance for compatible multi-projector configurations.

Long-Life Laser Light Source

The laser light source is rated for up to 20,000 hours in normal operation or up to 30,000 hours in Eco mode. This reduces the need for regular lamp replacements and helps limit maintenance interruptions in permanently installed environments.

Operating noise falls to 25 dB(A) in Eco mode, helping the projector remain unobtrusive during presentations, lessons and immersive experiences.

Wired and Wireless Content Sharing

Built-in wireless connectivity supports Apple AirPlay 2, Miracast and the Epson iProjection app, allowing compatible laptops, tablets and smartphones to share content without a direct video cable. Two HDMI inputs, an HDMI output, HDBaseT and Ethernet provide practical integration options for professional AV systems.

• Apple AirPlay 2 and Miracast support compatible wireless screen mirroring.
• Two HDMI inputs and one HDMI output accommodate modern AV equipment and HDMI daisy-chaining.
• HDBaseT supports professional long-distance AV installations.
• Ethernet, RS-232C and supported network protocols enable monitoring and control.
• NFC works with the Epson Projector Config Tool to simplify configuration.
• Two USB Type-A ports support compatible PC-free content playback.

Key Features:

• 6,200-lumen colour and white light output for bright professional displays.
• Native WUXGA resolution delivers a detailed 1,920 × 1,200 image.
• Short 0.79–1.36:1 throw ratio supports large images in restricted spaces.
• 1.7x optical zoom and manual lens shift simplify installation.
• Laser light source provides up to 30,000 hours of operation in Eco mode.
• Apple AirPlay 2, Miracast, Wi-Fi and Epson iProjection support wireless collaboration.
• Built-in 10 W speaker provides convenient audio for presentations and everyday content.

Technical Specifications:

Bring bright, large-format projection to compact professional spaces with the Epson EB-L690SU, and add it to your cart today.
