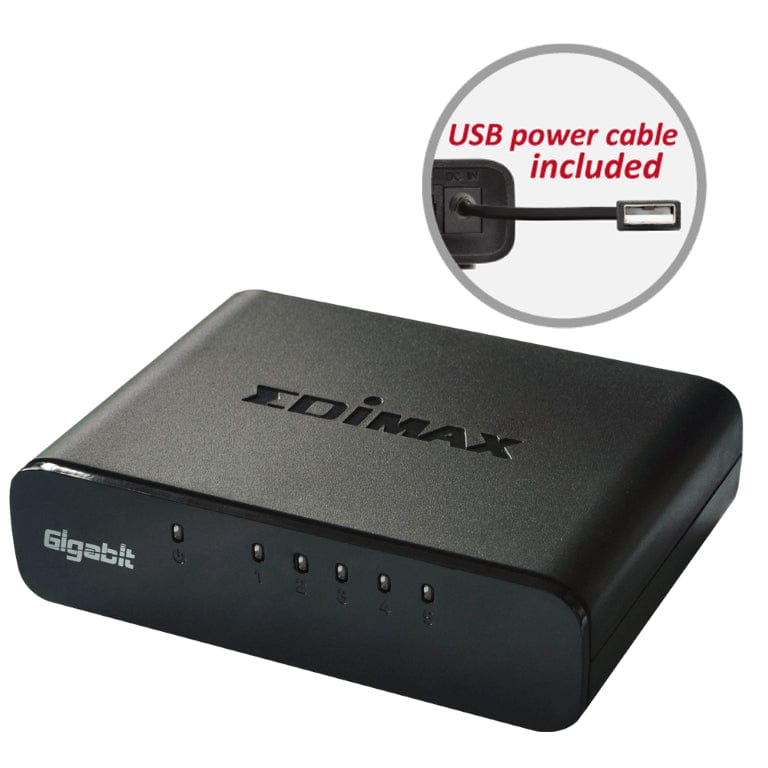

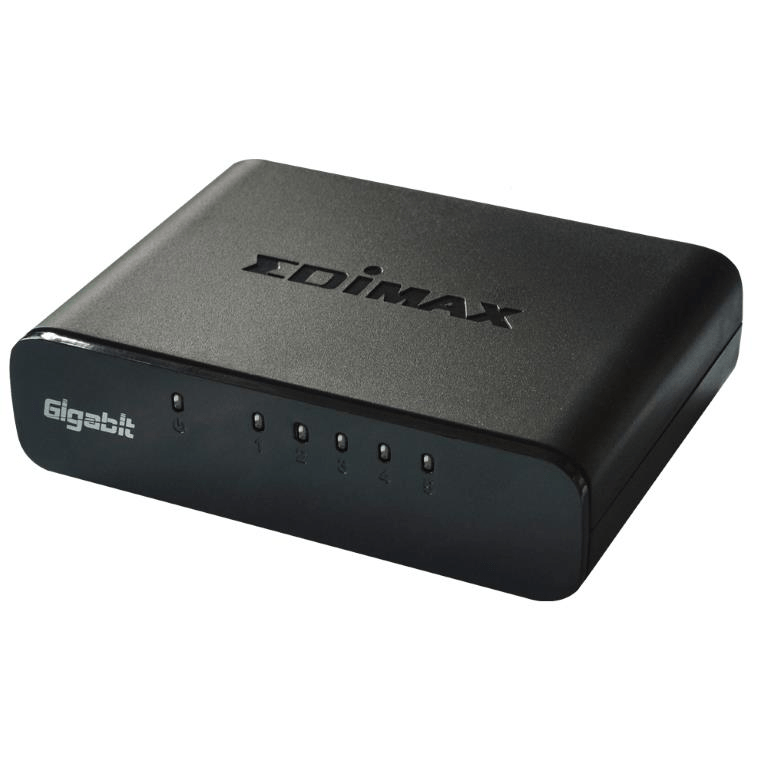

Edimax 5-port Gigabit Desktop Switch

The ES-5500G V3 is a 10/100/1000 Mbps Gigabit Desktop unmanaged switch designed to enhance network performance in a compact form factor, and with outstanding performance and high efficiency. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment.

The ES-5500G V3 with plastic housing offers a cost-effective Gigabit Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs. The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved.

• Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards

• Supports auto MDI/MDI-X crossover detecting and auto correction

• Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps

• Wire-speed packet filtering and forwarding rate

• Store-and-forward architecture filters fragment & CRC error packets

• Supports jumbo frames up to 9K bytes

• Supports IEEE802.3az energy efficient Ethernet function

• Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)

SPECIFICATIONS

HARDWARE

Ports: 5 x RJ-45 10/100/1000BaseT ports

LED Indicator

• Per Port: Link/Act

• Pert Unit: Power

Power Requirement: DC 5V 1A

Power Consumption: 2 Watts (Max)

Accessory: 1 x USB Power Cable

Dimension: 98 × 71 × 25.5 mm (L x W x H)

Weight: 112g

PERFORMANCE

MAC Address: 2K

Buffer Memory: 128K

Jumbo Frame: 9K

Filtering / Forwarding Rates

• 1000Mbps port - 1,488,000pps

• 100Mbps port - 148,800pps

• 10Mbps port - 14,880pps

OTHERS

Standard:

• IEEE 802.3 10BaseT

• IEEE 802.3u 100BaseTX

• IEEE 802.3ab 1000BaseT

• IEEE 802.3x Flow Control

• IEEE 802.3az Energy Efficient Ethernet

Transmission Media:

• 10BASE-T Cat. 3, 4, 5 UTP/STP

• 100BASE-TX Cat. 5 UTP/STP

• 1000Base-T Cat. 5E UTP/STP

Environmental Condition

Temperature:

• Operating: 0 to 40℃

• Storage: -20 to 70℃

Humidity:

• Operating: 10 to 90% RH (Non-condensing)

• Storage: 5 to 90% RH (Non-condensing)

Certification: CE, FCC Class B
