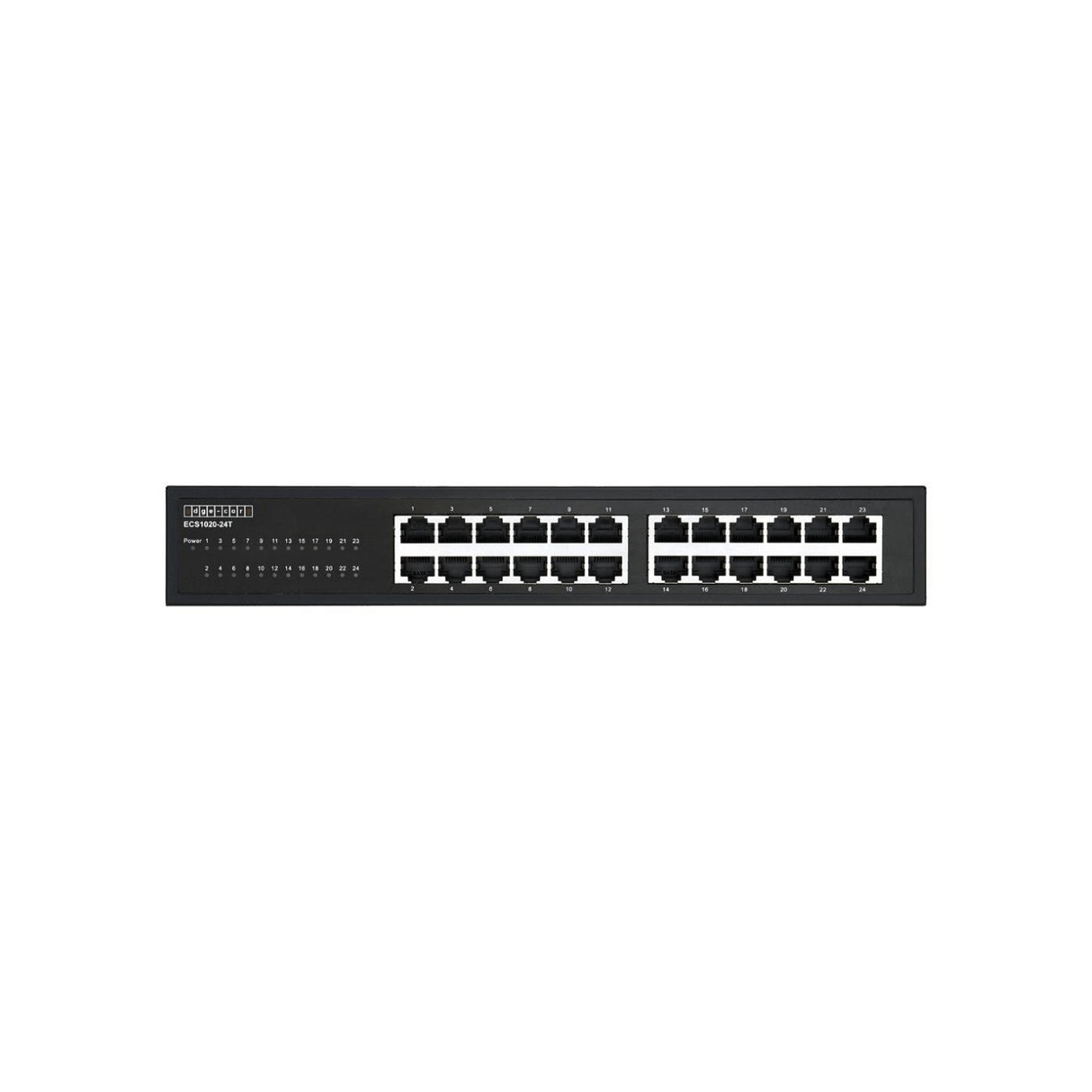

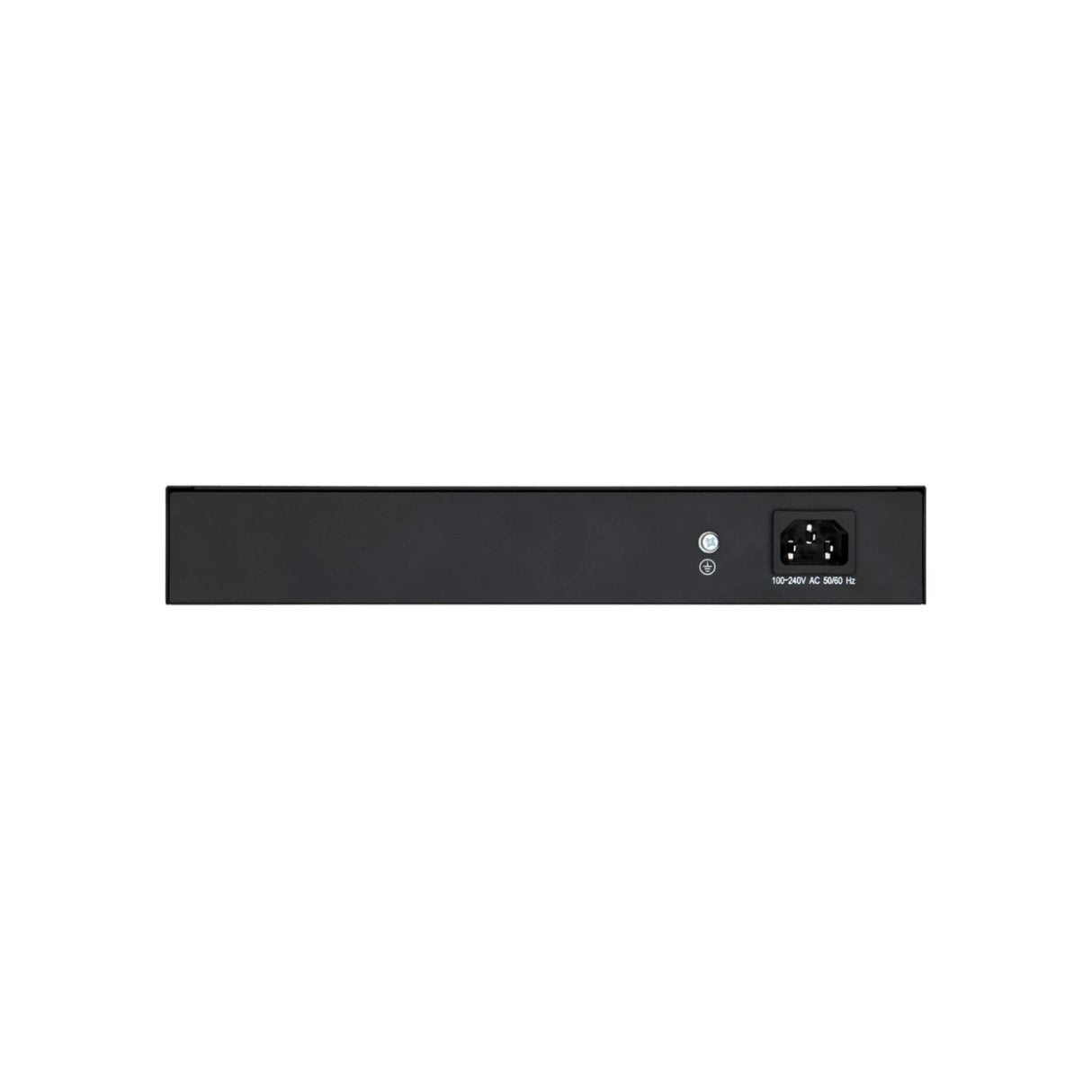

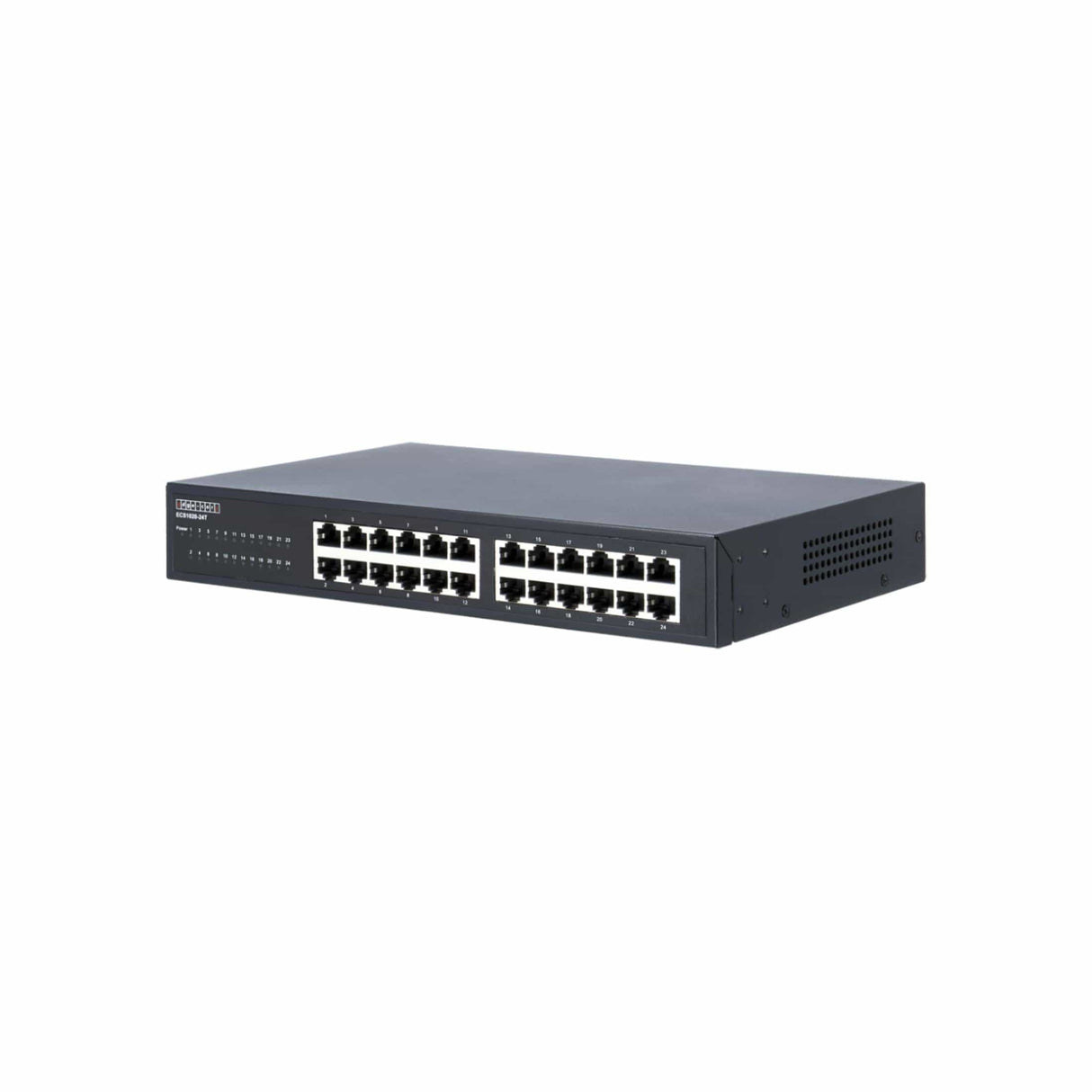

Edge-Core ECS1020-24T 24-port Gigabit Rack-Mountable Unmanaged Switch

Edge-Core ECS1020-24T 24-port Gigabit Rack-Mountable Unmanaged Switch

The ECS1020 Series is Edgecore's new unmanaged switch series. The ECS1020-16T and ECS1020-24T switches include 16 or 24 10/100/1000BASE-T ports, the ECS1020-10P has nine 10/100/1000BASE-T ports, eight of which support PoE, plus one SFP port, and the ECS1020-16P has 16 10/100/1000BASE-T PoE ports.

These switches provide Gigabit Ethernet connectivity from the network backbone all the way to the edge and to individual desktops. With up to 10 times the speed of 100 Mbps networks, these switches reduce transfer times of large data files and boost bandwidth-intensive applications, thereby significantly enhancing overall network performance. Jumbo frame support enables more efficient data transfers with data packets up to 9 K bytes in size. The switches are easy to install and an ideal solution for network migration with their 10/100/1000 Mbps Auto MDI/MDIX ports. Not only are ports triple-speed, all ports can be either connected to a workstation or another switch, without the need for crossover cables. Supporting non-blocking wire-speed throughput, the switches are built to handle the growing performance needs of bandwidth-hungry applications in today's networks.
