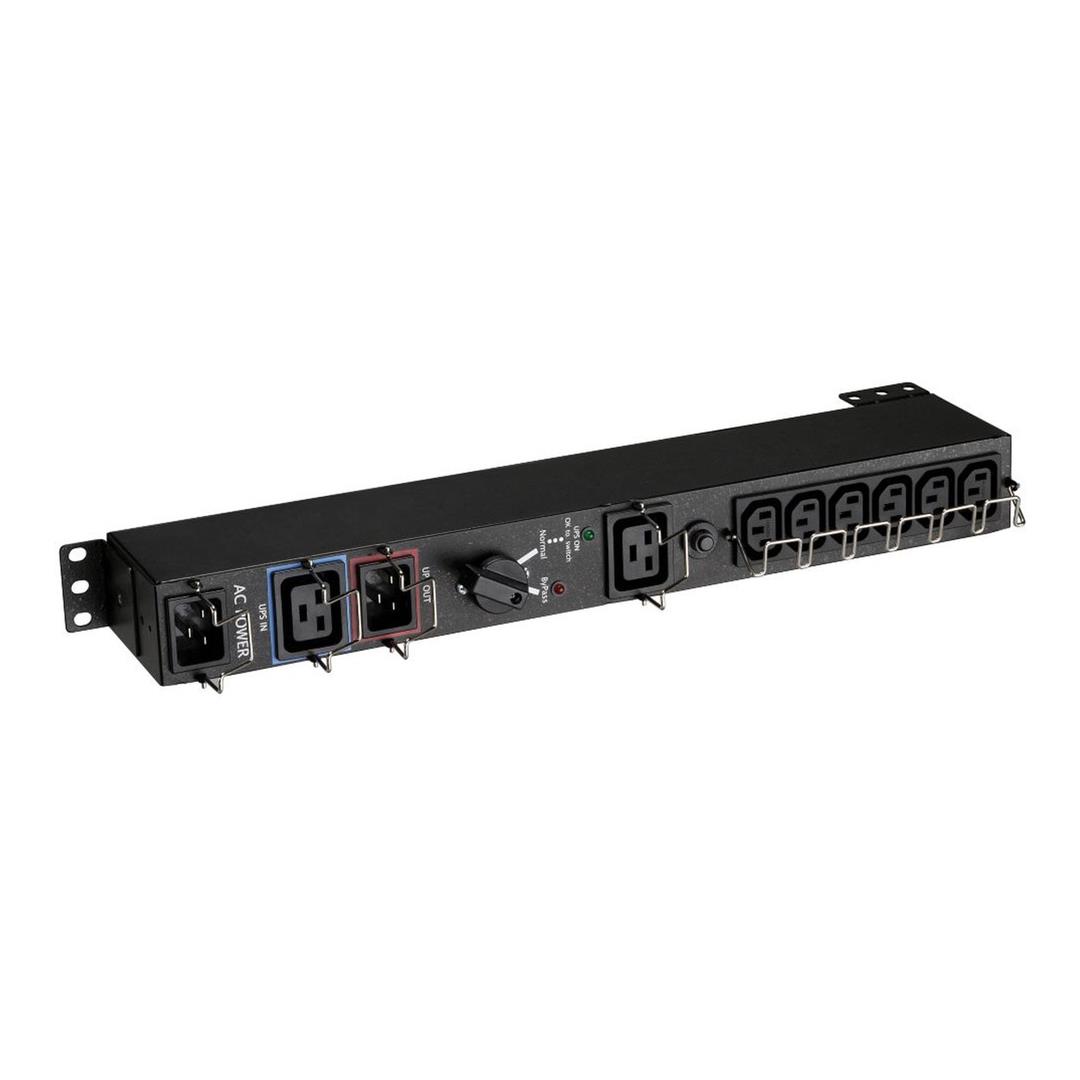

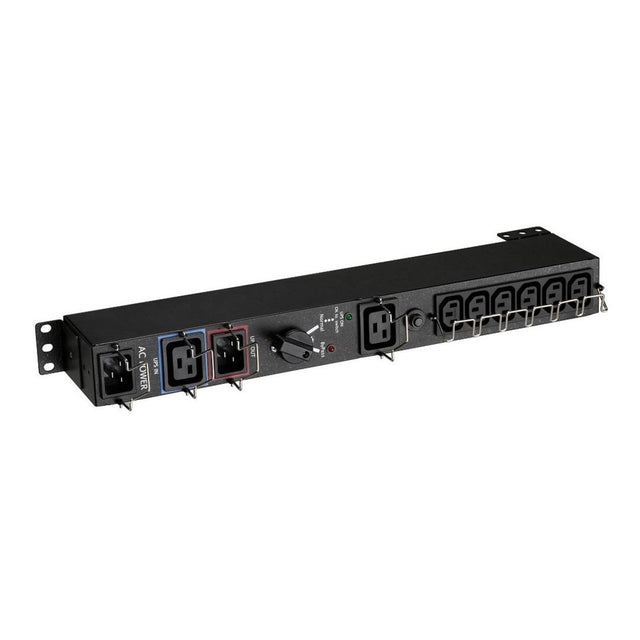

Eaton MBP3KI HotSwap MBP IEC Panel

Eaton MBP3KI HotSwap MBP IEC Panel

Maintain power availability during UPS servicing or replacement with the Eaton MBP3KI HotSwap Maintenance Bypass Panel. Designed for single-phase UPS installations up to 3000VA, this compact 1U maintenance bypass allows connected equipment to remain powered while the UPS is isolated for maintenance, replacement or upgrade.

Maintain Power During UPS Servicing

The Eaton HotSwap MBP provides a maintenance bypass path that allows the connected load to continue receiving utility power while the UPS is taken out of service. This makes it particularly useful in installations where downtime during UPS maintenance or replacement needs to be minimised.

3000VA Single-Phase Design

The MBP3KI is designed for single-phase UPS systems rated up to 3000VA and operates with a 200-240V input. A C20 input connection provides compatibility with suitable UPS and power installations.

Seven IEC Output Connections

The maintenance bypass panel provides six IEC C13 outlets and one IEC C19 outlet, giving users flexibility when connecting a combination of compatible IT, networking, server and power equipment.

Flexible 1U Rack Installation

With a compact 1U form factor and standard 19-inch rack compatibility, the MBP3KI can be mounted horizontally or vertically depending on the installation requirements. Its shallow depth helps conserve valuable rack space.

Key Features:

• HotSwap maintenance bypass panel for compatible UPS installations.
• Allows UPS servicing or replacement without interrupting connected loads.
• 3000VA power rating.
• Single-phase operation.
• 200-240V input voltage.
• IEC C20 input connection.
• 6 x IEC C13 output sockets.
• 1 x IEC C19 output socket.
• Seven total IEC output sockets.
• 1U rack form factor.
• Compatible with standard 19-inch racks.
• Supports horizontal or vertical mounting.
• LED status indication.
• Cable locking system included.
• Compact 439mm wide design.
• Black finish.
• CE certified.

Technical Specifications:

What's in the Box:

• Eaton MBP3KI HotSwap Maintenance Bypass
• Cable Locking System
• Connection Cable to the UPS
• Rack-Mounting Kit
• User Manual

Improve UPS service availability with the Eaton MBP3KI HotSwap Maintenance Bypass, providing 3000VA capacity, seven IEC output sockets and flexible 1U rack installation while enabling compatible UPS equipment to be maintained or replaced without interrupting power to connected loads.
