Eaton Ellipse PRO 850 510W IEC Line-Interactive UPS ELP850IEC

Eaton Ellipse PRO 850 510W IEC Line-Interactive UPS ELP850IEC

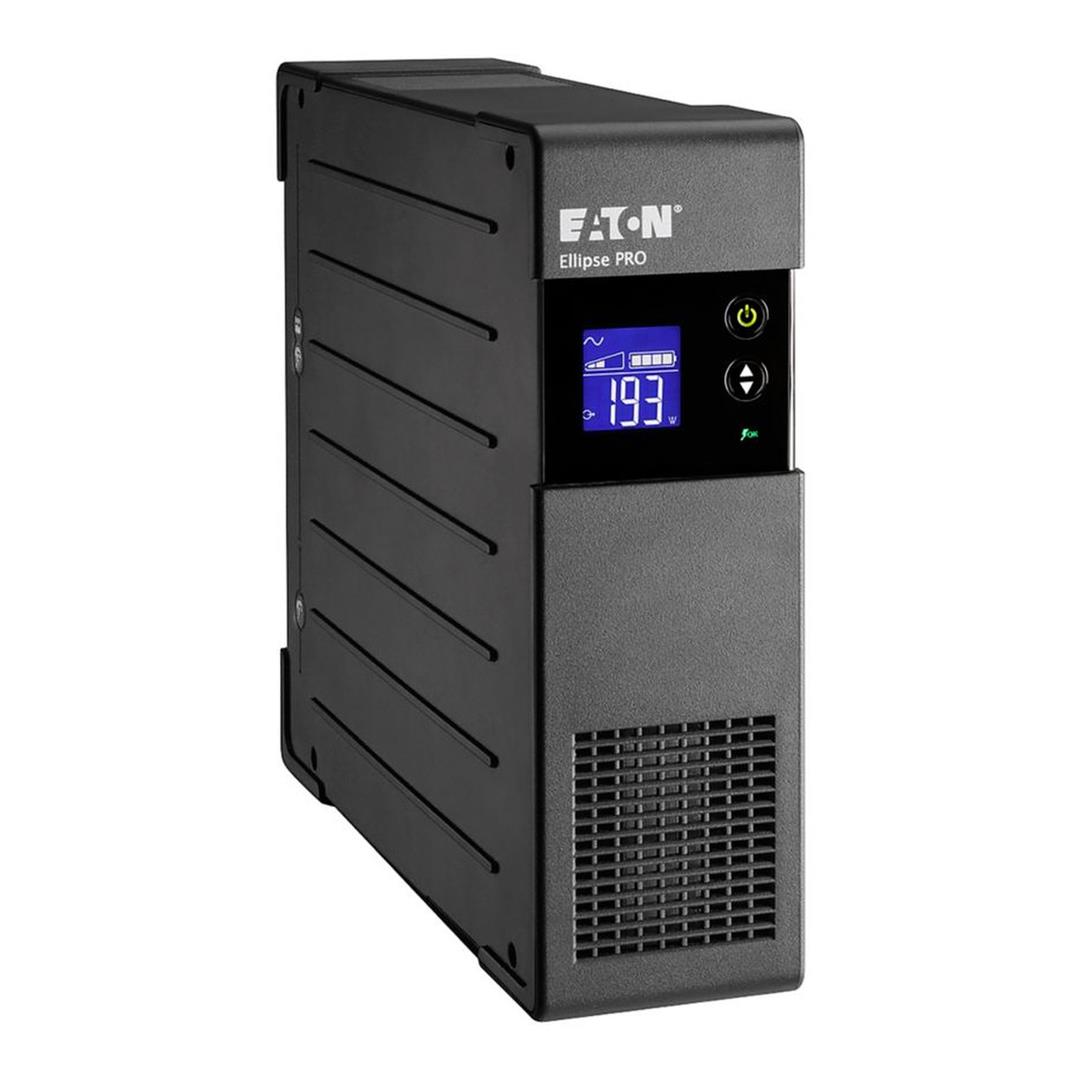

The Eaton Ellipse PRO 850 ELP850IEC is a compact 850VA / 510W line-interactive UPS designed to protect workstations, networking equipment and small business electronics against power outages, voltage fluctuations and electrical surges. Featuring Automatic Voltage Regulation, an informative LCD display, four IEC C13 outlets, USB communication and a user-replaceable battery, it provides dependable backup power in a versatile slimline design.

Key Features:

• 850VA / 510W power capacity
• Line-interactive UPS topology
• Automatic Voltage Regulation with booster and fader
• 4 x IEC C13 output sockets
• 3 battery backup and surge-protected outlets
• 1 surge-protection-only outlet
• LCD status and measurement display
• EcoControl energy-saving functionality
• USB HID communication port
• Telephone, ADSL and Ethernet surge protection
• User-replaceable 12V 9Ah battery
• Cold-start capability
• Automatic battery testing
• Quiet operation below 25dB

Features

Line-Interactive Power Protection

The Ellipse PRO 850 uses line-interactive technology with Automatic Voltage Regulation to correct under-voltage and over-voltage conditions without constantly switching to battery power, helping preserve battery life while maintaining stable output to connected equipment.

850VA / 510W Capacity

With an output rating of 850VA / 510W, the UPS is suitable for protecting compatible desktop PCs, workstations, network equipment and peripherals during short power interruptions and voltage disturbances.

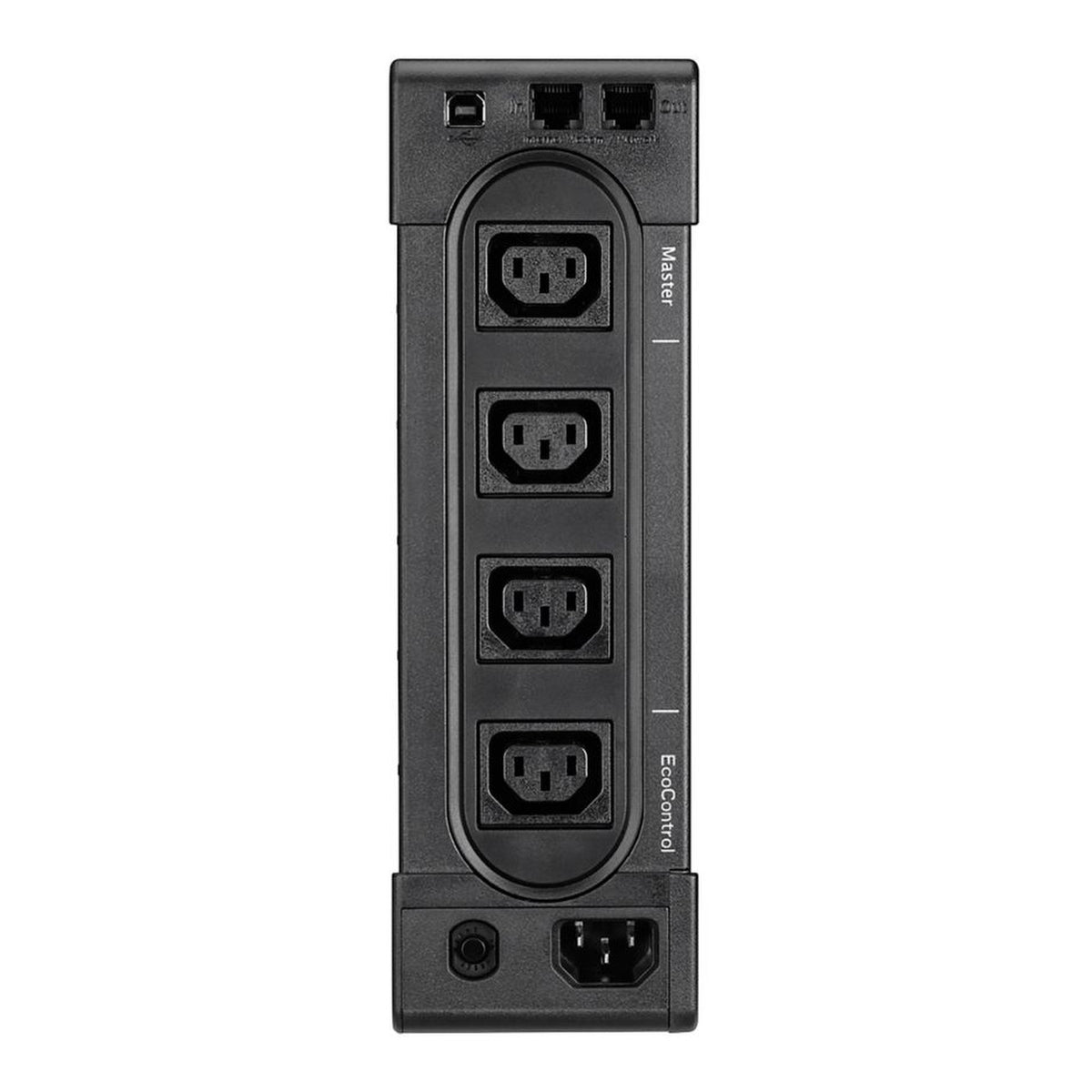

Four IEC C13 Outlets

Three IEC C13 sockets provide both battery backup and surge protection, while a fourth C13 outlet provides surge protection only. This allows critical devices to remain powered while less essential peripherals receive surge protection without consuming backup runtime.

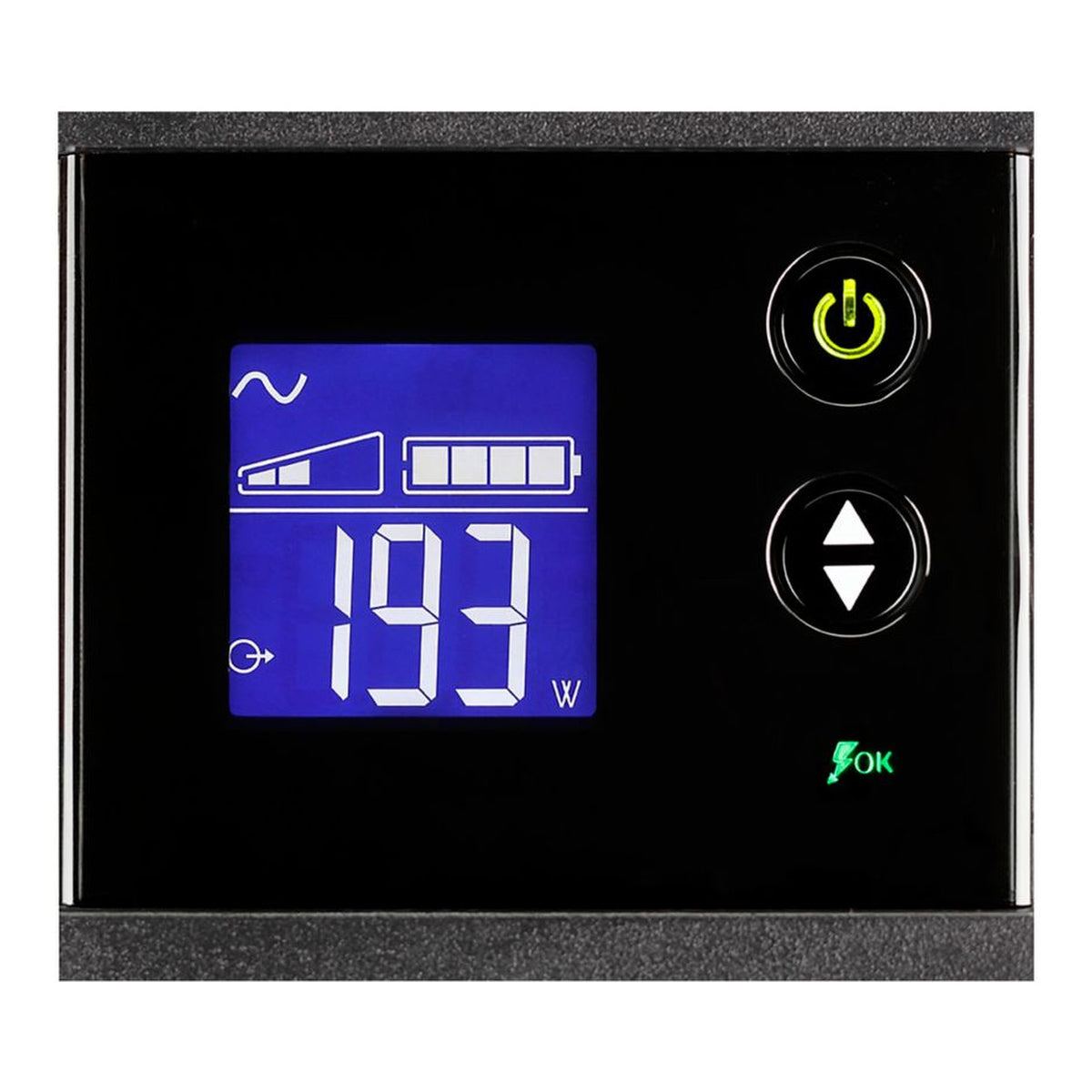

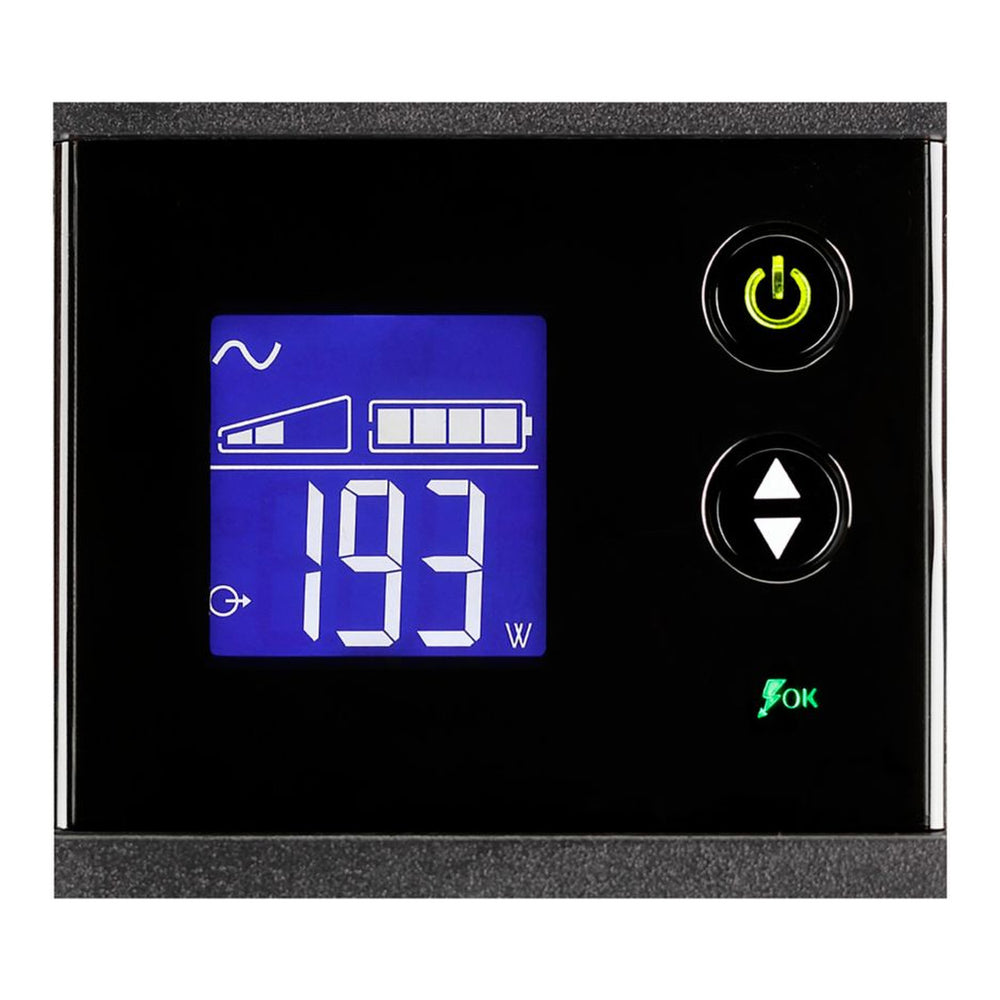

Real-Time LCD Display

The front LCD provides UPS status information and electrical measurements while also allowing supported operating parameters to be configured directly from the unit.

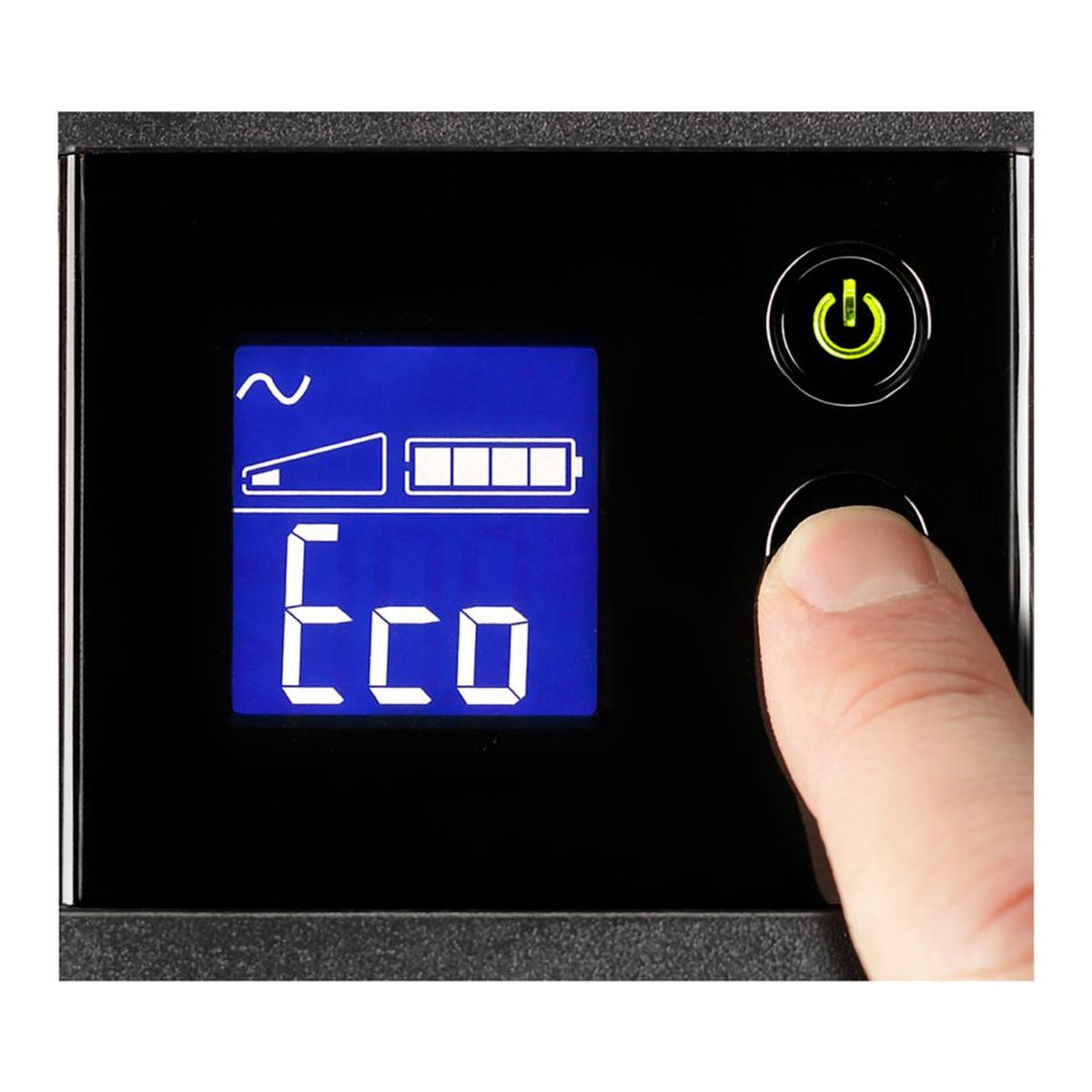

EcoControl Energy Saving

The EcoControl function can automatically switch off selected peripheral equipment when the main connected device is shut down, helping reduce unnecessary energy consumption.

USB Monitoring and Automatic Shutdown

The HID-compliant USB interface works with Eaton UPS Companion software and supported operating systems to monitor power conditions, configure UPS settings and safely shut down a connected computer during an extended power failure.

Replaceable Battery

The internal sealed lead-acid battery is user replaceable and includes automatic battery testing, deep-discharge protection and cold-start support, helping extend the useful service life of the UPS.

• ELP850IEC is the IEC-output version with four IEC C13 sockets.
• Three outlets provide battery backup plus surge protection; one provides surge protection only.
• The internal battery is a single 12V / 9Ah sealed lead-acid battery.
• Actual backup runtime varies according to connected load, battery condition and operating environment.

Technical Specifications:

The Eaton Ellipse PRO 850 ELP850IEC combines 850VA / 510W backup capacity, AVR voltage regulation, IEC connectivity, surge protection and intelligent USB monitoring in a compact UPS designed for professional workstations and small-business equipment.
