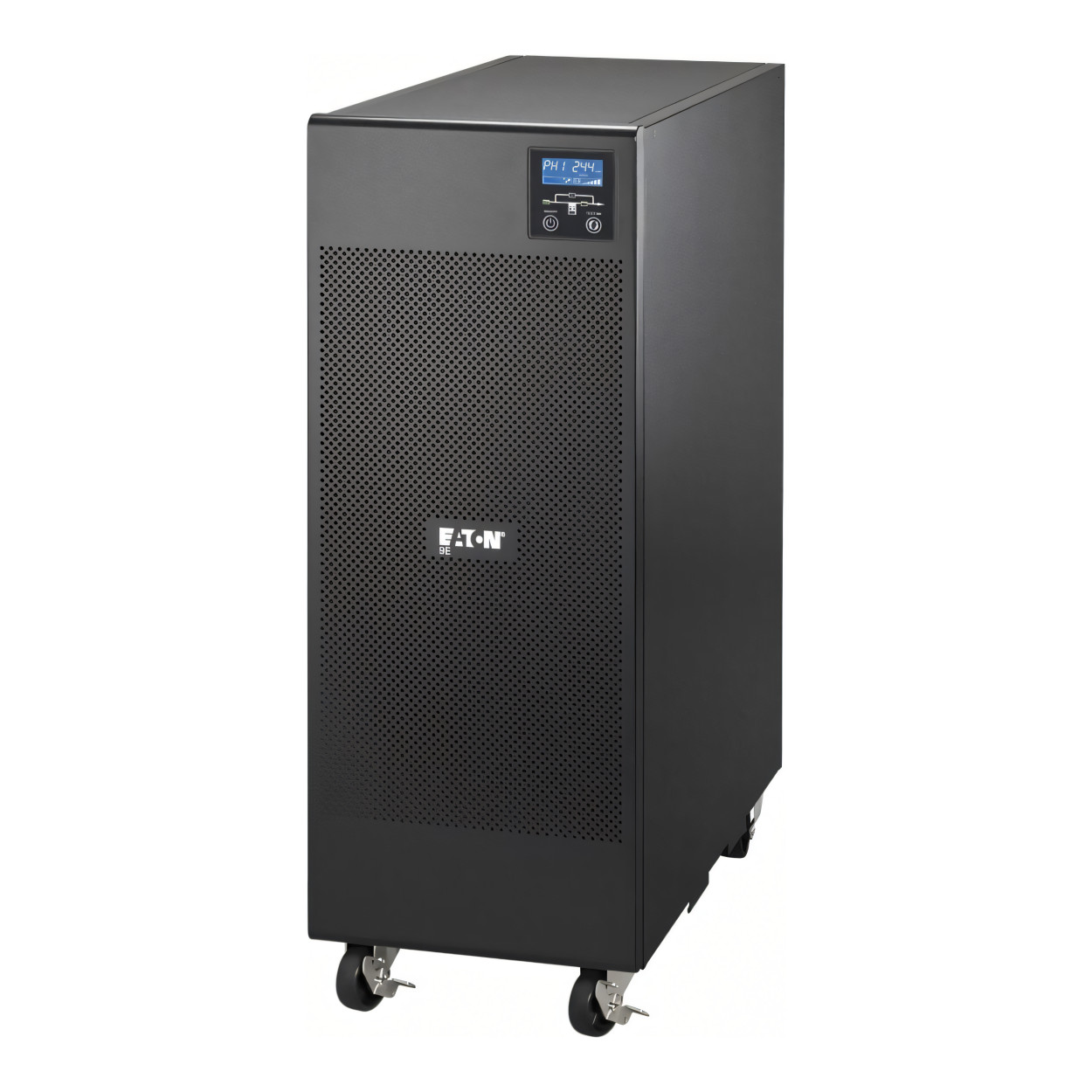

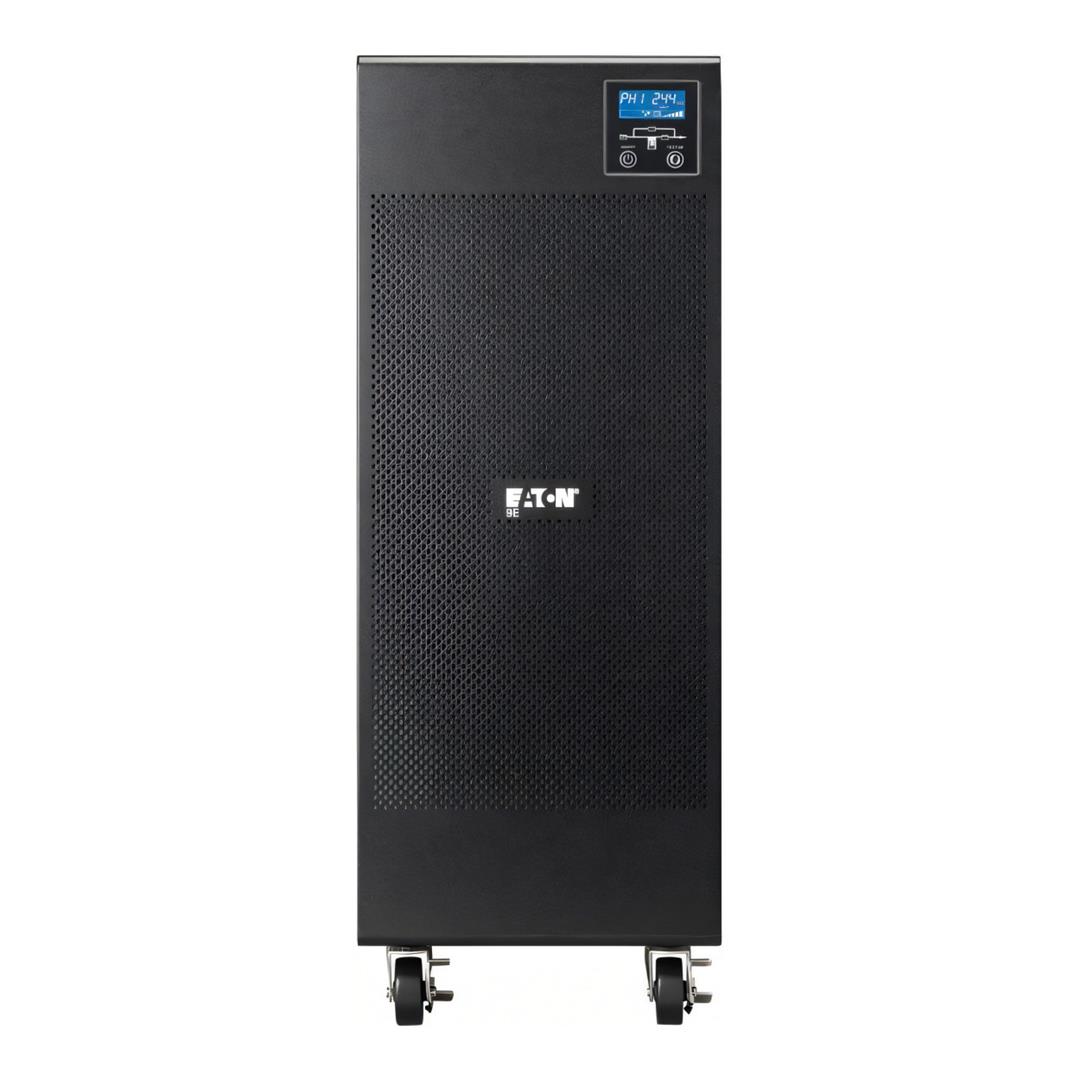

Eaton 9E6KI 6kVA 4800W Online Double-conversion UPS
The Eaton 9E6KI 9E UPS provides 6000VA / 4800W of online double-conversion power protection for critical IT, infrastructure and electrical equipment. Its double-conversion architecture continuously regulates incoming voltage and frequency, while an internal bypass, integrated battery system, LCD status display and optional extended battery modules provide dependable protection and flexible runtime for demanding installations.
Key Features
- 6000VA / 4800W power capacity for demanding equipment and infrastructure.
- Online double-conversion topology continuously regulates voltage and frequency.
- Integrated internal bypass helps maintain service continuity in the event of a UPS fault.
- 15 × 12V/9Ah sealed lead-acid batteries with automatic testing and deep-discharge protection.
- Supports up to four optional external battery modules for extended runtime.

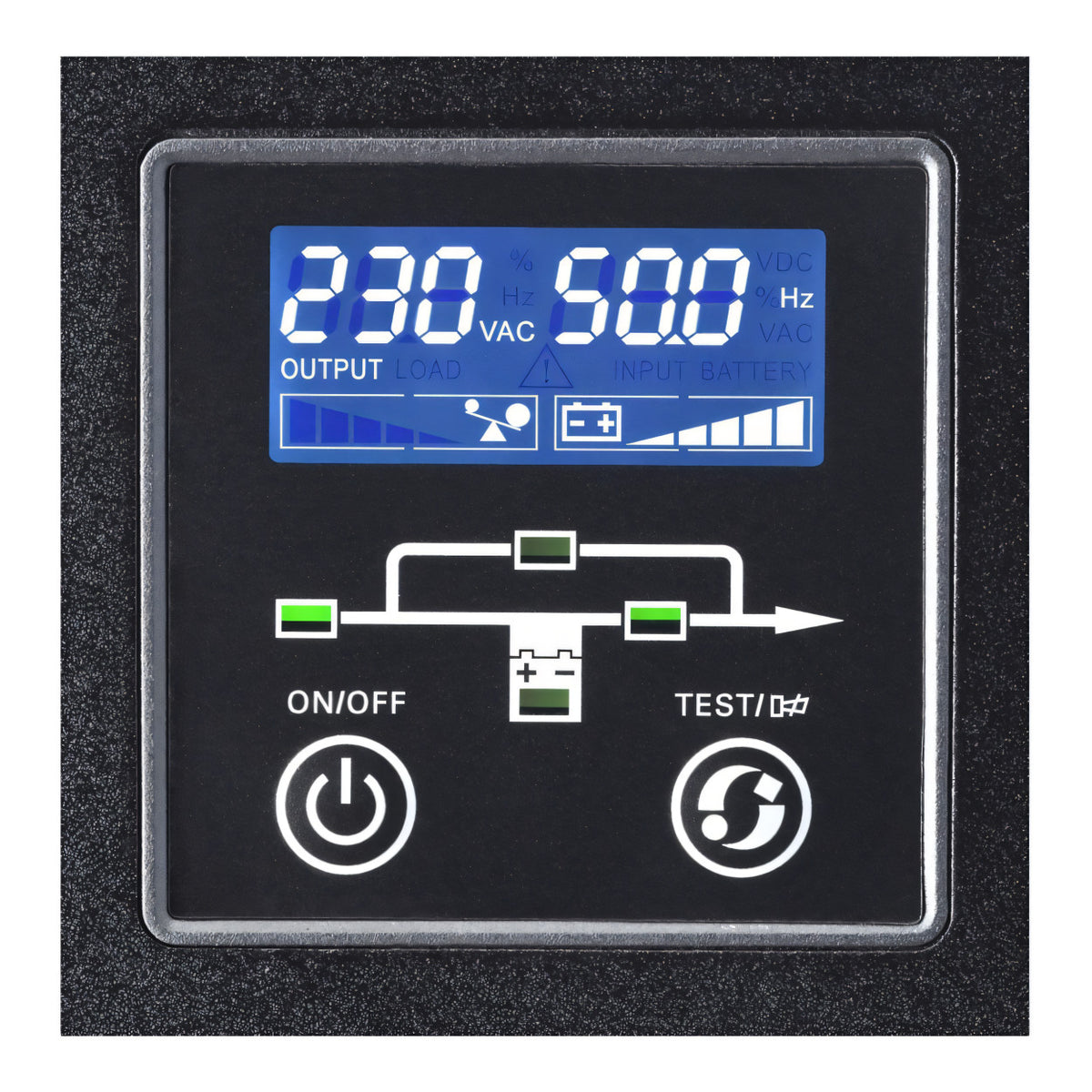

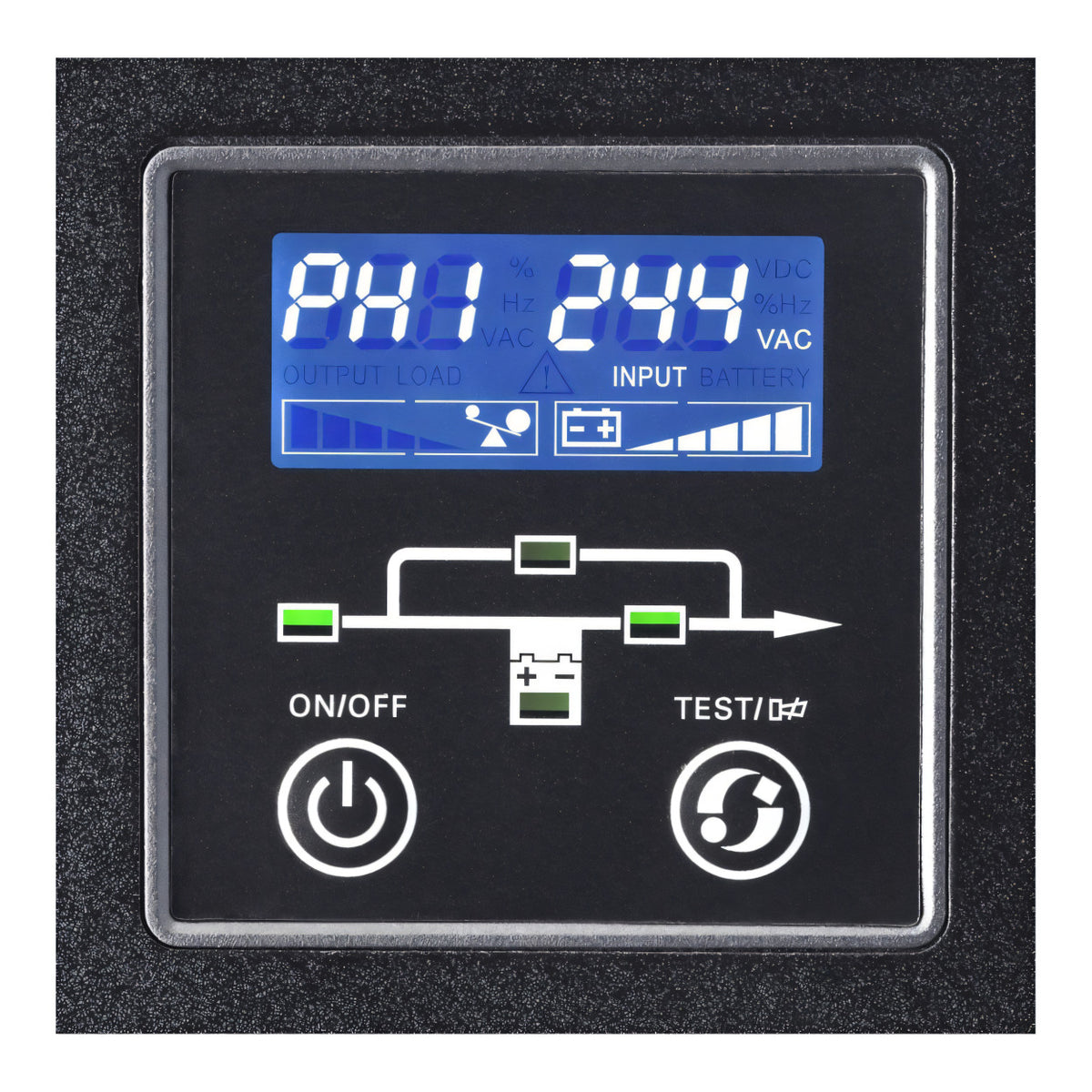

- LCD interface provides real-time UPS status and measurement information.

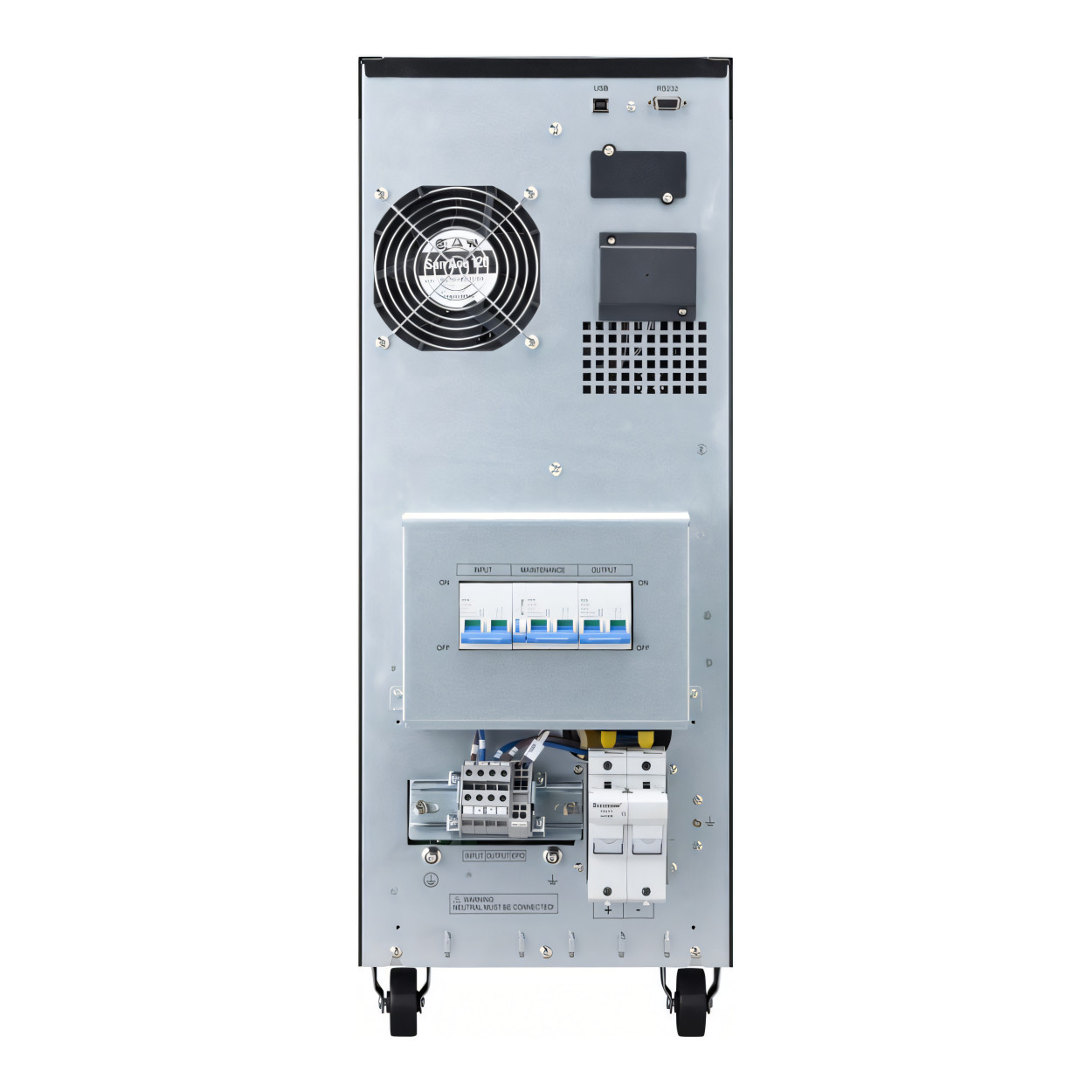

- USB, RS-232, remote power-off connectivity and an expansion slot provide flexible management options.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | Eaton 9E |
| Model / Catalogue Number | 9E6KI |
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Online Double-Conversion |
| Form Factor | Freestanding Tower |
| Power Rating | 6000VA / 4800W |
| Output Power Factor | 0.8 |
| Input Phase | Single Phase |
| Output Phase | Single Phase |
| Input Connection | Hardwired / Fixed Connection |
| Input Nominal Voltage | 230V Default (220/230/240V) |
| Input Voltage Range | 176–276V; 110–276V with Derating |
| Input Frequency | 50/60Hz |
| Input Frequency Range | 45–66Hz |
| Input Power Factor | >0.99 |
| Output Connection | Hardwired / Terminal Block |
| Hardwired Outputs | 1 |
| Output Nominal Voltage | 230V Default (220/230/240V) |
| Output Voltage Range | 220/230/240V ±2% |
| Output Frequency | 50/60Hz |
| Output Waveform | Sine Wave |
| Output Voltage Distortion | ≤3% with Linear Load |
| Efficiency at Maximum Load | 91% |
| ECO Mode Efficiency | 96% |
| Internal Bypass | Yes |
| User Interface | LCD Display |
| Battery Type | Sealed Lead-Acid |
| Battery Configuration | 15 × 12V / 9Ah |
| Battery Management | Automatic Battery Test / Deep-Discharge Protection |
| Battery Replacement | Replaceable Batteries |
| Runtime at Half Load | Approximately 10 Minutes |
| Runtime at Full Load | Approximately 8 Minutes |
| Extended Battery Support | Yes |
| Maximum External Battery Modules | 4 |
| USB | USB Port, HID Compliant |
| Serial Interface | RS-232 |
| Remote Power Off | Mini-Terminal Block |
| Expansion Slot | 1 × Slot for Optional Communication Card |
| Ethernet / Network Card | Not Included |
| Software Compatibility | Eaton Intelligent Power Manager / Eaton Intelligent Power Protector |
| Automatic Shutdown | Yes |
| Noise Level | <55dB at 1m |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0–95%, Non-Condensing |
| Maximum Altitude | 3000m |
| Colour | Black |
| Dimensions (W × D × H) | 262.4 × 612.9 × 708.5mm |
| Weight | 68kg |
| UPC | 743172067661 |
| Certifications | IEC/EN 62040-1 / IEC/EN 62040-2 / CE / EAC |
| What's in the Box: |
|
Protect critical equipment with 6kVA of online double-conversion power protection and flexible extended-runtime capability from the Eaton 9E6KI.
