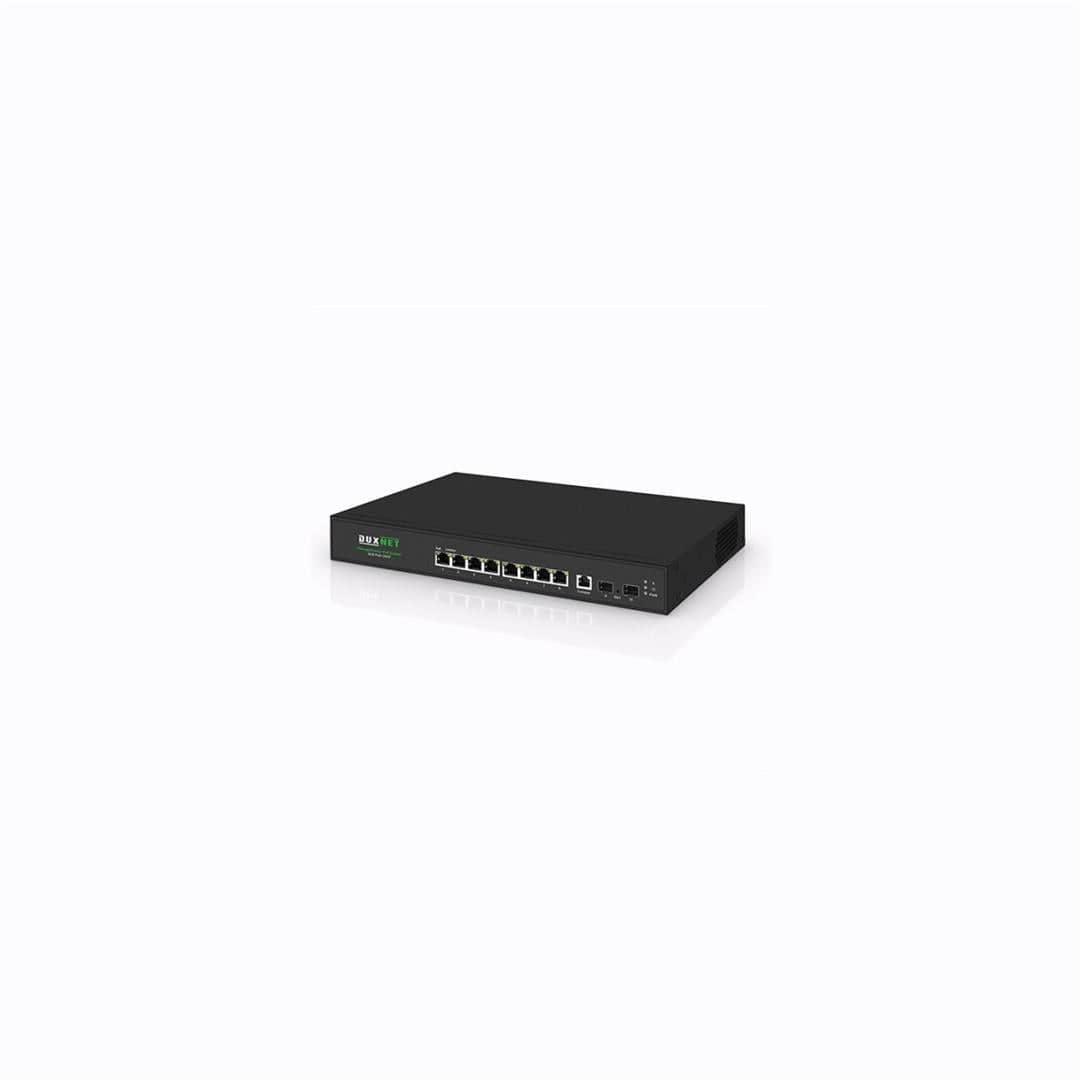

DuxNet 8-Port GbE Solar PoE Managed Switch with 2x SFP ports DUX118SPS

DuxNet 8-Port GbE Solar PoE Managed Switch with 2x SFP ports DUX118SPS

DuxNet 8-Port Gigabit Solar Layer 2 Managed PoE Switch with 8-port Gigabit PoE+ and 2 x SFP Ports. Power Input: AC 100-240V or 24V power input options for batteries, solar panels or power supply. Max 800W Solar Panel and 500AH Batteries. Auto charging and discharging, Battery voltage auto detection. 280W PoE Budget. High-power output (first port output Hi-PoE, MAX 60W,), Port 4-5 support 24V/48V adaptive output. 48V power supply: PIN 12+36-, 24V power supply: PIN 45+78- . Working temperature between 10 and 55 degree Celsius. Rackmount Support. System and battery temperature monitoring.

The Dux118SPS is a reliable networking solution for outdoor and remote deployments. It features 8x Gigabit PoE ports and 2 Gigabit SFP uplinks, ensuring seamless connectivity for IP cameras, wireless APs, and other PoE devices. Designed for solar power systems, it operates efficiently in off-grid locations, and provides secure and stable performance. Its durable design makes it ideal for industrial and outdoor use.

Features

• Auto charging and discharging
• Battery voltage auto detection
• Support lead-acid and lithium battery (MAX 100AH)
• Support 24V solar panel input (MAX 800W)
• Intelligent PSE chip
• PoE standard: IEEE802.3af/at/PoE++
• High-power output (first port can output Hi-PoE, MAX 60W)
• 4-5 port 24V/48V adaptive output
• REALTEK intelligent CPU chip
• 24/48V PoE output
• Layer 2 Managed

Technical Specification

Product: DuxNet 8-Port GbE Solar PoE Managed Switch with 2x SFP ports

Ports

• 8x 10/100/1000Base-TX PoE port(data/power)
• 2x 1000M SFP
• 1x Console Port

Transmission Mode: Store and Forward (full wire-speed)

Bandwidth: 56 Gbps

Packet Forwarding: 40.32 Mpps

MAC Address: 8K

Buffer: 4.1M

Transmission Speed

• Ethernet 10Mbps half duplex, 20Mbps full duplex
• Fast Ethernet 100Mbps half duplex, 200Mbps full duplex
• Gigabit Ethernet 2000Mbps full duplex

CPU: 500 MHz

Flash: 16M

RAM: 128M

PoE function

• 8-port fully automatic 24V/48V matching PoE
• IEEE802.3af/at, PoE port output power MAX 30W
• Active 24V PoE port output power MAX 25W
• Configurable 48V/24V PoE output
• Support 48V or 24V PoE device power
• 1-8 port supports PoE

Power source

Power Input

• 100-240V 50/60Hz 4.0A MAX 350W
• Support 24V solar panel input (≤44V) Max 800W (Panel not included)

Watt

• Charging + full-loaded: 450W
• Discharging + full-loaded: 150W

Battery

• Support 24V(12V x2) lead-acid battery group
• Capacity Max. 24V 100AH (Battery not included)
