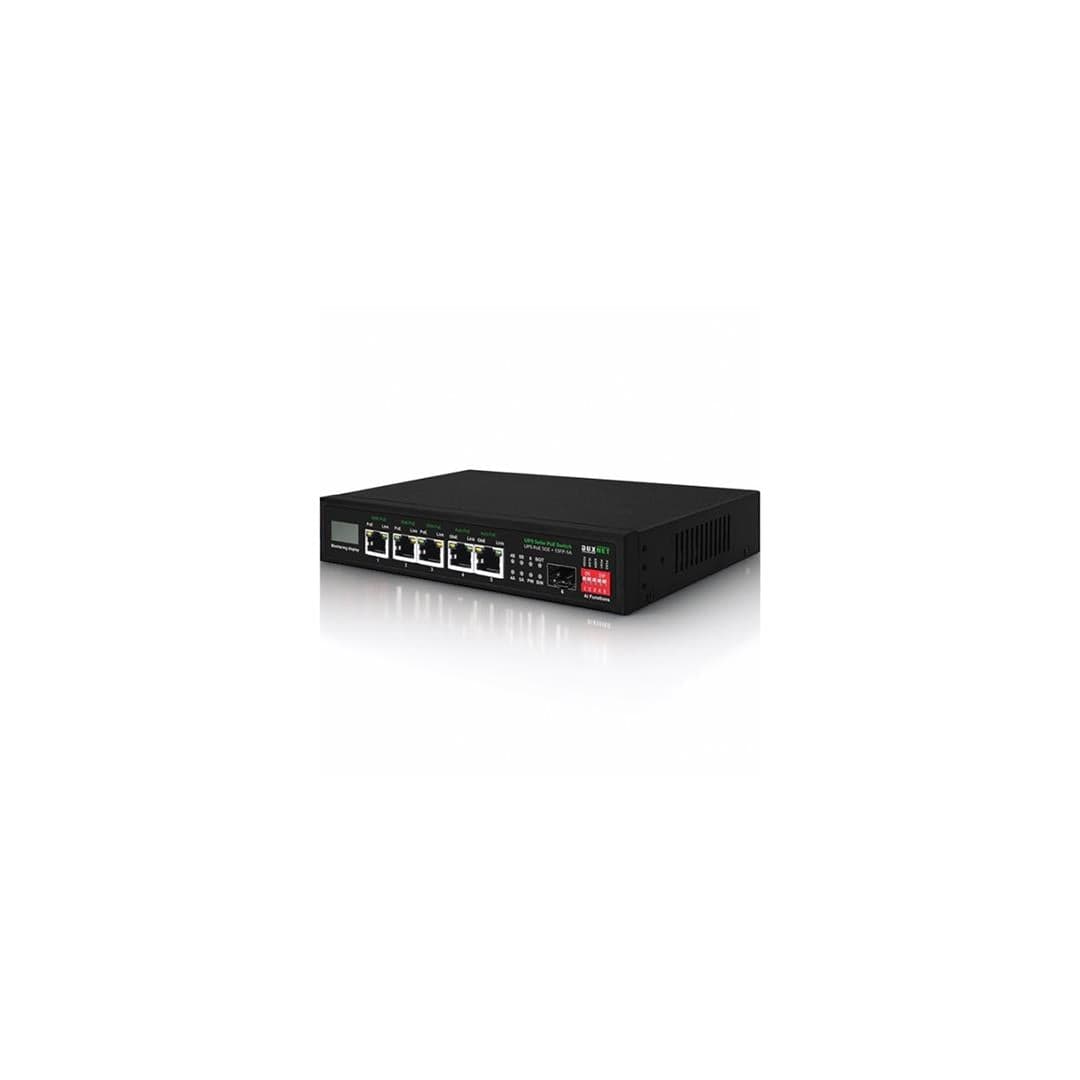

DuxNet 5-Port GbE Solar PoE Unmanaged Switch with 1x SFP port DUX106SPS5A_LED

DuxNet 5-Port GbE Solar PoE Unmanaged Switch with 1x SFP port DUX106SPS5A_LED

DuxNet 6-Port Gigabit Solar Unmanaged PoE Switch with 5-port Gigabit PoE+ and 1 x SFP Ports with Digital Monitor Display. 12V/24V power input options for batteries, solar panels or power supply. Max 400W Solar Panel and 50AH Batteries. Auto charging and discharging, Battery voltage auto detection. 75W PoE Budget, 1-port s PoE++ (60W), 2 ports 30W and 2 ports 48V or 24V passive and standard 802.3af/at equipment. Plug an Play for easy operation. Working temperature between -20 and 65 degree Celsius. No Power Supply, Solar Panel or Battery included.

Features

High-Speed Connectivity: Five Gigabit Ethernet ports ensure fast and dependable data transfer for various devices.

Fibre Flexibility: The SFP port allows for longer-distance connections using fibre optic cables, making it suitable for applications that require extended reach.

Solar Power Independence: The solar power capability eliminates the need for external power sources, providing flexibility and sustainability in remote or off-grid locations.

Power-over-Ethernet (PoE): PoE reduces the need for additional power outlets by supplying power to connected devices directly through the Ethernet cable.

Rugged Design: The compact and durable design makes these switches suitable for outdoor installations and harsh environments.

Plug-and-Play Simplicity: The easy setup process requires no software installation or configuration, making deployment quick and straightforward.

Technical Specification

Product: DuxNet 5-Port Gigabit Solar PoE Switch with 1-Port SFP

Ports

• 5x 10M/100M/1G RJ45 PoE Ports
• 1x 1G SFP Ports

Switching Bandwidth: 12Gbps

MAC Address: 2K

PoE Function

IEEE802.3at (PoE+ 30W): 2x

IEEE802.3af (PoE 15.4W): 2x

UPoE(60W): 1x

Adaptive PoE: 24V/48V on port 4/5

PoE Display: Yes

Available PoE Power: 75W

Power Source

AC Input / DC Input: 12V/24V Solar or Battery

Solar Panel Input: Max 400W (Panel not included)

Battery: 12V or 24V Lead-Acid / Lithium (Max 50Ah) (Battery not included)
