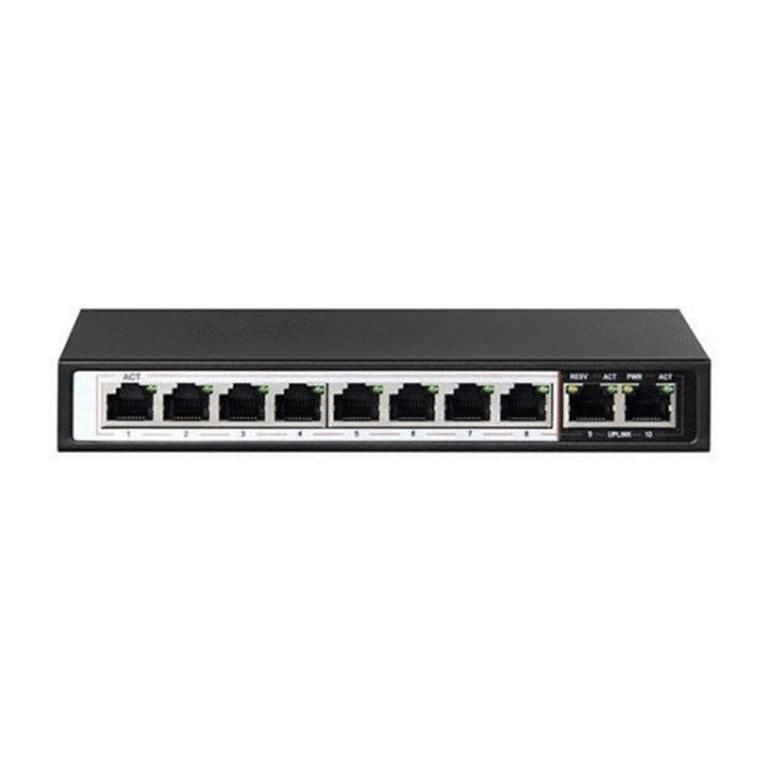

Duxbury 8-port Gigabit PoE+ AI Switch with 2-port Gigabit Uplink DUX1010Gv2

Duxbury 8-port Gigabit PoE+ AI Switch with 2-port Gigabit Uplink DUX1010Gv2

The Duxbury switches are targeted at applications in small businesses and home offices requiring the installation of Power-over-Ethernet (PoE) devices, such as IP phones, IP cameras and access points. The Duxbury range will keep on expanding to meet the need for specialised, value-added products as well as the volume distribution of its market-leading offerings.

The switches from Duxbury not only represent an easy and cost-effective way to add more Ethernet ports to a small network, they also give users an opportunity to leverage the full potential of increasingly popular IP-based networking solutions - such as security systems - at a budget price.

Key Features

AI Extend: support 250 Meters distance power supply (recommended Cat5e or 6 network cable) @ 10Mbps
Port Configuration
10M/100M/1G RJ45 Ports: 8
1G Uplink Ports: 2
1G SFP Ports: --
Total Ports: 10

PoE Function
IEEE802.3at (PoE+ 30W): Y
IEEE802.3af (PoE 15.4W): Y
PoE+ Port: 8
Available PoE Power: 96W

HW Performance
Switching Bandwidth: 20 Gbps
MAC Address: 2k

Environmental Specification
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 90% non-condensing
Storage Temperature: -10°C to 70°C
Storage Humidity: 5% to 90% non-condensing

Mechanical Specification
Dimensions (H) x (W) x (D) mm: 27 x 94 x 184
Weight: 1.05kg

Power Source
AC Input: 100-240V

What's in the box
Switch
Power Adapter/Power Cable
