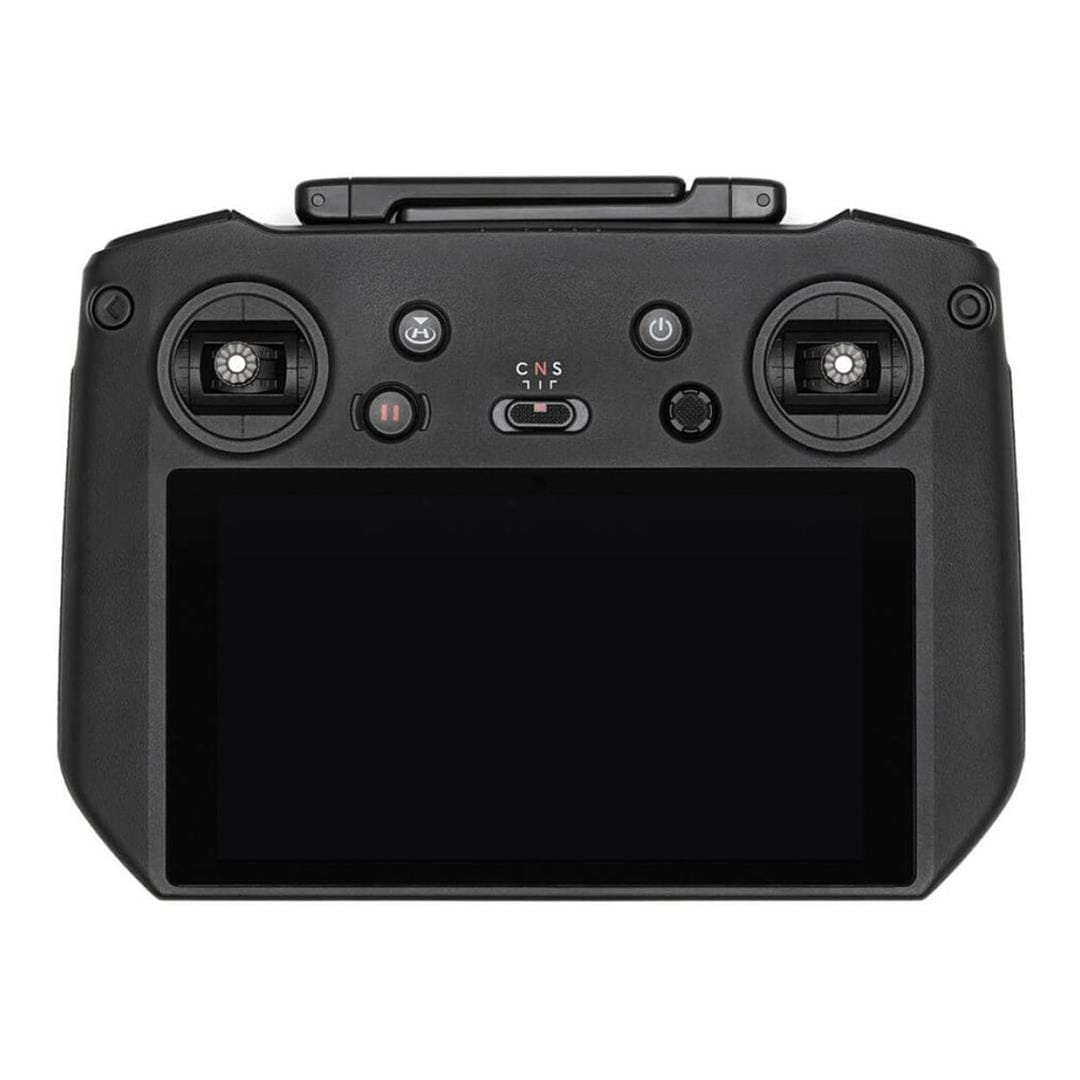

DJI RC Pro Enterprise Remote Controller CP.RC.00000022.01

DJI RC Pro Enterprise Remote Controller CP.RC.00000022.01

Supporting long-range piloting and feature control during enterprise missions, the RC Pro Enterprise Remote Controller from DJI can communicate with the drone from up to 9.3 miles away using DJI's O3 Enterprise transmission system. This system also allows for a live feed from the drone to be displayed on a built-in 5.5" 1080p/60 display. A built-in microphone gives you the option of adding audio to enhance the footage. Controlling the drone and settings is made easy with traditional twin thumb sticks, a customizable button layout, and 10-point multitouch.

Features:

• For Select DJI Mavic 3 & Matrice Drones
• 5.5" Display with 10-Point Multi-Touch
• 1920 x 1080 Resolution
• Built-In Speaker & Microphone
• Tri-Band Wi-Fi 6 (802.11ax) & 2x2 MIMO
• Bluetooth 5.1 Support
• Long-Range 9.3-Mile Transmission
• Customizable Button Layout
• 64GB of Storage & microSD Slot
• Up to 3 Hours of Battery Life

With support for a tri-band Wi-Fi 6 (802.11ax) network connection using 2 x 2 MIMO, you can ensure a stable and fast network and internet connection to browse the web or share footage. You can even share the live feed and recorded footage with your crew locally by outputting to an optional monitor using the RC Pro Enterprise's mini-HDMI connection. The video and audio files you record can be easily stored on the remote's built-in 64GB of storage, which can be expanded with an optional microSD card.

Additional Features

• Built-in speaker
• Up to 3 hours of battery life
• Bluetooth 5.1 support

Technical Specifications:

Display

Panel Type: LCD
Display Size: 5.5"
Native Resolution: 1920 × 1080
Touchscreen: Yes
Maximum Brightness: 1000 nits / cd/m²
Refresh Rate: 60 Hz
Multitouch: 10-Point

Inputs/Outputs

USB I/O: 1 × USB-C (Charging Only) Female Input
Video I/O: 1 × Mini-HDMI Output
Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC
Built-in Memory: Up to 64 GB

Wireless

Wireless: Wi-Fi 6 (802.11ax) / Bluetooth 5.1
Mobile App Compatible: No
Global Positioning (GPS, GLONASS, etc.): Galileo, GLONASS, GPS

Transmission:

• System: DJI O3 Enterprise
• Maximum Distance (FCC): 9.32 Miles / 15 km
• Maximum Distance (CE/SRRC/MIC): 5 Miles / 8 km (Unobstructed & Free of Interference)
• Video Transmission Operating Frequency: 2.400–2.4835 GHz & 5.725–5.850 GHz
• Antennas: 4 × 2T4R
• Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), 1/4+23 dBm (SRRC)

Wi-Fi:

• MIMO: 2 × 2
• Operating Frequency: 2.400–2.4835 GHz, 5.150–5.250 GHz & 5.725–5.850 GHz
• Transmitter Power (EIRP): 2.4 GHz <26 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz <26 dBm (FCC), <23 dBm (CE/SRRC/MIC); 5.8 GHz <26 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth:

• Operating Frequency: 2.400–2.4835 GHz
• Transmitter Power (EIRP): <10 dBm

Battery

Battery Chemistry: Lithium-Ion
Battery Capacity: 5000 mAh
Recharge Time: 1–1.5 Hours
Maximum Battery Life: 3 Hours

Power

Rated Power: 12 W
Charger Support: 12 V or 15 V

Physical

Color: Black
Operating Conditions: 14 to 104°F / -10 to 40°C
Storage Conditions: -22 to 140°F / -30 to 60°C
Dimensions:

• Antennas Folded & Sticks Removed: 7.22 × 5.41 × 1.9" / 183.27 × 137.41 × 47.6 mm
• Antennas Unfolded & Sticks Attached: 8.01 × 7.22 × 2.36" / 203.35 × 183.27 × 59.84 mm
• Weight: 1.5 lb / 680 g

Drone Compatibility

The RC Pro Enterprise is specifically designed to support the following models of Mavic 3 and Matrice Enterprise drone:

Matrice 3D/3TD

Mavic 3E

Mavic 3T

Mavic 3M
