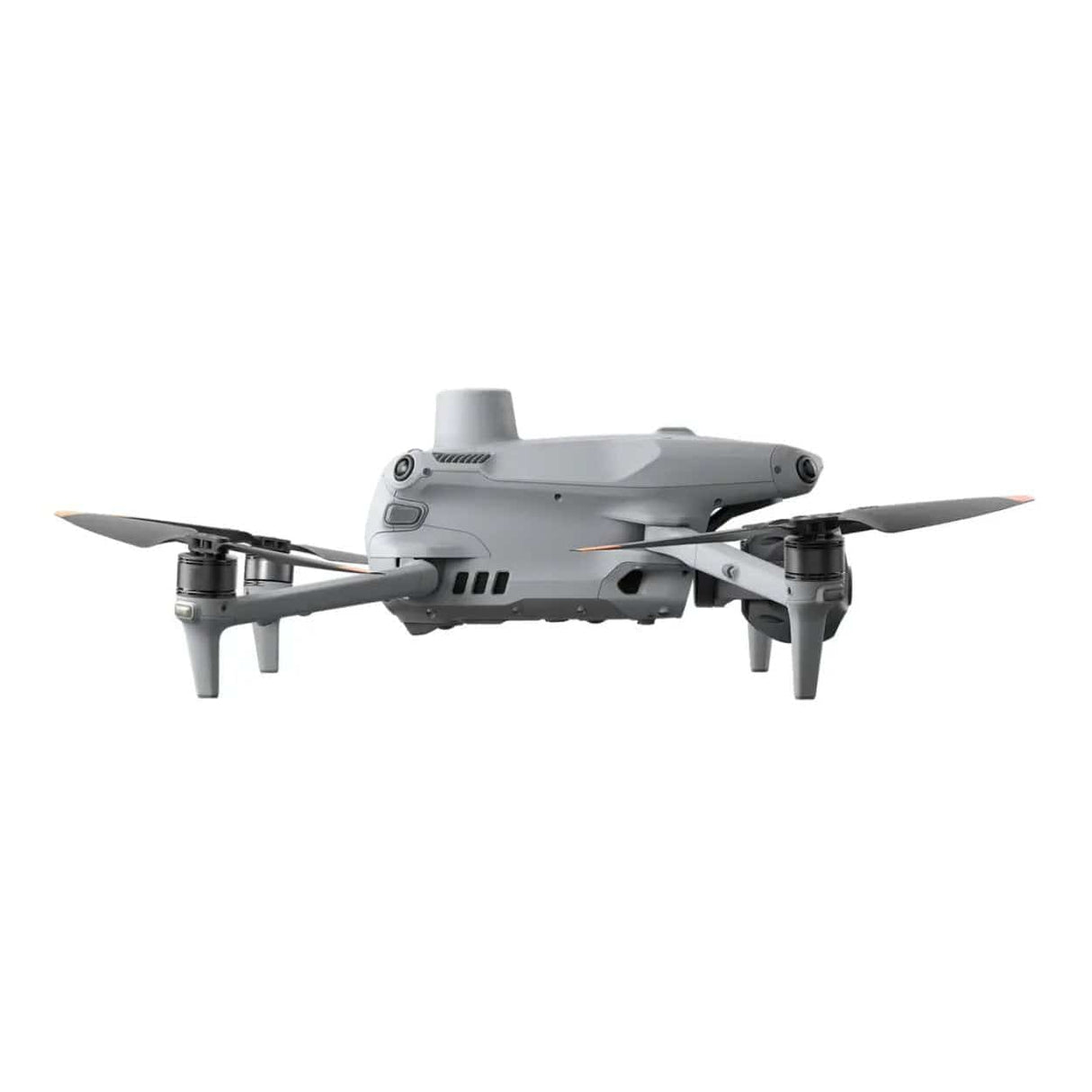

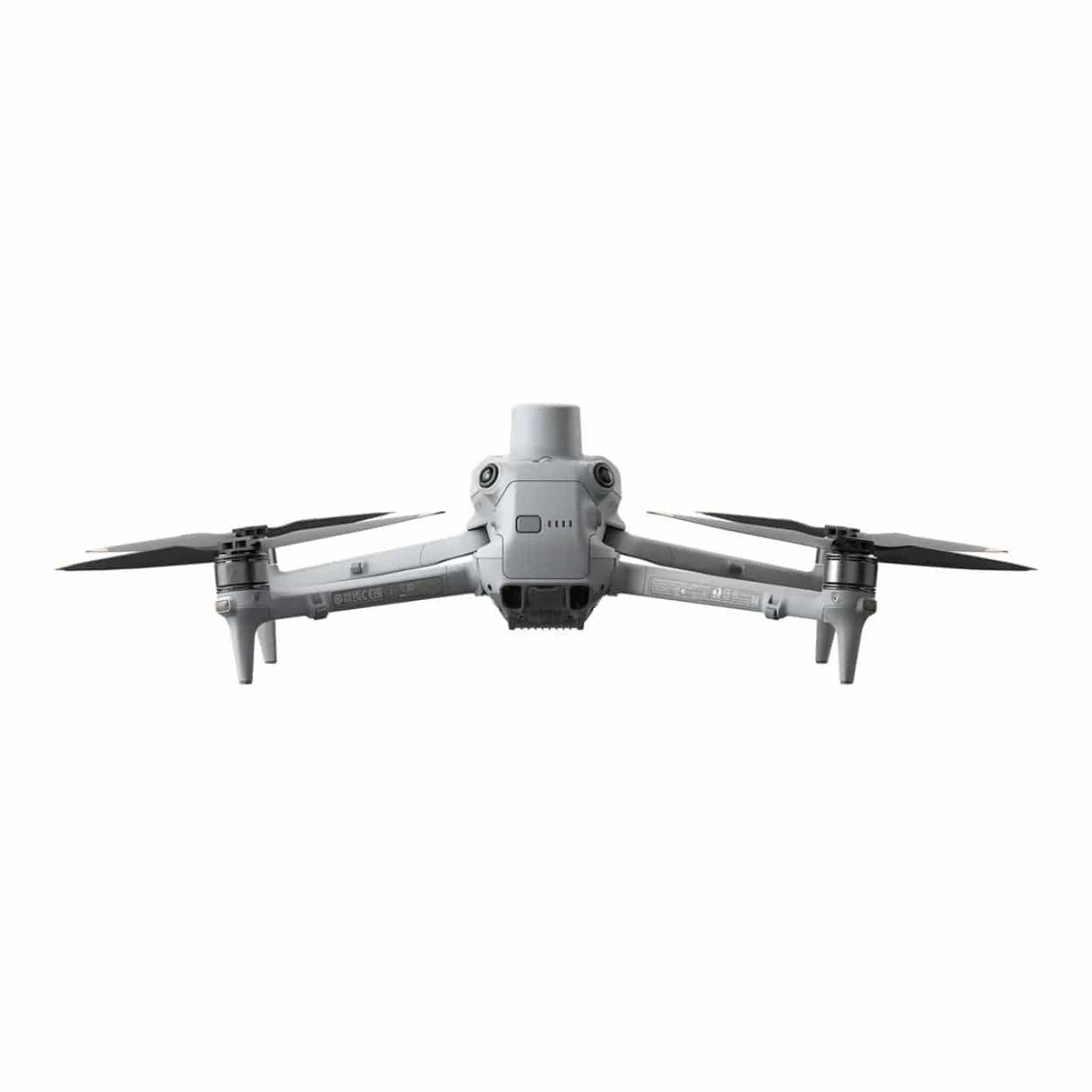

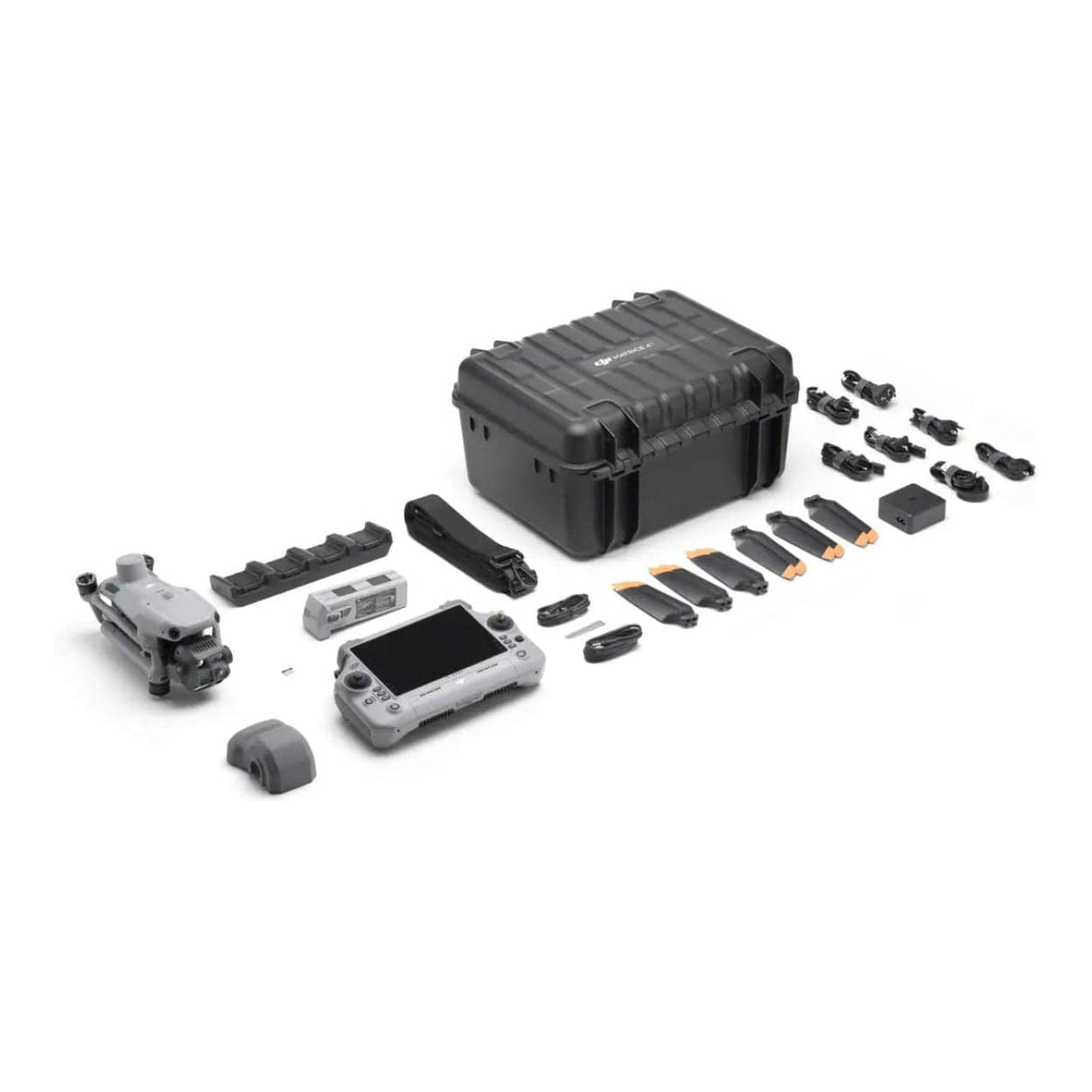

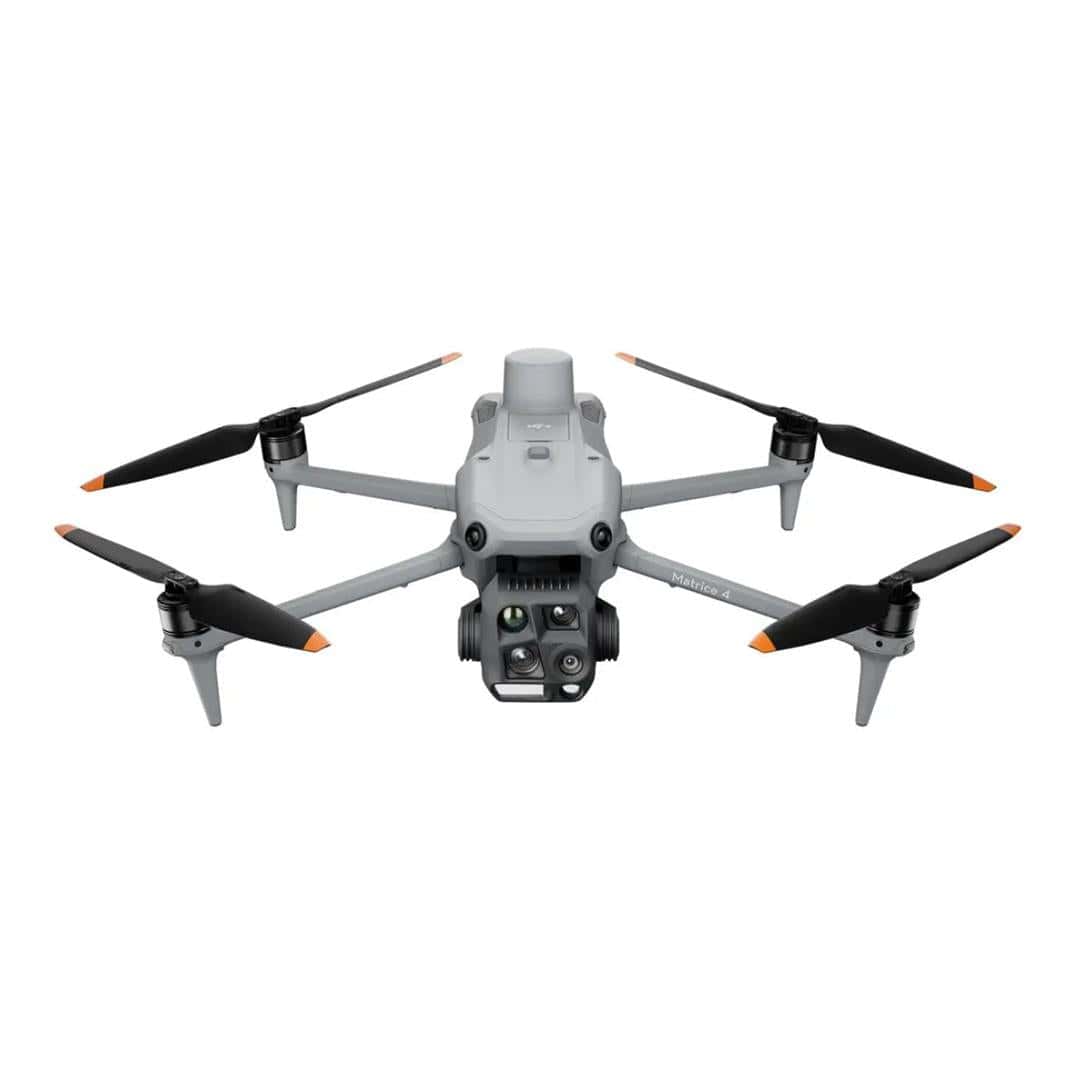

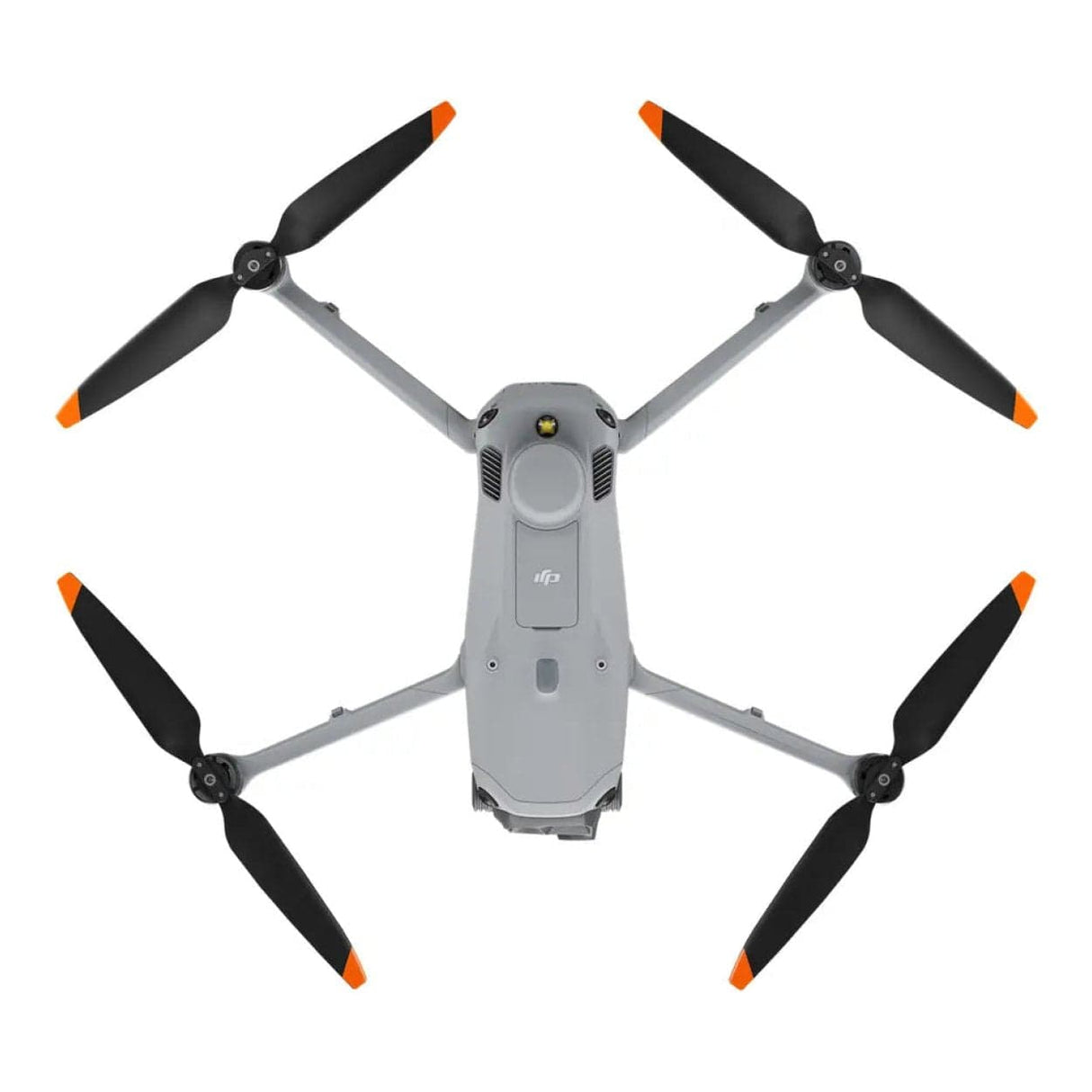

DJI Matrice 4T Drone CP.EN.00000547.03

DJI Matrice 4T Drone CP.EN.00000547.03

The DJI Matrice 4 series is a new generation of enterprise small intelligent multi-light flagship drone, setting a new benchmark for intelligent operations.

Intelligent Operation

AI Power for Smarter Operations

The built-in AI model can identify vehicles, vessels, and subjects during search and Rescue operations or routine flights. It also supports switching to other models, enabling the Expansion of AI application scenarios.

Laser Range Finder, Precise Measurement

The laser range finder enables real-time precise measurement. Through simple operations such as point marking, line drawing, and area calculation, it can complete tasks like marking target locations for security purposes or calculate the area of a wildfire.

Observation Range Recording

DJI Pilot 2 supports recording the ground area that has been viewed by the camera and the center position of the frame, and can display the operated area on the map. It is especially suitable for security searches and mountain searches.

Excellent for Low-Light Environments

Night Scene Mode

Supports full-color night vision and IR Cut Filter, combined with nir auxiliary light, easily overcomes the limitations of darkness.

Smart Capture

The Matrice 4 series cameras have larger apertures and intelligent low light capabilities, enhancing operations during dusk and nighttime.

Infrared Illumination

The Matrice 4T features new hardware for NIR illumination, allowing for lighting distances of up to 100 meters.

Thermal Imaging

The Matrice 4T supports infrared super-resolution with up to 1280 × 1024 image resolutions.

Low-Light Fisheye Omnidirectional Sensing

The Matrice 4 series has six high-definition low-light fisheye lenses, enhancing visual low-light positioning and obstacle avoidance capabilities.

Crystal Clear Vision

3x optical telephoto lens

3x optical telephoto lens excels for medium-range inspection tasks. it can identify screws and cracks from a distance of 10 meters and clearly read instrument data at substations.

7x telephoto camera

7x telephoto camera, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away.

Foreground Stabilization

The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or more.

Electronic Dehazing

In environments with fog, haze, or high humidity, Electronic Dehazing can improve the imaging clarity to match different environments and requirements.

Safe Flight, Worry-Free Operation

Integrated Positioning, Return to home safely

The Matrice 4 series features GNSS+Vision Integrated Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds in emergency situations. Even without GNSS signals, it can complete the return-to-home process.

Intelligent Escort, Unobstructed Flight

When the remote controller is connected to the internet, it automatically loads terrain obstacle details and preloads detailed offline maps. The standard configuration includes a 5-directional vision assist view along with a downward vision, which aids in providing comprehensive visibility for enhanced safety.

Achieve New Heights in Image Transmission

The O4 Enterprise image transmission system incorporates an 8-antenna system with adaptive selection on each drone. Paired with a high-gain receiving antenna integrated into the remote controller, this setup achieves a transmission range exceeding 20 kilometers. Furthermore, the download bandwidth is up tp 20MB/s. Additionally, with an optional DJI Cellular Dongle 2 utilizing 4G image transmission in conjunction with the aircraft's antennas, signal stability is further enhanced.

Specifications:

Drone

• Weight: 1219 g（with normal propellers）
• Folded size: length 260.59 mm, width 113.66 mm, height 138.23 mm
• Unfolded size: length 307 mm, width 387.5 mm, height 149.43 mm
• Max payload: 200g
• Flight time: 49 minutes
• Max taking off altitude: 6000 m
• Max wind resistance: 12 m/s
• Max horizontal speed: 21m/s

Payload

• Wide: 1/1.3 CMOS, 48 MP, f/1.7, Equivalent Focal Length：24 mm
• 3× Zoom: 1/1.3 CMOS, 48MP, f/2.8, Equivalent Focal Length：70 mm
• 7× Zoom: 1/1.5 CMOS, 48MP, f/2.8, Equivalent Focal Length：168 mm

Infrared Thermal Camera: Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, uncooled vanadium oxide, Support for Super-Resolution Mode

NIR Auxilary Light: FOV: 6°, Illumination Distance: 100 m

Laser Range Finder:

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range(1:5 Oblique Distance): 600 m (1 Hz)

Blind Zone: 1 m; Range Accuracy: 0.2 + 0.005 × D (m)
