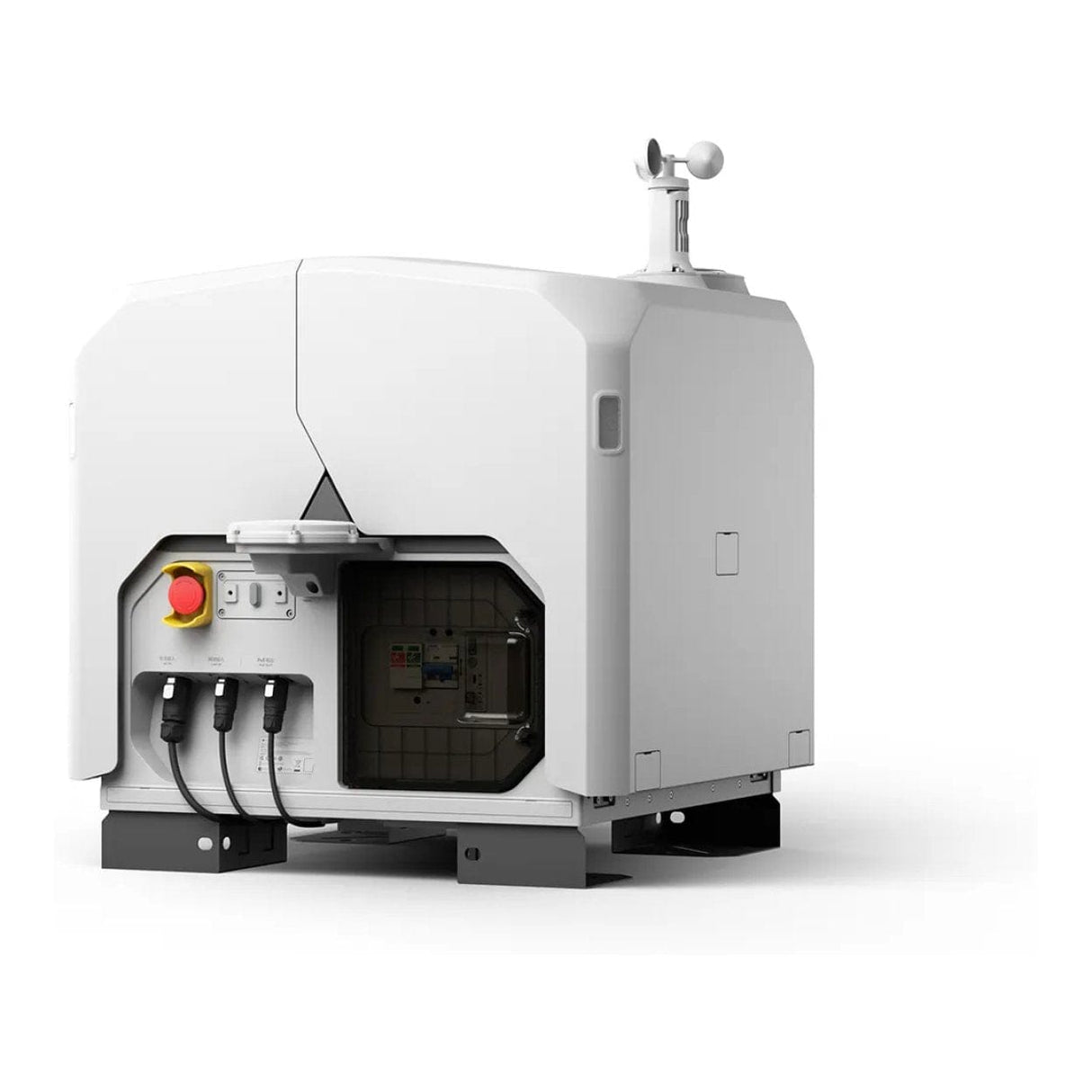

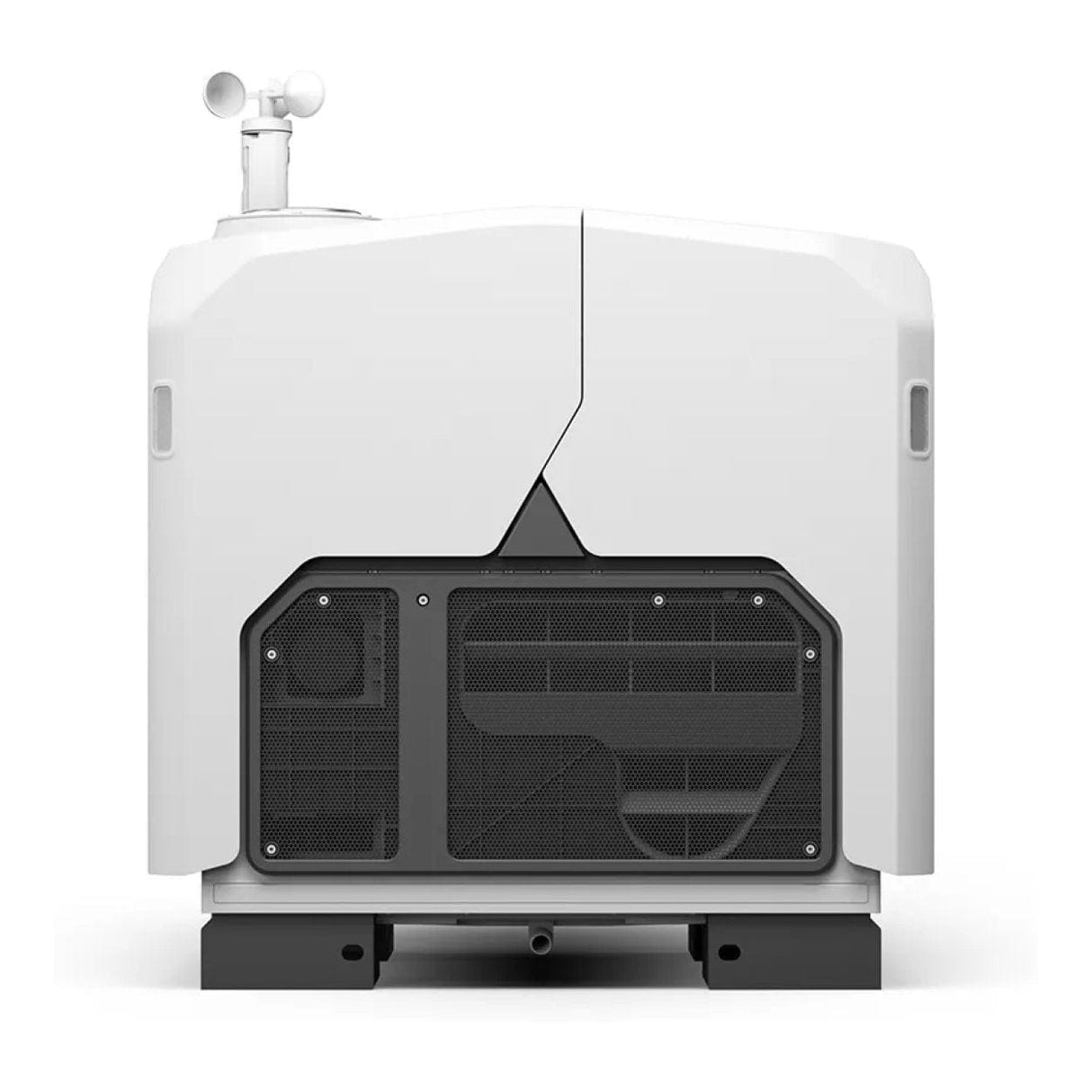

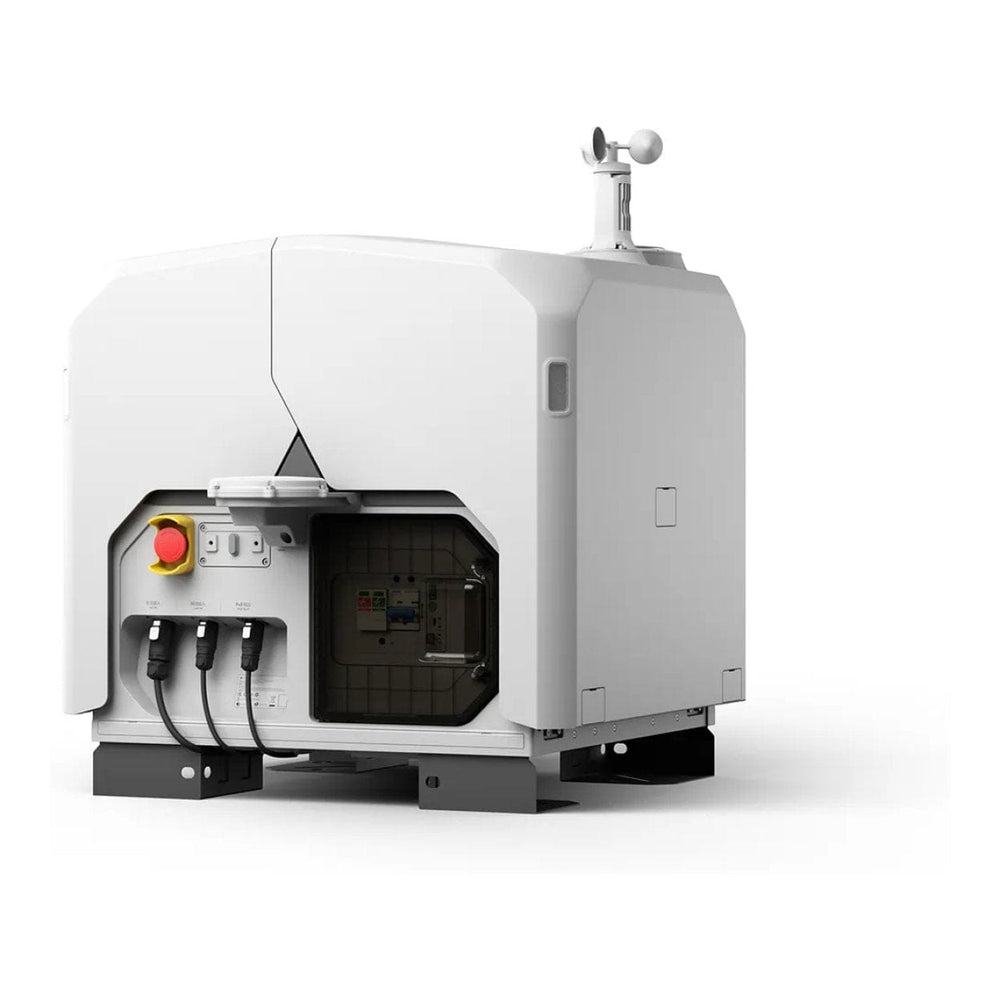

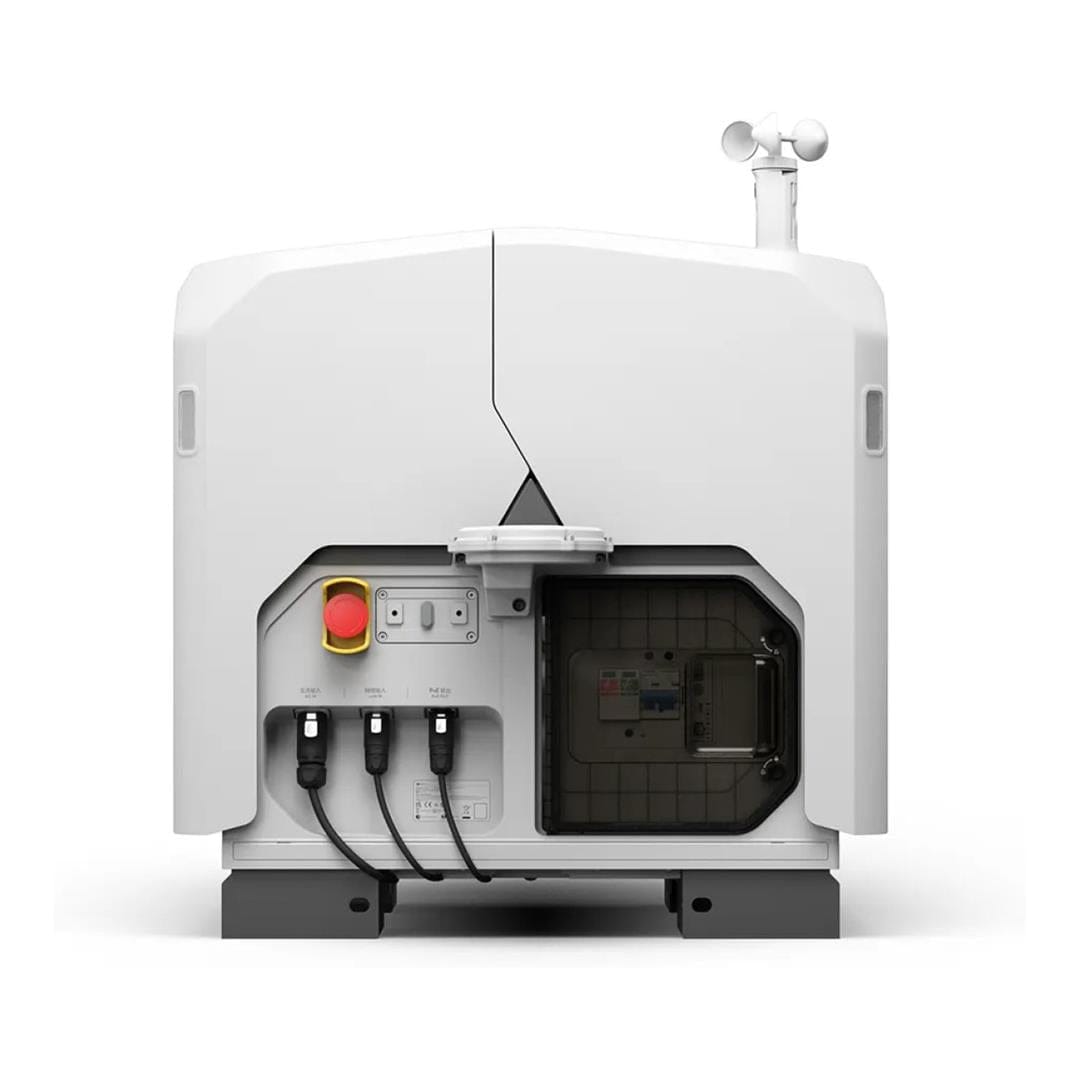

DJI Dock 3 CP.EN.00000590.01

DJI Dock 3 CP.EN.00000590.01

10s Take-off For First Response

Updated take-off logic

Without waiting for propeller check

Quick take-off self check

Self check efficiency has been improved

GNSS module always on

GNSS standby for emergency mission

Features:

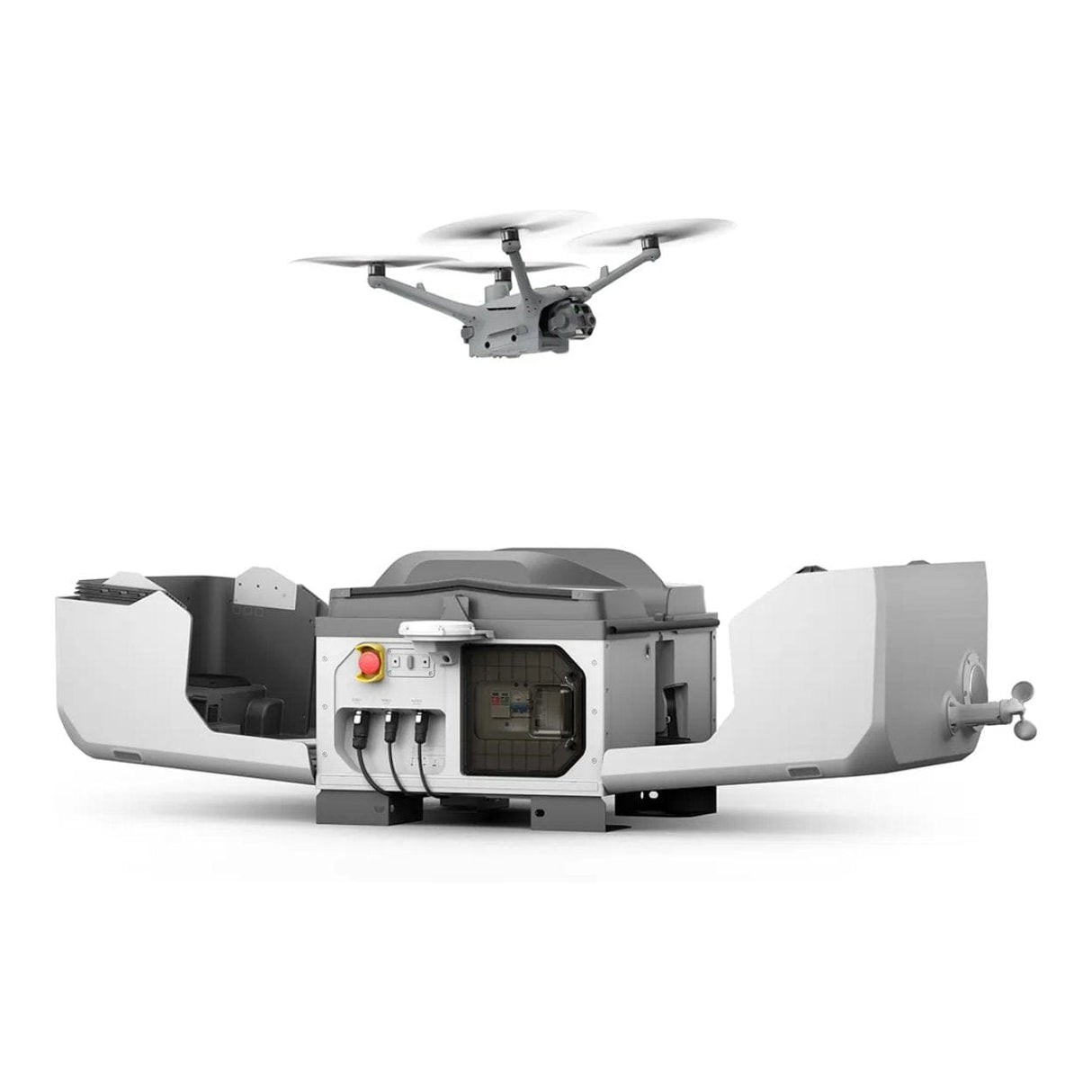

• Maximize drone operations with this DJI Dock 3 ground system, built for Matrice 4D/4TD.
• Enjoy long-range capabilities and real-time transmission with this durable DJI ground system.
• Maintain easy control over your drone fleet using the customizable buttons on the DJI Dock 3.
• Extend your drone's battery life with optimized charging provided by the DJI Docking Station.
• Ensure a stable drone connection, thanks to the DJI Dock 3's reliable network plug-ins.
• Weather-resistant build ensures the DJI Dock 3 can handle any environment for drone missions.

Deploy Anywhere

Vehicle Deployment Ready

Anti-vibration design ensures Dock reliability. Remote RTK calibration and level detection optimizes mobile operation and safety

Enhanced RTK Signal Performance

External RTK module (2dB signal gain) enables faster, more reliable RTK convergence.

Easy RTK Fix with D-RTK3

Signal quality can be enhanced by installing the new D-RTK 3 Relay at elevated locations, allowing for more flexible site selection of the dock and better signal coverage.

Precise Landing Techniques

Combination of SLAM and mark recognition. Ensures precise landing even in a complicated deployment environment.

Ready For Mobile Deployment

Key Component Anti-vibration

Internal components including the air conditioning system and backup battery all have anti-vibration design, passed reliability test before launch.

Vehicle-Mounted Gimbal Mount

Accessory that can automatically hold the aircraft and gimbal, preventing damages during the vehicle transportation.

Remote RTK Calibration

Support to remotely calibrate the Dock RTK position via FlightHub 2.

Horizontal Angle Detection

Can display deployment tilt in real time via FlightHub 2 Prevents takeoff when angle is greater then 5 Degree .

Drone as a First Responder

Driver can bring the dock to monitor a fire, after emergency can bring dock back, temporarily monitor events, flexible use case.

Flexible Asset Inspection

Built for high mobility drone service, flexible inspection of multiple assets.

Multi-site Construction Monitoring

Multi-site Construction Monitoring.

Remote Rtk Calibration

Vehicle-Mounted Gimbal Mount

Needs to be purchased separately.

Remote Calibration & Tilt Monitoring

FH2 calibrates RTK, monitors dock tilt; 3 Degree : warning; >5 Degree : Prevents takeoff.

Vehicle Movement Restriction

Aircraft won't be able to land back in the dock if the vehicle moves during flight.

Dual-Dock Deployment

Two docks per vehicle for continuous operation. Charging time < flight duration.

Deployment Challenges

Limited Transmission range

Signal obstruction limits transmission distance.

Limited Satellite Signals

Impacts takeoff, return, and overall flight stability.

D-rtk 3 Value

Superior Antenna Performance

DJI's most powerful satellite signal receiver ensures rapid connection even in challenging environments.

Improving Image Transmission Range and Quality

Can be deployed on a building/tower, etc. Relays transmission signals over buildings/obstacles between the aircraft and the Dock.

Precise Landing

RTK Tech

After a mission is completed, the drone flies to the RTH altitude/location according to pre-set return mode with RTK calibration.

Visual SLAM

When the drone takes off, it uses the downward obstacle avoidance camera to record the surrounding area. During landing, it matches these feature points to correct the drone's position.

Mark Recogn

The landing pad and the front cover of DJI Dock 3 have landing marks (the letter H and white triangles next to it). During the landing, the drone's obstacle avoidance cameras perform real-time recognition of these marks.

Dji Enterprise App

Deploy Dock 3 simply with an Android device now. No longer is a remote controller required.

Technical Specifications:

Component Type: Ground System
Compatibility: DJI Matrice 4D or Matrice 4TD Drones
Color: White

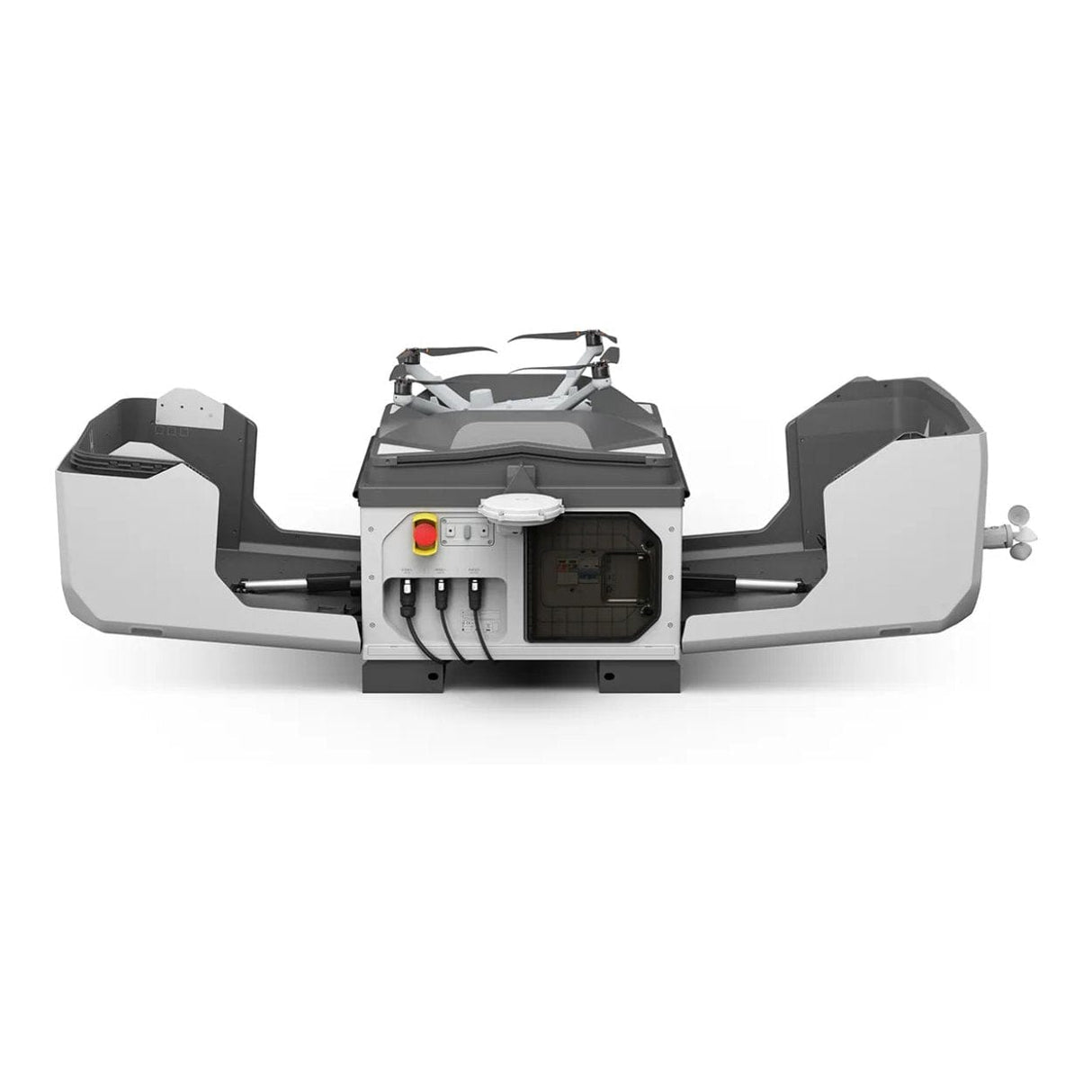

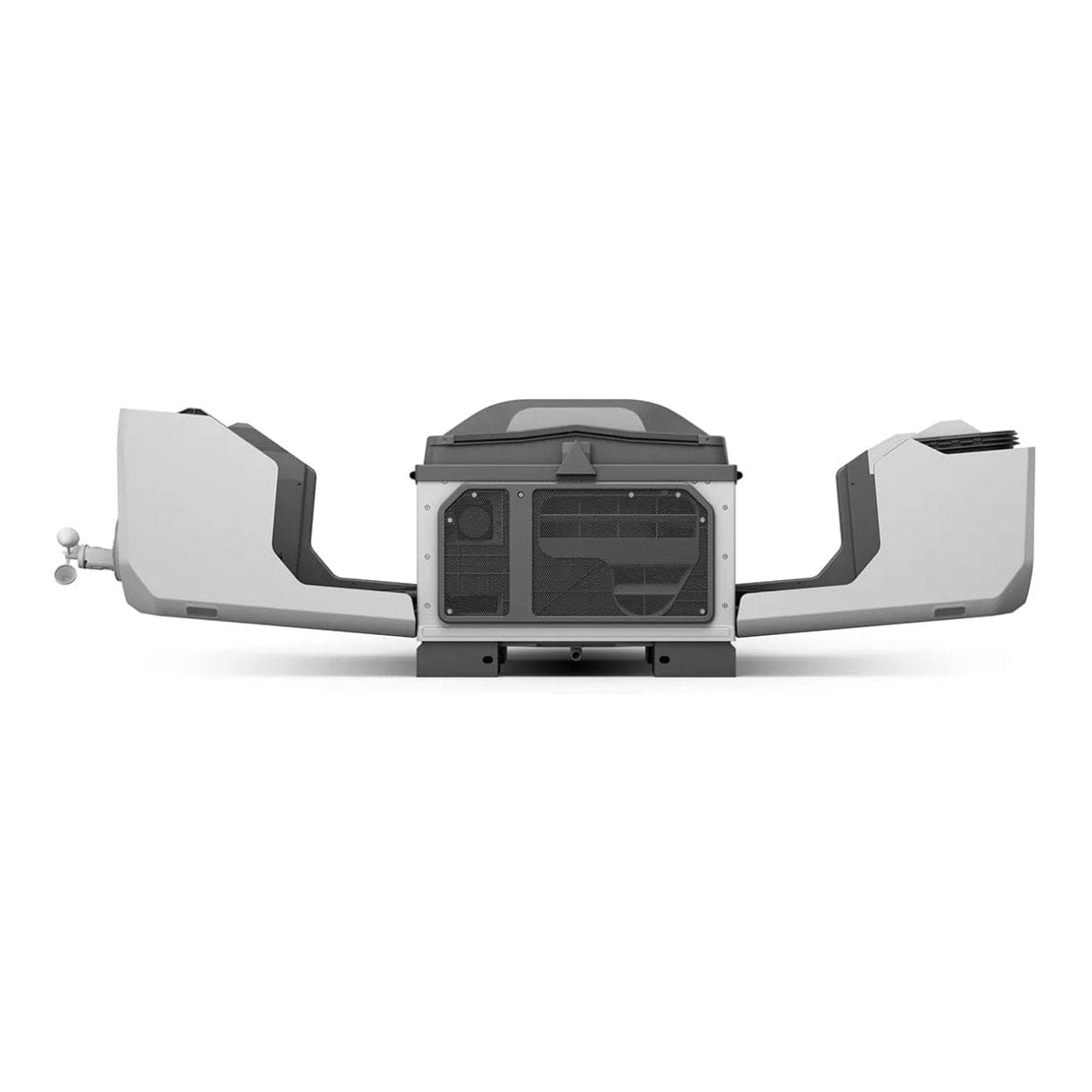

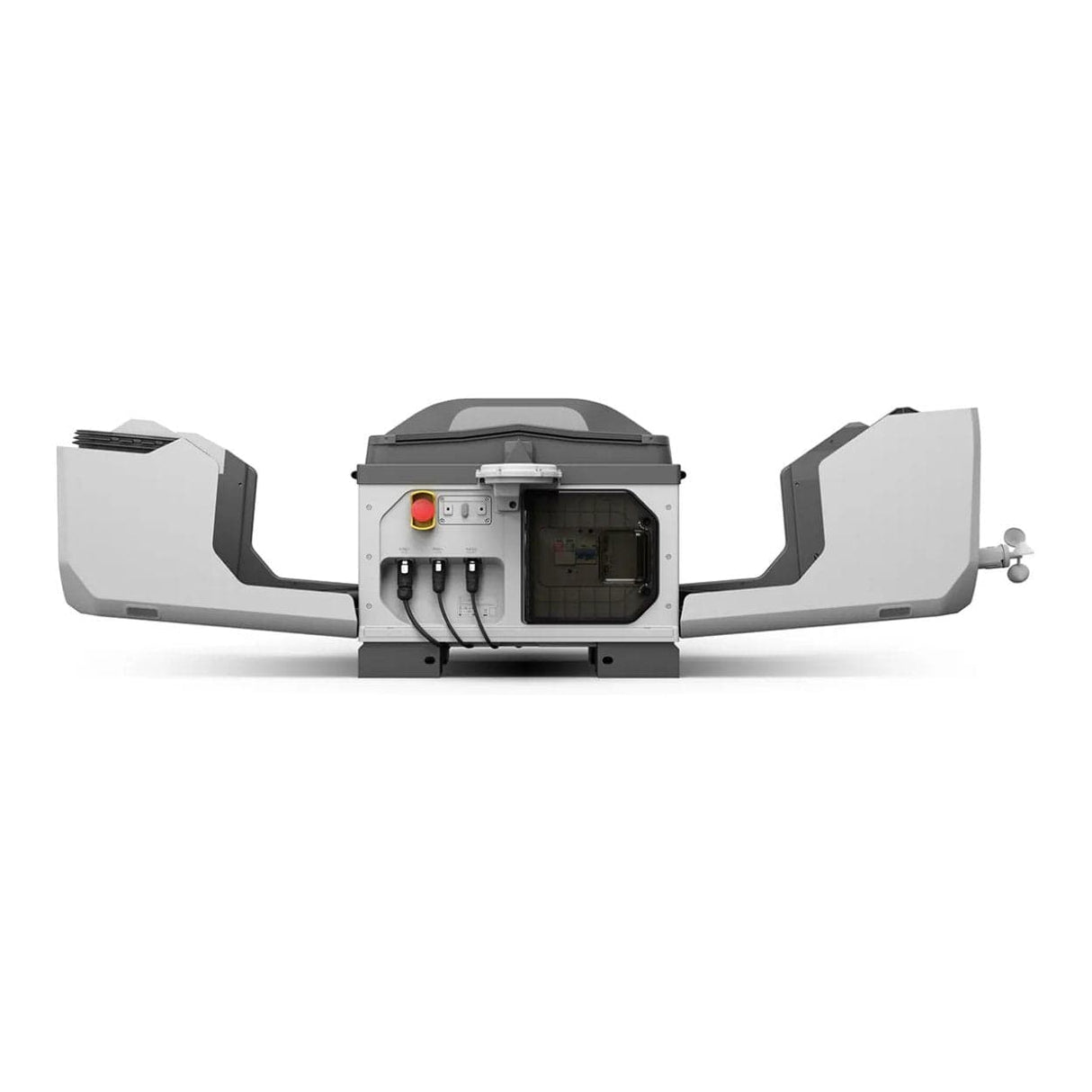

Dimensions: 69.29 × 29.3 × 19" (176 × 74.5 × 48.5 cm) (cover opened), 25.1 × 29.3 × 30.3" (64 × 74.5 × 77 cm) (cover closed)
Weight: Approx. 121 lbs (55 kg)
