DJI Dock 2 Matrice 3D CP.EN.00000513.03

DJI Dock 2 Matrice 3D CP.EN.00000513.03

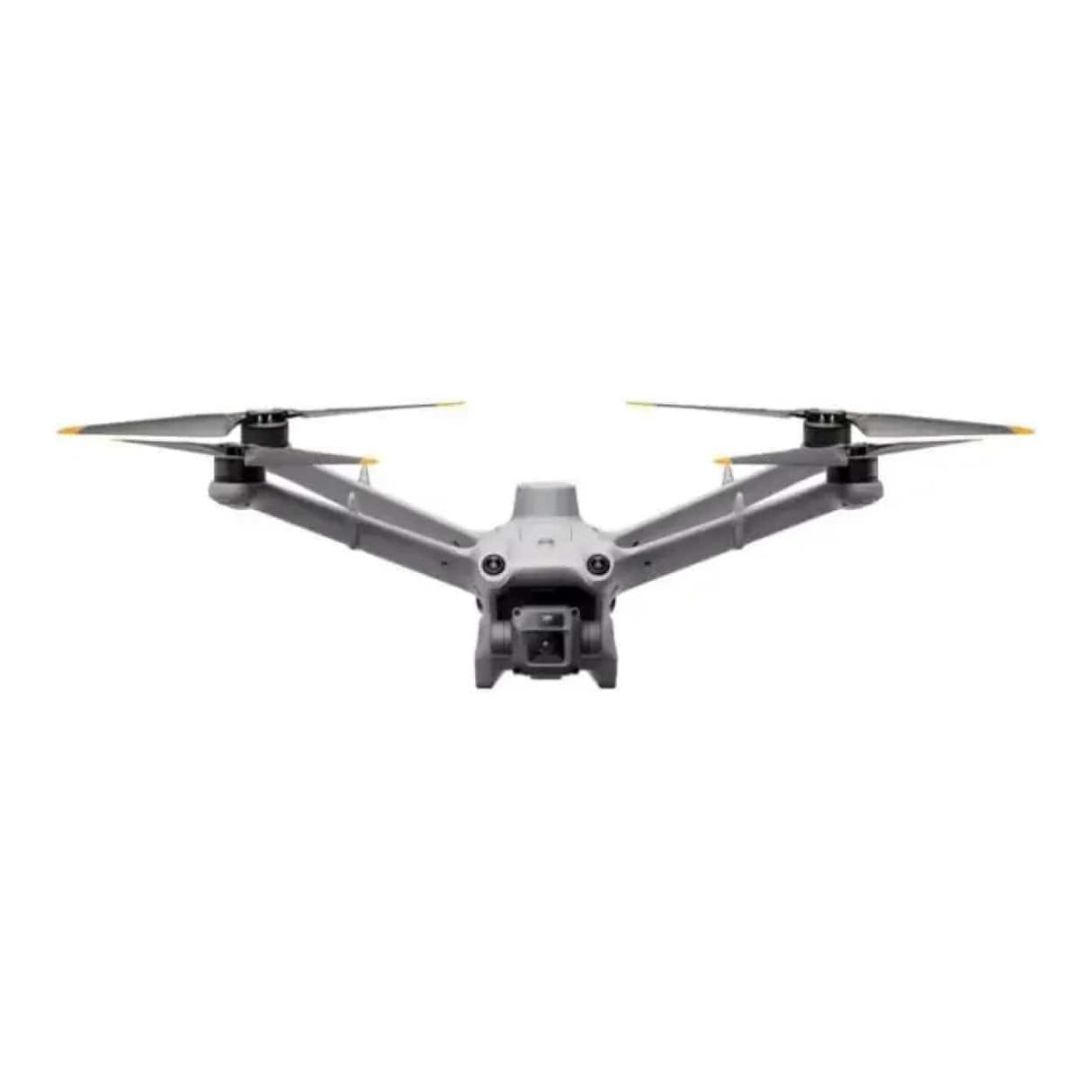

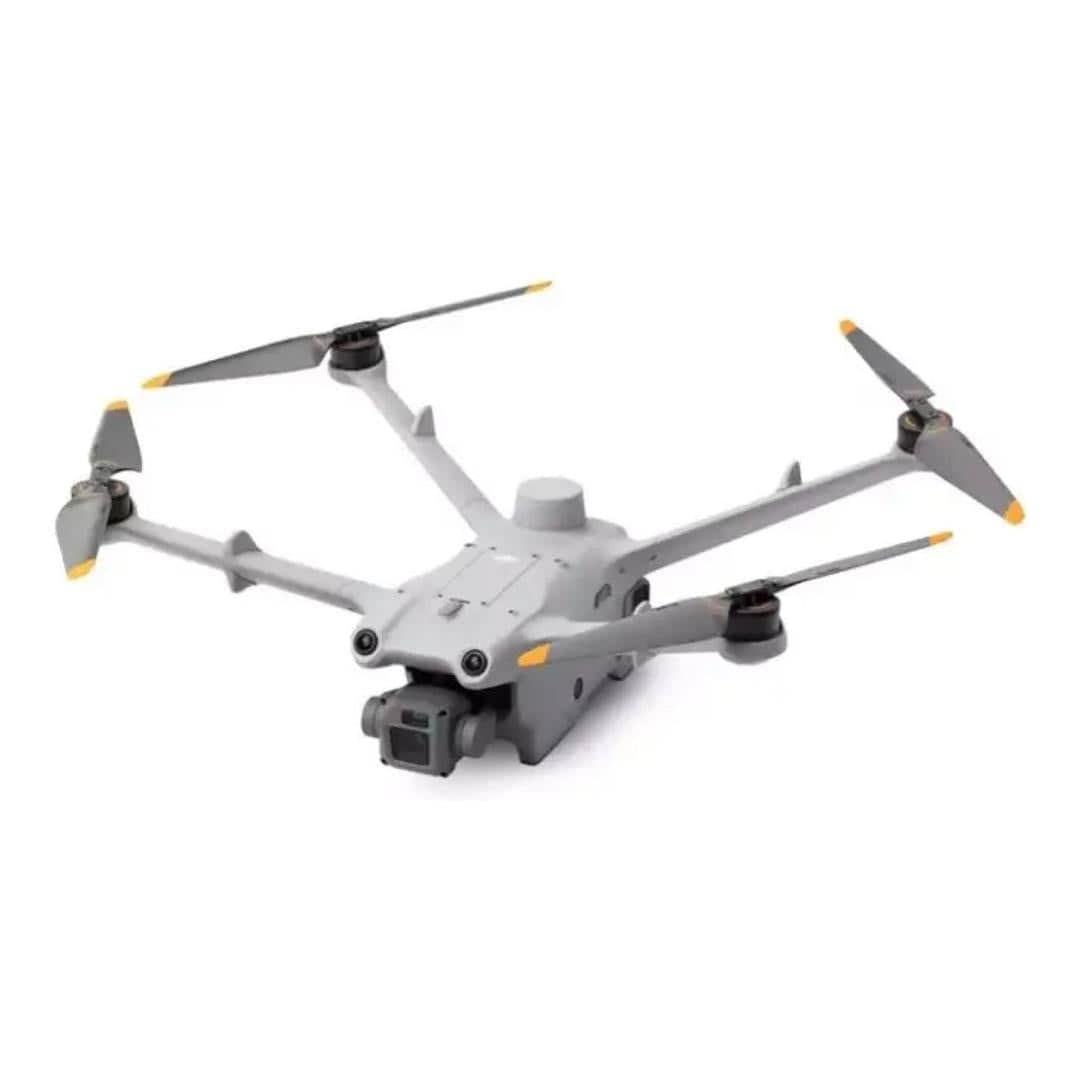

Developed by DJI, the Matrice 3D (M3D) is a state-of-the-art drone specifically matched with the DJI Dock 2, a combination that opens up new possibilities in the world of automated drone operations. With its impressive IP54 rating, the M3D is resistant to dust and splash water, making it a rugged choice for both indoor and outdoor applications. The drone takes efficiency to the next level with an extended flight time of 50 minutes and an operational range of 10 kilometers, allowing users to cover extensive areas without frequent recharging.

Features:

• Wide-Angle Camera: 4/3-inch CMOS
• Tele Camera: 1/2-inch CMOS
• Ingress Protection: IP54
• Max. flight time: 50 min
• 6-Directional Obstacle Sensing System
• Integrated RTK Module: ±3cm Positioning Accuracy

A notable feature of the M3D is the integration of a Real-Time Kinematic (RTK) module, which provides highly accurate positioning data, essential for tasks where precision is critical, such as detailed inspections and advanced mapping applications.

The M3D is equipped with two powerful cameras: a 20 MP wide-angle camera with a 24 mm lens and a 4/3 CMOS sensor, complete with a mechanical shutter for crystal clear images without distortion. In addition, the 12 MP telephoto camera with a 162 mm lens and a 1/2 CMOS sensor offers the ability to capture detailed images from long distances. This combination of cameras makes the M3D exceptionally suitable for a wide range of applications, from routine mapping flights to specialized inspections and construction-related activities.

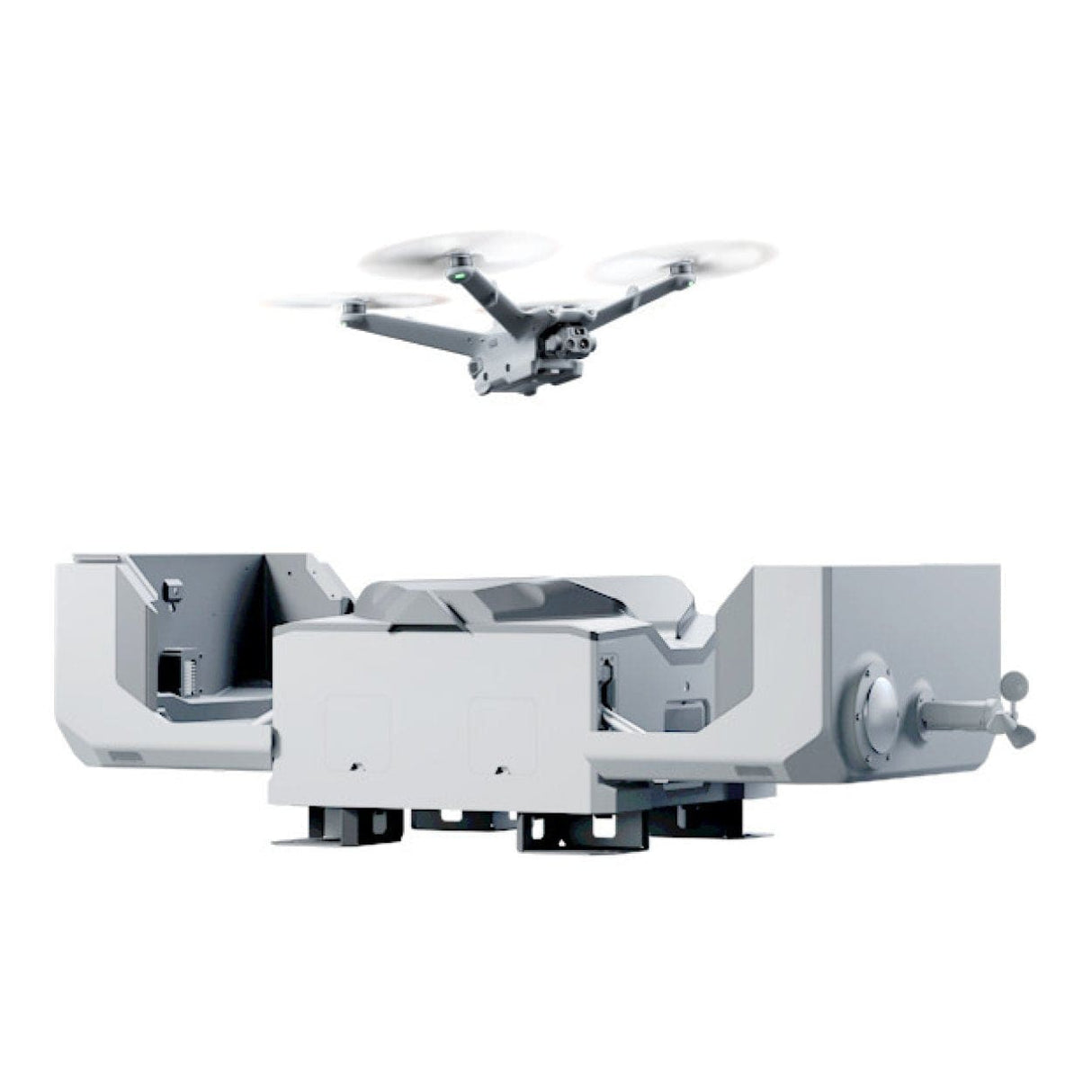

The collaboration between the M3D and the DJI Dock 2 guarantees an unprecedented level of automation in drone operations. This synergy enables the M3D to launch autonomously, perform missions, and return to the dock for charging and data upload, significantly improving the efficiency and productivity of drone-based projects. With the M3D, DJI sets the standard for the future of professional drone applications, combining advanced technology and ease of use to meet the demands of the most demanding industrial and commercial projects.

Technical Specifications:

Max Ascent Speed: 6 m/s (Normal Mode), 8 m/s (Sport Mode)
Max Descent Speed: 6 m/s (Normal & Sport Mode)
Max Horizontal Speed (sea level, no wind): Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways; Sport Mode: 21 m/s forward, 18 m/s backward, 16 m/s sideways
Max Wind Speed Resistance: Operation: 12 m/s, Takeoff/Landing: 8 m/s
Max Takeoff Altitude: 4000 m
Max Flight Time: 50 min (controlled test, 46.8 kph forward, windless, Obstacle Avoidance Off, 100% battery)
Max Hovering Time: 40 min (windless, 100% battery)
Max Operating Radius: 10 km (approx. 25°C, safe battery 25%, 4 m/s wind, 15 m/s round-trip, 10 min hover)
Max Flight Distance: 43 km (constant speed 54 kph, windless, 100% battery)
Max Pitch Angle: 25° (Normal & Sport Mode)
Max Angular Velocity: 250°/s
Global Navigation Satellite System: GPS + Galileo + BeiDou + GLONASS (GLONASS requires RTK module)
Hovering Accuracy: Vertical ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK); Horizontal ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)
Operating Temperature: -20° to 45°C
Ingress Protection Rating: IP54
Motor Model: 2607
Propeller Model: 1149, foldable, non-quick release
RTK Module & Beacon: Integrated

Wide-Angle Camera (Matrice 3D / 3TD):

Sensor: 4/3 CMOS, 20 MP (3D); 1/1.32" CMOS, 48 MP (3TD)

Lens: FOV 84° (3D), 82° (3TD); 24 mm equivalent; Aperture f/2.8–f/11 (3D), f/1.7 (3TD); Focus 1 m–∞

Lens Defogging: Supported

ISO Range: 100–6400 (3D), 100–25600 (3TD)

Shutter Speed: 8–1/8000 s (electronic), 8–1/2000 s (mechanical, 3D)

Max Image Size: 5280×3956 (3D), 8064×6048 (3TD)

Photography Modes: Single, Timed (0.7–60 s), Smart Low-Light, Panorama (20/100 MP for 3D, 12/100 MP for 3TD)

Video Resolution: 4K 3840×2160@30fps, FHD 1920×1080@30fps

Video Bitrate: 4K 130 Mbps (3D), 85 Mbps (3TD); FHD 70 Mbps (3D), 30 Mbps (3TD)

File Formats: Photo JPEG, Video MP4 (H.264)

Tele Camera:

Sensor: 1/2" CMOS, 12 MP

Lens: FOV 15°, 162 mm equivalent, f/4.4, Focus 3 m–∞

Lens Defogging: Supported

ISO Range: 100–6400 (3D), 100–25600 (3TD)

Shutter: 8–1/8000 s

Max Image Size: 4000×3000

Video: 4K 3840×2160@30fps, FHD 1920×1080@30fps

Digital Zoom: 8× (56× hybrid)

Infrared Camera (3TD):

Thermal Imager: Uncooled VOx Microbolometer, Pixel Pitch 12 μm, Frame Rate 30 Hz

Lens: FOV 61°, 40 mm equivalent, f/1.0, Focus 5 m–∞

Sensitivity: ≤50 mK@F1.0

Temperature Measurement: Spot & Area, -20°–150°C (High Gain), 0°–500°C (Low Gain)

Palette: White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1/2

Photo Format: JPEG (8-bit), R-JPEG (16-bit)

Video: Normal 640×512@30fps, UHR 1280×1024@30fps, 6 Mbps, MP4

Digital Zoom: 28×

Infrared Wavelength: 8–14 μm, Temperature Accuracy ±2°C or ±2%

Gimbal: 3-axis mechanical (tilt, roll, pan), Tilt -135° to +45°, Roll -45° to +45°, Pan -27° to +27°, Controllable Tilt -90° to +35°, Max Tilt Speed 100°/s, Angular Vibration ±0.005°

Sensing: Six-directional obstacle sensing, 10° upper rear blind spot

• Forward: 0.5–21 m, ≤15 m/s, FOV H90° V90°
• Backward: 0.5–23 m, ≤12 m/s, FOV H90° V90°
• Lateral: 0.5–15 m, ≤10 m/s, FOV H104° V90°
• Upward: 0.5–21 m, ≤6 m/s
• Downward: 0.5–14 m, ≤6 m/s
• Operating Env.: Surfaces with discernible patterns and adequate lighting (lux >15)

Video Transmission (DJI O3 Enterprise):

• Live View: 720p/30fps, 1080p/30fps (RC Pro Enterprise); 540p/30fps–1080p/30fps (FlightHub 2)
• Frequency: 2.4 GHz, 5.15–5.25 GHz, 5.725–5.850 GHz
• Max Distance (unobstructed, no interference): 15 km (FCC), 8 km (CE/SRRC/MIC)
• Max Distance (with interference): 1.5–15 km depending on environment
• Max Download Speed: 5 MB/s (Dock 2), 15 MB/s (RC Pro Enterprise)
• Latency: 110–150 ms (aircraft→dock)
• Antennas: 4 × 2T4R, Transmitter Power 2.4 GHz <33 dBm, 5.1 GHz <23 dBm, 5.8 GHz <33 dBm

Storage: Supports U3/Class10/V30+ microSD cards (32–256 GB recommended, brands: SanDisk, Lexar, Kingston, Samsung)

Battery: 7811 mAh, 14.76 V, Max 17 V, Li-ion 4S, LiNiMnCoO2, 115.2 Wh, 544 g, 400 cycles, Charging Temp 5–45°C

Power Adapter: Input 100–240 V AC, 50/60 Hz, 2.5 A; Output Max 100 W (single port 82 W max)

Charging Base: USB-C input 5–20 V/5 A; Battery output 12–17 V/8 A; Rated 100 W; Charges one battery at a time; Temp 5–40°C

What's in the Box:

• Aircraft (with microSD Card inserted) x1
• CW Propellers (Pair) x1
• CCW Propellers (Pair) x1
• Screws and Washers (Pair) x1
