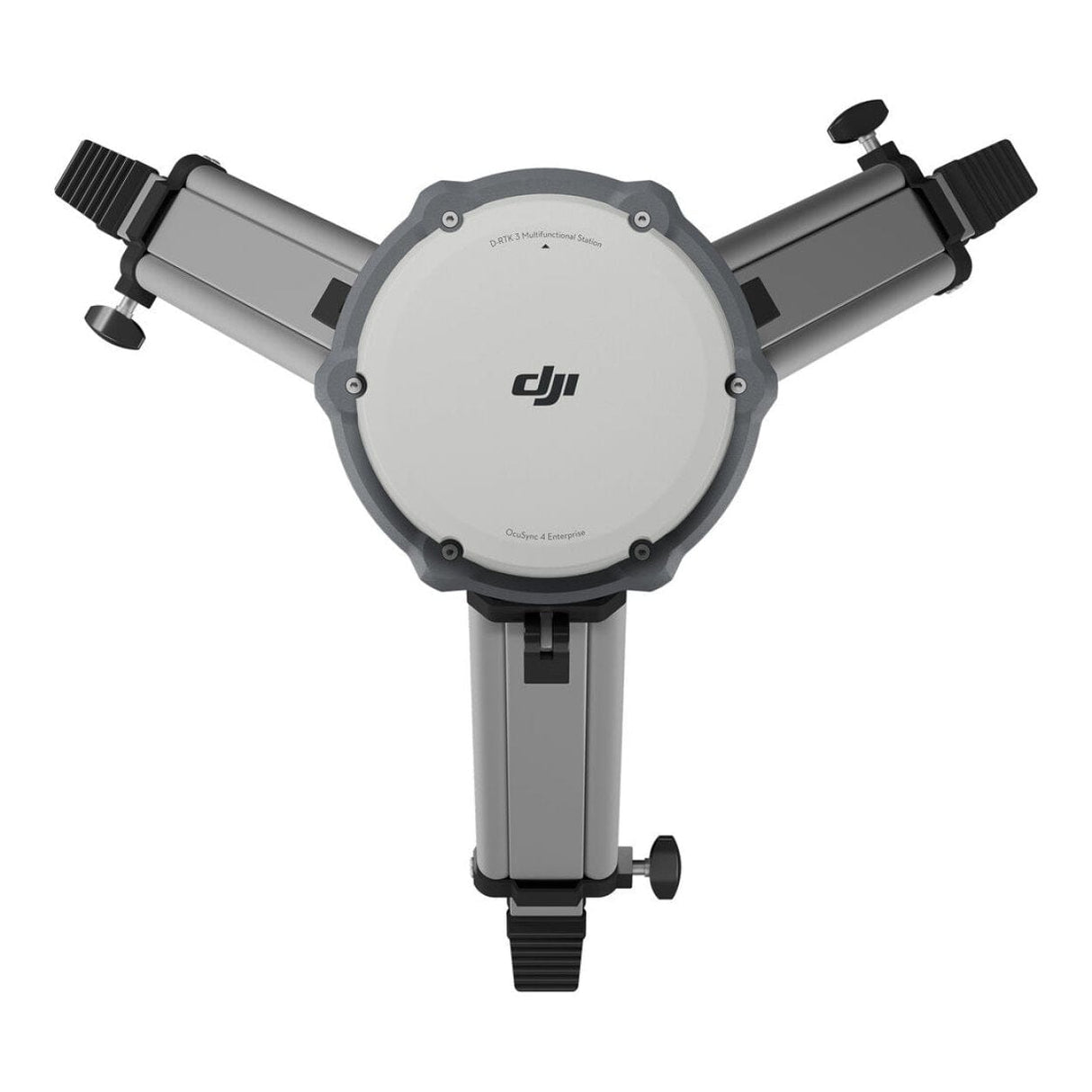

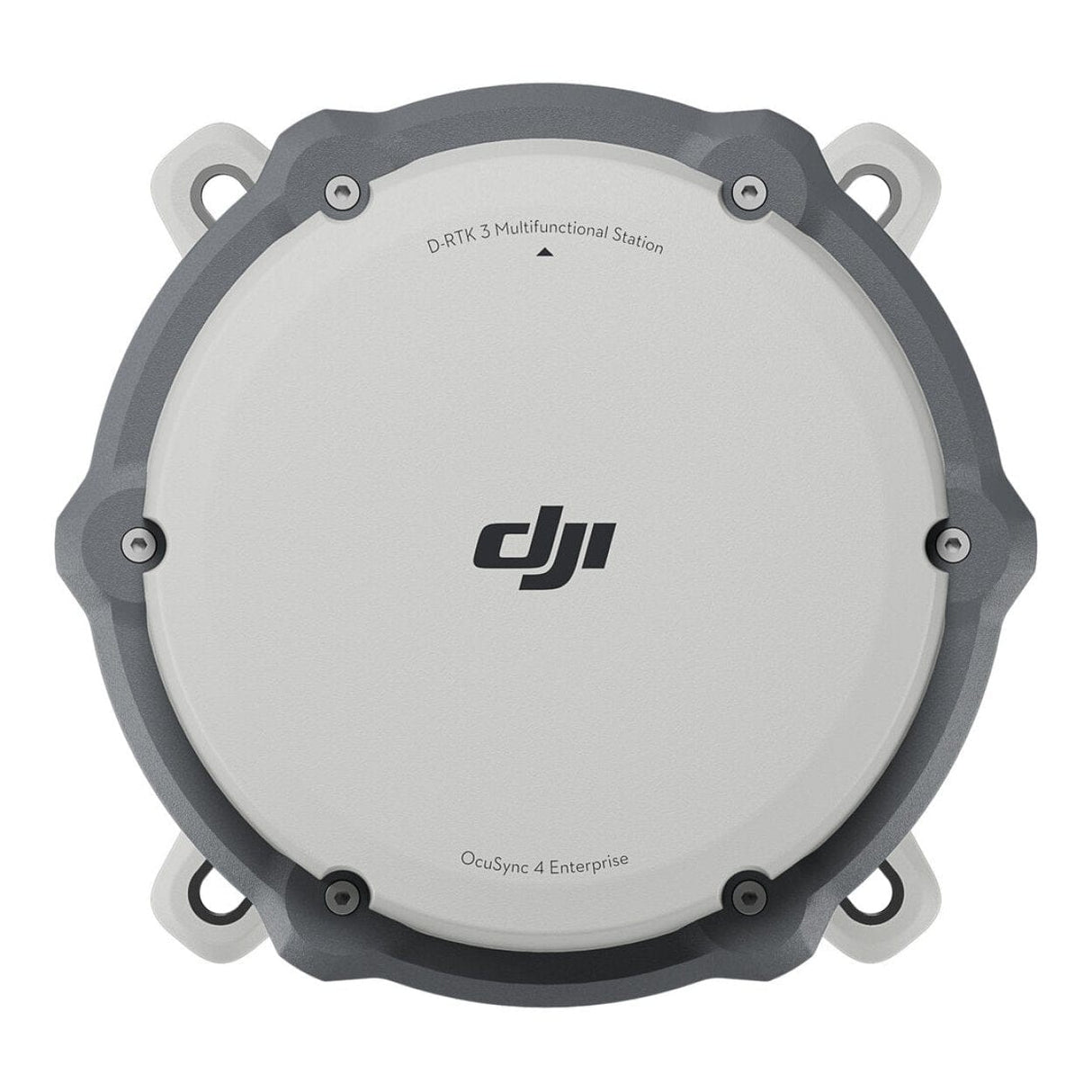

For centimeter-level positioning and mapping accuracy in professional applications with various enterprise-level DJI drones, look to the D-RTK 3 Multifunctional Station from DJI. The station has four external directional antennas and a built-in receiver module capable of receiving data from five major GNSS constellations across 19 frequency points. This resolves errors in GNSS reception for incredible precision. The system can also be used as a relay between remove and drone, extending the range to previously unreachable locations.

Features:

• For Matrice, Mavic 3D, Inspire 3 & More
• Accesses up to 5 GNSS Constellations
• Centimeter-Level Position & Mapping
• Base Station & Rover Station Modes
• Relay Station Mode for Farther Flights

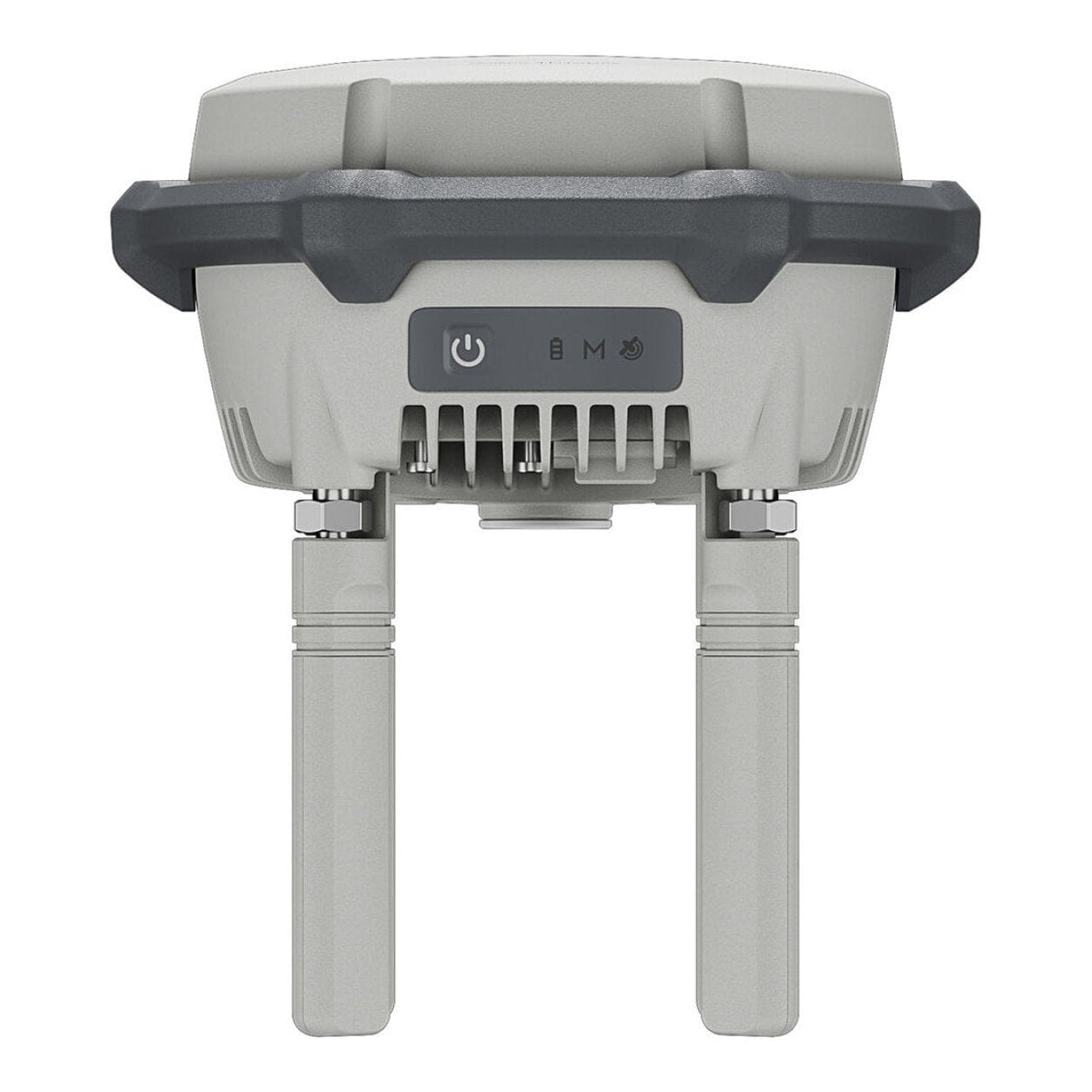

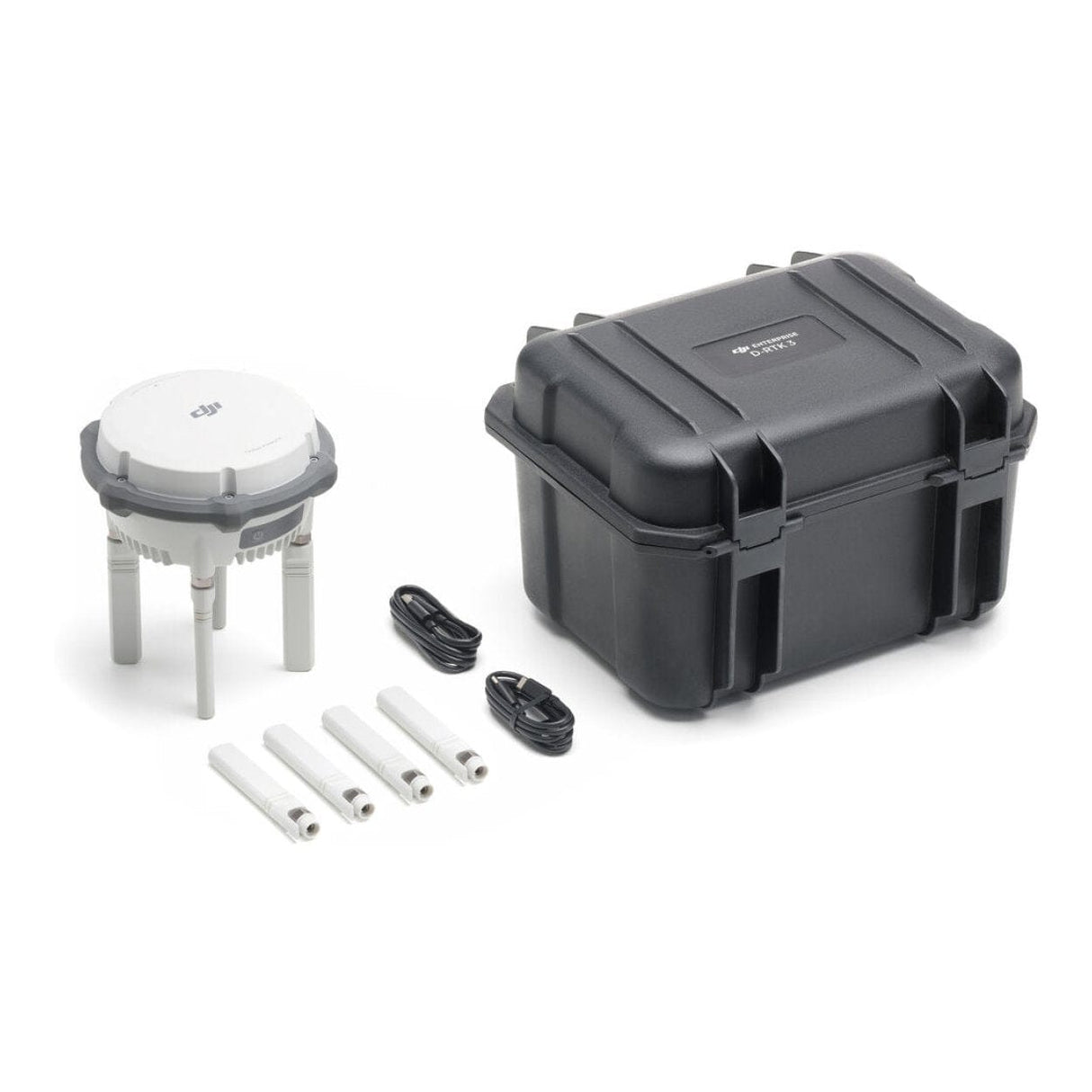

• 4 x External Directional Antennas
• Works with DJI Enterprise & Terra Apps

Drone Compatibility

As of this writing, the D-RTK 3 system is compatible with the following professional DJI drone platforms: Matrice 4/4D series, Matrice 3D/3TD, Matrice 300/350 RTK, Matrice 30 series, Mavic 3 Enterprise, Agras T60, T50/T25, T40/T20P agricultural drones, DJI FlyCart 30, and Inspire 3.

Multiple Modes

• Base Station Mode: Utilizing DJI's O4 Enterprise video transmission system, the four external directional antennas extend RTK coverage at up to 9.32 miles in all directions. Multiple drones can connect to the station for centimeter-level positioning.
• Rover Station Mode: When used with an additional unit as a base station, this system can act as a rover station, collecting control point coordinates to enhance the accuracy and precision of aerial surveying. This mode also supports Bluetooth 5.1 transmission and Android 10 or above devices.

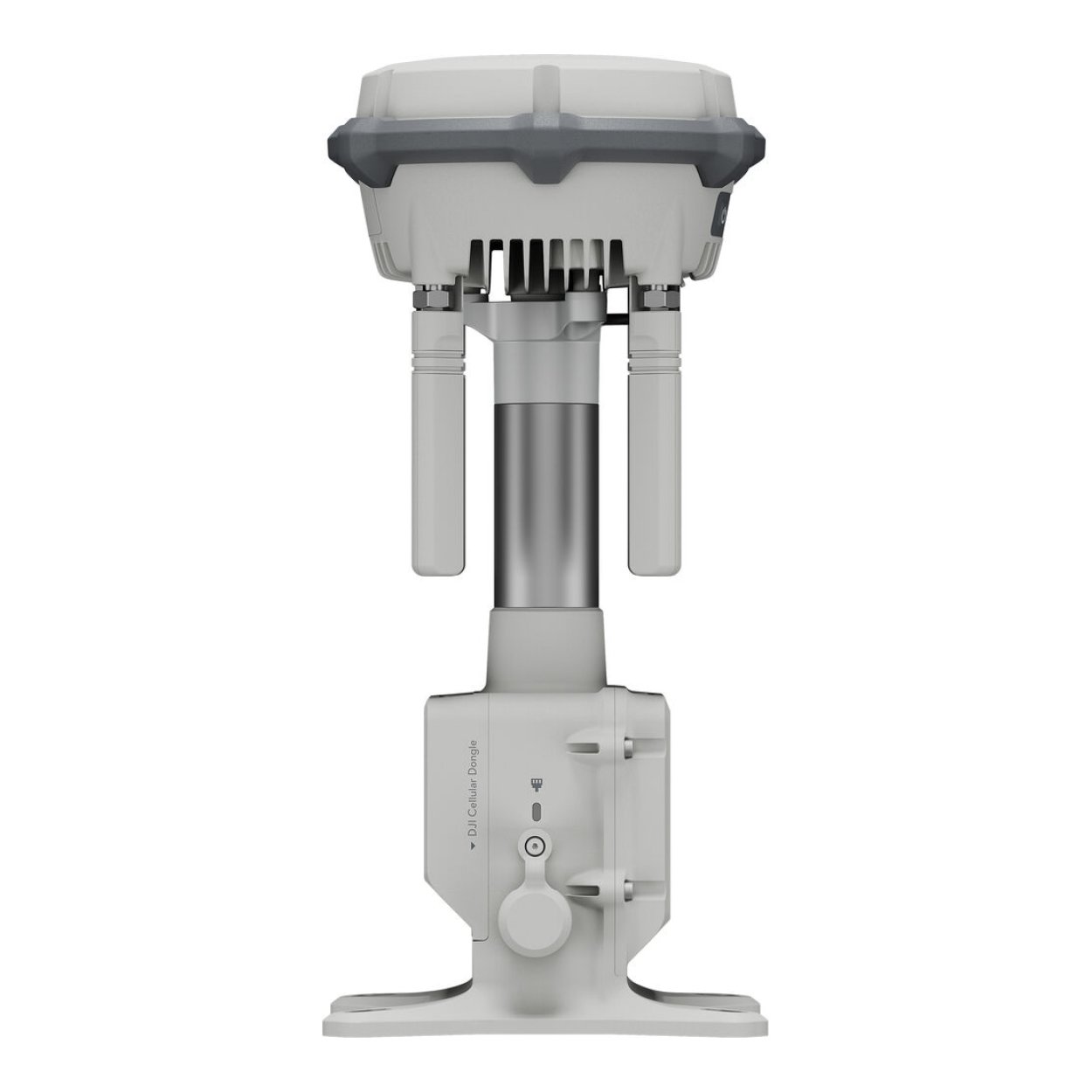

• Relay Station Mode: Whether in urban areas or valleys, place the D-RTK 3 system at a high elevation to act as a relay between the remote and the drone. For example, the Matrice 4/4D series can see its range extended up to 15.5 miles. This mode also supports real-time calculations of obstructions and signal quality, prompting pilots on their remote so they can adjust the drone's position to optimize transmission quality.

Performance and Accuracy

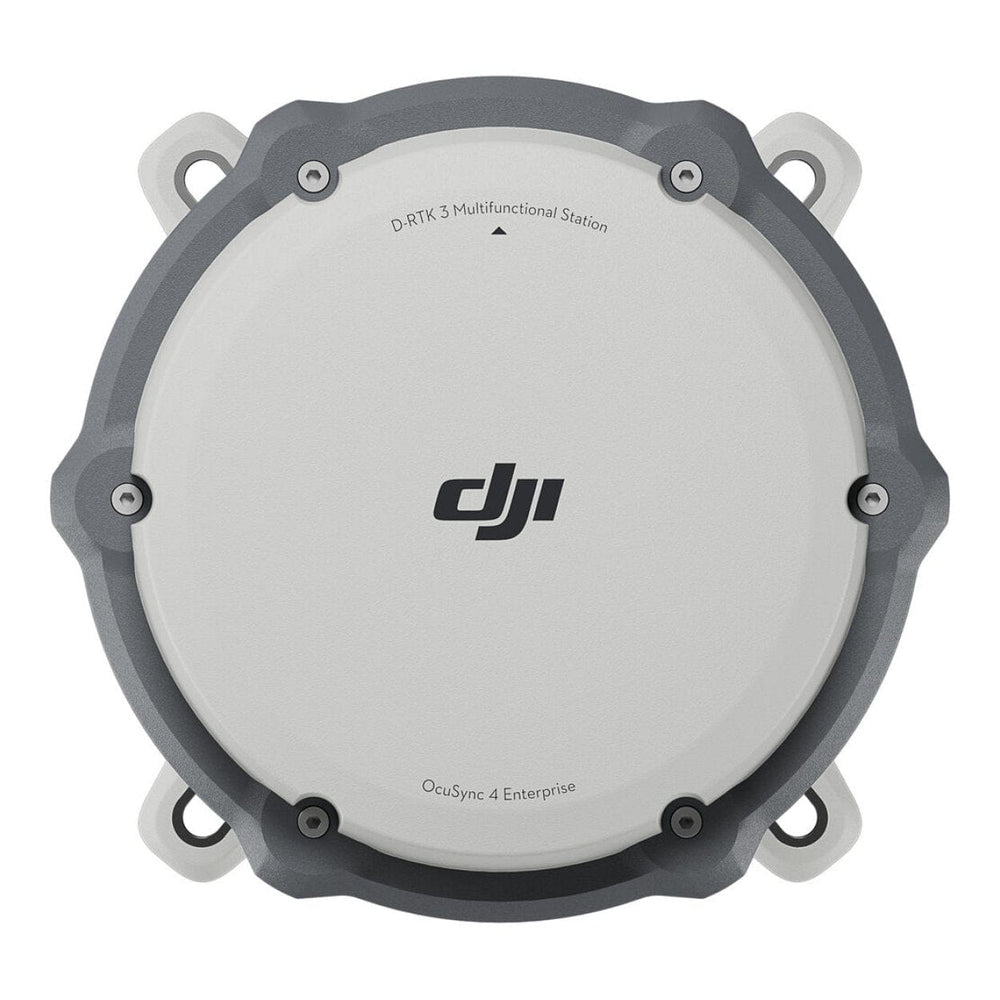

This version of the D-RTK multifunction station uses air dielectric antennas with a filtering design, letting the D-RTK 3 system track low-elevation satellites. Also, antenna phase-center accuracy is maintained within millimeter-level fidelity for strong resistance to multipath interference in high-precision scenarios in complex environments.

Network High-Precision Calibration

The system can receive RTCM data and automatically obtain coordinates and correct positions through the network, resulting in centimeter-level positioning without pre-measuring the setup point location.

Additional Features:

• Works with DJI Enterprise and DJI Terra apps

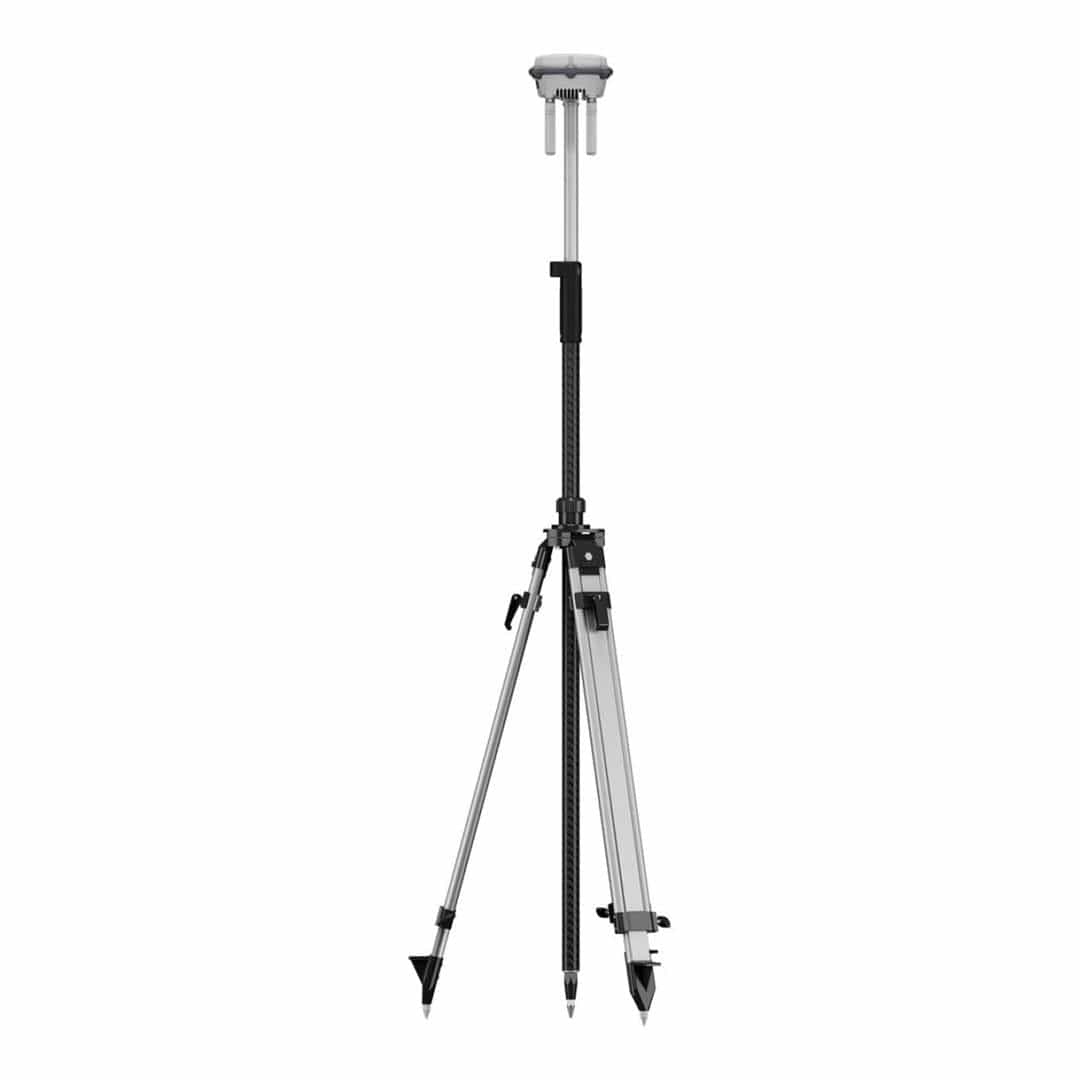

• Compatible with DJI self-locking survey pole and dual-lock tripod for stationary placement
• Uses DJI's proprietary PPP for satellite-based auto convergence using BeiDou PPP-B2b GNSS, delivering free decimeter-level positioning
• Built-in IMU lets the control point be measured if the optional survey pole is held at an angle
• IMU can also be used to ensure the base station is vertical
• Supports recording raw satellite observations for local PPK calculations using DJI Terra 4.4 or above

Technical Specifications:

Wireless & GNSS

Bluetooth: 5.1

Mobile App Compatible: Yes: Android & iOS
App Name: DJI Enterprise & Terra

Global Positioning (GPS, GLONASS, etc.): BeiDou, Galileo, GLONASS, GPS, QZSS
GNSS Frequency:

• GPS: L1C/A, L2C, L5
• BDS: B1I, B2I, B3I, B1C, B2a, B2b
• Galileo: E1, E5a, E5b, E6
• GLONASS: L1, L2
• QZSS: L1C/A, L2C, L5, L-Band

Base Station Mode (Broadcast Mode) and Relay Station Mode

Base Station Accuracy (Single Point Accuracy, Uncalibrated): Horizontal: 4.9' / 1.5 m (RMS), Vertical: 9.8' / 3.0 m (RMS)

Satellite-Based Differential Accuracy with Convergence Time (Up to 20 minutes): Horizontal: 1.2" / 30 cm (RMS), Vertical: 1.6" / 40 cm (RMS)

Network RTK Calibration: Horizontal: 0.04" / 1.0 cm (RMS) + 1 ppm, Vertical: 0.12" / 3.0 cm (RMS) + 1 ppm

Rover Station Mode

RTK Accuracy (Fixed Survey): Horizontal: 0.03" / 0.8 cm (RMS) + 1 ppm, Vertical: 0.06" / 1.5 cm (RMS) + 1 ppm

RTK Accuracy (Tilt Survey): Angle Range: 0–60°, Horizontal: 0.31" / 8 mm + 0.03" / 0.7 mm/° Tilt (Accuracy <2 cm Within 30°)

Satellite-Based Precise Point Positioning (PPP)

Supported Frequencies: BDS B2b, GALILEO E6, L-BAND
Convergence Time: Up to 20 minutes
Horizontal: 11.8" / 30 cm (RMS), Vertical: 15.7" / 40 cm (RMS)

Differential Data Transmission Format:

• Base/Relay Station Mode: Records RTCM 3.2 Raw Observation Data in DAT Format
• Rover/Calibration Mode: Supports RTCM v3.0, v3.1, v3.2, v3.3, MSM4, MSM5, MSM6, MSM7 protocols; recommended to use receivers supporting four or more GNSS systems

Initialization Reliability: >99.9%

Transmission

Video Transmission System: O4 Enterprise

Operating Frequency:

• Relay Station Mode/O4: 2.4 GHz, 5.2 GHz, 5.8 GHz
• Base Station Mode/O4: 2.4 GHz, 5.8 GHz
• Rover Station Mode/BLE: 2.4 GHz

Transmitter Power (EIRP):

• 2.4–2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
• 5.15–5.25 GHz: <23 dBm (CE/FCC)
• 5.725–5.85 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Bluetooth: Frequency: 2.4–2.4835 GHz, Transmitter Power (EIRP): <10 dBm

Max Transmission Distance (Unobstructed, Free of Interference):

• Base Station Mode (D-RTK 3 ↔ Drone): 9.3 mi / 15 km (FCC), 7.45 mi / 12 km (SRRC), 4.97 mi / 8 km (CE/JP)
• Rover Station Mode (D-RTK 3 ↔ Mobile Devices): 98.4' / 30 m

Max Transmission Distance (Relay Station Mode, Unobstructed):

• FCC (Drone ↔ Relay Station): 15.5 mi / 25 km; (Relay Station ↔ Remote/DJI Dock 3): 0.62 mi / 1 km
• SRRC (Drone ↔ Relay Station): 7.45 mi / 12 km; (Relay Station ↔ Remote/DJI Dock 3): 0.62 mi / 1 km
• CE (Drone ↔ Relay Station): 6.2 mi / 10 km; (Relay Station ↔ Remote/DJI Dock 3): 984.2' / 300 m

Max Transmission Distance (With Interference):

• Strong Interference (City Centers): 0.93–3.1 mi / 1.5–5 km
• Medium Interference (Suburban Areas): 3.1–9.32 mi / 5–15 km
• Micro Interference (Remote Areas/Seasides): 9.32–15.5 mi / 15–25 km

Max Transmission Distance (Obstructed, Low Interference):

• Obstructed by Buildings: 0–0.31 mi / 0–0.5 km
• Obstructed by Trees: 0.31–1.86 mi / 0.5–3 km

Relay Station Range Extension Effect:

• Severe Obstruction: 3–5× performance improvement
• Mild Obstruction: 1–3× performance improvement

Battery & Power

Battery Chemistry: Lithium-Ion Polymer (LiPo)
Battery Capacity: 6500 mAh / 46.8 Wh
Maximum Battery Life: 10 Hours

Electrical Power:

• Relay Station: 14.5 W
• Base Station: 7 W
• Rover Station: 6.2 W

Power Output Port: 1 × USB-C
Supported Power Adapter: USB PD 3.0, 9–15 V

Battery Operating Time:

• Relay Station: Up to 4 Hours
• Base Station: Up to 7 Hours
• Rover Station: Up to 10 Hours

Physical

Environmental Resistance: Corrosion/Dust/Humidity/Weather/Water-Resistant (IP67)
Operating Conditions: -4 to 131°F / -20 to 55°C
Dimensions: 6.4 × 3.5" / 163 × 89 mm (D-RTK 3 Multifunction Station)
Weight: 2.78 lb / 1.26 kg (D-RTK 3 Multifunction Station)

Compatibility:

Matrice 4

Matrice 4D

Matrice 3D

Matrice 3TD

Matrice 300

Matrice 350 RTK

Matrice 30

Mavic 3 Enterprise

Agras T60

Agras T50 / T25

Agras T40 / T20P

FlyCart 30

Inspire 3
