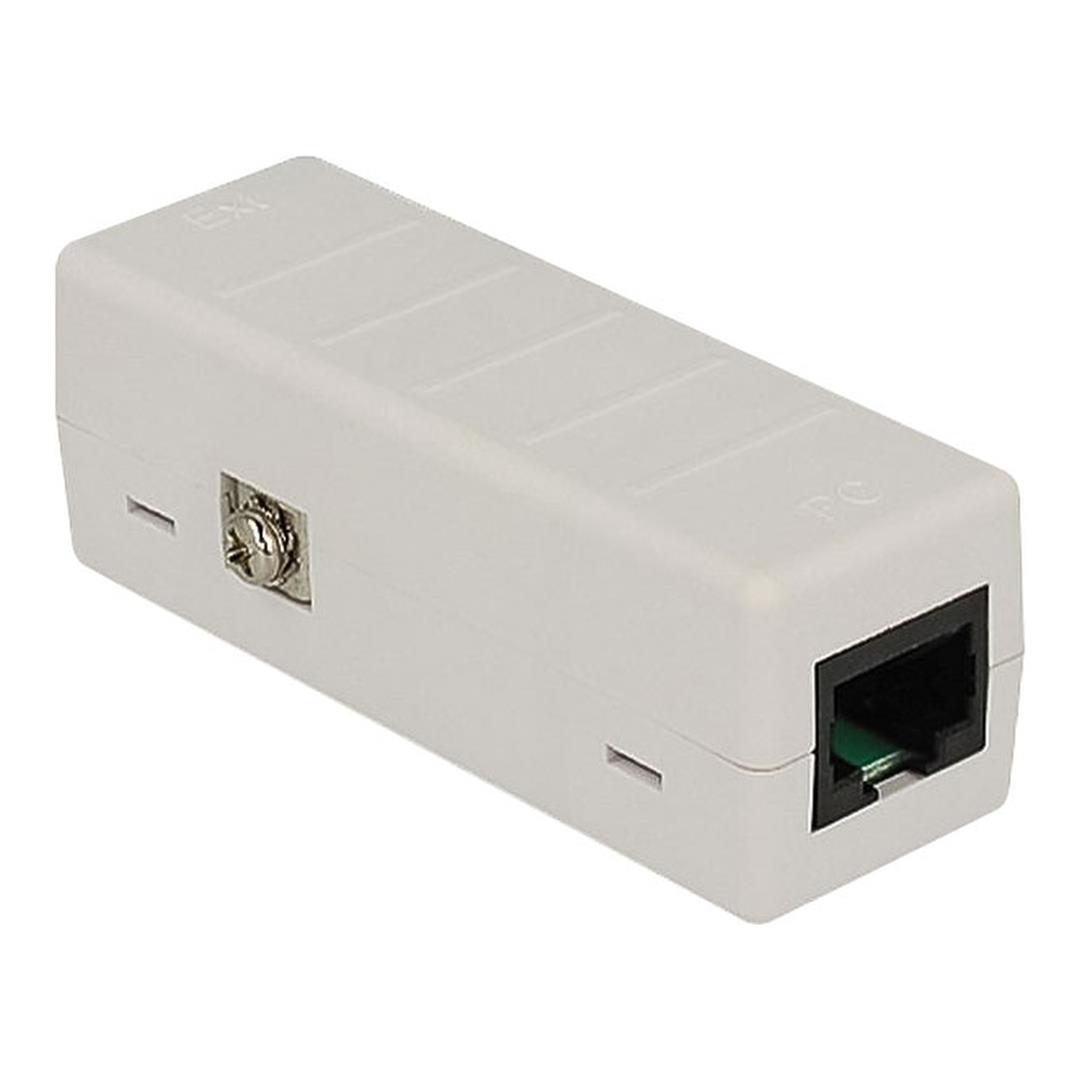

Delock CAT6 RJ45 Gigabit Network Surge Protector with 90W PoE++ 62620

Delock CAT6 RJ45 Gigabit Network Surge Protector with 90W PoE++ 62620

Help protect connected network equipment from damaging electrical surges with the Delock 62620 Network Surge Protector. Designed for CAT6 Gigabit Ethernet networks, this compact inline protector supports data rates up to 1000Mbps and passes compatible PoE, PoE+ and PoE++ power at up to 90W while providing galvanic isolation and surge protection for connected equipment.

6kV Network Surge Protection

The Delock 62620 is designed to help protect a connected network device against common-mode electrical surges transmitted through the Ethernet connection. It is tested for a 6kV common-mode lightning surge and offers an arrest capacity of up to 1000A.

Gigabit CAT6 Network Support

The protector supports 10/100/1000Mbps Ethernet and is designed for CAT6 network connections. It can be installed between the external network line and the device being protected while maintaining standard Gigabit Ethernet performance.

Up to 90W PoE++ Pass-Through

Support for IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt allows compatible PoE, PoE+ and PoE++ power to pass through the protector at 48V and up to 90W. This makes it suitable for compatible access points, IP cameras, VoIP equipment and other powered network devices.

Galvanic Isolation and Equipotential Bonding

Inductive galvanic isolation helps provide electrical separation between the external network line and connected equipment. A dedicated screw terminal is provided for equipotential bonding, helping support correct surge protection installation.

Key Features:

• CAT6 RJ45 network surge protector.
• Supports 10/100/1000Mbps Gigabit Ethernet.
• Supports IEEE 802.3af PoE.
• Supports IEEE 802.3at PoE+.
• Supports IEEE 802.3bt PoE++.
• Supports PoE pass-through at 48V and up to 90W.
• 6kV common-mode lightning surge protection.
• Up to 1000A arrest capacity.
• 68V ignition voltage.
• Inductive galvanic isolation.
• Two RJ45 female network ports.
• Screw terminal for equipotential bonding.
• Compact white plastic housing.
• Designed for installation close to the protected network device.

Technical Specifications:

What's in the Box:

• Delock 62620 Network Surge Protector
• User Manual

Protect compatible Gigabit Ethernet and PoE-powered network equipment with the Delock 62620, combining CAT6 network support, up to 90W PoE++ pass-through, 6kV surge protection and galvanic isolation in a compact inline design.
