Dell PowerEdge T160 3U Tower Server - Intel Xeon 6325P 960GB SSD 32GB RAM 300W
Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.
The Dell PowerEdge T160 is a compact 3U tower server designed for small and medium-sized businesses, near-edge deployments and everyday business workloads. This configuration combines an Intel Xeon 6 Performance 6325P processor with 32 GB ECC DDR5 memory, a 960 GB enterprise SATA SSD and Dell PERC H355 storage management.
With integrated dual-port Gigabit Ethernet, iDRAC9 Enterprise remote management and a compact tower chassis, the PowerEdge T160 provides practical server capabilities for collaboration, file services, messaging, database applications and other growing business requirements.
Key Features:
- Compact 3U tower server suited to SMB and near-edge environments
- Intel Xeon 6 Performance 6325P processor with 4 cores and 8 threads
- 32 GB ECC DDR5 UDIMM memory
- 960 GB enterprise SATA read-intensive SSD
- Dell PERC H355 hardware RAID controller
- Broadcom 5720 dual-port 1GbE onboard networking
- iDRAC9 Enterprise for secure remote server management
Intel Xeon 6 Performance
The Intel Xeon 6 Performance 6325P processor provides 4 cores and 8 threads, with a 3.5 GHz base frequency and up to 5.2 GHz maximum turbo frequency. Its 12 MB cache and support for ECC DDR5 memory provide a dependable platform for everyday server and business applications.
Enterprise Memory and Storage
This configuration includes 32 GB of ECC DDR5 UDIMM memory and a 960 GB SATA read-intensive solid-state drive. The drive is supplied in a 3.5-inch hybrid carrier, while the chassis supports additional cabled SAS or SATA storage for future expansion.
Storage Management
A Dell PERC H355 low-profile adapter provides dedicated storage-controller functionality. The configured chassis supports three 3.5-inch cabled SAS or SATA drives together with two 2.5-inch cabled SAS or SATA drives.
Secure Remote Management
iDRAC9 Enterprise provides secure out-of-band server monitoring and administration, helping IT teams manage the system remotely. Dell Secured Component Verification and Dell Connectivity Client are also included in this configuration.
Network Connectivity
The PowerEdge T160 includes a Broadcom 5720 dual-port 1GbE onboard network controller, providing two Gigabit Ethernet connections for business network access. A dedicated iDRAC Ethernet port provides a separate connection for remote server management.
- Specifications and Images may vary depending upon region / model.
Technical Specifications:
| Specification | Details |
|---|---|
| Product | Dell PowerEdge T160 |
| Product Type | Tower Server |
| Form Factor | 3U |
| Processor Family | Intel Xeon 6 Performance |
| Processor Model | 6325P |
| Processor Frequency | 3.5 GHz / Up to 5.2 GHz (12 MB Cache, 4 Cores, 8 Threads) |
| Processors Installed | 1 |
| Maximum Processor Support | 1 |
| Internal Memory | 32 GB 5600 MHz (1 x 32 GB) |
| Internal Memory Type | ECC DDR5 UDIMM |
| Memory Slots | 4 x DDR5 DIMM slots (Upgradable) |
| Max Memory | 128 GB |
| Total Storage Capacity | 960GB; 2x 480GB SSD SATA 6Gbps Read Intensive 512e 2.5in with 3.5in HYB carrier |
| Storage Media | SSD |
| Installed Storage | 1 x 480 GB SATA 6 Gbps Read-Intensive 512e 2.5-inch SSD with 3.5-inch Hybrid Carrier, 1 DWPD |
| Drive Bays | 3 x 3.5-inch cabled SAS/SATA drive bays and 2 x 2.5-inch cabled SAS/SATA drive bays |
| Max Storage Support | Up to 63.36 TB, depending on drive configuration |
| Storage Controller | Dell PERC H355 Adapter, Low Profile |
| RAID Support | Hardware RAID supported through PERC H355 |
| Boot Mode | UEFI BIOS Boot Mode with GPT Partition |
| Expansion Slots | 2 x PCIe slots: 1 x PCIe x8 slot with x4 bandwidth and 1 x PCIe x16 slot with x16 bandwidth, both half-height and half-length |
| Network Controller | Broadcom 5720 Dual-Port 1GbE Onboard LOM |
| Network Connectivity | 2 x 1GbE Ethernet ports, plus dedicated iDRAC management port |
| Embedded Management | iDRAC9 Enterprise 16G, Dell Connectivity Client Enabled |
| Security | Secured Component Verification, cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust and System Lockdown support |
| Security Chip | TPM 2.0 Support |
| Operating System Installed | Not included (Optional) |
| Cooling | Heatsink for processors rated at 80 W or less, with PCIe fan |
| Power Supply | 300 W Cabled Power Supply |
| Power Cords | 1 x C13 1.8 m 250 V 10 A European Power Cord |
| Bezel | Filter Bezel Supported |
| Weight | Up to 11.64 kg |
| Base Warranty | 3-years Basic Next Business Day |
| Included Upgrade | None |
| Front Ports | 1 x iDRAC Direct Micro-AB USB port 1 x USB 3.2 Gen 1 port |

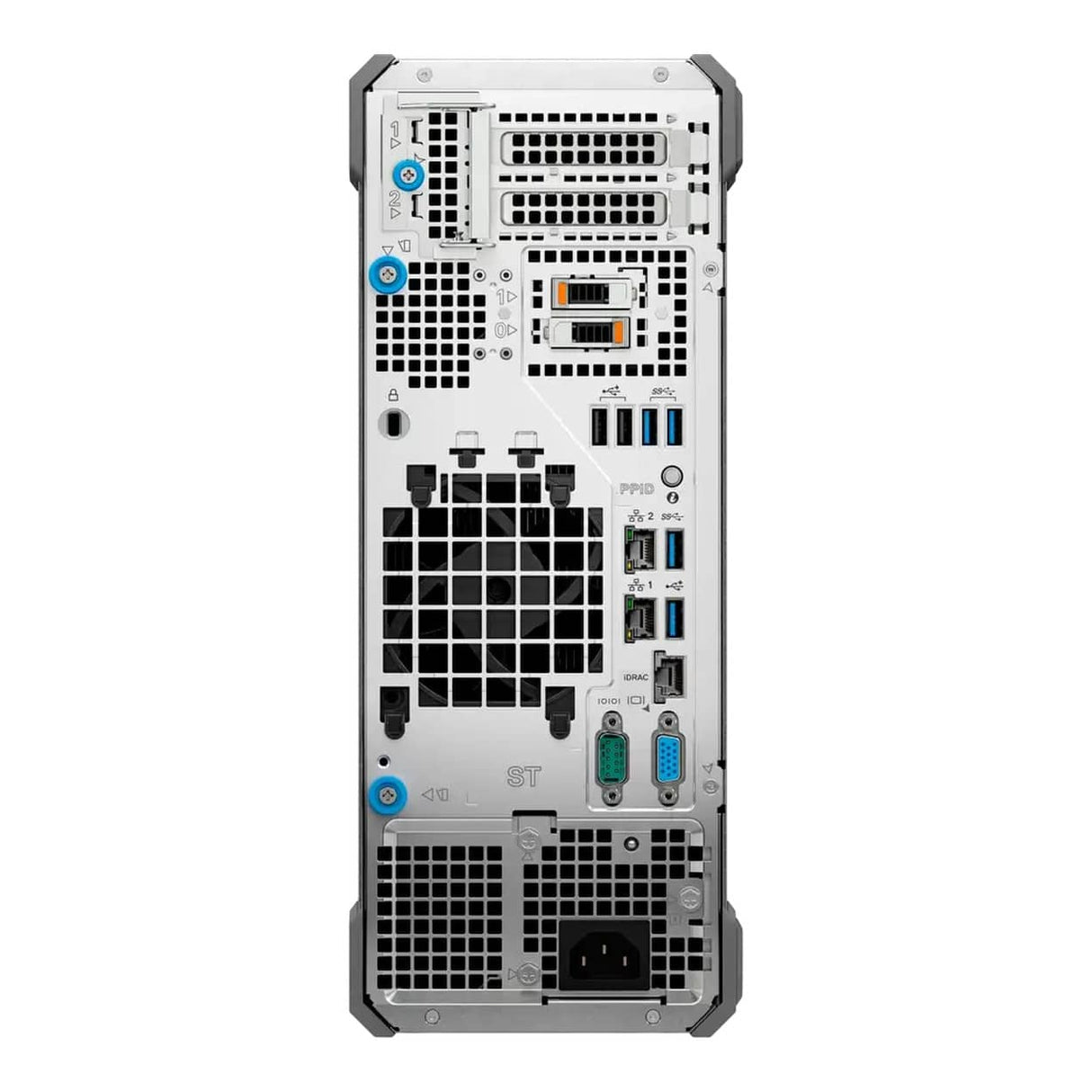

| Rear Ports | 1 x Dedicated iDRAC RJ-45 port 3 x USB 2.0 ports 3 x USB 3.2 Gen 1 ports 1 x Serial port 1 x VGA port 2 x 1GbE Ethernet ports |
| Internal Ports | 1 x USB 3.2 Gen 1 port |
Choose the Dell PowerEdge T160 for a compact, manageable server platform designed to support growing small-business and near-edge workloads.
