Dell PowerEdge R760XS 2U Rack Server - Intel Xeon 1X4510 2.4TB HDD 64GB RAM 2x 700W

Dell PowerEdge R760XS 2U Rack Server - Intel Xeon 1X4510 2.4TB HDD 64GB RAM 2x 700W

Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.

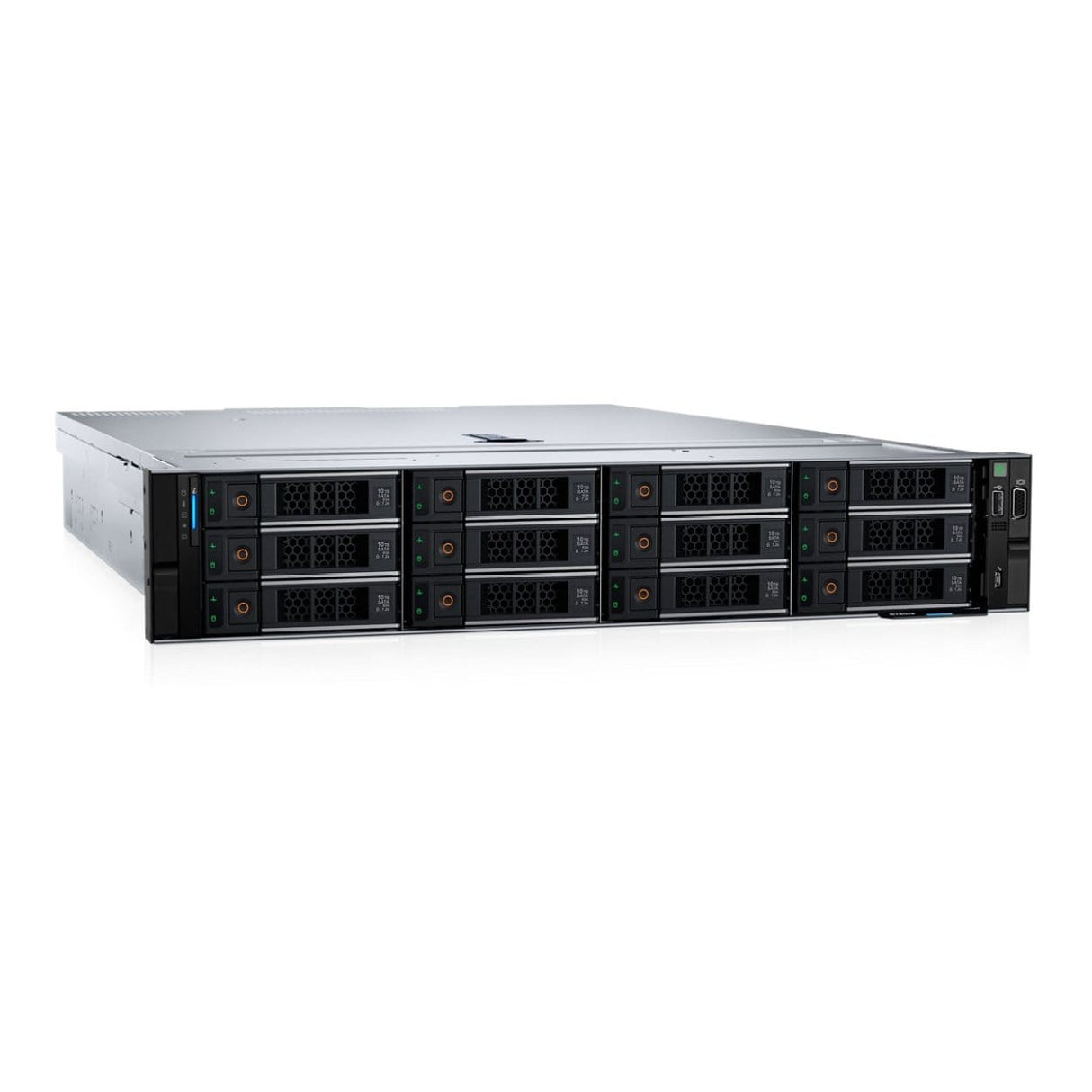

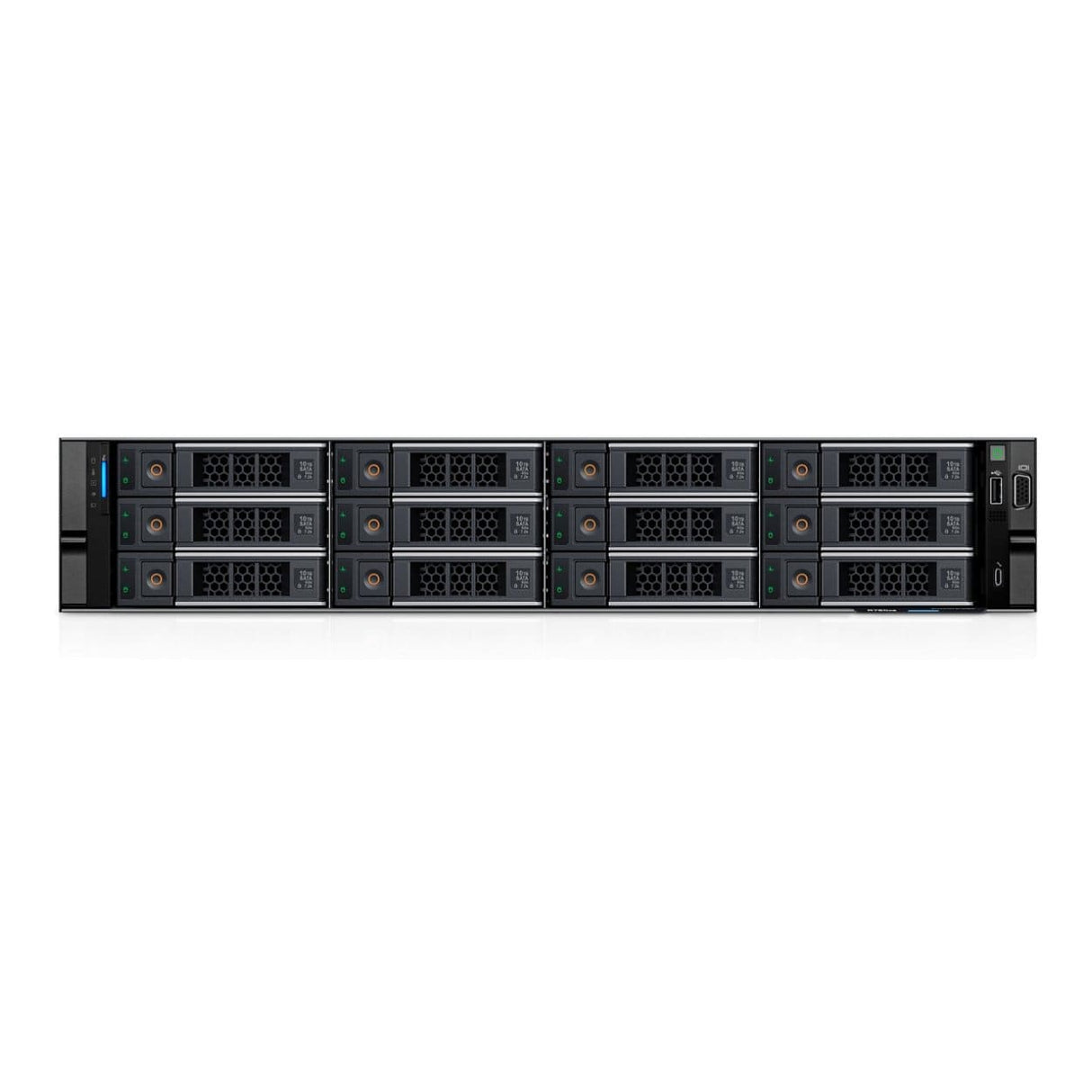

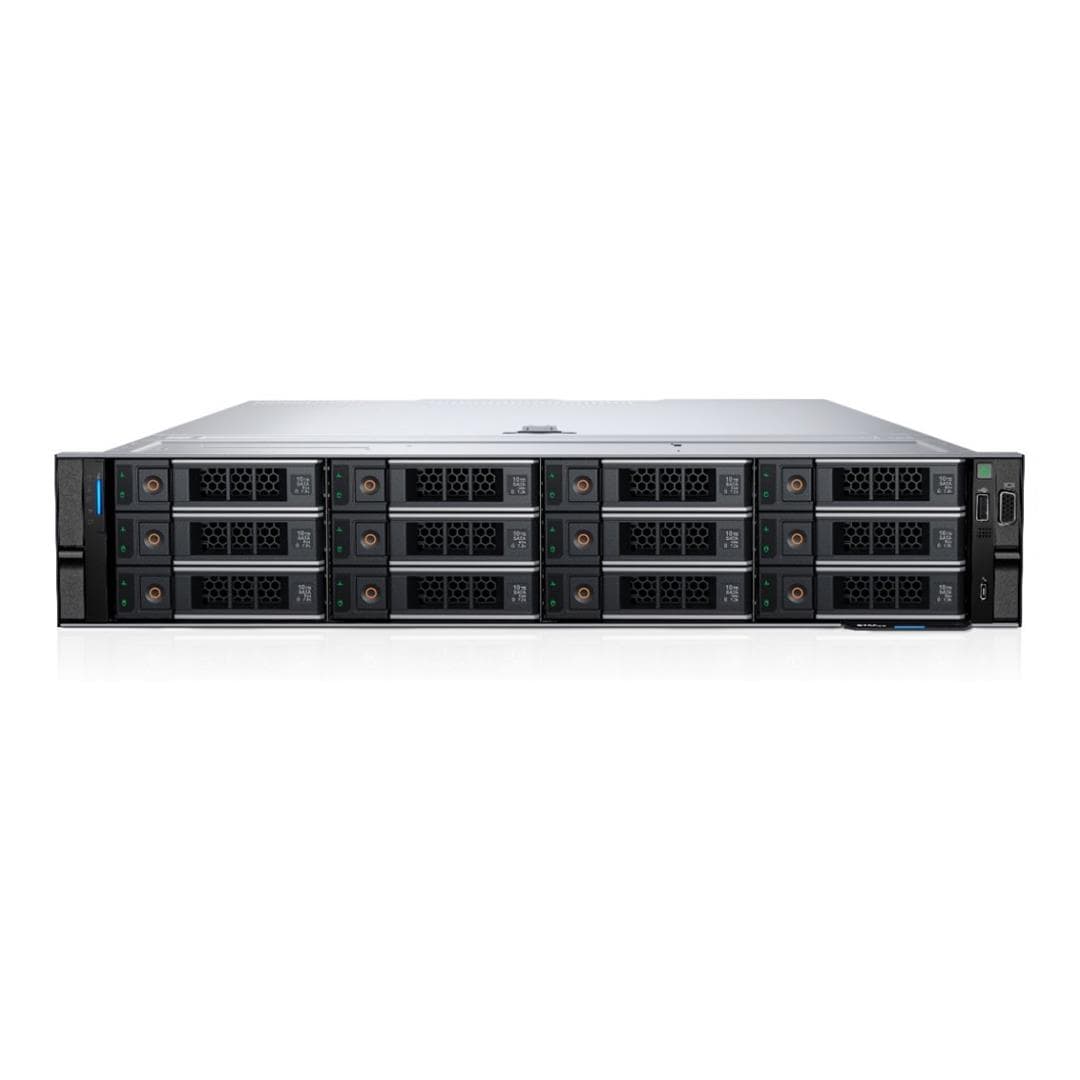

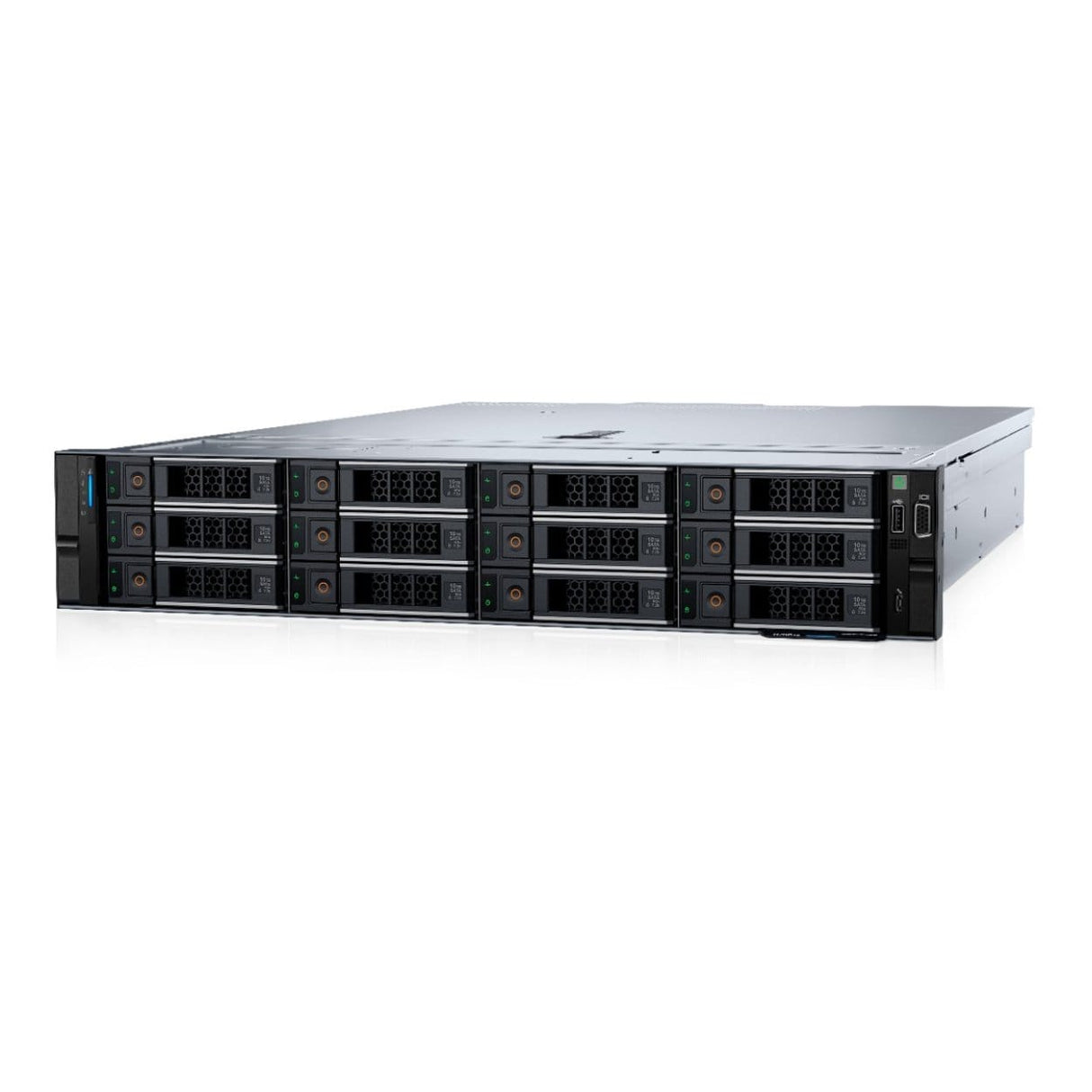

The Dell PowerEdge R760xs is a 2U rack server designed to provide a practical balance of compute performance, storage capacity and expandability for popular business IT workloads. This configuration combines an Intel Xeon Silver 4510 processor with 64 GB ECC DDR5 registered memory, a 2.4 TB enterprise SAS hard drive and Dell PERC H755 storage management.

Six configured Gigabit Ethernet ports provide flexible network connectivity, while iDRAC9 Enterprise enables secure remote server administration. Dual 700 W hot-plug redundant Titanium power supplies and ReadyRails sliding rails further support dependable rack deployment in business and data-centre environments.

Key Features:

• 2U rack server designed for virtualisation, software-defined storage and general business workloads
• Intel Xeon Silver 4510 processor with 12 cores and 24 threads
• 64 GB ECC DDR5 RDIMM memory configured as 2 x 32 GB dual-rank modules
• 2.4 TB 10K RPM enterprise SAS hot-plug hard drive
• Dell PERC H755 hardware RAID controller
• Six configured 1GbE BASE-T network connections
• iDRAC9 Enterprise for secure remote server management
• Dual 700 W hot-plug redundant Titanium power supplies

Right-Sized Intel Xeon Performance

The Intel Xeon Silver 4510 processor provides 12 cores and 24 threads with a 2.40 GHz base frequency and up to 4.10 GHz maximum turbo frequency. Its 30 MB cache and support for ECC DDR5 memory provide a capable foundation for virtual machines, business applications and consolidated infrastructure workloads.

Enterprise Memory and Storage

This configuration includes 64 GB of ECC DDR5 registered memory using two 32 GB dual-rank RDIMMs. A 2.4 TB 10K RPM 12Gbps SAS hot-plug hard drive provides enterprise-class local storage, while the 3.5-inch chassis supports additional SAS or SATA drives as business storage requirements grow.

Hardware Storage Management

A Dell PERC H755 low-profile storage controller provides dedicated hardware RAID functionality. RAID is not preconfigured in this system, allowing the storage layout to be configured according to deployment requirements.

Flexible Network Connectivity

The server combines a Broadcom 5720 dual-port 1GbE onboard LOM with a Broadcom 5719 quad-port 1GbE BASE-T PCIe adapter. Together these provide six Gigabit Ethernet ports for application, management or segmented network traffic, while a dedicated iDRAC connection supports out-of-band server administration.

Secure Remote Management

iDRAC9 Enterprise provides secure out-of-band monitoring and remote administration, helping IT teams deploy, monitor and maintain the server without requiring physical access. Dell Connectivity Client and Dell Connectivity Module support are also included in the configured system.

Redundant Power and Rack Deployment

Dual 700 W hot-plug Titanium power supplies are configured in a 1+1 redundant arrangement to help maintain power availability if one PSU becomes unavailable. ReadyRails sliding rails are included for installation in compatible rack environments.

• Specifications and Images may vary depending upon region / model.

Technical Specifications:

Choose the Dell PowerEdge R760xs for a balanced rack-server platform with enterprise management, redundant power and flexible connectivity for everyday virtualisation and business workloads.
