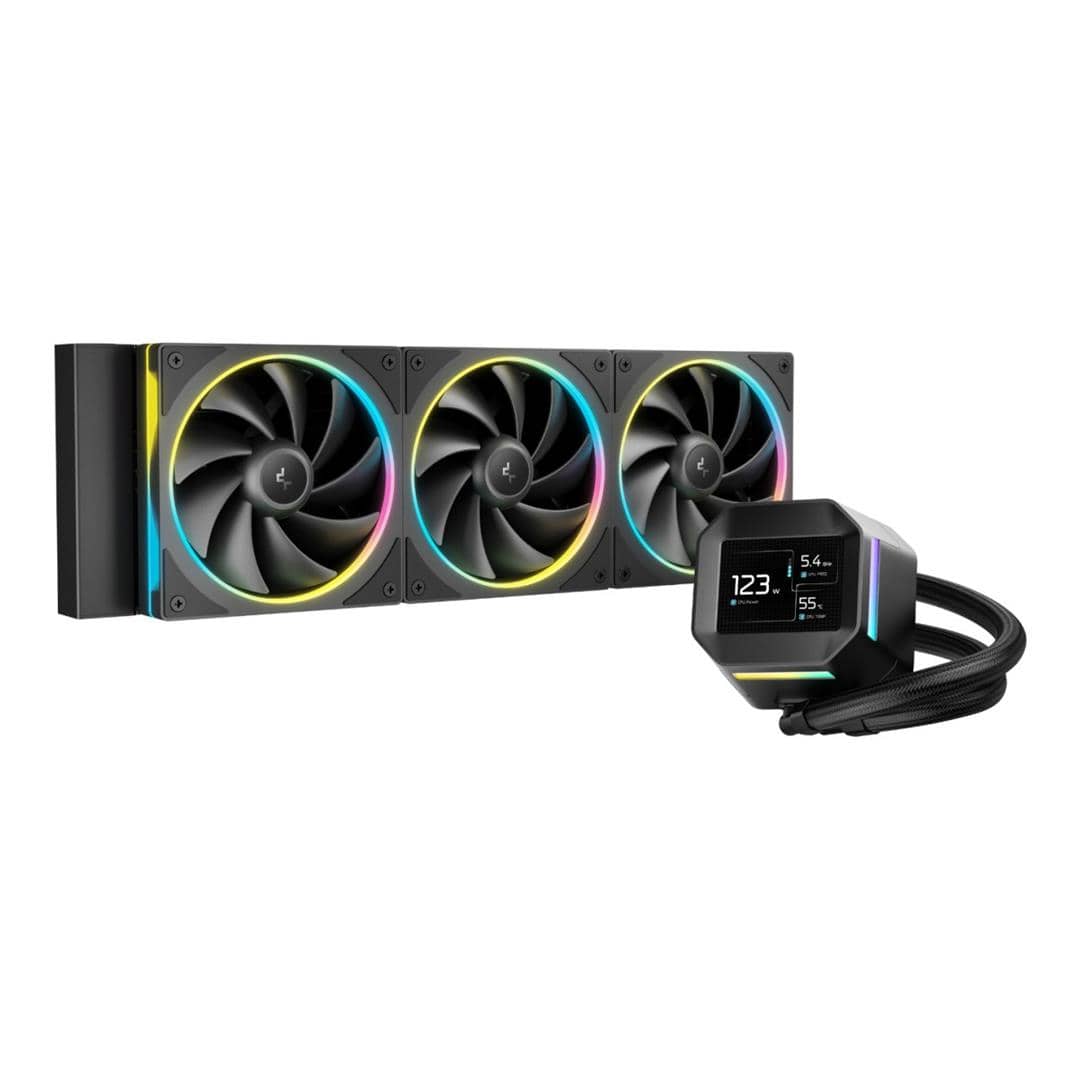

DeepCool LM360 360mm ARGB AIO CPU Liquid Cooler Black R-LM360-BKDMMC-1

DeepCool LM360 360mm ARGB AIO CPU Liquid Cooler Black R-LM360-BKDMMC-1

The LM series brings a fresh update to liquid cooling with a compact 2.4" IPS display that now supports MP4 video playback for a more dynamic screen experience. Cooling performance is refined with an upgraded pump for better efficiency and quieter operation.

Features:

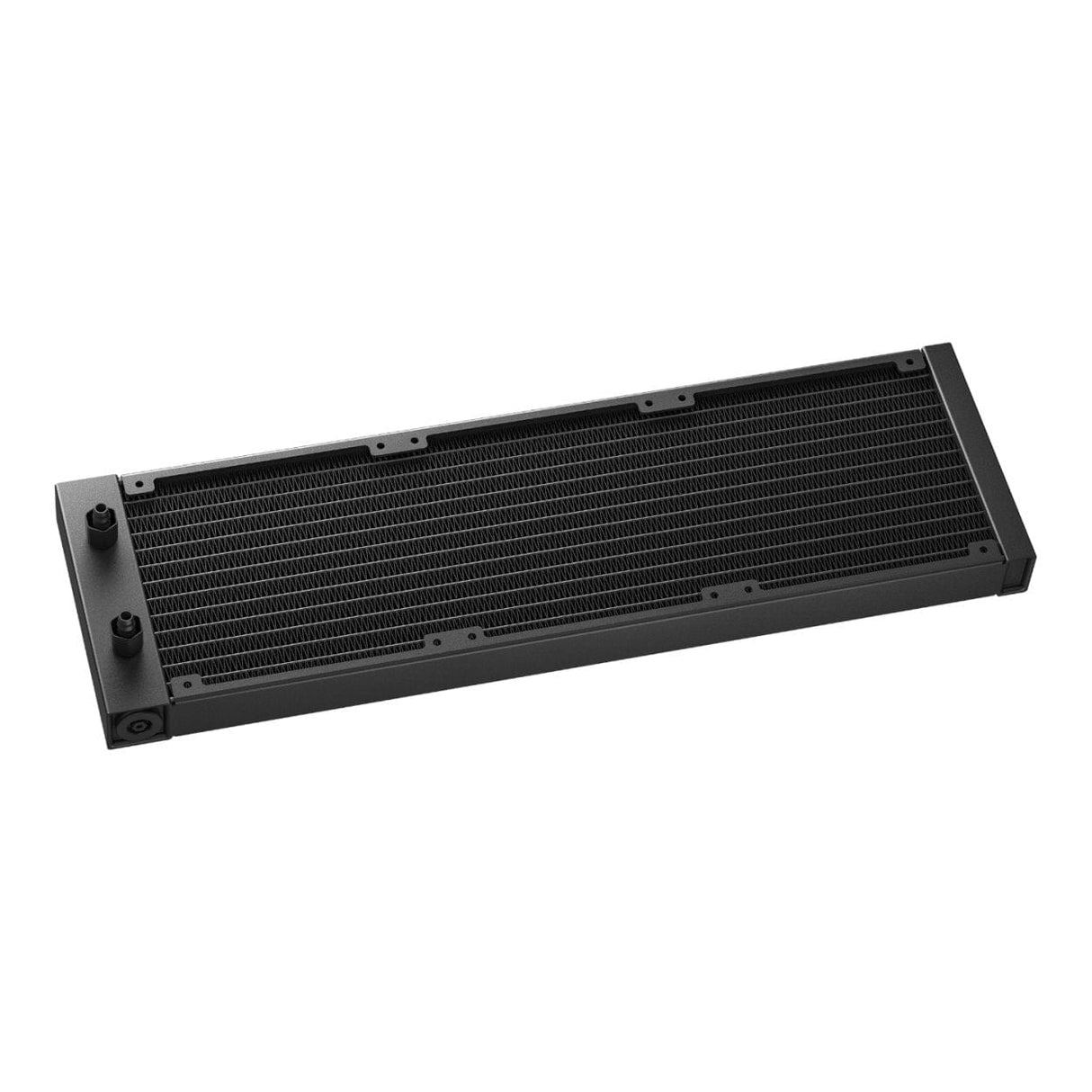

• Dissipate massive heat loads effectively by employing a three-fan, 360mm aluminium radiator.
• Operate your system with confidence knowing the pump maintains between 2500 and 3400 RPM for constant coolant flow.
• Achieve effective static pressure (3.27 mmAq) and airflow (66.23 CFM) to force heat through the radiator fins.
• Integrate visual command over the lighting by connecting the ARGB system via the 3-pin, 5-volt interface.
• Simplify installation across modern architectures by including mounting support for Intel LGA1851, LGA1700, and AMD AM5, among others.
• Guarantee quiet performance through the use of carefully balanced hydro bearings in the cooling fans.
• Connect all primary cooling elements securely using the standard 4-pin PWM connectors for speed control.

CLEANLY FOCUSED 2.4" LCD

See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.

DeepCreative: THE CONTROL CENTER

Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.

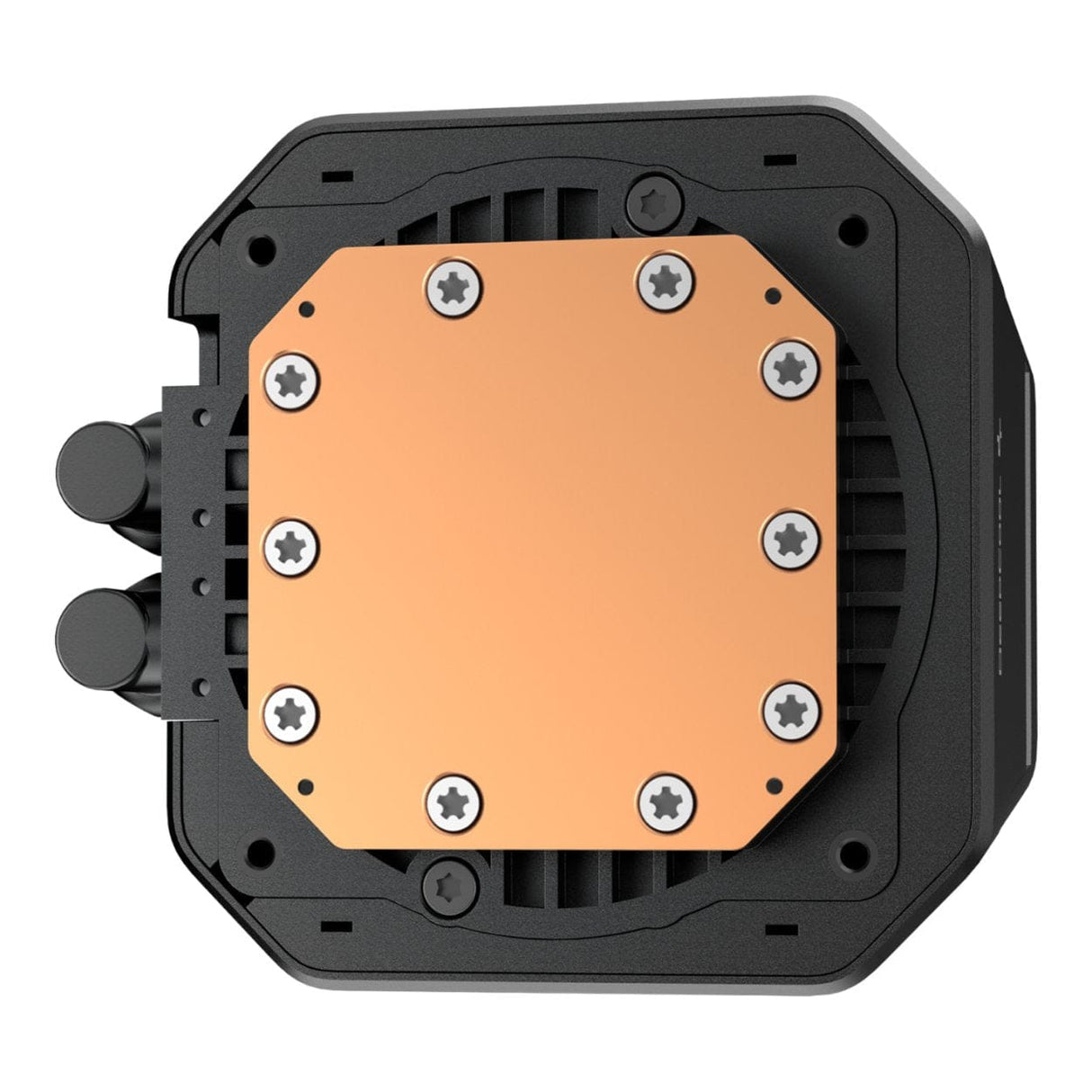

GEN 6 WATER PUMP WITH PWM CONTROL

The LM360 features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,400 RPM with precision and stability.

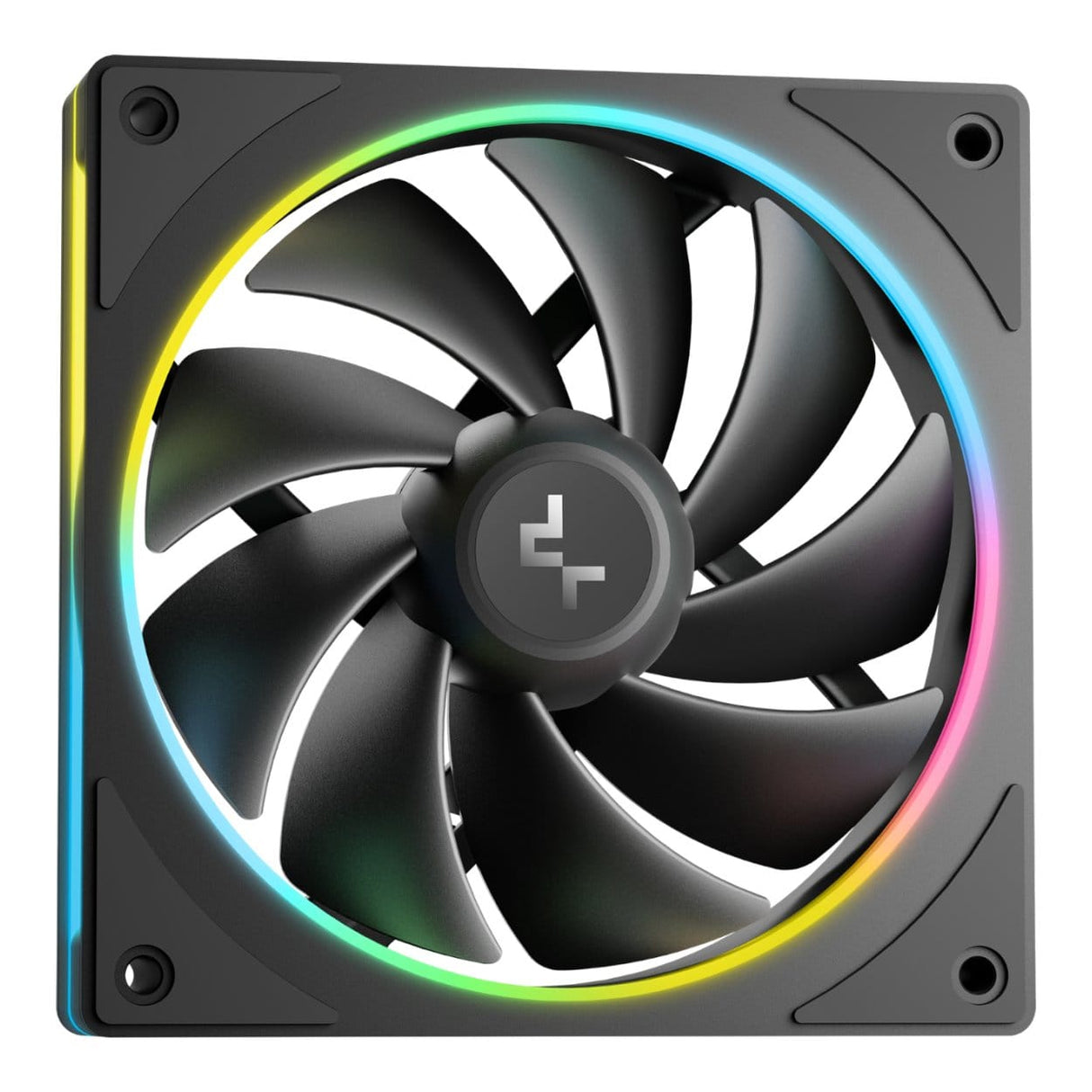

EFFICIENCY IN MOTION

Equipped with a long-life hydro bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.

ANTI-LEAK TECHNOLOGY

DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.

SIMPLIFIED INSTALLATION

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM360 to the latest mainstream CPUs is included in the box, so you are ready to go.

Technical Specifications:

Fan Noise: ≤36.07 dB(A)

Fan Connector: 4-pin PWM

Bearing Type: Hydro Bearing

Fan Rated Voltage: 12 VDC

Fan Rated Current: 0.18 A

Fan Power Consumption: 2.16 W

LED Type: Addressable RGB LED

LED Connector: 3-pin(+5V-D-G)

LED Rated Voltage: 5 VDC

LED Power Consumption: 1.5 W (PUMP)/ 3.5 W (FAN×3)

Radiator Material: Aluminium

Radiator Dimensions: 40.2 × 12 × 2.7 cm

Tube length: 41 cm

Pump Dimensions: 9 x 8 x 6.3 cm

Pump Speed: 2500~3400 RPM±10%

Pump Connector: 4-pin PWM

Pump Rated Voltage: 12 VDC

Pump Rated Current: 0.29 A

Pump Power Consumption: 3.48 W

Fan Dimensions: 12 x 12 x 2.5 cm

Fan Speed: 400~2400 RPM±10%

Fan Airflow: 66.23 CFM

Fan Air Pressure: 3.27 mmAq

Intel Support: LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155

AMD Support: AM5 / AM4

Colour: Black

Product Weight: 1729 g

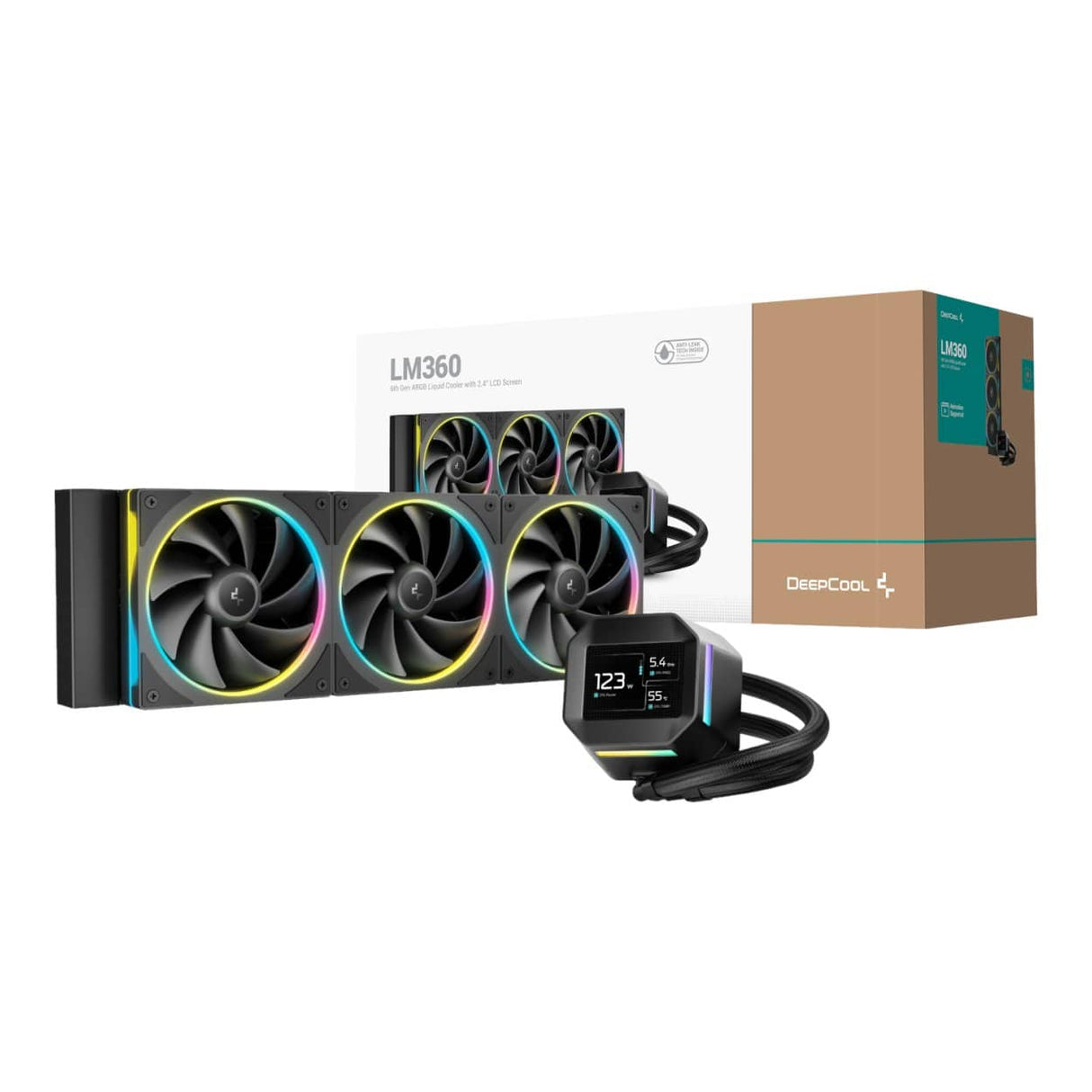

What's in the Box:

• DeepCool LM360 ARGB 360mm AIO CPU Liquid Cooler – Black x1

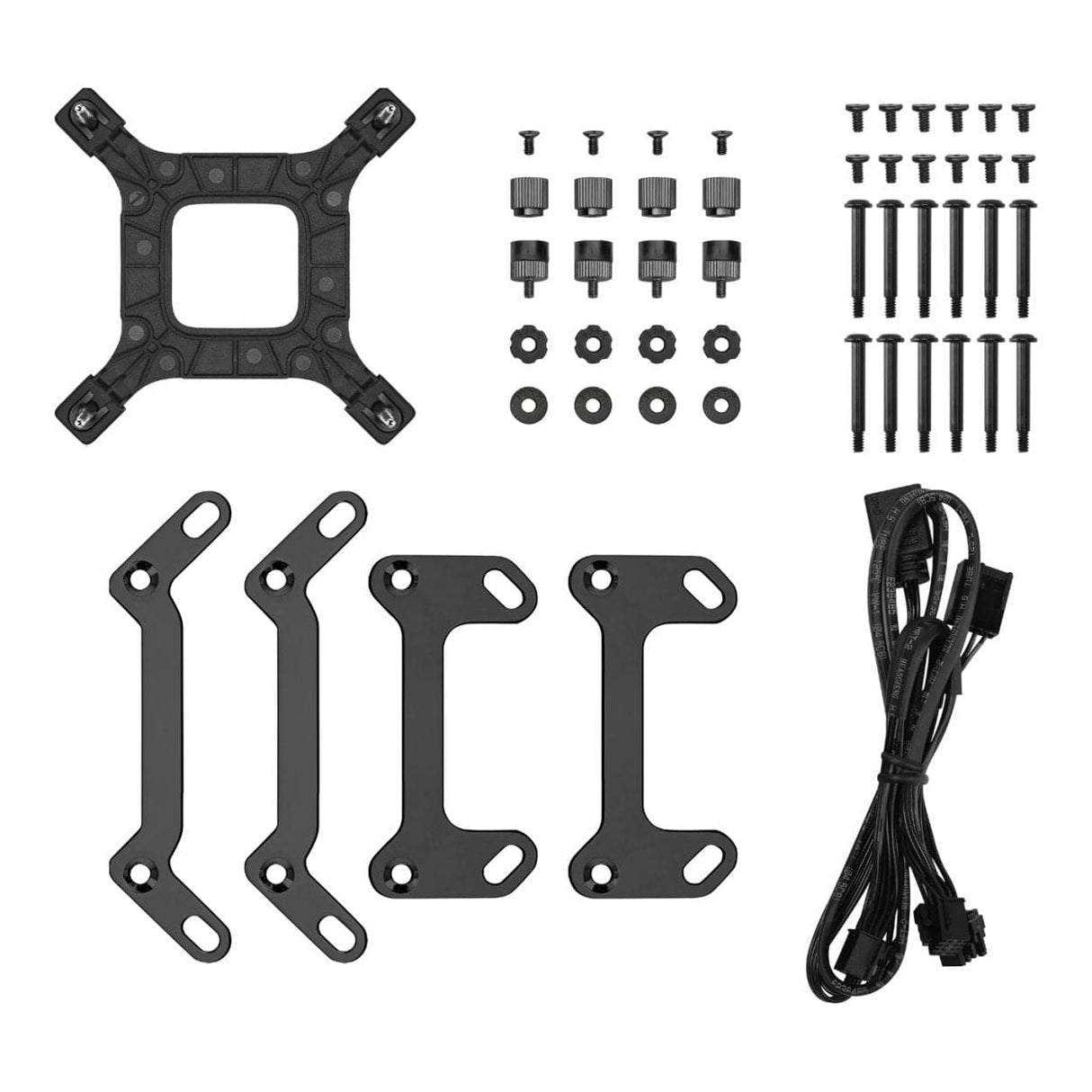

• AMD and Intel Mounting Kit x1
