DeepCool CH260 Wood Micro-ATX Gaming PC Case Black R-CH260-BKNWM0-G-1

DeepCool CH260 Wood Micro-ATX Gaming PC Case Black R-CH260-BKNWM0-G-1

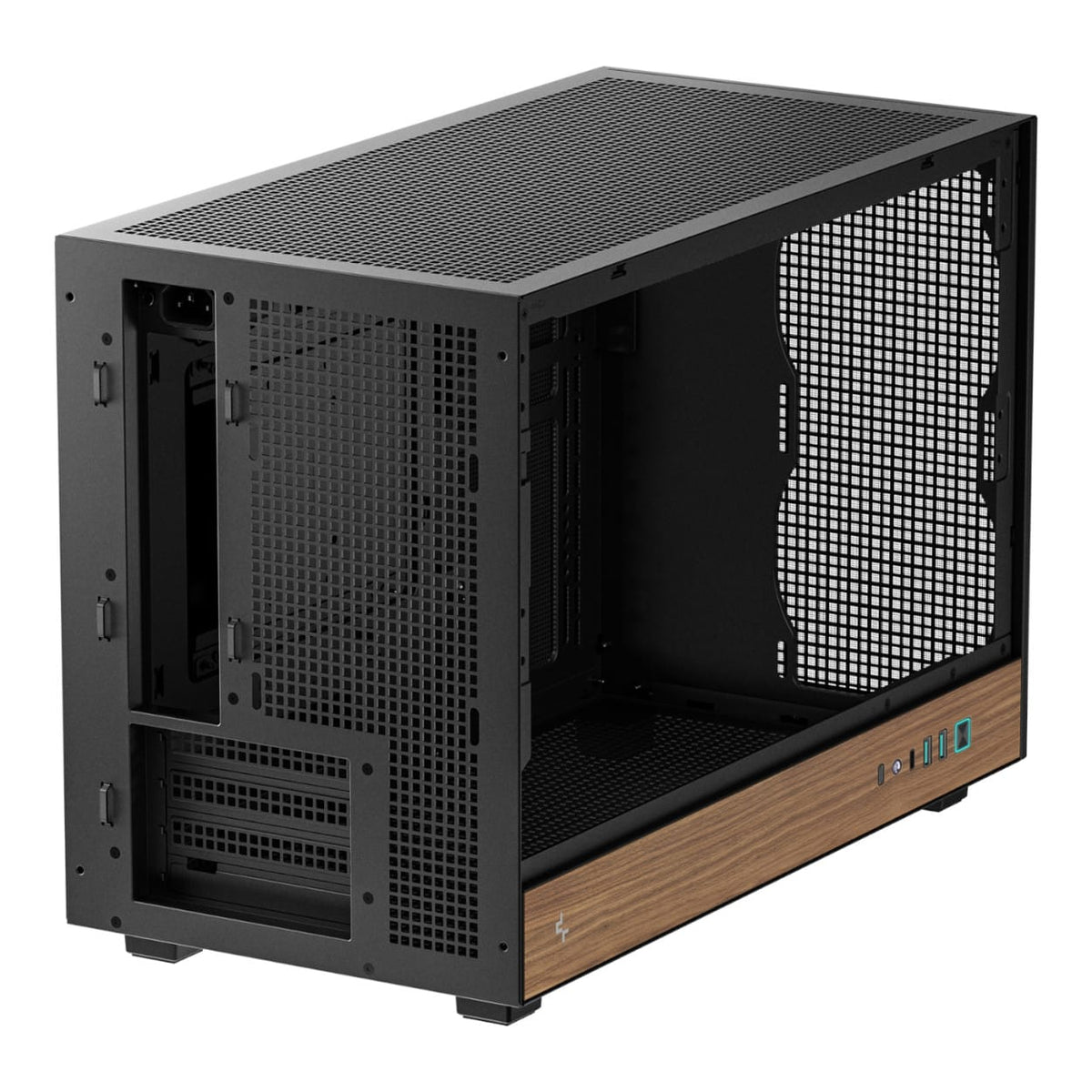

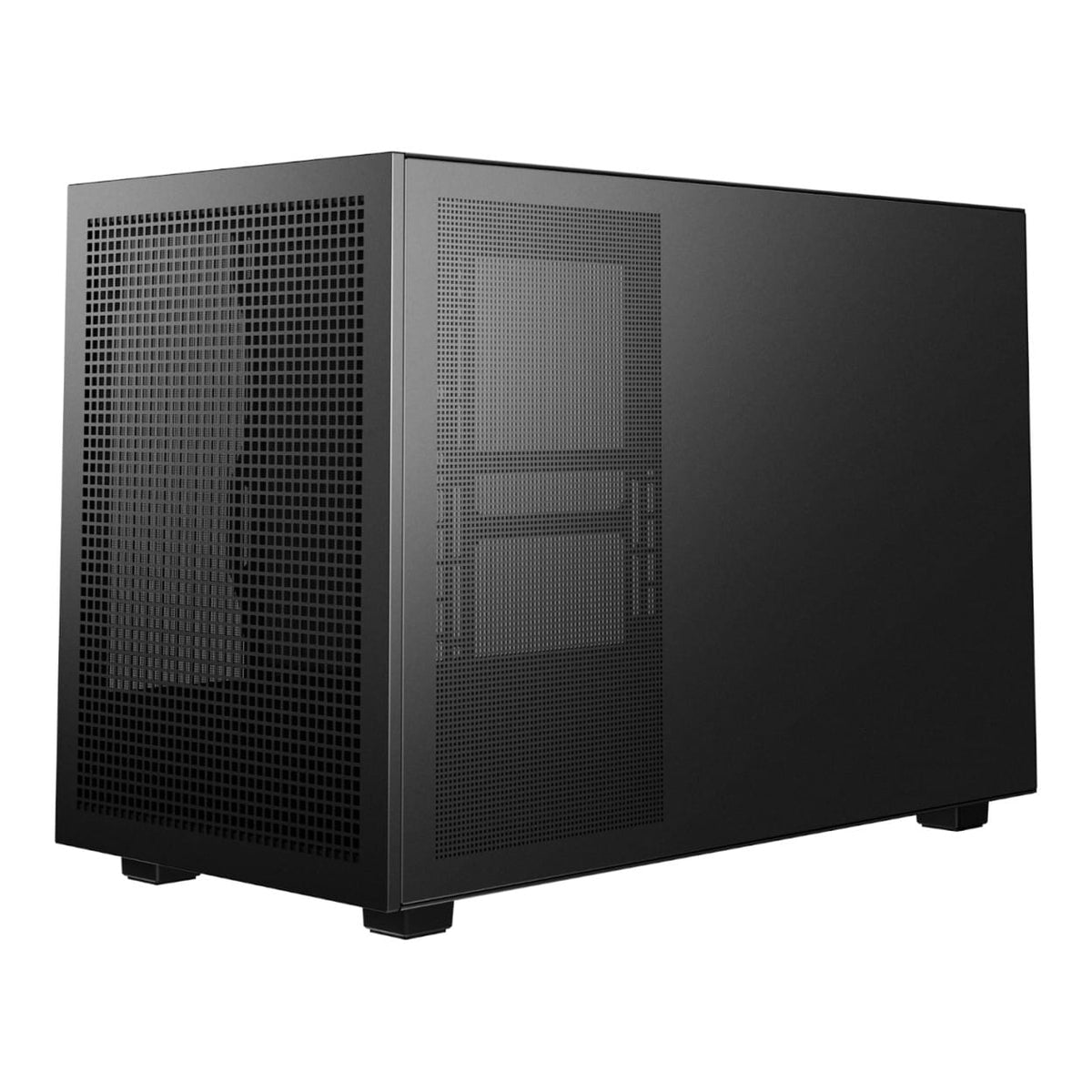

The DeepCool CH260 WOOD is a compact Micro-ATX gaming chassis that combines extensive mesh ventilation with a tempered-glass side panel and a distinctive wood-grain I/O accent. Its flexible internal layout accommodates full-size graphics cards, ATX power supplies and either high-performance air cooling or a top-mounted radiator, making it suitable for powerful builds where desk space is limited.

Compact Design with a Natural Accent

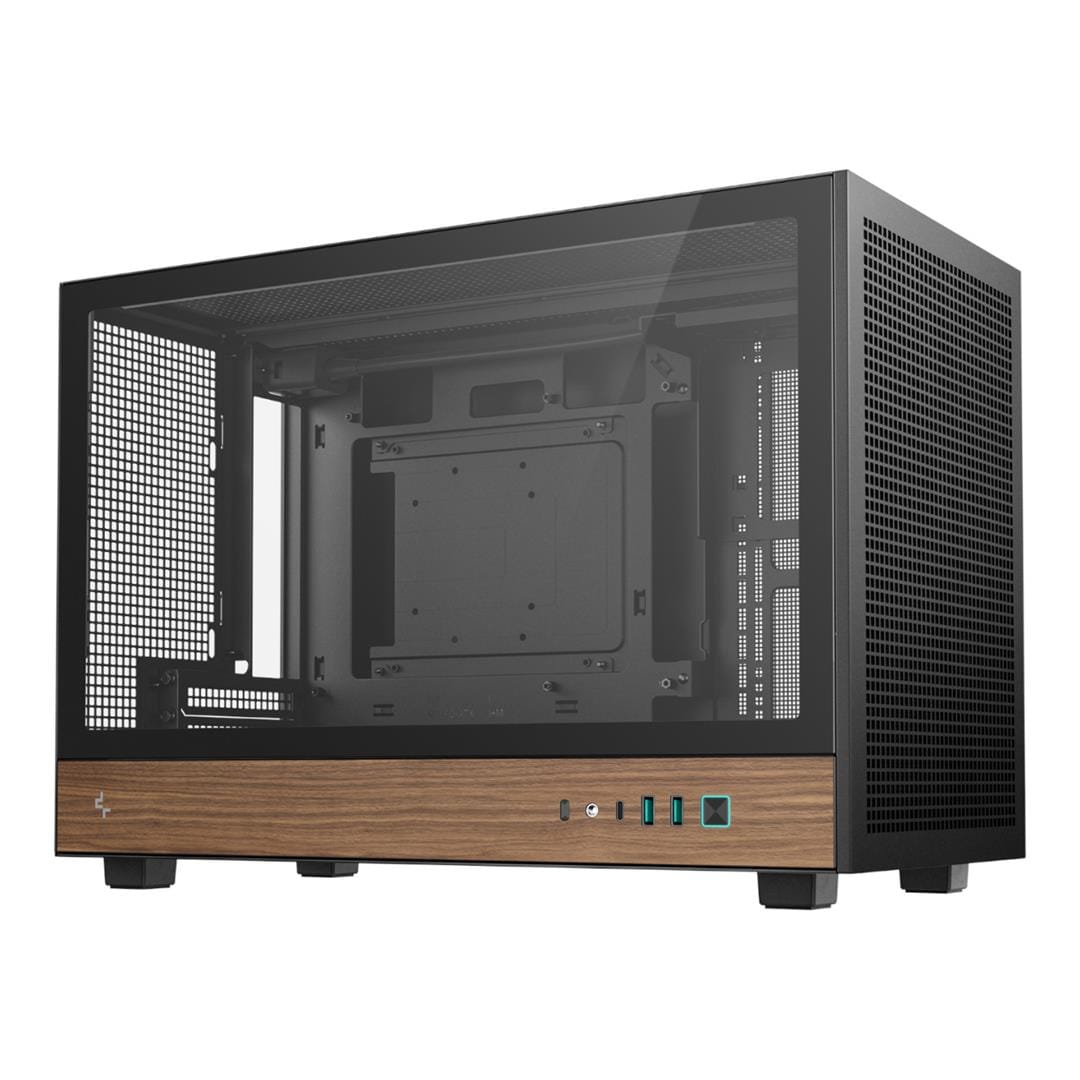

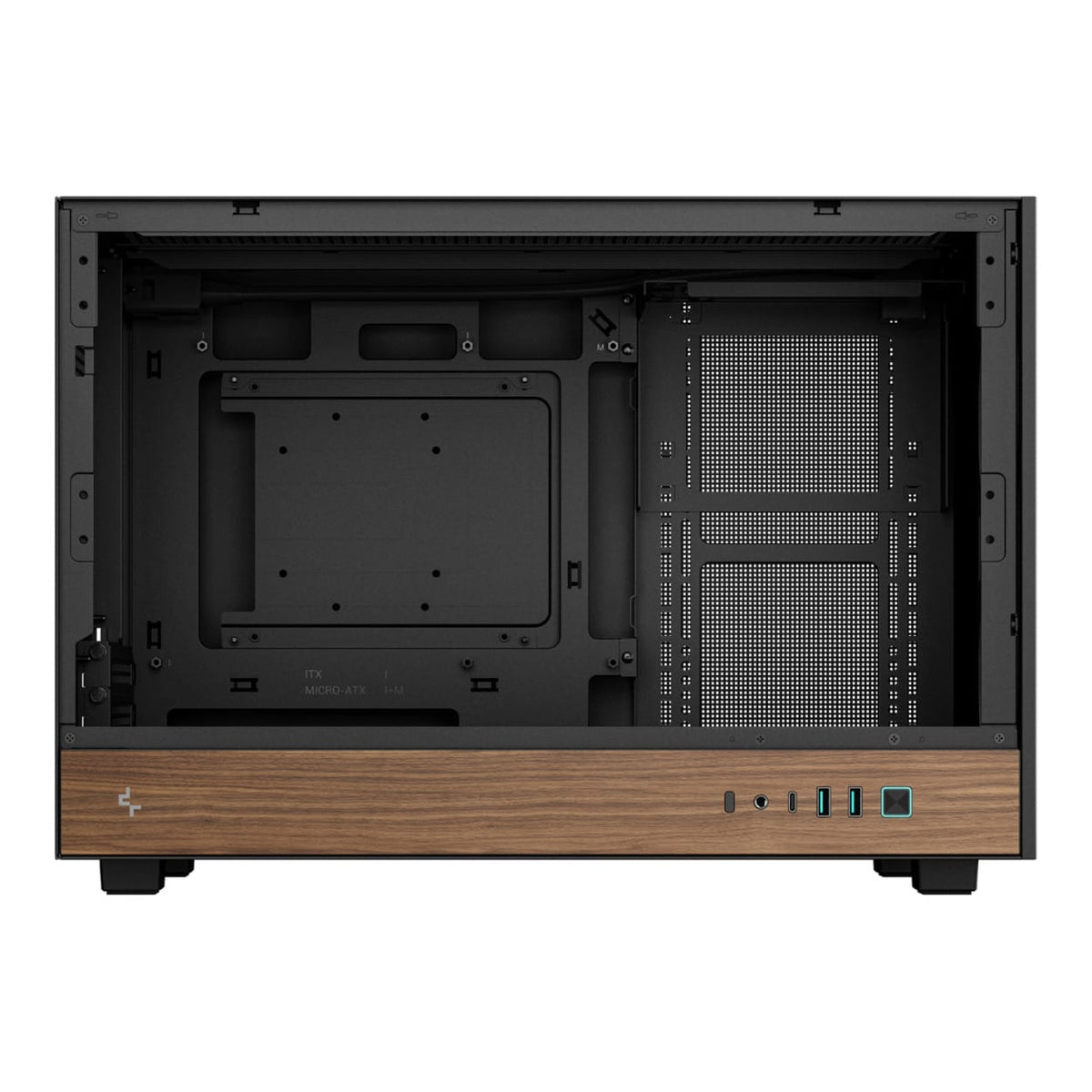

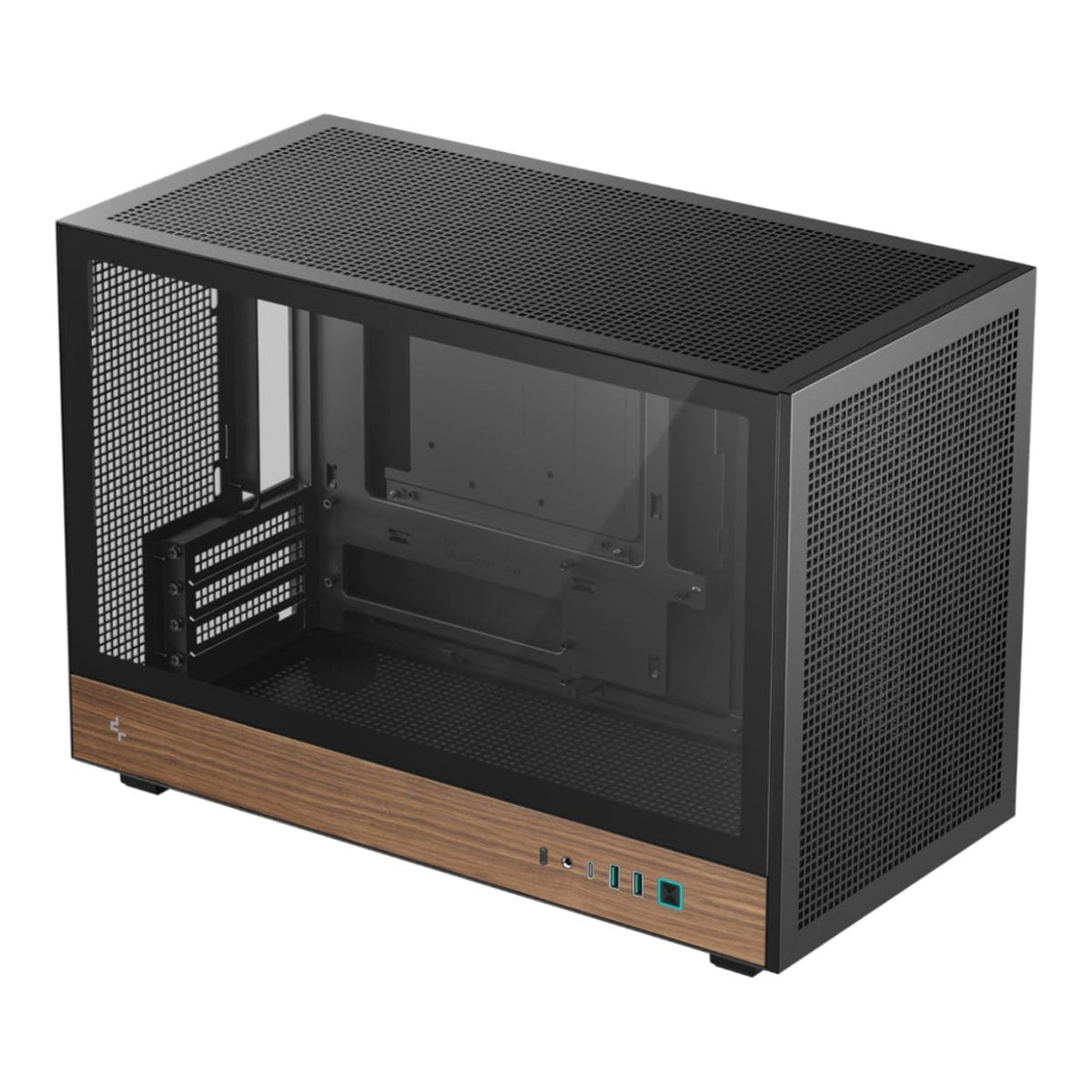

The black exterior is complemented by a wood-grain detail around the I/O panel, helping the chassis blend naturally into modern gaming, office and living spaces. A tempered-glass side panel provides a clear view of the installed components, while the compact 30.7-litre design supports both Mini-ITX and Micro-ATX motherboards.

High-Airflow Cooling Layout

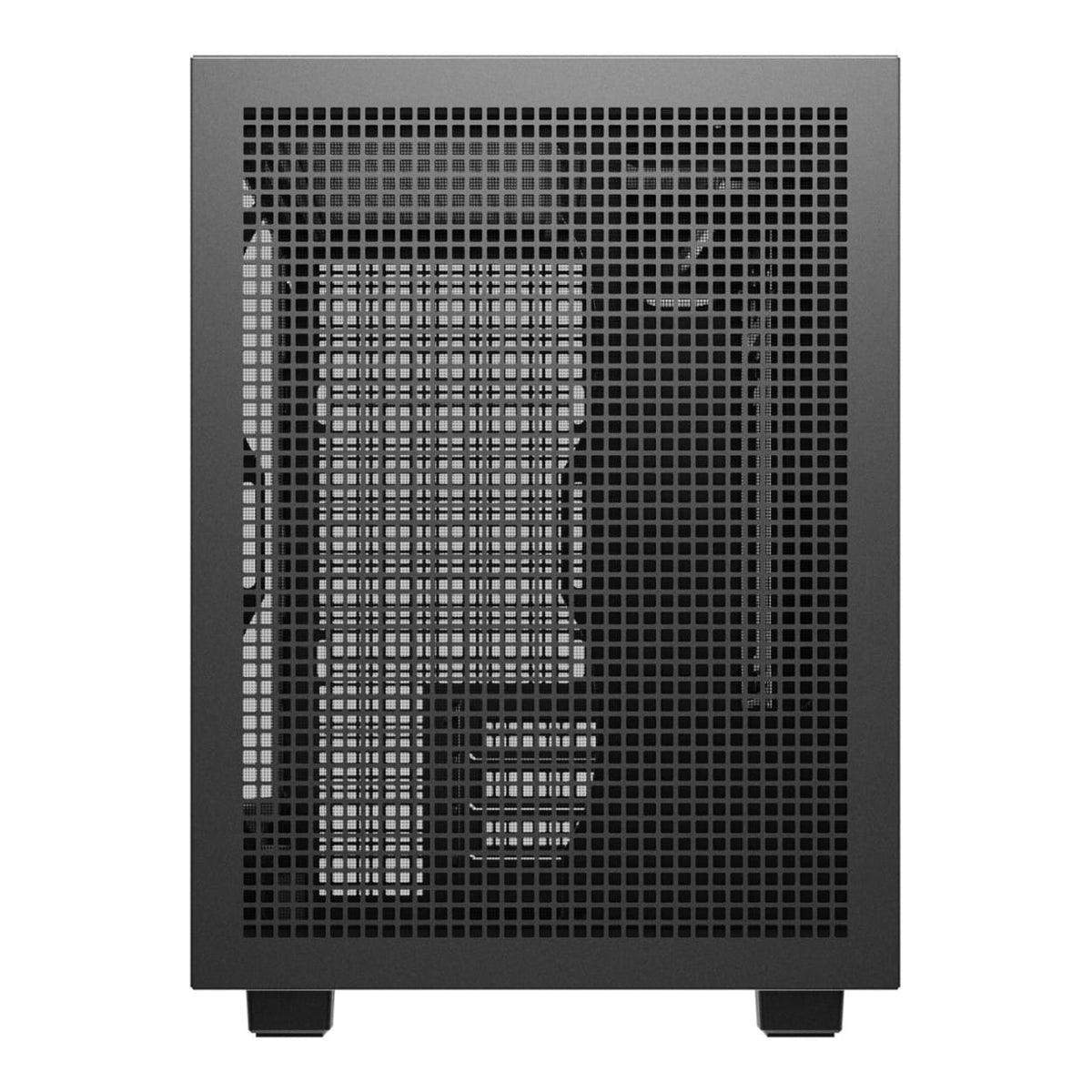

Wraparound mesh panels help fresh air reach the internal components and allow warm air to escape. Builders can install up to six 120mm fans, while the top panel supports radiators up to 360mm for systems requiring liquid cooling. Large tower-style CPU air coolers up to 174mm high are also supported.

Flexible Component Compatibility

The CH260 WOOD provides clearance for graphics cards up to 388mm long when front fans are fitted, or up to 413mm without front fans. It also supports ATX PS2 power supplies up to 150mm long through a removable mounting bracket that helps simplify installation and cable management.

Rear-Connector Motherboard Support

In addition to standard Mini-ITX and Micro-ATX motherboards, the chassis supports compatible rear-connector Micro-ATX designs. A rear cable-management clearance of approximately 29.6mm provides space for connections behind the motherboard tray, helping builders create a cleaner-looking system.

Builder-Friendly Access

The tool-free front panel and three removable dust filters make installation and routine cleaning more convenient. Four reusable expansion-slot covers provide flexible hardware installation without requiring disposable slot covers.

Key Features:

• Compact Micro-ATX chassis with black styling and a wood-grain I/O panel accent.
• Supports Mini-ITX, standard Micro-ATX and compatible rear-connector Micro-ATX motherboards.
• Wraparound mesh ventilation supports up to six 120mm fans for flexible airflow planning.
• Accommodates a top-mounted radiator up to 360mm or a CPU air cooler up to 174mm high.
• Supports graphics cards up to 388mm with front fans or 413mm without front fans.
• Tempered-glass side panel provides a clear view of the installed components.
• Front connectivity includes two USB Type-A ports, one USB Type-C port and a combined audio/microphone connection.

Technical Specifications:

Component clearance can vary according to the selected fans, radiator, graphics card, power supply and cable configuration. Confirm the complete build layout before installation.

Create a compact, well-ventilated Micro-ATX system with a distinctive wood-grain accent and add the DeepCool CH260 WOOD to your cart today.
