DeepCool CH160 PLUS Micro-ATX PC Case Black R-CH160-BKNGM0-G

DeepCool CH160 PLUS Micro-ATX PC Case Black R-CH160-BKNGM0-G

The DeepCool CH160 PLUS is a compact 21-litre PC case designed for builders who want Micro-ATX component compatibility without moving to a conventional tower. It supports long graphics cards, full-height CPU air coolers, 240mm liquid cooling and several power-supply formats within a portable enclosure. Three-sided mesh ventilation, removable dust filters and an integrated carrying handle make it a practical foundation for compact gaming and workstation builds.

Compact Micro-ATX Compatibility

The CH160 PLUS supports both Micro-ATX and Mini-ITX motherboards, giving builders a wider choice of platforms than many compact cases. Four expansion slots provide room for compatible multi-slot graphics cards and other expansion hardware.

Built to Accommodate Powerful Components

Despite its compact dimensions, the case supports graphics cards up to 342mm long. Installing a fan in the front position reduces the available graphics-card length to 328mm, so the dimensions of all components should be checked before assembly.

CPU air coolers up to 164mm high are supported, providing compatibility with a broad range of tower-style cooling solutions. These clearances allow the case to accommodate capable gaming and productivity hardware while maintaining a relatively small desktop footprint.

Flexible Air and Liquid Cooling

The top panel supports two 120mm fans or a 120mm or 240mm radiator, while the rear accepts a 120mm fan or radiator. A 120mm or 140mm front fan can also be installed when an SFX power supply is used. No fans are supplied with the case, allowing the cooling configuration to be selected according to the components and preferred noise level.

Three-sided Mesh Ventilation

Mesh panels around three sides of the enclosure help provide access to fresh air for the CPU cooler, graphics card and case fans. Dust filters on three sides simplify routine maintenance by helping reduce the amount of dust entering the system.

ATX, SFX and SFX-L Power-supply Support

The case supports SFX and SFX-L power supplies as well as ATX PS2 units up to 140mm long. Choosing a compact SFX power supply provides additional internal flexibility and enables the front fan mounting position, while ATX support gives builders access to a wider selection of standard power supplies.

Flexible Storage Installation

Storage can be configured with one 3.5-inch hard drive and one 2.5-inch drive, or with two 2.5-inch drives. This allows the system to be arranged around either a mixed hard-drive and SSD configuration or a fully solid-state storage setup.

Accessible Front Connectivity

The front I/O panel includes two USB 3.0 Type-A ports, one USB-C Gen 2 port and a combined audio and microphone connection. Frequently used peripherals, external storage devices and headsets can therefore be connected without reaching behind the system.

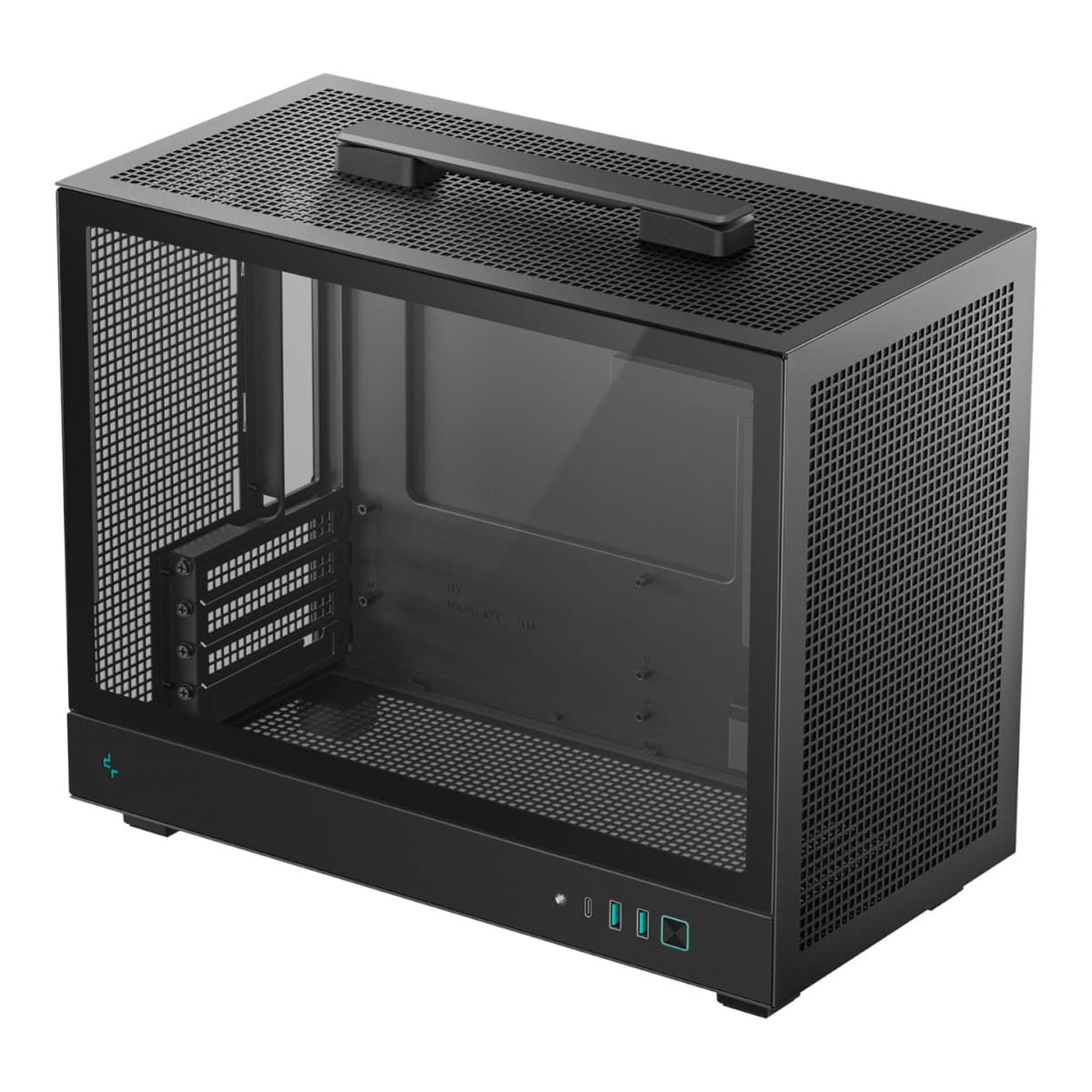

Portable Design with Tempered Glass

An integrated top handle makes the case easier to reposition or carry between locations. The tempered-glass side panel provides a clear view of the installed components, while the black finish suits a wide range of gaming, office and workstation environments.

Key Features:

• Compact 21-litre enclosure supporting Micro-ATX and Mini-ITX motherboards.
• Supports graphics cards up to 342mm long, or 328mm with a front fan installed.
• Accommodates CPU air coolers up to 164mm high.
• Supports a top-mounted 240mm radiator or rear 120mm radiator.
• Compatible with ATX PS2 power supplies up to 140mm, as well as SFX and SFX-L units.
• Three-sided mesh ventilation and dust filters support airflow and easier maintenance.
• Integrated carrying handle makes the compact system easier to move.

Technical Specifications:

Build a compact Micro-ATX system with flexible cooling, broad component support and convenient portability, and add the DeepCool CH160 PLUS to your cart today.
