DeepCool CG330 3F Panoramic Dual-Chamber Micro-ATX Gaming PC Case R-CG330-BKNGM3-G

DeepCool CG330 3F Panoramic Dual-Chamber Micro-ATX Gaming PC Case R-CG330-BKNGM3-G

The DeepCool CG330 3F is a panoramic Micro-ATX gaming case designed to display a clean, carefully organised PC build. Its pillarless tempered-glass design provides an expansive view of the main hardware, while the dual-chamber layout separates the power supply and storage from the primary component area. Three pre-installed 120mm ARGB fans provide illuminated airflow from the first installation.

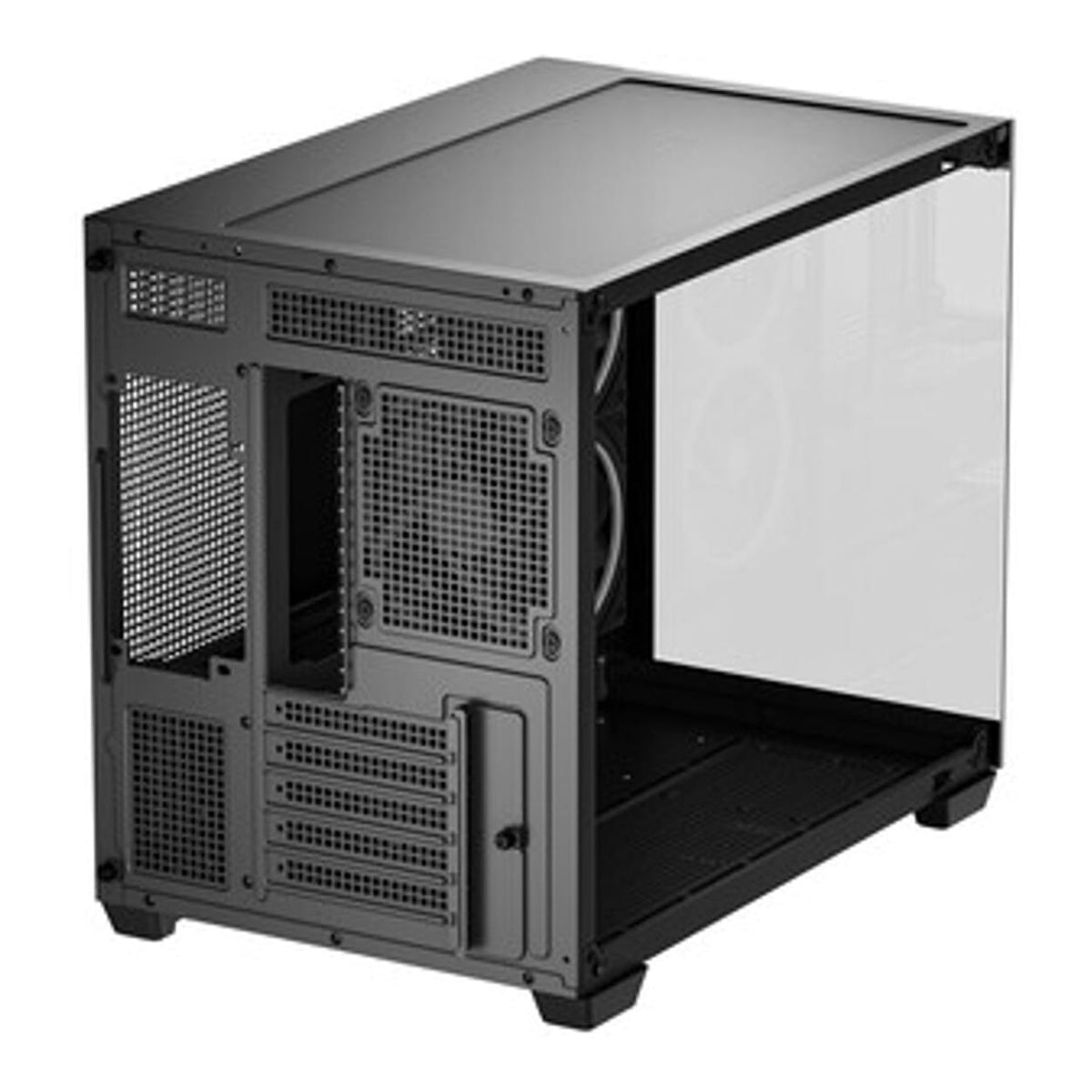

Panoramic Tempered-glass Design

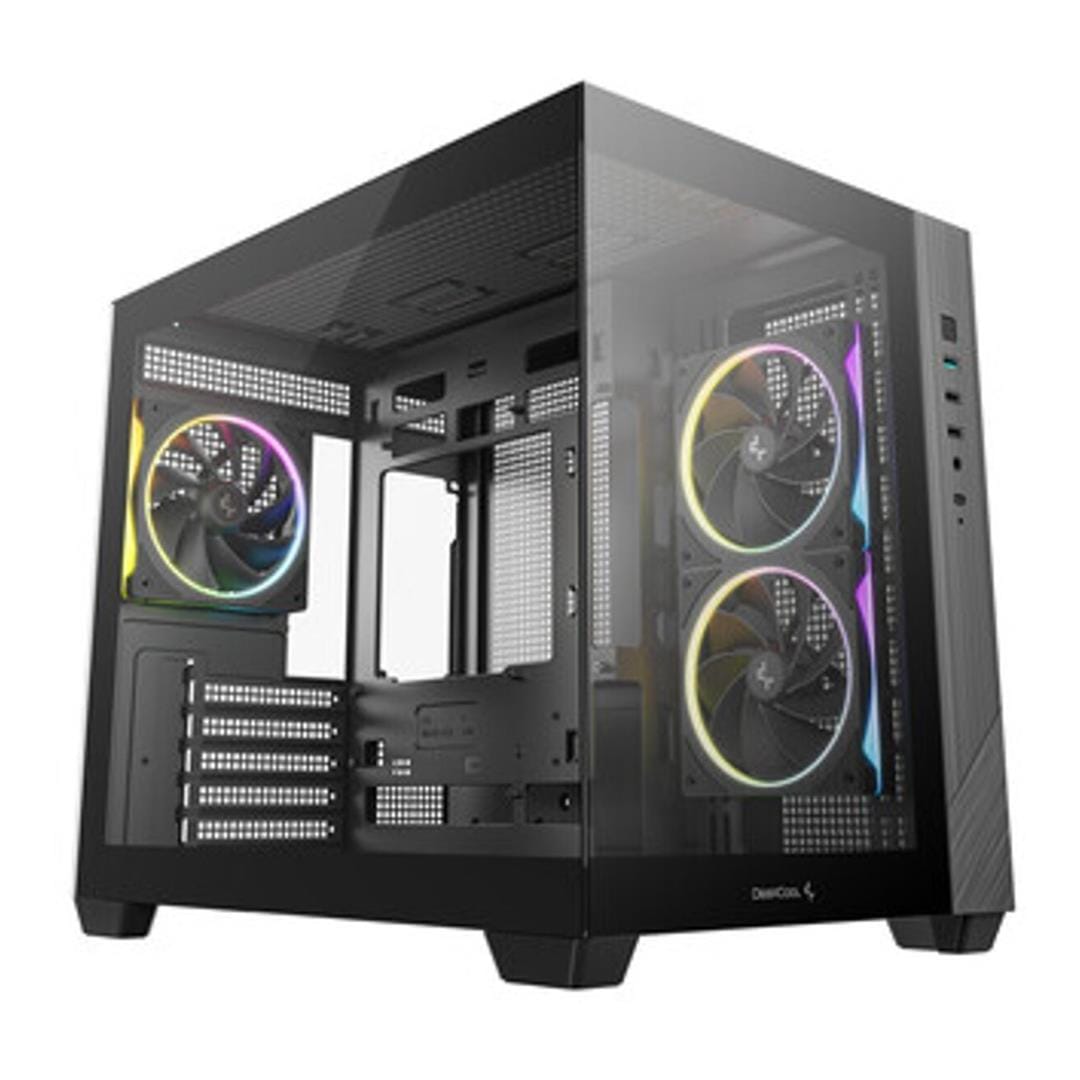

Tempered-glass front and side panels create a wide view of the motherboard, graphics card and cooling hardware. The pillarless corner helps reduce visual obstruction between the glass panels, making the enclosure suitable for showcase gaming systems and coordinated ARGB builds.

Dual-chamber Internal Layout

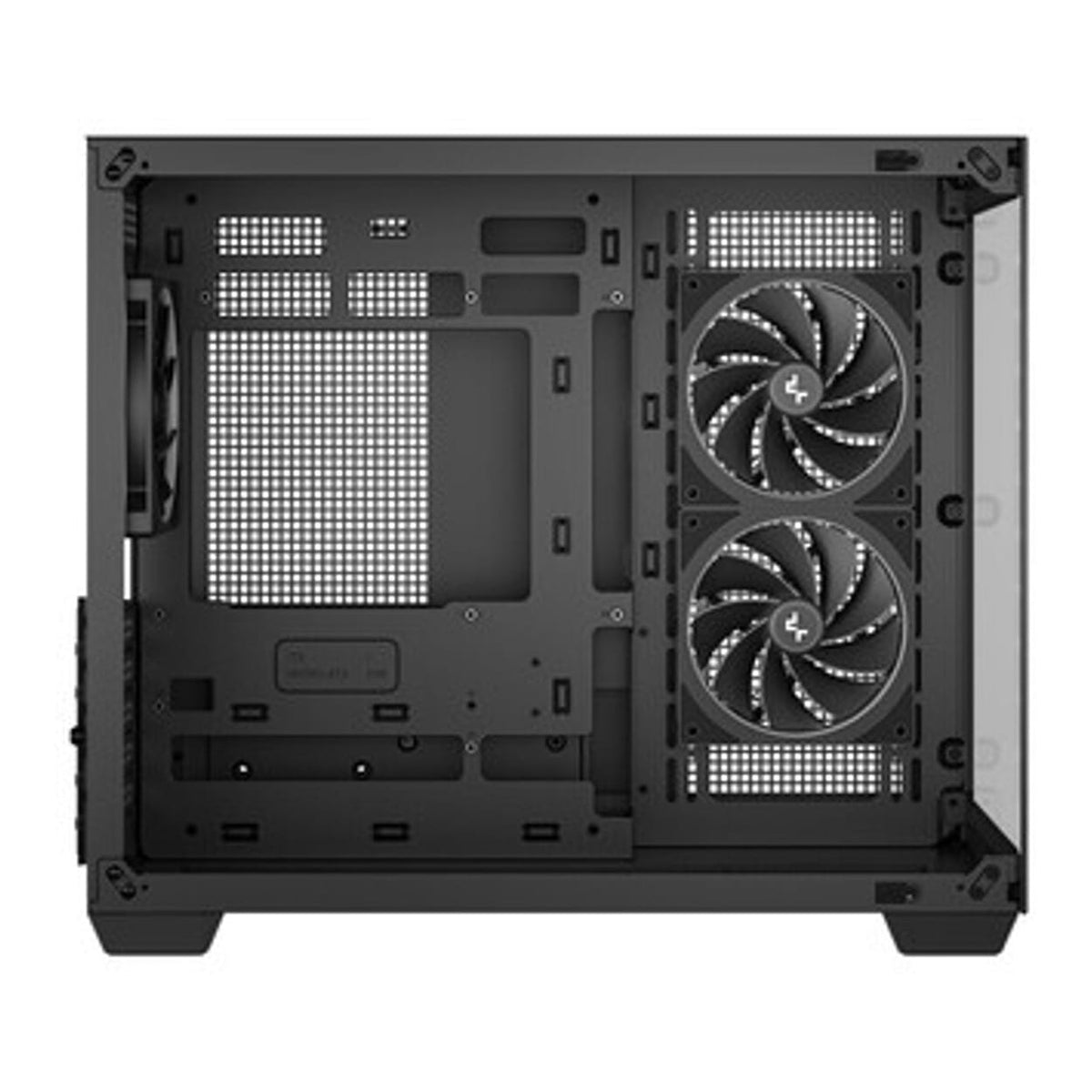

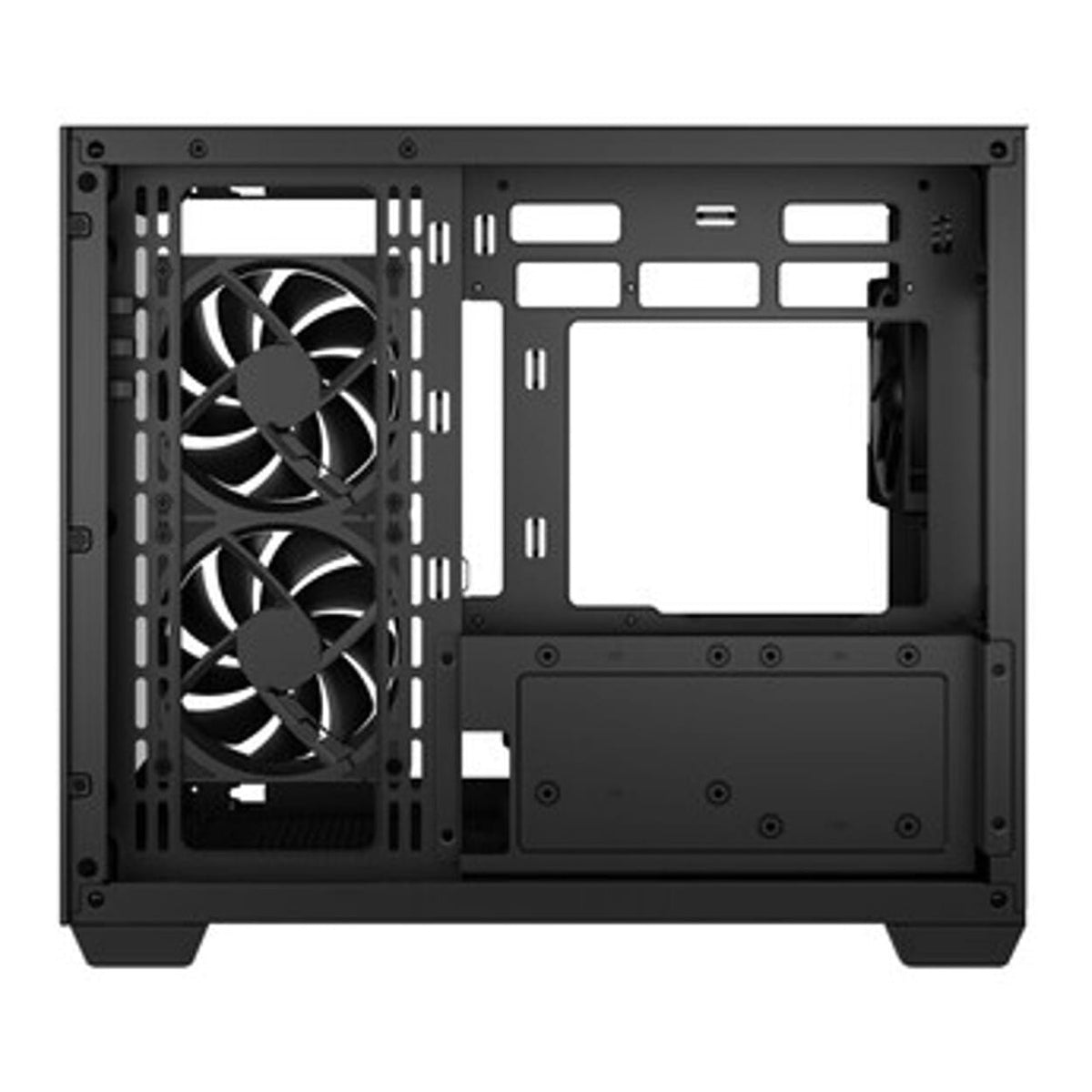

The power supply and storage hardware are positioned in a separate rear chamber, away from the motherboard and graphics-card area. This separation helps keep power and storage cables out of the main display space while providing a clearer airflow path through the primary chamber.

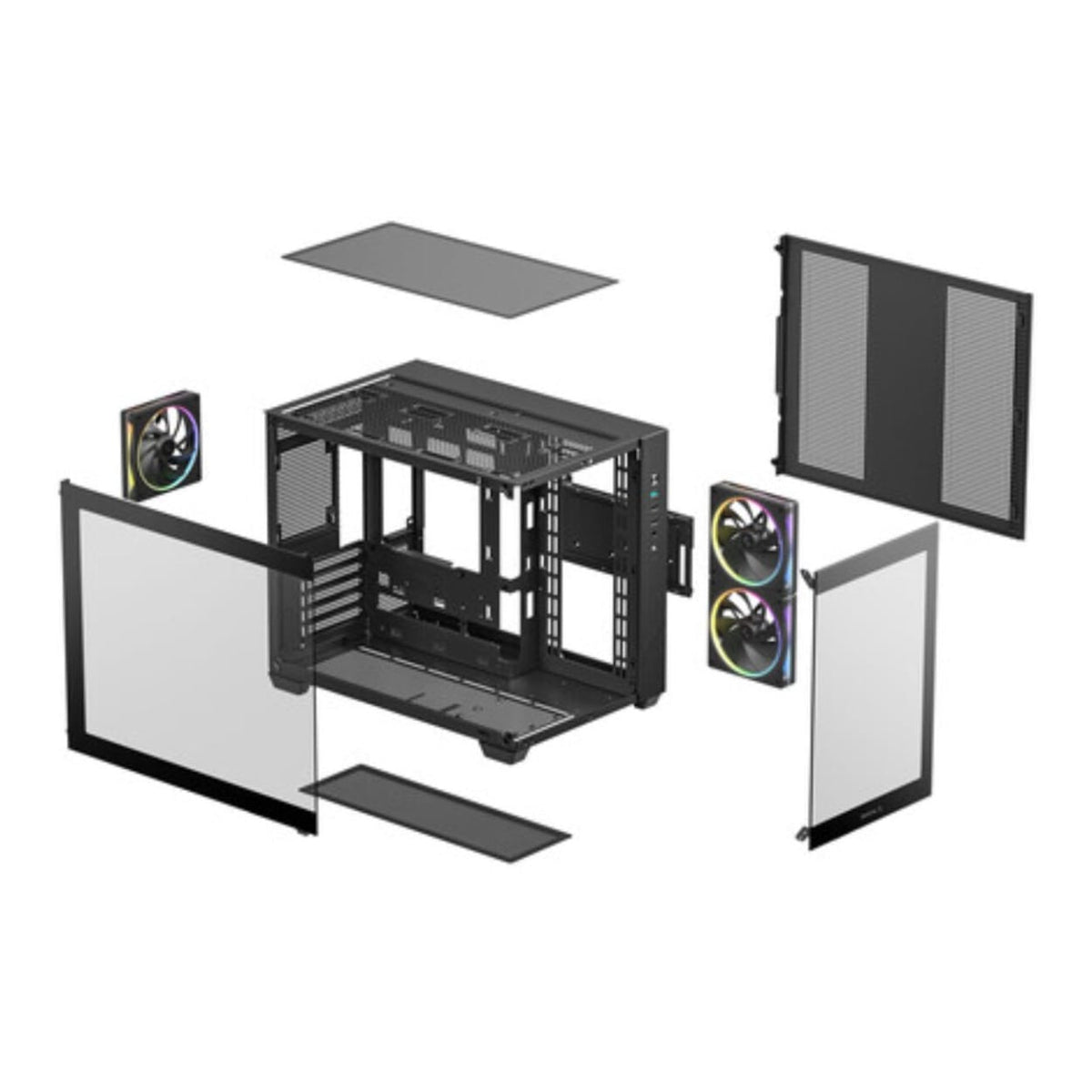

Three Pre-installed ARGB Fans

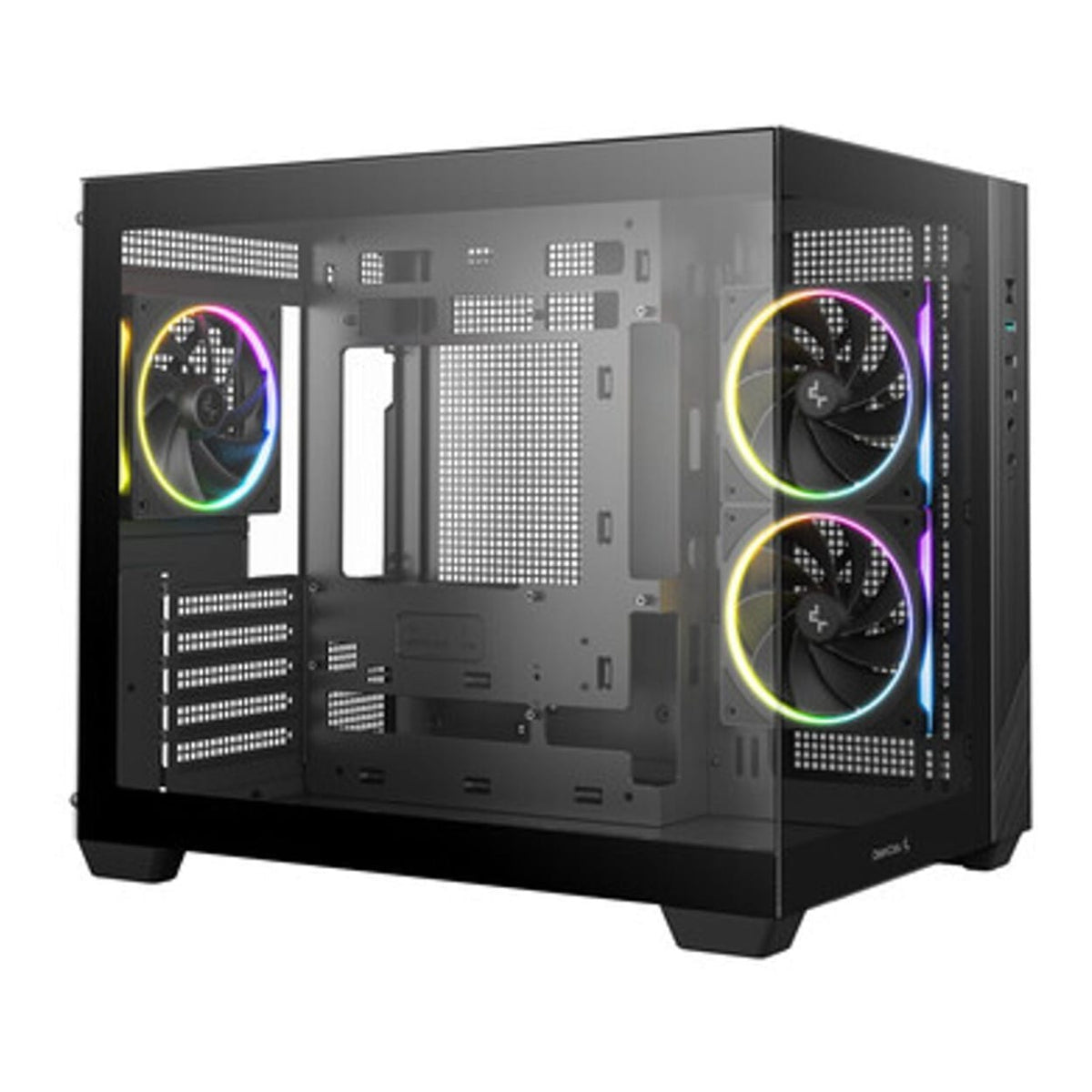

Two 120mm reverse-blade ARGB fans are installed on the side to draw air into the main chamber while keeping the illuminated side of the fans visible. A standard 120mm ARGB fan at the rear helps exhaust warm air, creating a horizontal airflow route across the motherboard and processor area.

Extensive Cooling Expansion

The enclosure supports as many as nine 120mm fans across its top, side, bottom and rear positions. Builders can install up to three 120mm or two 140mm fans at the top, two 120mm or 140mm fans on the side, three 120mm fans at the bottom and one 120mm fan at the rear.

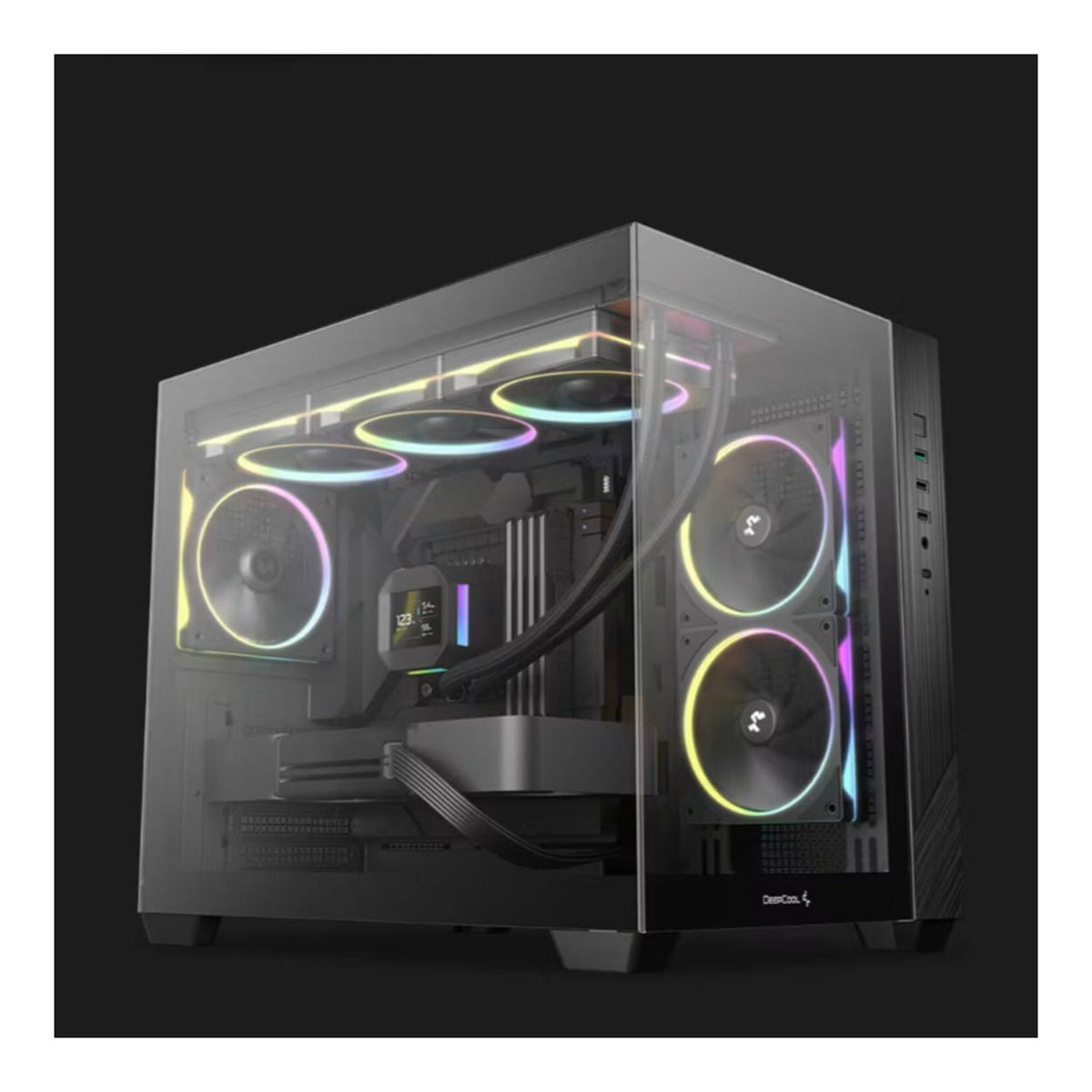

Liquid-cooling support includes radiators up to 360mm at the top or bottom, up to 280mm on the side and 120mm at the rear. Available radiator space may be affected by the motherboard, graphics card, memory, drives and other installed components.

Support for Long Graphics Cards

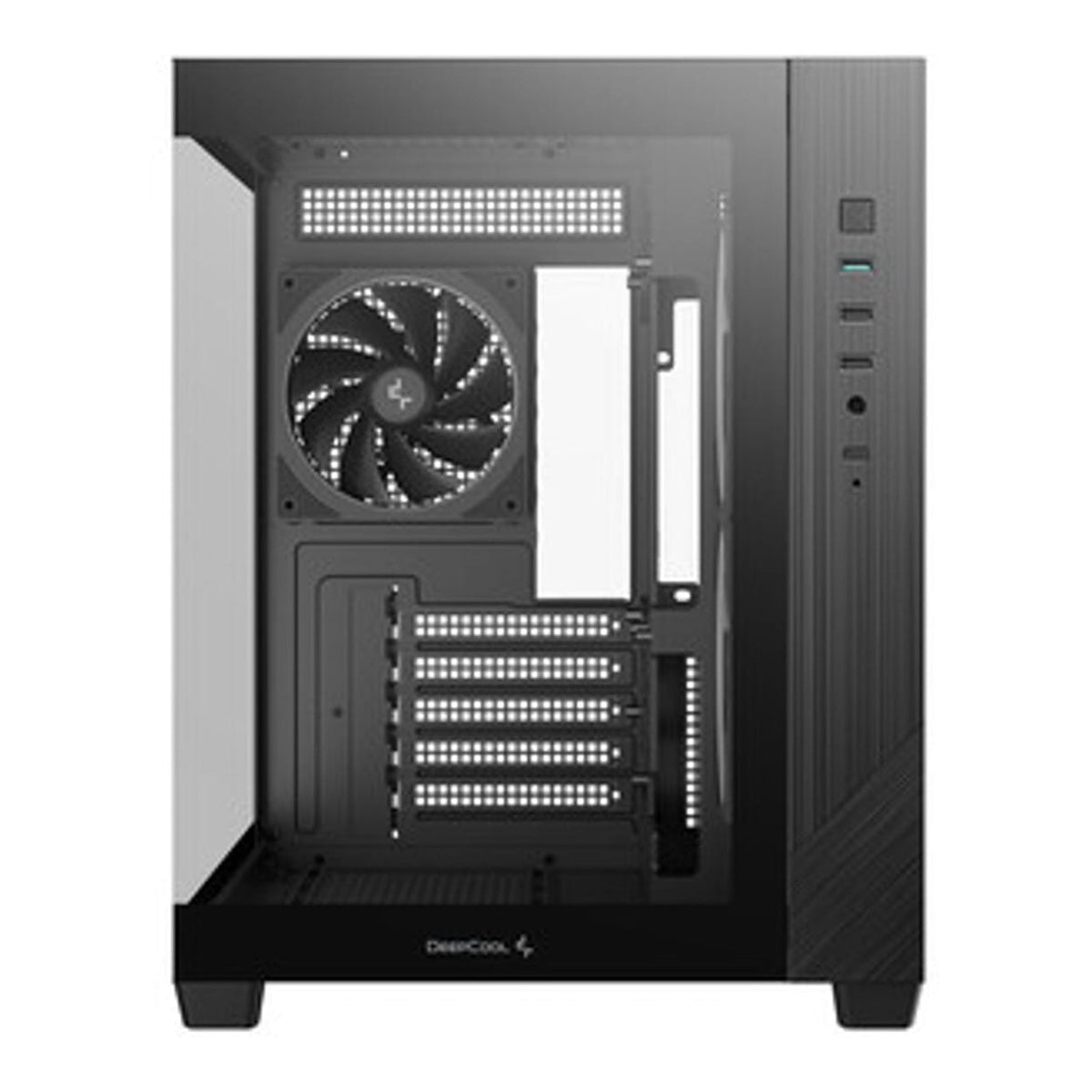

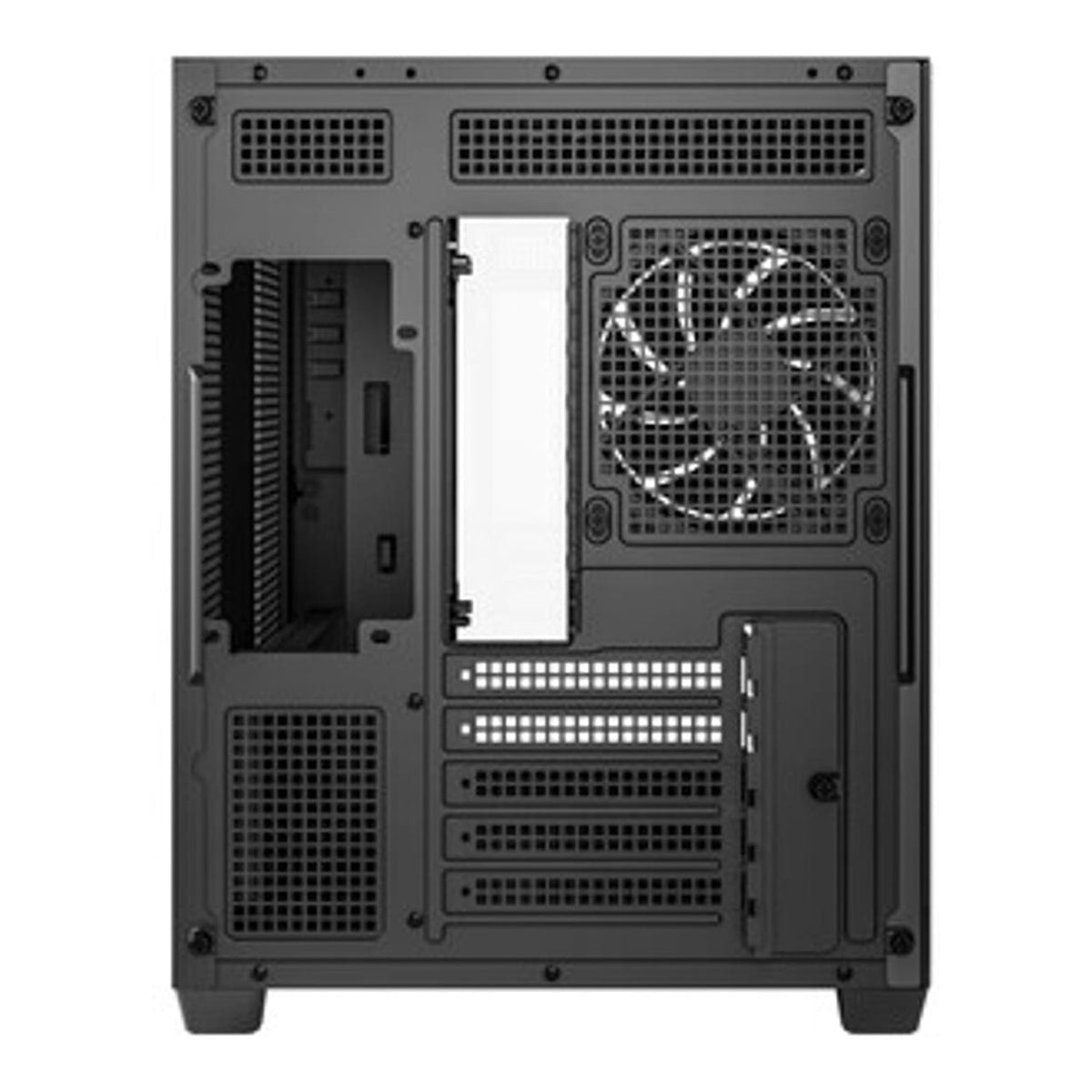

The CG330 3F accommodates graphics cards up to 410mm long and provides five horizontal expansion slots. This gives builders room for many modern multi-slot graphics cards while retaining the compact footprint associated with a Micro-ATX system.

Air-cooler and Power-supply Compatibility

CPU air coolers up to 164mm high are supported. The separate power-supply chamber accommodates ATX PS2 units up to 200mm long, as well as SFX and SFX-L power supplies, providing flexibility when selecting components for the build.

Standard and Rear-connector Motherboards

The chassis accepts Mini-ITX and Micro-ATX motherboards, including compatible rear-connector Micro-ATX designs. Rear-facing motherboard connections can route power and data cables directly into the secondary chamber, reducing the number of visible cables in the main hardware area.

Flexible Storage Capacity

Storage mounting positions support up to two 3.5-inch hard drives and four 2.5-inch solid-state drives. The final number of simultaneously installed drives may depend on the selected cooling and cable-management configuration.

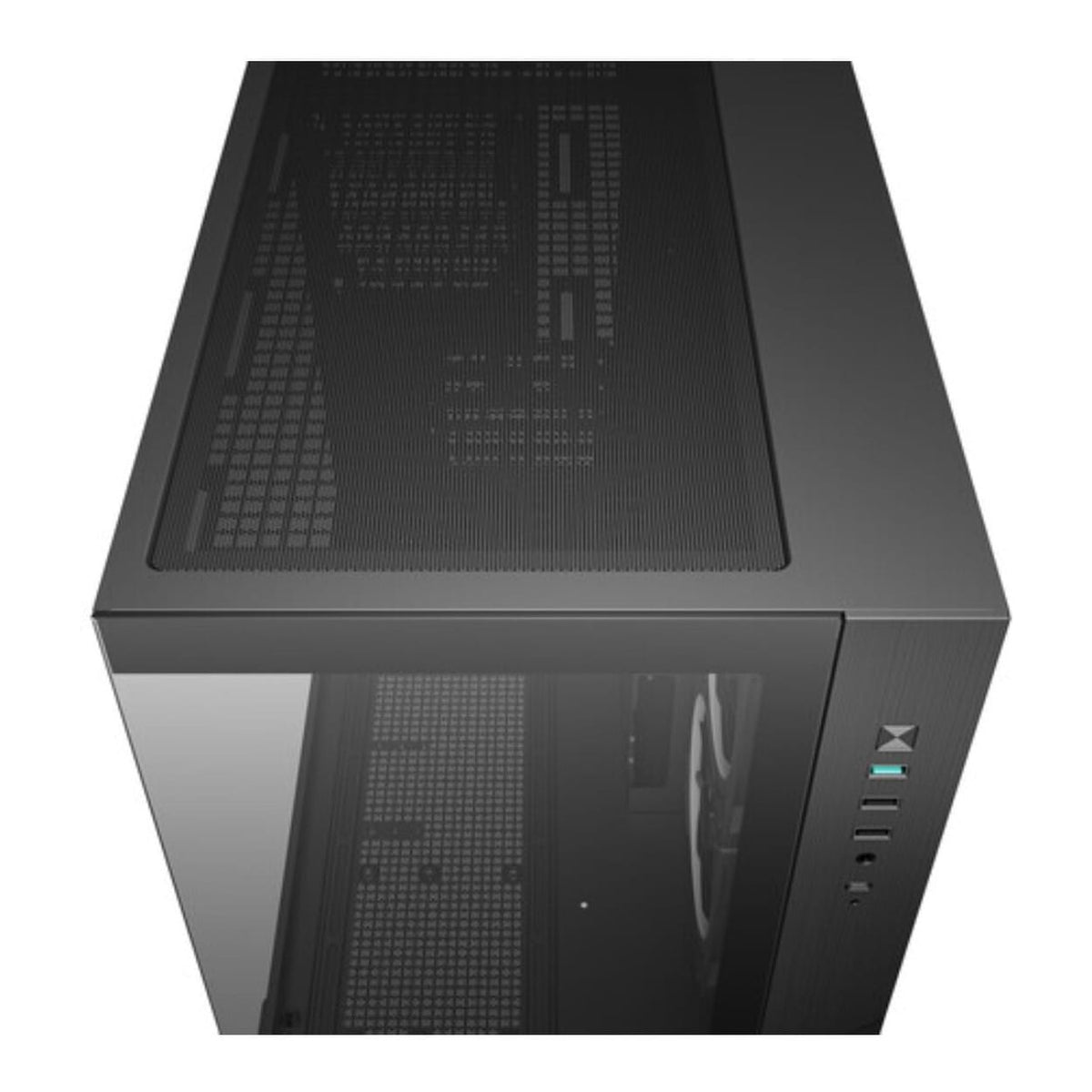

Everyday Front Connectivity

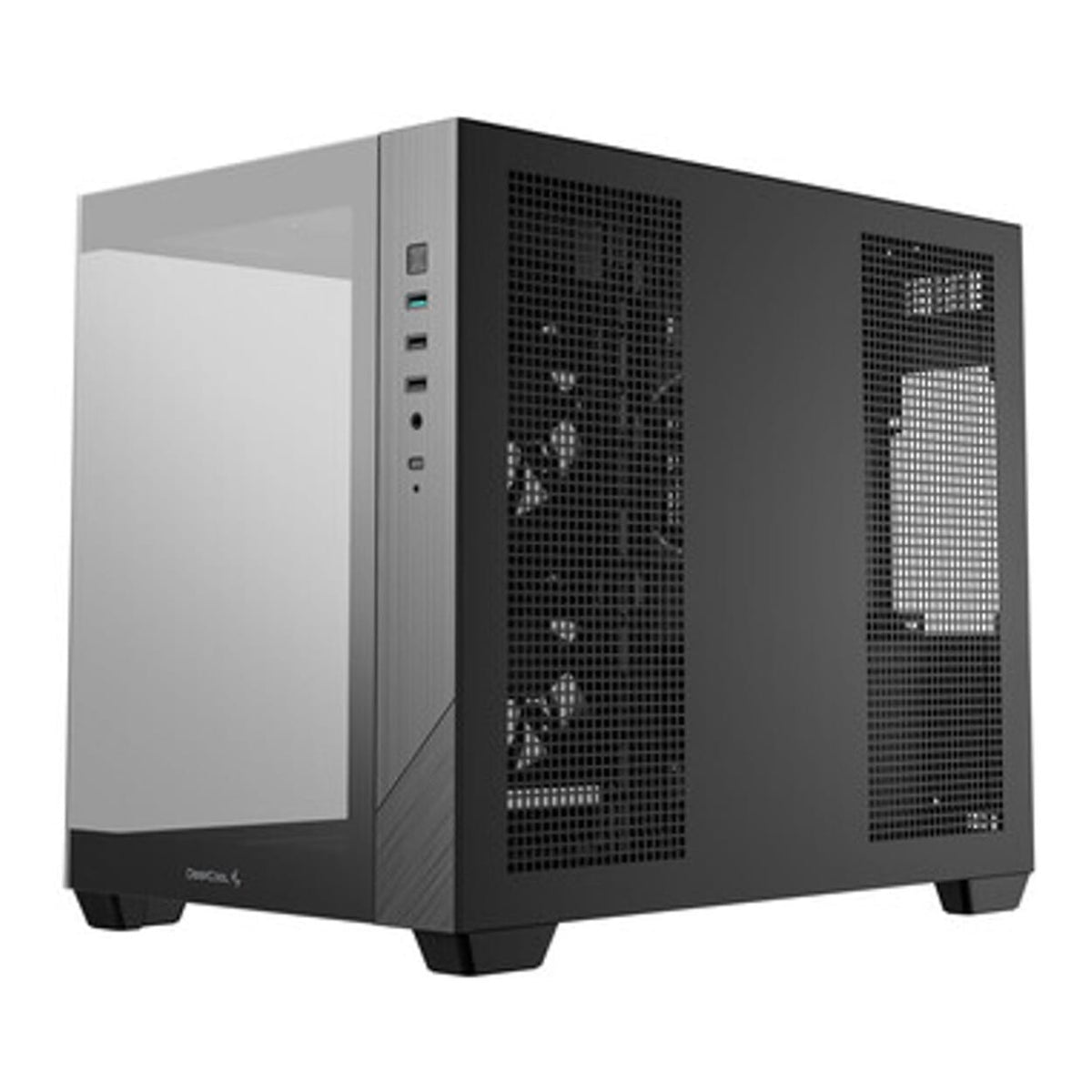

The accessible I/O panel provides one USB 3.0 Type-A port, two USB 2.0 Type-A ports and a combined audio connection. This provides convenient access for external storage, input devices, headsets and other frequently connected peripherals.

Key Features:

• Pillarless panoramic tempered-glass design provides an expansive view of installed hardware.
• Dual-chamber layout separates the power supply and storage from the main component area.
• Includes two side-mounted reverse-blade ARGB fans and one rear ARGB fan.
• Supports Mini-ITX, Micro-ATX and compatible rear-connector Micro-ATX motherboards.
• Accommodates graphics cards up to 410mm and CPU coolers up to 164mm high.
• Supports up to nine 120mm fans and 360mm top or bottom radiators.
• Provides five expansion slots and flexible 2.5-inch and 3.5-inch storage mounting.

Technical Specifications:

Build a clean panoramic Micro-ATX gaming system with flexible cooling, broad hardware support and three included ARGB fans, and add the DeepCool CG330 3F to your cart today.
