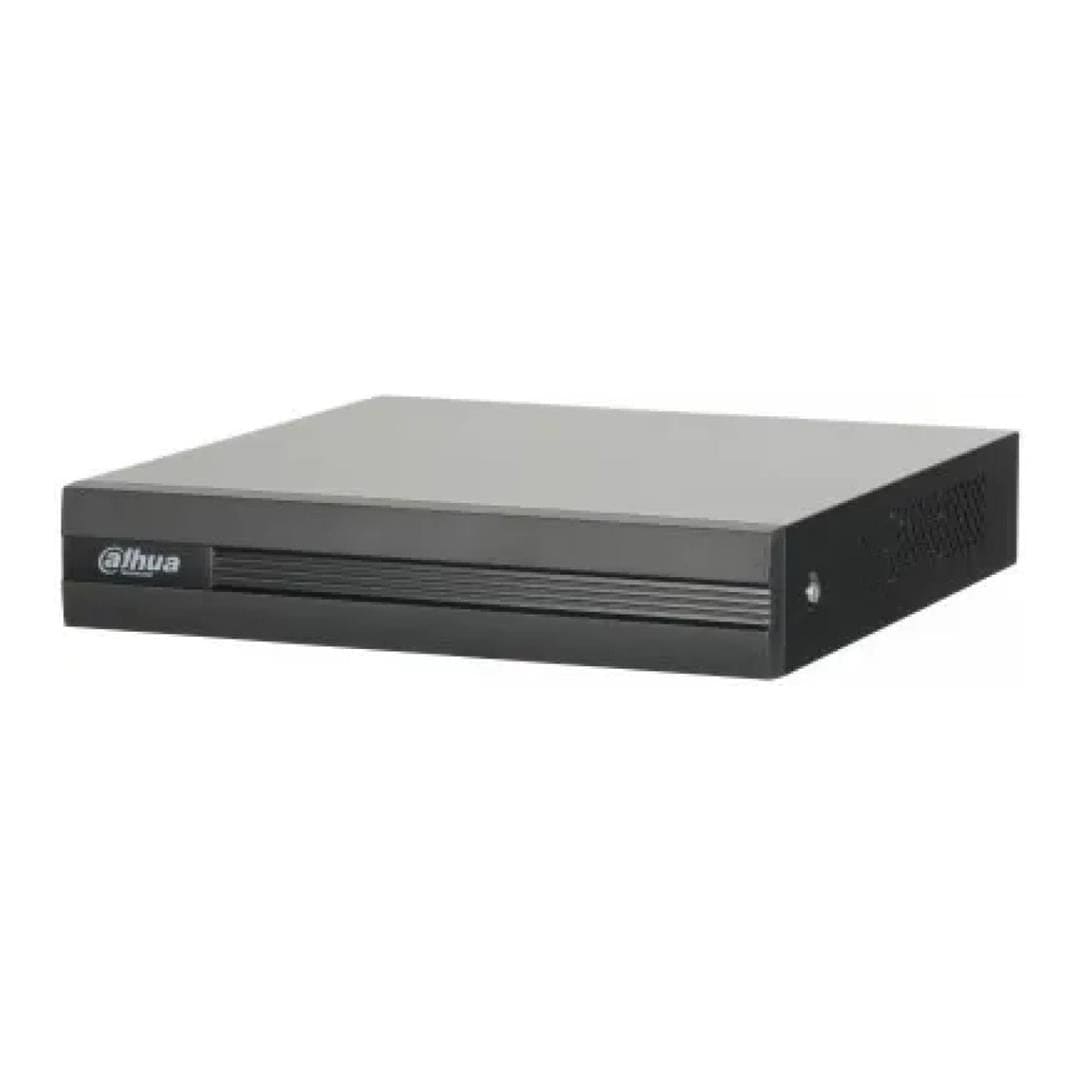

Dahua XVR1B08H-I(V2.0) WizSense 8-channel Penta-brid Cooper 1U 1 HDD DVR

Dahua XVR1B08H-I(V2.0) WizSense 8-channel Penta-brid Cooper 1U 1 HDD DVR

8-channel Penta-brid 5MP Value/1080P Cooper 1U 1HDD WizSense Digital Video Recorder

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, Cooper-I Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart Dual Light

With Smart Dual Light technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual light technology can meet the requirements of a wide variety of scenes.

One-click Arming/Disarming

With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.

Customizable Alarm Audio

Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.

AI Coding

Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.

Audio over Coax

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

SMD Plus: by Recorder

8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Analog Camera: Input 8 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect

Camera Input

• CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
• TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

• Up to 12 channels of IPC access
• 4 IP channels by default + 8 channels (analog channels are converted to IP channels)



Incoming bandwidth: 64 Mbps, recording bandwidth:

64 Mbps and outgoing bandwidth: 64 Mbps

*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capacity

Main stream:

• 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)
• 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
• Sub stream: D1/CIF@(1 fps–15 fps)

Dual-stream: Yes

Video Bit Rate: 32 kbps–6144 kbps

Audio Sampling: 8 kHz, 16 bit

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access: iOS; Android

Interoperability: ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK

Audio Input

• 1-channel RCA
• 8-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way: Talk Yes (share the same audio input with the first channel)

Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

USB: 2 (2 rear USB 2.0 ports)

HDMI: 1

VGA: 1

Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
