Dahua XVR1B08-I(1T) 8-channel WizSense Penta-brid 1U 1TB SSD DVR

Dahua XVR1B08-I(1T) 8-Channel WizSense Penta-brid DVR with 1 TB SSD – DH-XVR1B08-I(V2.0)-SSD1T

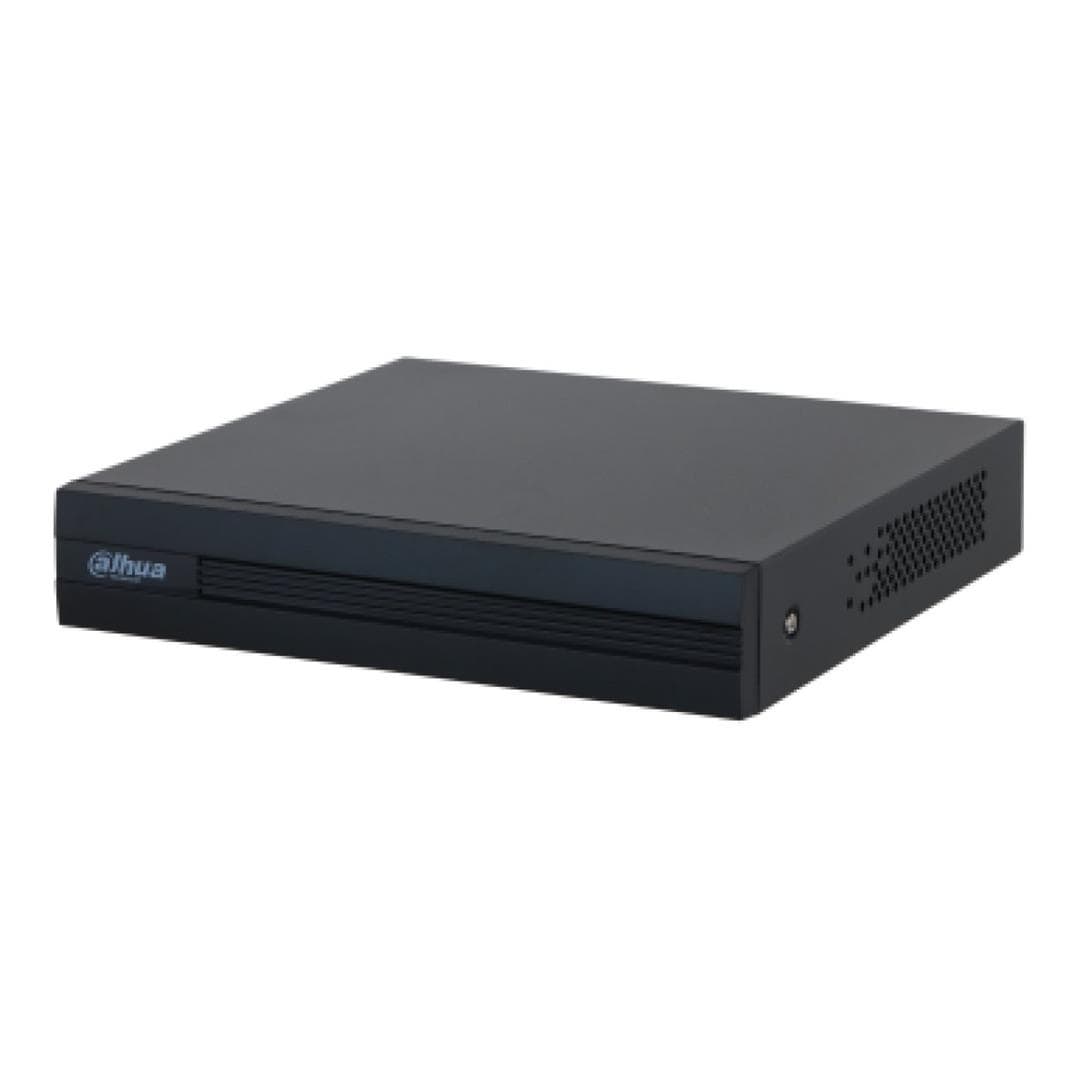

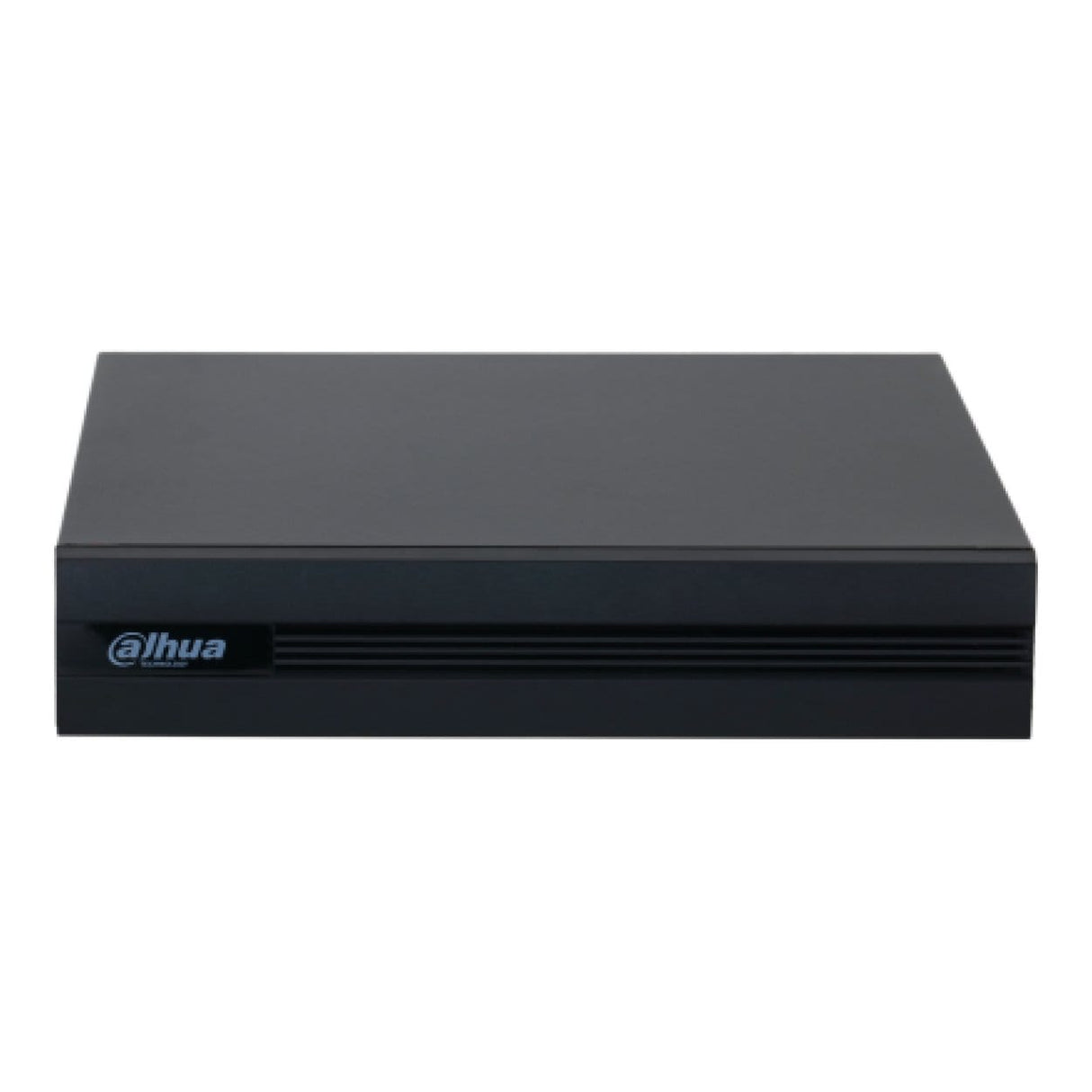

The Dahua XVR1B08-I(1T) is an eight-channel WizSense digital video recorder supplied with a preinstalled 1 TB solid-state drive. Its penta-brid architecture supports HDCVI, AHD, TVI, CVBS and IP cameras, providing a flexible recording platform for new installations or upgrades that need to retain existing coaxial cameras and cabling.

Preinstalled 1 TB SSD

The internal 1 TB SSD provides recording storage without requiring a separate drive installation. Dahua estimates approximately 22 days of video retention under its default settings, although actual storage time will depend on the number of cameras, resolution, frame rate, bitrate, compression format, scene activity and recording schedule.

Eight Analogue Channels Plus IP Expansion

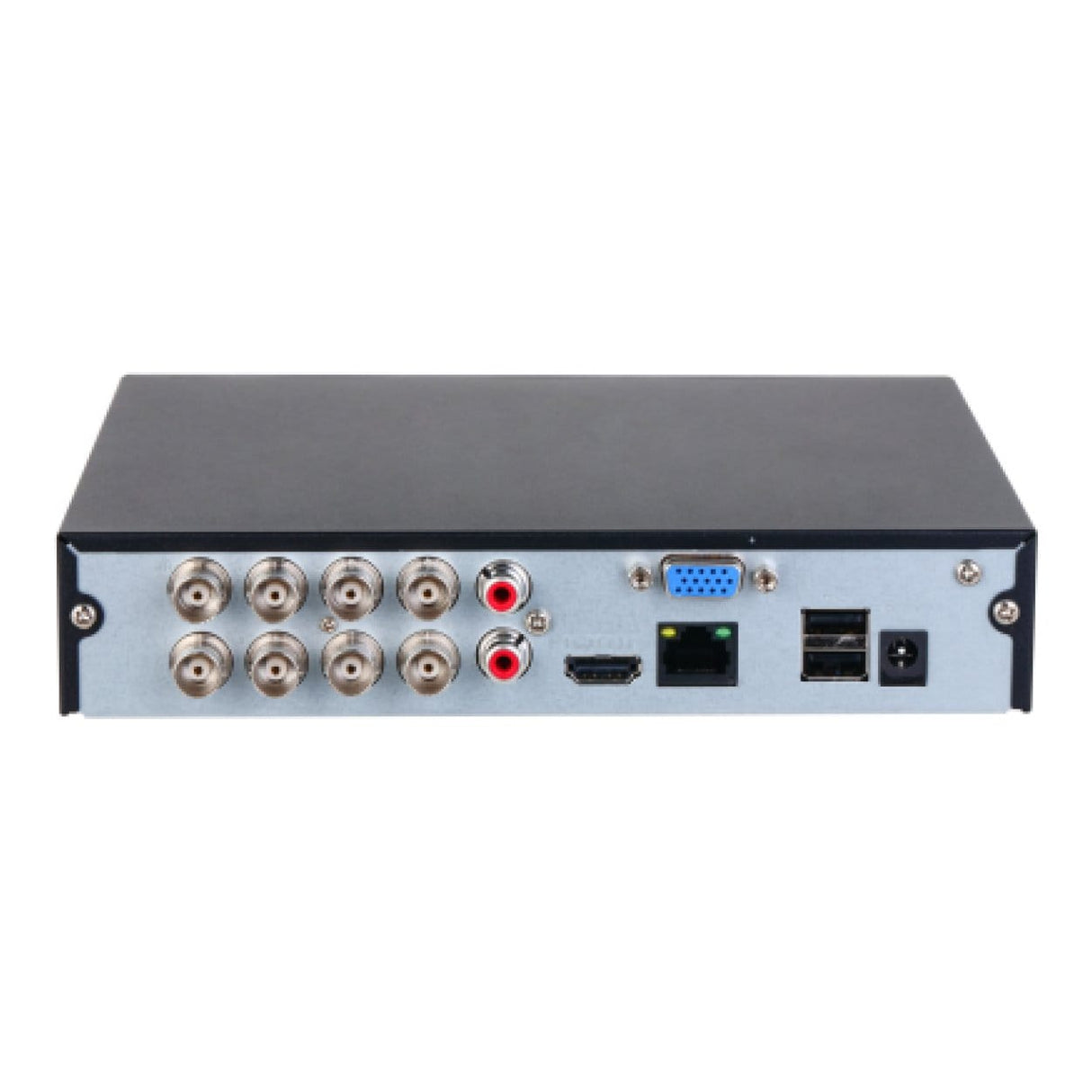

Eight BNC inputs automatically detect compatible HDCVI, AHD, TVI and CVBS camera signals. Two IP cameras can be added alongside the eight analogue channels in the standard configuration, while the analogue inputs can be converted to provide a maximum configuration of ten IP cameras.

WizSense SMD Plus

Recorder-side SMD Plus can apply secondary filtering to four analogue video channels. It categorises relevant motion events involving people and motor vehicles, helping reduce unnecessary alerts caused by rain, moving leaves and changes in lighting conditions.

Eight-channel AI Coding

AI Coding is available across all eight analogue channels and prioritises useful image detail around people and vehicles. Together with H.265+, H.265, H.264+ and H.264 compression, it provides several options for balancing image detail, storage use and network bandwidth.

Local and Remote Monitoring

HDMI and VGA outputs support local displays at resolutions up to 1920 × 1080. The recorder also supports network and mobile access through compatible web browsers and supported iOS or Android applications, subject to the installation’s network and security configuration.

Key Features

• Eight auto-detect BNC inputs support HDCVI, AHD, TVI and CVBS cameras.
• Two IP camera channels are available alongside the eight analogue channels by default.
• Supports up to ten IP cameras when analogue channels are converted to IP channels.
• Compatible IP cameras are supported at resolutions up to 6 MP.
• Provides 40 Mbps incoming, recording and outgoing IP bandwidth.
• Preinstalled 1 TB SSD avoids the need to purchase and fit a separate recording drive.
• Four-channel SMD Plus filters analogue-camera events for people and motor vehicles.
• Eight-channel AI Coding helps manage storage and bandwidth while retaining target detail.
• H.265+, H.265, H.264+ and H.264 video-compression support.
• HDMI and VGA outputs provide flexible local-monitor connectivity.
• Audio over coax is supported across eight compatible HDCVI camera channels.
• Footage can be backed up to a USB storage device or across the network.

Camera Input Configuration

Technical Specifications

Expand a small analogue or hybrid surveillance system with eight camera inputs, WizSense event filtering and preinstalled 1 TB storage, and add the Dahua XVR1B08-I(1T) to your cart today.
