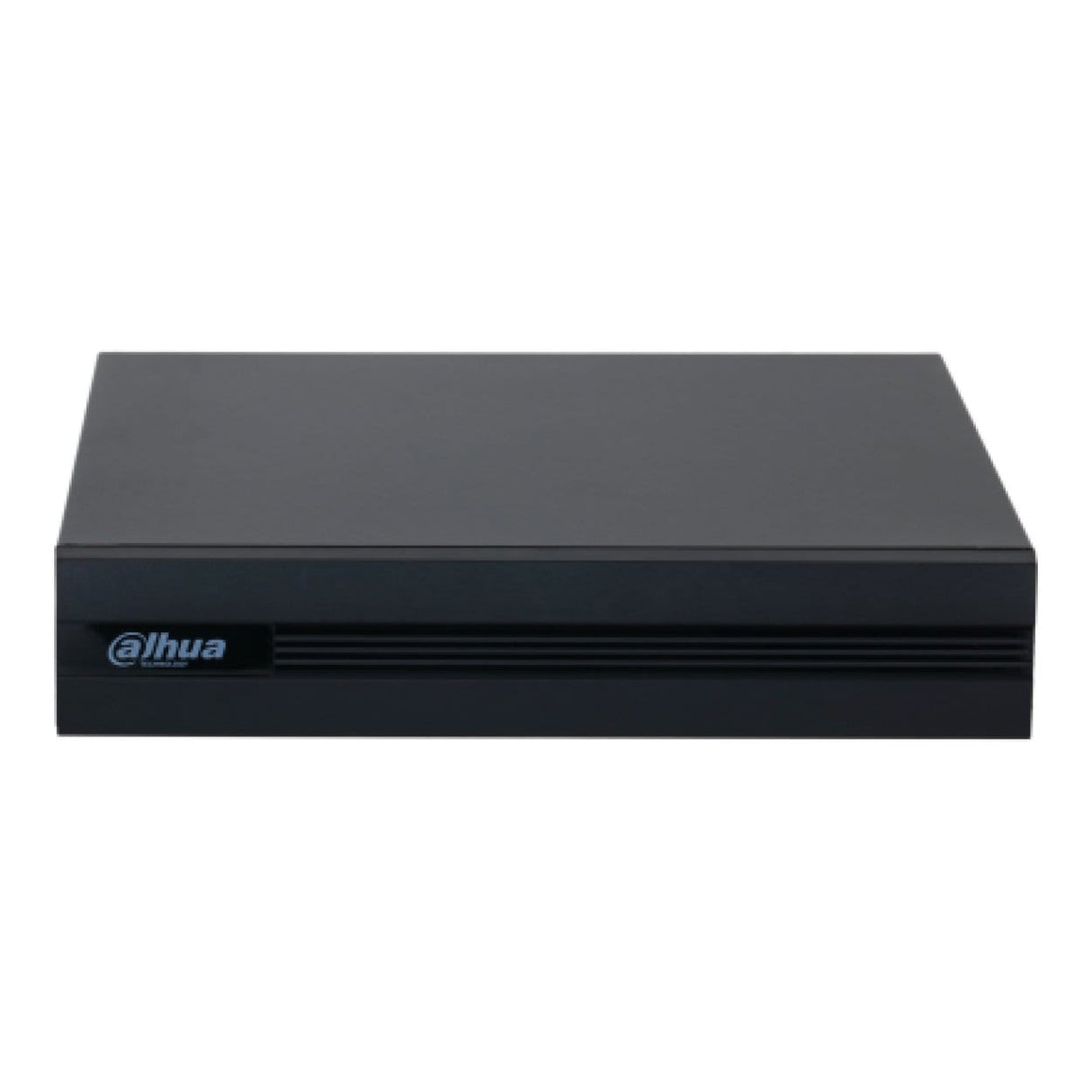

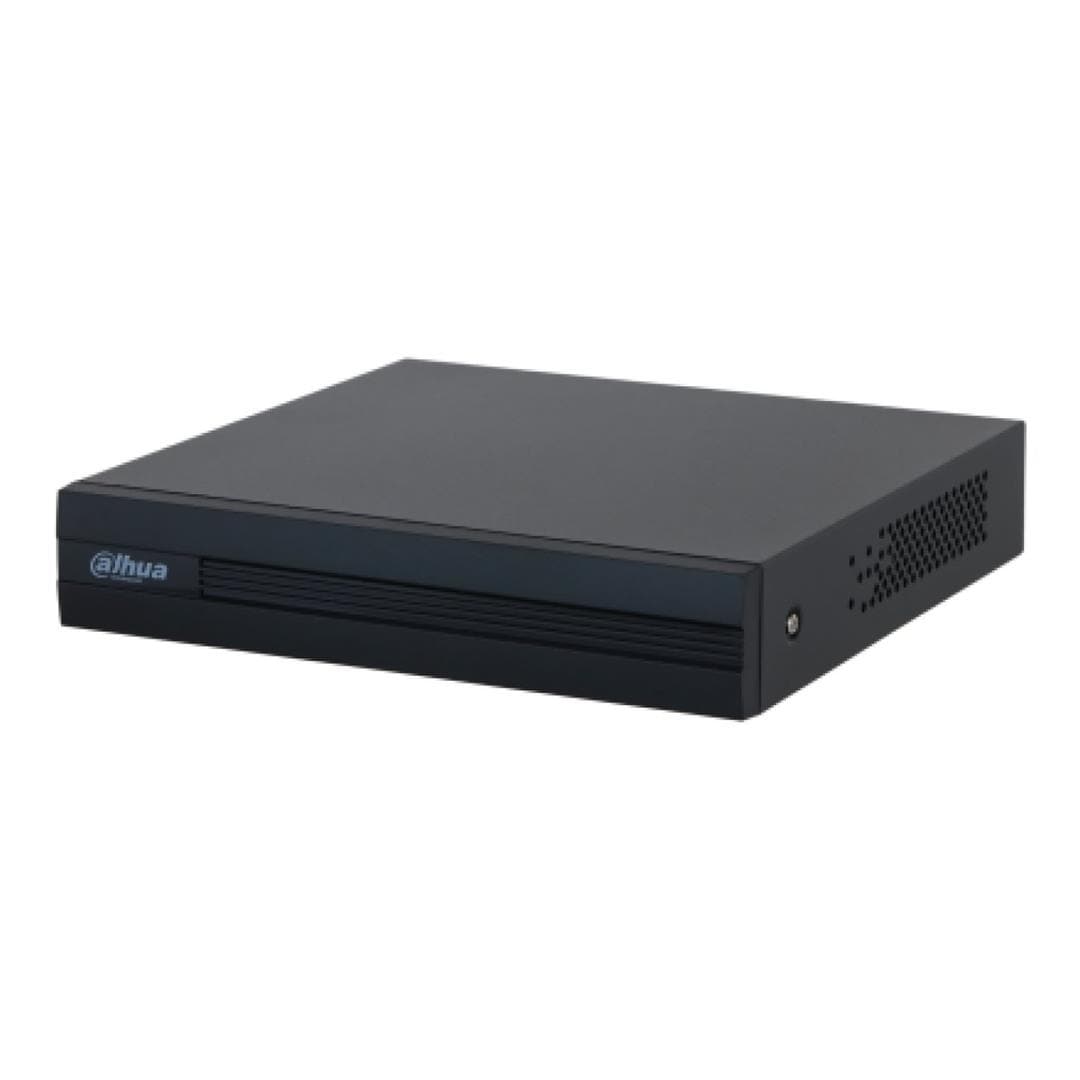

Dahua XVR1B04-I(512G) 4-channel WizSense Penta-brid 1U 512GB SSD DVR

Dahua XVR1B04-I(512G) 4-Channel WizSense Penta-brid DVR with 512 GB SSD – DH-XVR1B04-I(V2.0)-SSD

The Dahua XVR1B04-I(512G) is a compact four-channel WizSense digital video recorder supplied with a preinstalled 512 GB solid-state drive. Its penta-brid design supports HDCVI, AHD, TVI, CVBS and IP cameras, making it suitable for new installations as well as upgrades that need to retain existing coaxial cabling.

512 GB SSD Preinstalled

The internal 512 GB SSD is ready for recording without requiring a separate drive installation. Dahua estimates approximately 22 days of storage under its default recording settings, although actual retention will depend on the number of cameras, resolution, frame rate, bitrate, compression format, activity level and recording schedule.

Flexible Penta-brid Camera Support

Four BNC inputs automatically detect compatible HDCVI, AHD, TVI and CVBS camera signals. The recorder also provides one IP camera channel by default, allowing a standard configuration of four analogue cameras and one IP camera. Analogue channels can be converted into IP channels when an all-IP or mixed installation requires a different channel arrangement.

WizSense SMD Plus

Four-channel recorder-side SMD Plus analyses motion events from the analogue channels and applies secondary filtering for people and motor vehicles. This helps reduce notifications caused by less relevant movement such as rain, leaves or changes in lighting conditions.

Storage-Efficient AI Coding

AI Coding prioritises image detail around people and vehicles while reducing unnecessary data in other areas of the scene. The recorder also supports H.265+, H.265, H.264+ and H.264 compression, allowing the recording profile to be selected according to storage, compatibility and image-quality requirements.

Local and Remote Monitoring

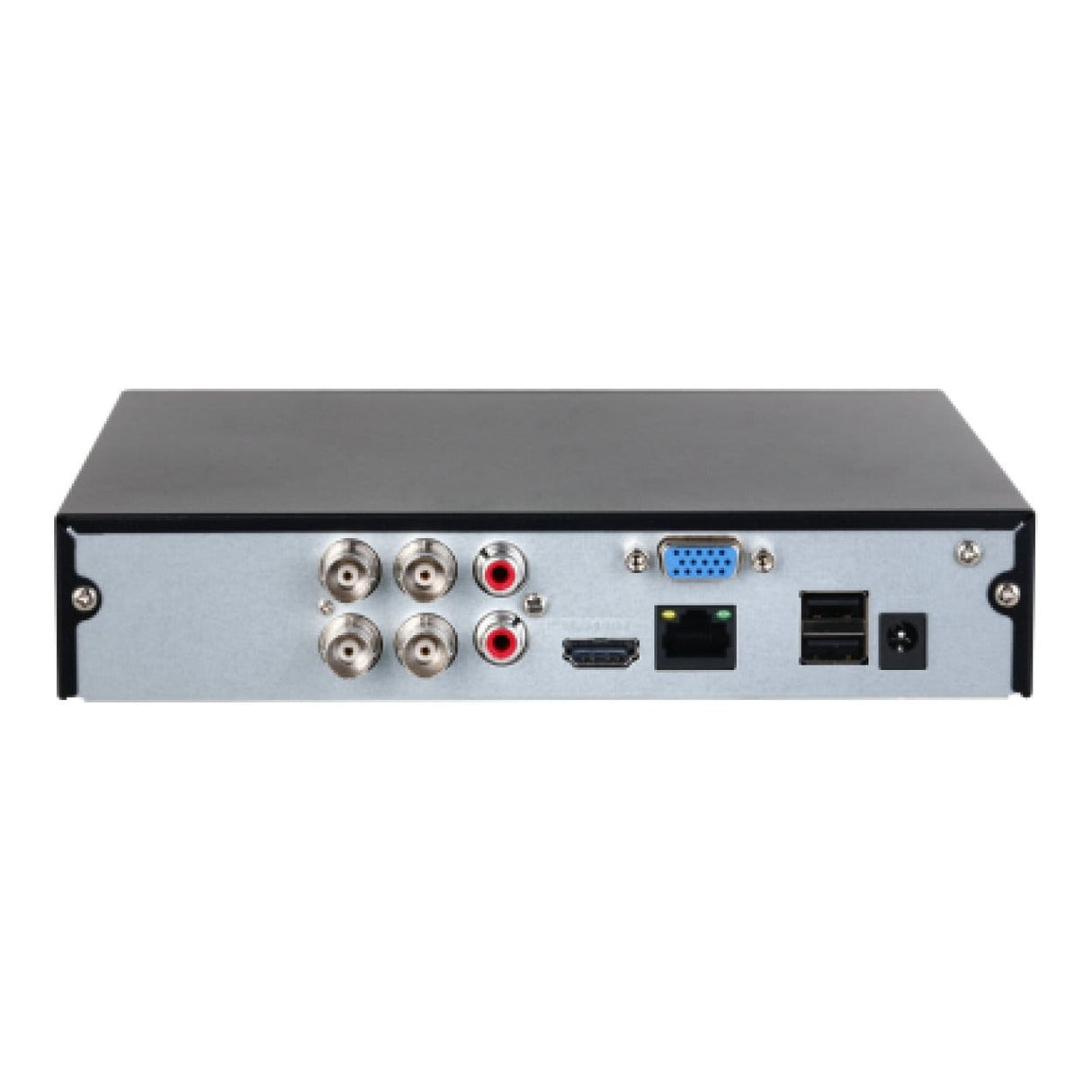

HDMI and VGA outputs support local monitor resolutions up to 1920 × 1080. The recorder can also be accessed over a network through a compatible web browser or supported iOS and Android application, with P2P connectivity available for suitable remote-viewing configurations.

Key Features

• Four auto-detect BNC inputs support HDCVI, AHD, TVI and CVBS cameras.
• One IP camera channel is available by default alongside the four analogue channels.
• Supports up to five IP camera channels when analogue inputs are converted to IP channels.
• Compatible IP cameras are supported at resolutions up to 2 MP.
• Preinstalled 512 GB SSD avoids the need to purchase and install a separate recording drive.
• Four-channel SMD Plus filters analogue-camera events for people and motor vehicles.
• Four-channel AI Coding helps manage storage and network bandwidth while retaining target detail.
• H.265+, H.265, H.264+ and H.264 video-compression options.
• HDMI and VGA outputs provide flexible local-monitor connectivity.
• Audio over coax is supported with compatible HDCVI cameras.
• USB and network backup options help simplify footage export.

Camera Input Configuration

Technical Specifications:

Upgrade a compact analogue or hybrid surveillance system with WizSense event filtering and preinstalled solid-state storage, and add the Dahua XVR1B04-I(512G) to your cart today.
