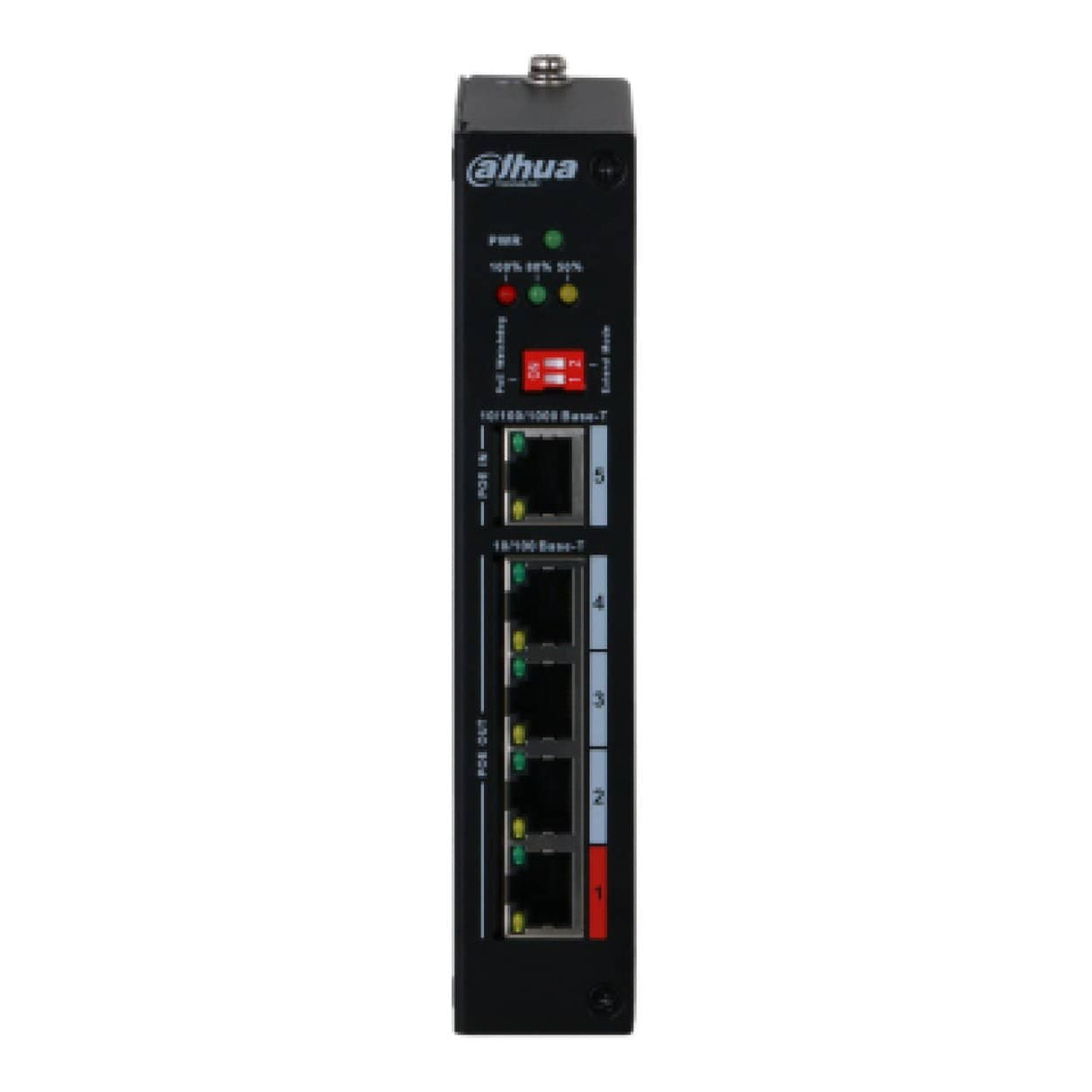

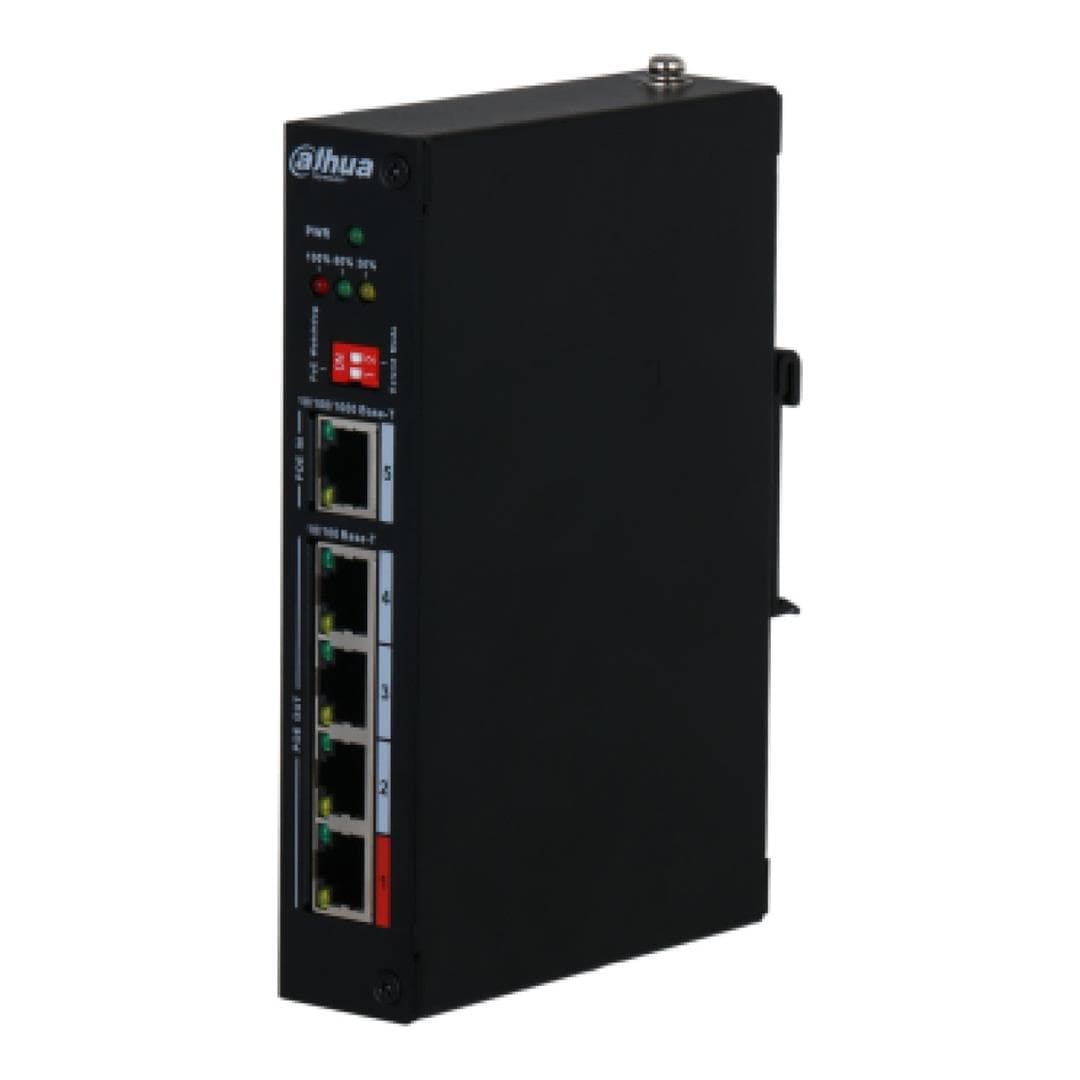

Dahua PFT1500 5-port PoE Extender Network Transmitter

Dahua PFT1500 5-Port PoE Extender Network Transmitter

The Dahua PFT1500 is a hardened, unmanaged Power over Ethernet extender designed to carry network data and redistribute PoE power to as many as four compatible devices. With one Gigabit PoE input, four 10/100 Mbps PoE outputs and selectable long-distance transmission, it provides a practical way to extend surveillance networks where installing local mains power or additional network switches would be inconvenient.

One PoE Input and Four PoE Outputs

The PFT1500 receives network data and operating power through its 10/100/1000 Mbps PoE input. It then provides four 10/100 Mbps PoE outputs for compatible IP cameras and other powered network devices, allowing multiple endpoints to share a single incoming cable.

High-Power Red Port

Output port 1 supports IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt and Dahua Hi-PoE, with a specified maximum output of 90 W. Ports 2 to 4 support up to 30 W each, while the total available PoE output remains limited to 90 W and depends on the upstream power source and cable losses.

Long-Distance PoE Transmission

A DIP switch enables long-distance mode for cable runs of up to 250 m on a supported output connection. When this mode is enabled, the applicable port operates at 10 Mbps. Dahua describes a maximum combined transmission path of up to 350 m when the extender is used in an appropriate system configuration.

Automatic PoE Watchdog

The selectable PoE Watchdog monitors connected terminal devices. If a supported device stops responding, the extender can restart power to the affected port to help restore the connection and reduce the need for manual intervention.

Hardened, Fanless Construction

A full-metal, fanless enclosure assists with passive heat dissipation and quiet operation. The PFT1500 is specified for temperatures from –30°C to +65°C and includes electrostatic and lightning protection for suitably installed surveillance and network systems.

Key Features

• One 10/100/1000 Mbps PoE input carries network data and power to the extender.
• Four 10/100 Mbps PoE outputs connect compatible powered network devices.
• Red high-power port supports IEEE 802.3bt and Dahua Hi-PoE with up to 90 W output.
• Ports 2 to 4 support up to 30 W each, subject to the total available PoE budget.
• Long-distance mode supports transmission of up to 250 m at a reduced 10 Mbps bandwidth.
• PoE Watchdog can restart an unresponsive connected device automatically.
• Unmanaged Layer 2 operation requires no software-based network configuration.
• Fanless metal enclosure supports passive cooling and quiet operation.

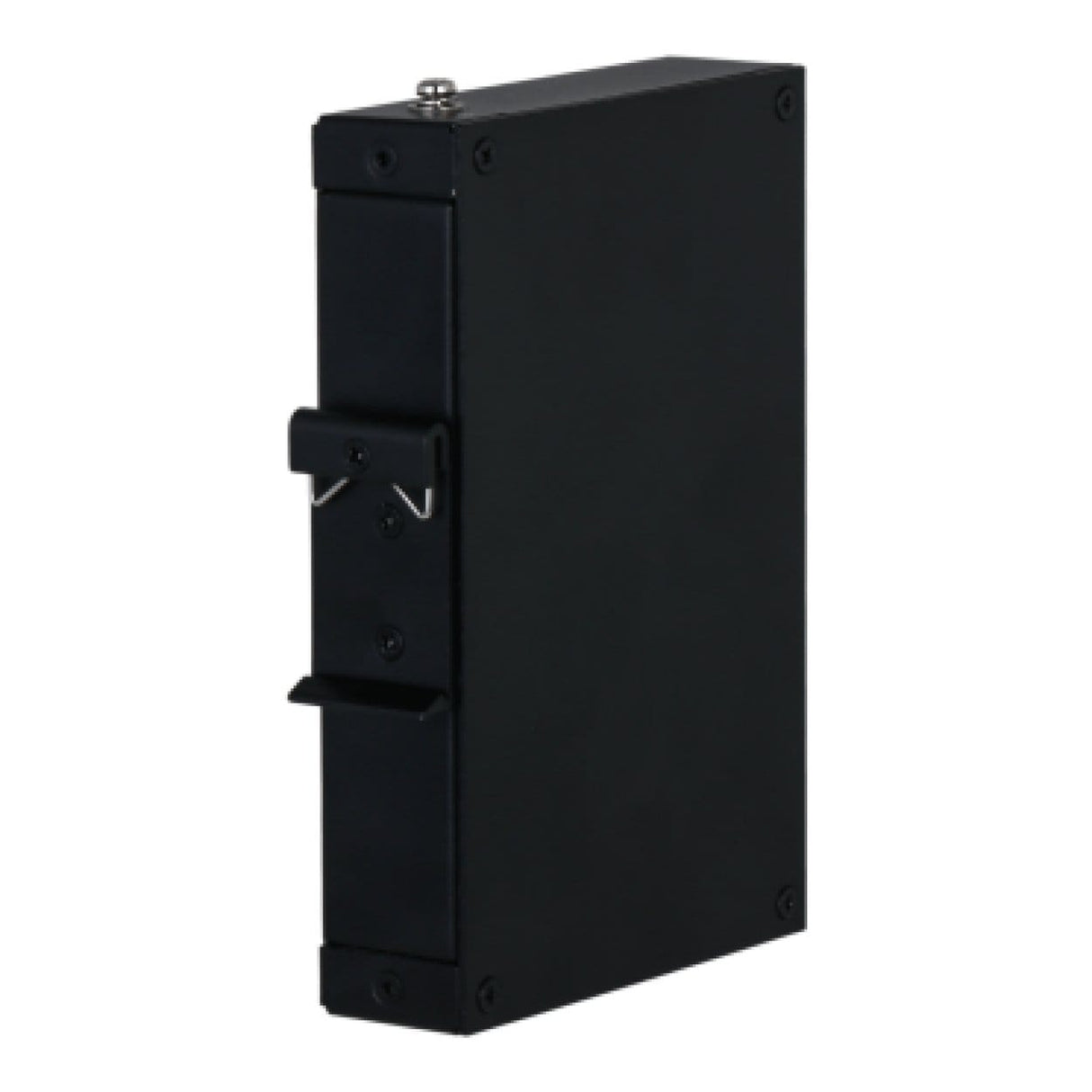

• Suitable for desktop or DIN-rail mounting.

Port and PoE Configuration

Technical Specifications:

Extend network data and PoE power to multiple surveillance devices with the hardened Dahua PFT1500, and add it to your cart today.
