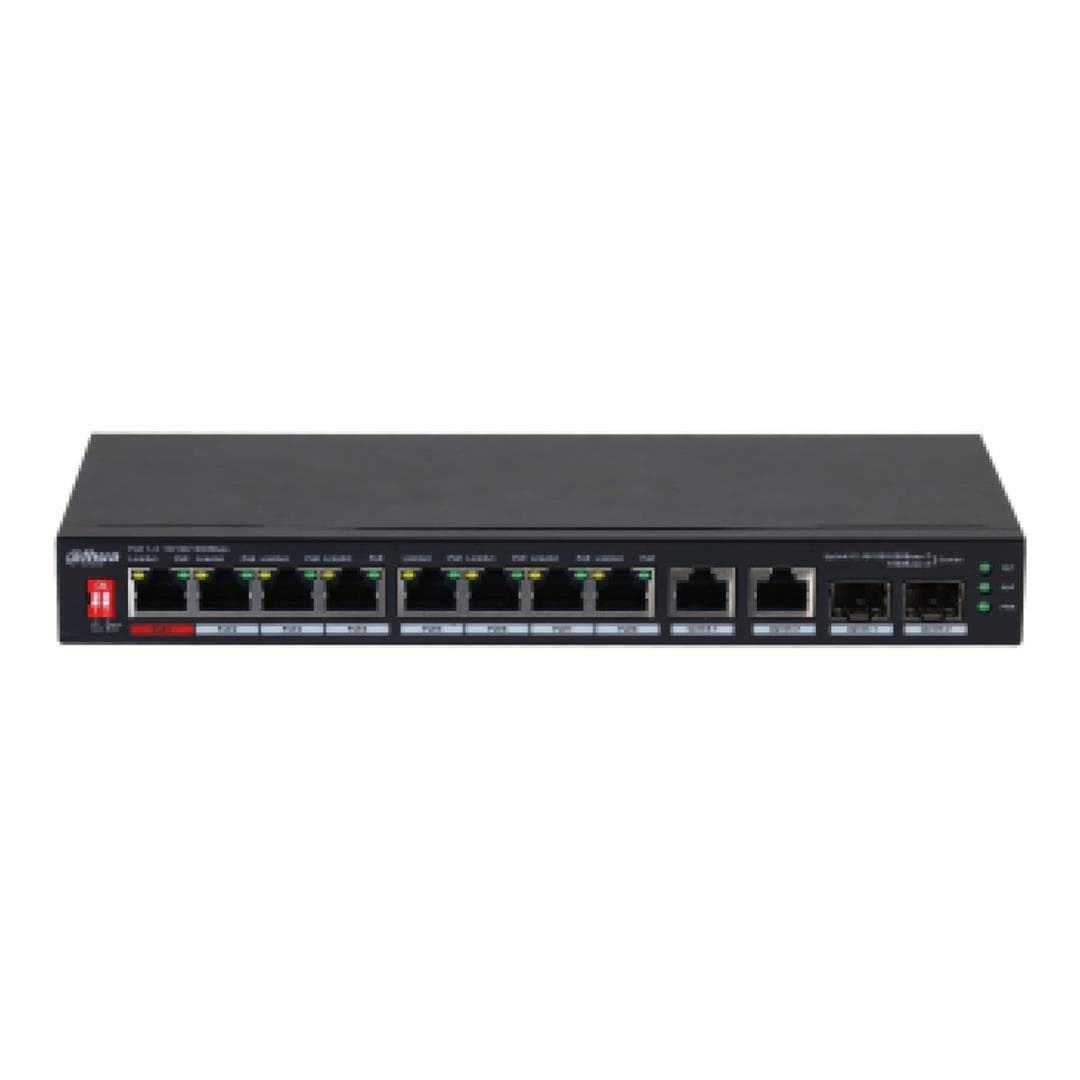

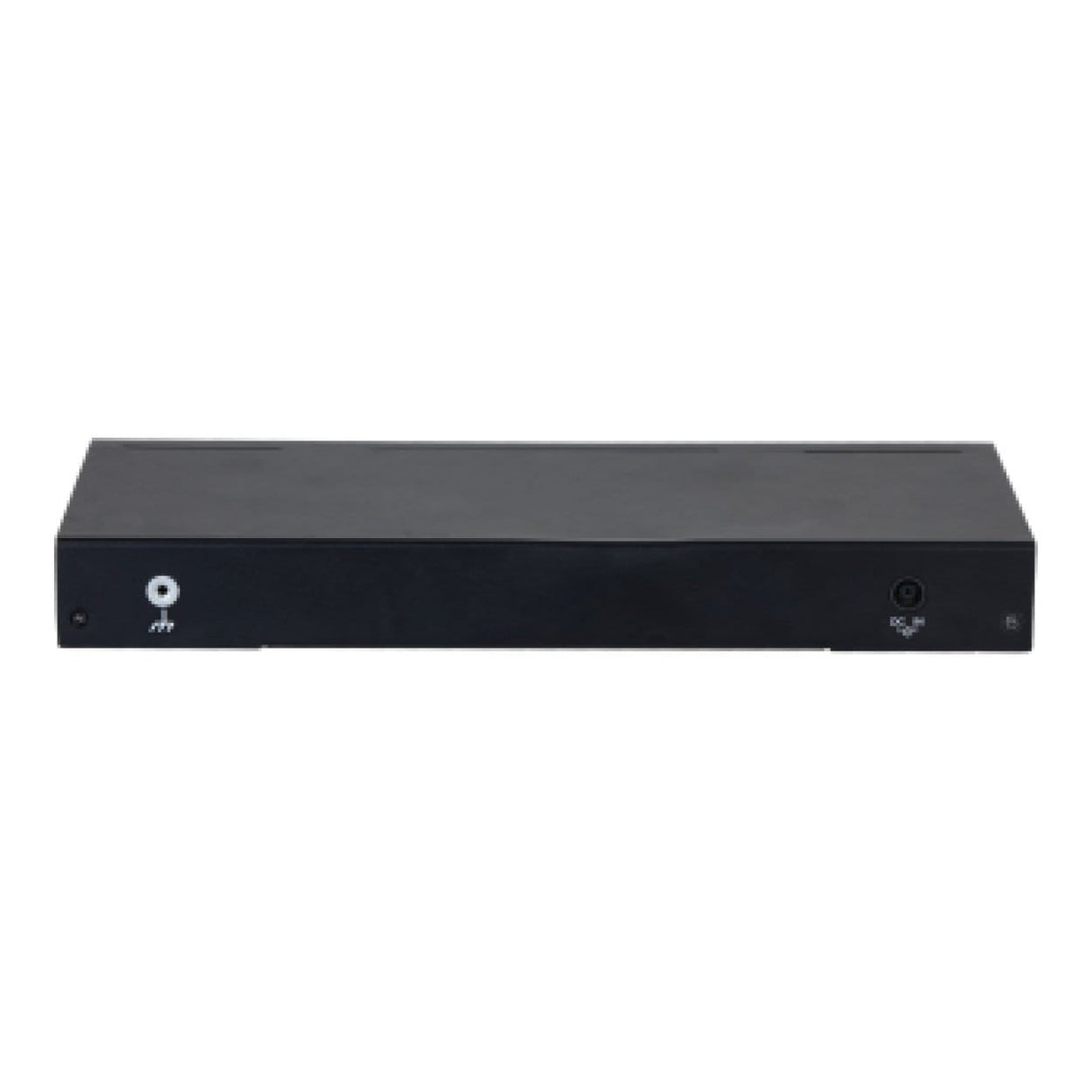

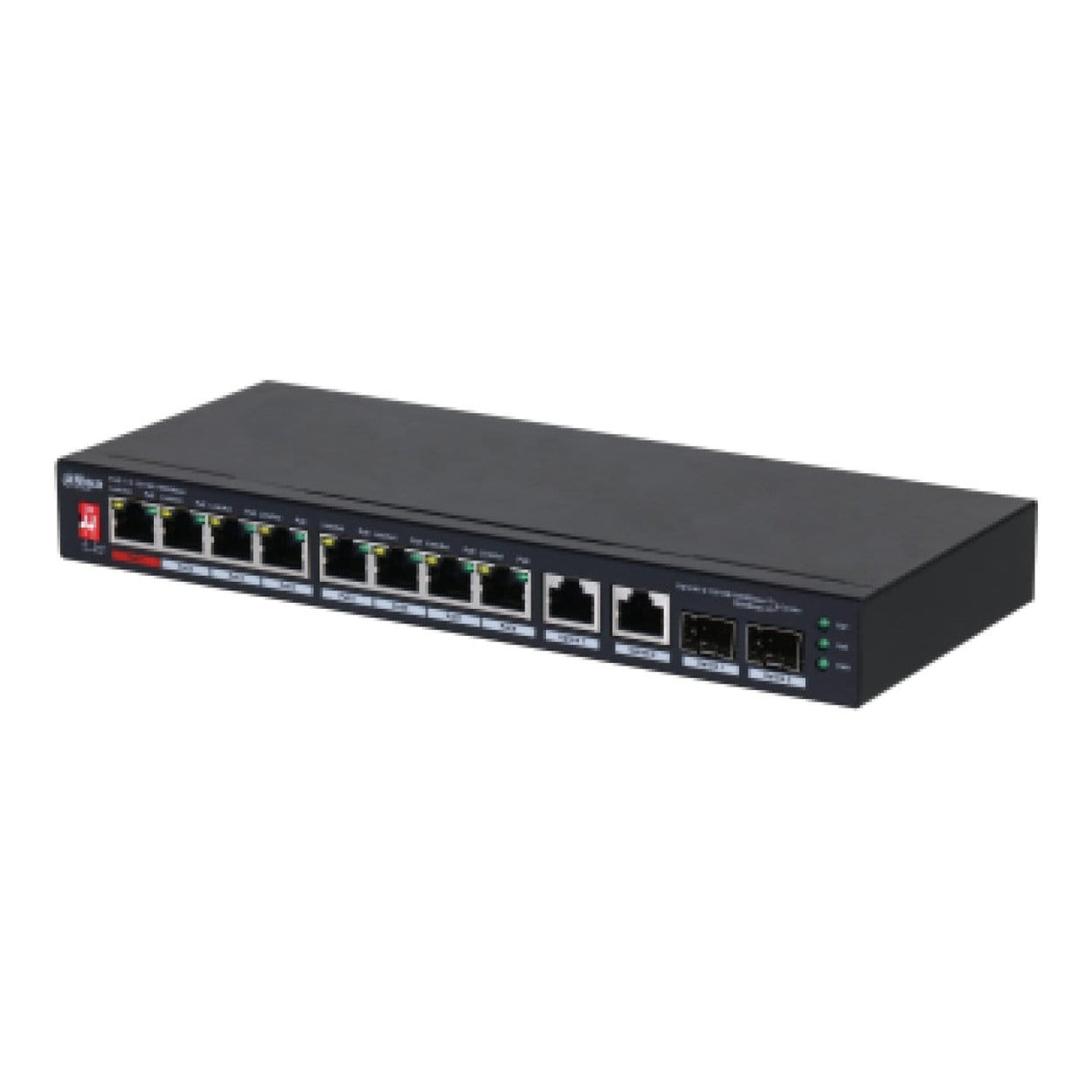

Dahua PFS3210-8GT2GF-96 8-port Unmanaged Network Switch with 2x SFP Ports

Dahua PFS3210-8GT2GF-96 8-port Unmanaged Network Switch with 2x SFP Ports

PFS3210-8GT2GF-96 is an unmanaged Desktop PoE Switch with 8 × 10/100/1000Mbps PoE Ports. It provides 8 × 10/100/1000Mbps Ethernet ports ,2 × 1000M SFP. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Intelligent PoE

Provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change. Supports ultra wide power supply, able to adapt to IPC power fluctuation.

Red Port 90 W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Long Distance PoE

By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

Eight-pin PoE

Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.

Wide Operating Temperature

Supports working at ambient temperatures of –10 °C to +55 °C, and has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness, adapted to harsh environments.

Specifications:

Included Power Adapter: Yes

PoE: Yes

Ethernet Port: 8

Ethernet Port Speed: 10/100/1000 Mbps

Ethernet Port Uplink Speed: 10/100/1000 Mbps

Optical Port Uplink Speed: 1 Gbps

Description of Function Slots:

• Port 1-8: 8 × 10/100/1000 Base-T (PoE)
• Uplink 1-2: 2 × 10/100/1000 Base-T (Combo)
• Uplink 1-2: 2 × 1000 Base-X (Combo)

Power Supply: 53 VDC, 1.81 A

Operating Temperature: –10 °C to +55 °C

Operating Humidity: 10%–90% (RH)

Storage Temperature: –40 °C to +70 °C

Storage Humidity: 5%–95% (RH)

Power Consumption:

• Idling: 3 W
• Full load: 96 W

Layer: Unmanaged

Management Type: No

Smart Managed Switch: No

MTBF: 82.57 year

Switching Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

Packet Buffer Size: 1.5 Mbit

Jumbo Frame: 9K Byte

MAC Table Size: 4K

Communication Standard: IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE Protocol: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power: Port 2-8 ≤30 W, port 1 ≤90 W, total ≤96 W

PoE Power Consumption Management: Yes

PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission: Yes
