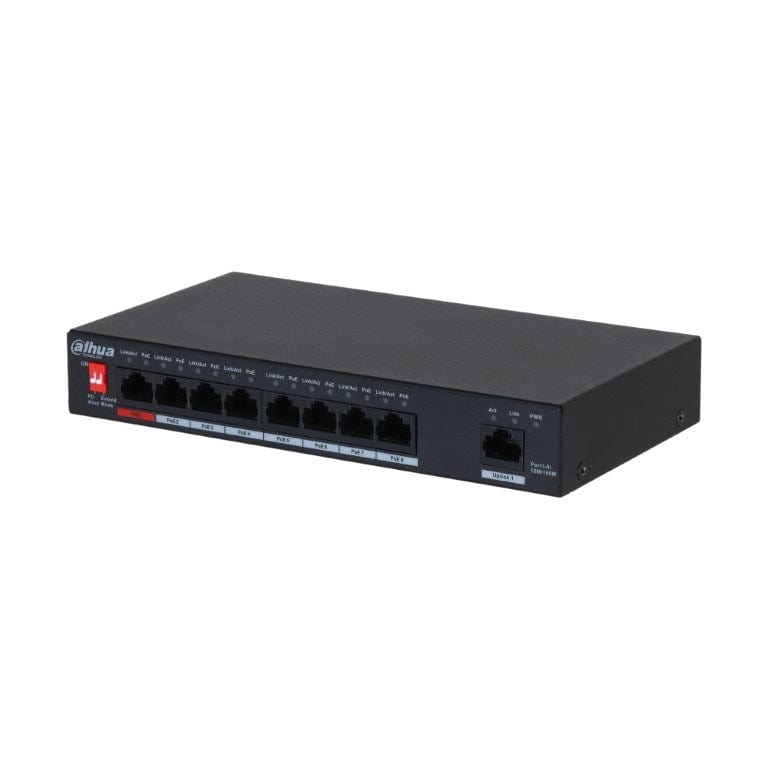

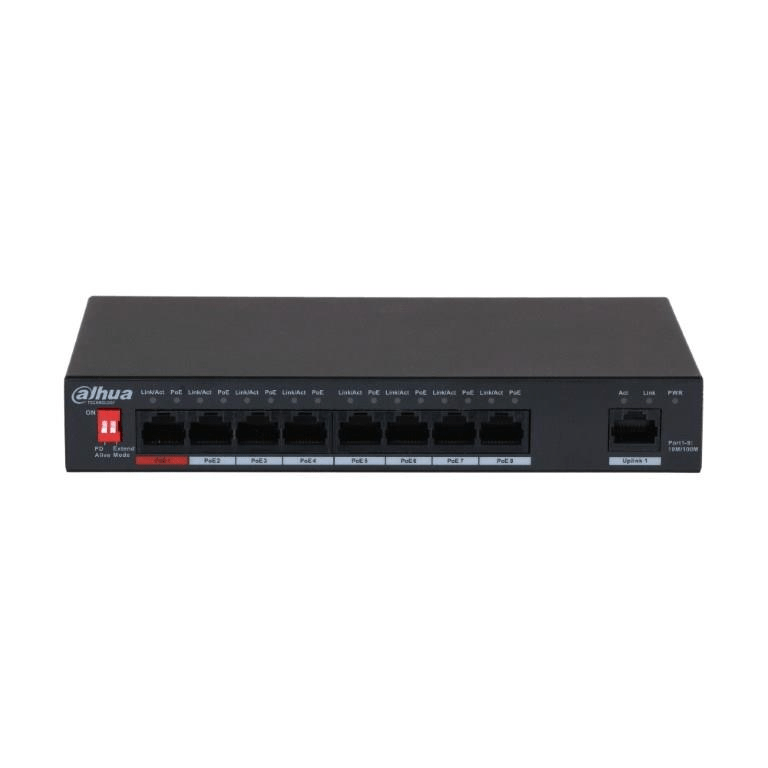

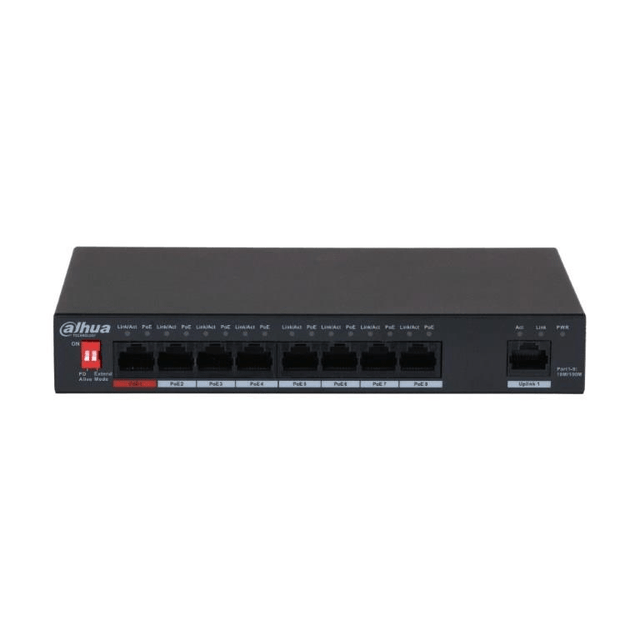

Dahua PFS3009-8ET-96 9-port Unmanaged Desktop Switch with 8-port PoE 1.0.01.20.10407

Dahua PFS3009-8ET-96 9-port Unmanaged Desktop Switch with 8-port PoE

DH-PFS3009-8ET-96 is an unmanaged Desktop Switch with 8x 10/100Mbps PoE Ports. It provides 8x 10/100 Mbps Ethernet ports and 1x 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off).The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumpton is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Features

Intelligent PoE

Provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change. Supports ultra wide power supply, able to adapt to IPC power fluctuation.

Red Port 90W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Long Distance PoE

By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

Eight-pin PoE

Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.

Technical Specification

• Port 1-8: 8x RJ-45 10/100 Mbps (PoE)
• Port 9: 1x RJ-45 10/100 Mbps (Uplink)
