Dahua PFS3008-8GT-96 8-port Gigabit PoE Unmanaged Desktop Ethernet Switch 1.0.01.20.10688

SKU: 1.0.01.20.10688

Price:
R 1,315
Stock:
Sold out

Description

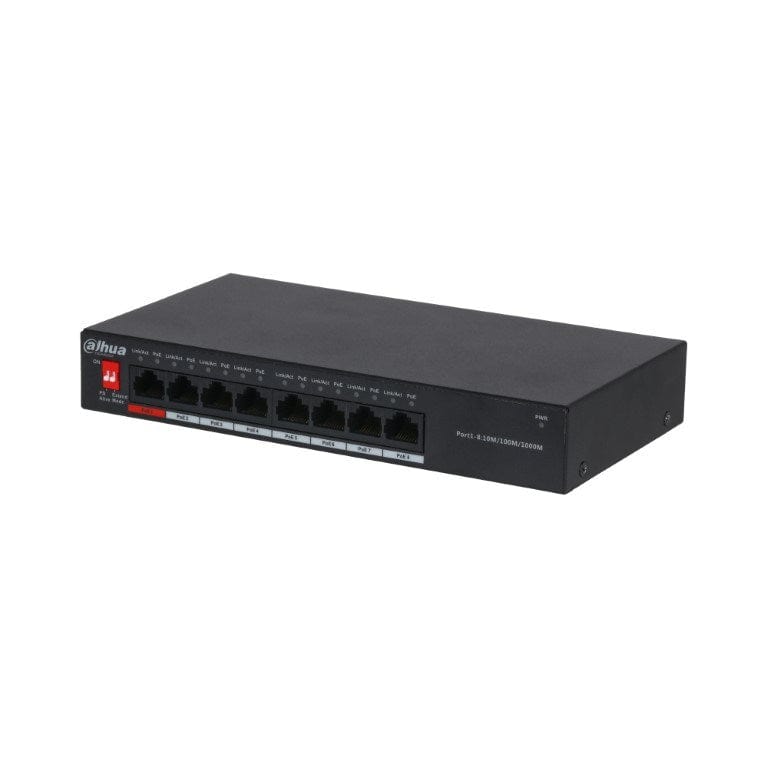

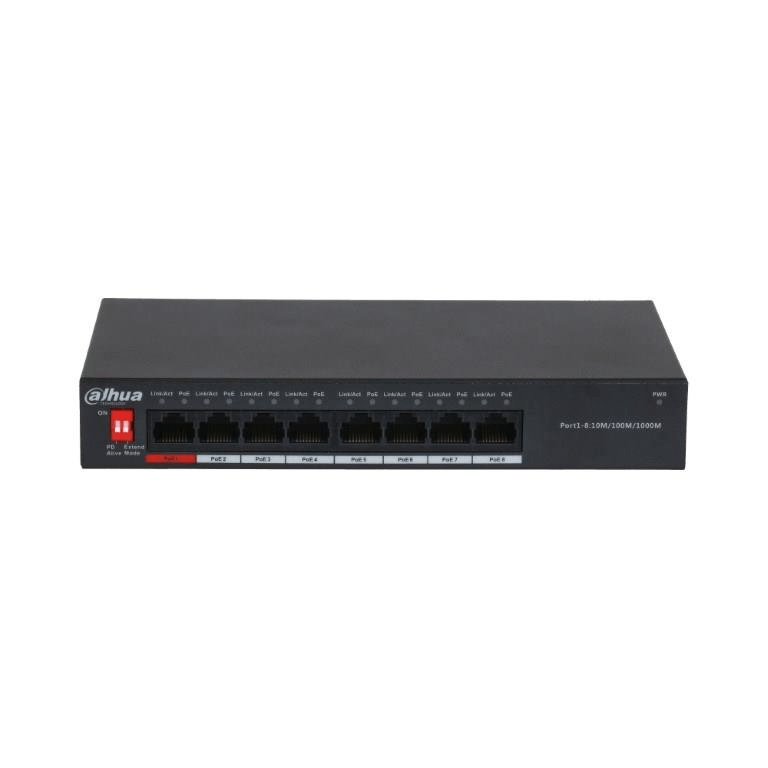

Dahua PFS3008-8GT-96 8-port Gigabit PoE Unmanaged Desktop Ethernet Switch

DH-PFS3008-8GT-96 is an unmanaged Desktop Switch with 8x 10/100/1000 Mbps PoE Ports. It provides 8x 10/100/1000 Mbps Ethernet ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Features

  • Intelligent PoE
  • BT 90W
  • All-giga Ports
  • Long distance PoE
  • PoE watchdog
  • Wide working temperature

Intelligent PoE

Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.

BT 90W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.

Long Distance PoE

By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).

All-Gigabit Ports

Designed with large buffer memory and all-Gigabit ports, enabling highdefinition access of large stream.

Technical Specification

Data Transmission Port: Port 1–8
Capacity: 20 Gbps
Packet Forwarding Rate: 11.9 Mpps
Packet Buffer Memory: 1.5 Mbit
MAC Table Size: 8K
Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3X ;IEEE 802.3az; IEEE 802.3ab
PoE Ports: 8x RJ-45 10/100/1000 Mbps
PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power: 96 W
Power Consumption Management: Yes
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE: Supports 250 m

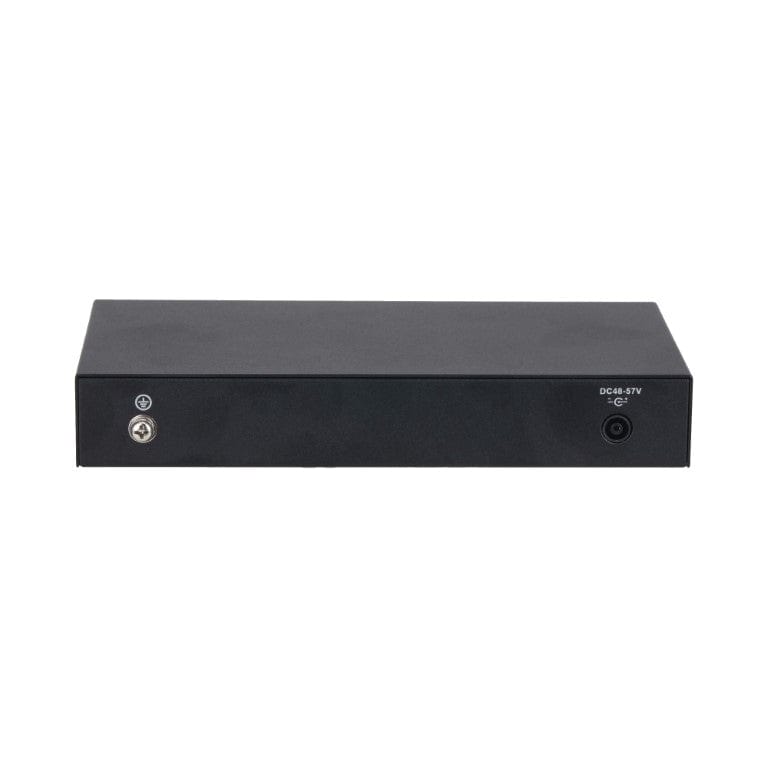

Power Supply: 48 V–57 V DC
