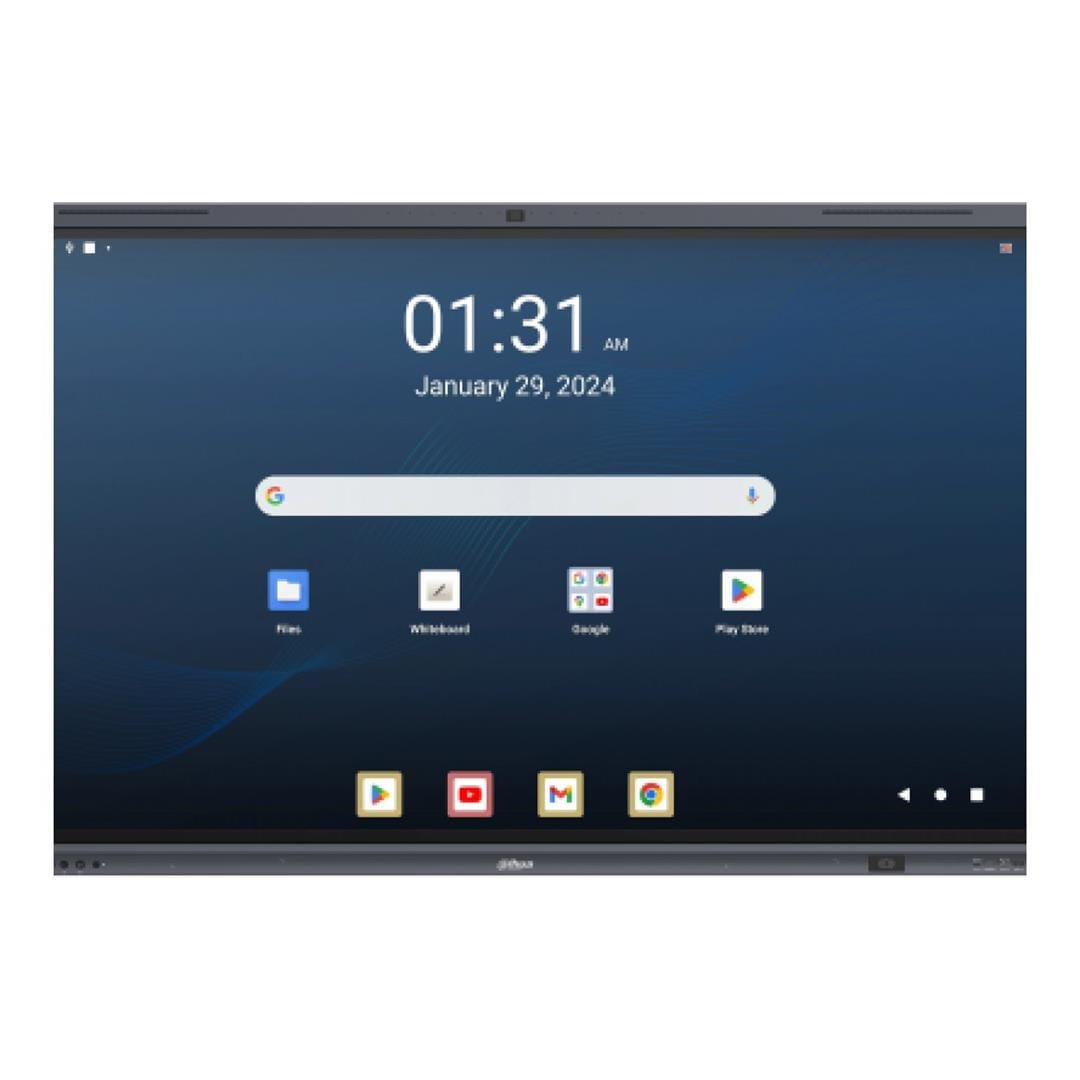

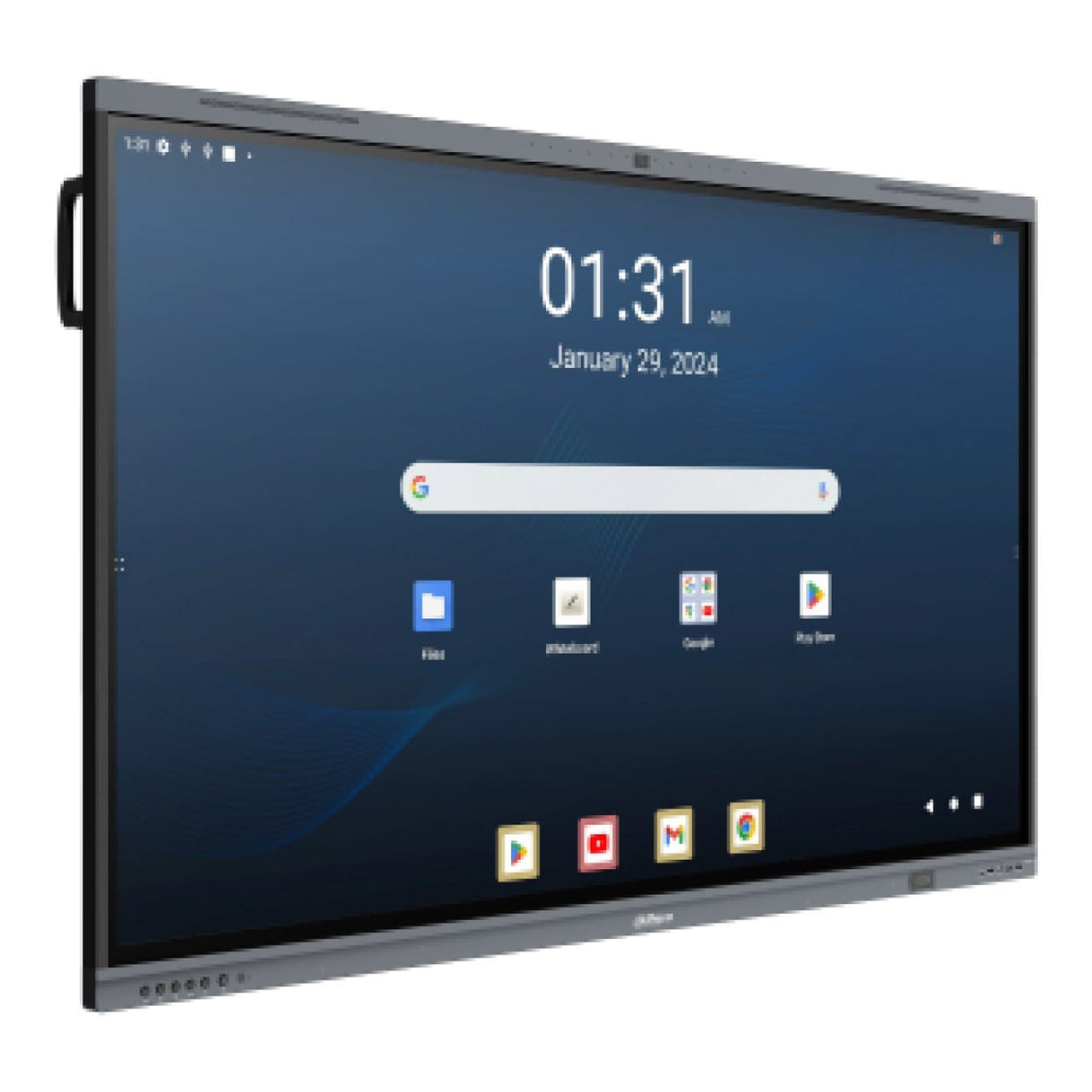

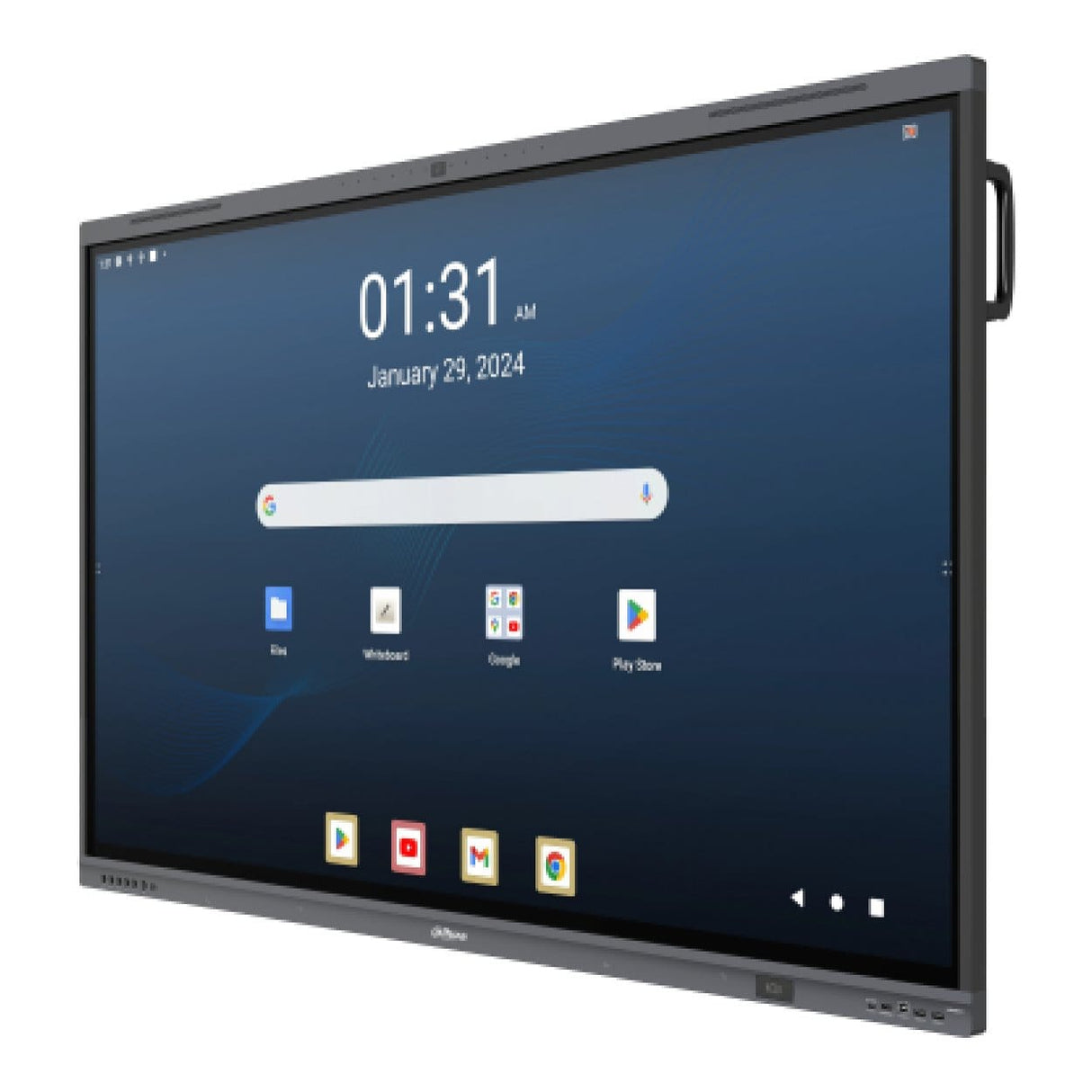

Dahua LPH65 65-inch Smart Interactive Whiteboard

Dahua LPH65 65-inch Smart Interactive Whiteboard

Dahua DeepHub Ultimate Smart Interactive Whiteboard has powerful processing capabilities with its built-in 8-core CPU, 4-core GPU, 8 GB RAM,128 GB storage, and Android 13 operating system with EDLA. With a high-precision infrared touch sensor and a 4K DLED display, this interactive whiteboard will give you an extraordinary experience whether you are writing, controlling or displaying content. It features video conferencing, wireless screen sharing, UHD display, scan and go, and more. Let this whiteboard be your go-to choice to digitalize your office and classrooms.

4K HD Display

With up to 3840 × 2160 resolution, the 4K HD display delivers a clear image in sharp, vivid colours.

Easy to Share

Enhances the experience of sharing files by scanning a code. It automatically determines the network of the device to readily share the QR code across the extranet and the intranet. QR code encryption and extraction are also featured, providing privacy and data security through the required entry of a 6-digit password for verification.

File Management

Supports managing and using Office files, image, video and audio files, and file formats such as PDF and TXT.

Similar to Real Writing

Experience The electronic whiteboard supports pen-point writing. It comes equipped with specialized pressure-sensitive writing pens, designed to enhance the writing experience. With its soft, comfortable nib, writing on the whiteboard feels natural, similar to the real writing experience.

Text Recognition

Converts written letters into text in real time, using the default font of the system.

Wireless Screen Sharing

In addition to basic file sharing, the device offers wireless screen sharing, interactive operations between two screens, and reverse transmissions. It also supports screen grouping (multiple transmission), host mode (for overall permission control), real-time transmission of images, videos and audios from the wireless camera of the mobile phone to the device, and split-screen mode that displays up to 9 splits on the same screen.

Specifications:

Main Processor: RK3588

Operating System: Android 15

CPU: Quad-core A76 + Quad-core A55

CPU Frequency: 2.4 GHz

GPU: Mali-G610 MP4

RAM: 8 GB

ROM: 128 GB

Operating System of External Module: Windows 7/8/10/11

Power Supply: 100–240 VAC, 50/60 Hz, 4.5 A

Power Consumption: 170 W (typ.); 450 W (max.)

Standby Power Consumption: ≤0.5 W

Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity: 10%–90% (RH)

Storage Humidity: 10%–90% (RH)

Product Material: Metal

Glass: 3.2 mm anti-glare tempered glass

Casing Colour (Frame/Rear): Black

Product Dimensions: 1,488.4 mm × 915.3 mm × 86.2 mm (58.60" × 36.04" × 3.39") (W × H × D)

Frame Size: U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11")

Net Weight: 36.55 kg (80.58 lb)

Holes Distance: 600 mm × 400 mm (23.62" × 15.75")

Installation: Wall mount or mobile bracket

Screen Size: 65 inch

Backlight: DLED

Aspect Ratio: 16: 9

Brightness: 400 cd/m² (typ.)

Static Contrast Ratio: VA: 5000: 1 (typ.); IPS: 1200: 1 (typ.)

Resolution: 3,840 (H) × 2,160 (V)

Viewing Angle: 178° (H)/178° (V)

Lifespan: ≥50,000 hrs

Display Colour: 1.07 Billion (10 bits)

Colour Gamut: 90% NTSC

Response Time: 6.5 ms

Refresh Rate: 60 Hz

Camera: Android: Photo: 48 MP; Video: 8 MP

Windows: Photo: 8 MP; Video: 8 MP

Field of View: H: 98°; D: 106°

Light Sensor: Yes

Front Button: 6 buttons: Power supply, menu, signal source, curtain, volume and annotation

Front Ports: 2 × USB 3.2 Gen1 Type-A; 1 × HDMI IN; 1 × USB Type-C IN (100 W fast charge, data transmission, local area network); 1 × Touch USB 2.0 Type-B

Rear Port:

• 3 × HDMI IN (4K@60 Hz)
• 1 × HDMI OUT (4K@60 Hz)
• 1 × DP IN
• 1 × USB 2.0 Type-A
• 2 × USB 3.2 Gen1 Type-A
• 1 × USB Type-C IN port with 15 W max charge that receives input for audio, videos, data, and network sharing
• 1 × USB Type-C OUT (4K@60 Hz)
• 2 × TOUCH USB 2.0 Type-B ports which support touch and wired network sharing of 100 Mbps
• 1 × AUDIO IN (3.5 mm port)
• 1 × AUDIO OUT (3.5 mm port)
• 1 × SPDIF
• 1 × RS232
• 1 × RJ45 IN (10/100/1,000 Mbps)
• 1 × RJ45 OUT (10/100/1,000 Mbps）

Wi-Fi: Yes

Wi-Fi Standard: Wi-Fi Station: 802.11b/g/n/a/ac/ax

Wi-Fi AP: 802.11b/g/n/a/ac

Wi-Fi Frequency Range: 2400–2483.5 MHz; 5150–5250 MHz; 5250–5350 MHz; 5470–5725 MHz; 5725–5850 MHz;

MAX Power Transmission (Wi-Fi): ≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz;

Bluetooth: Yes

Bluetooth Standard: BT5.2 BR/EDR/BLE

Bluetooth Frequency Range: ≤20 dBm@2400–2483.5 MHz

MAX Power Transmission (Bluetooth): ≤20 dBm

RFID Modulation Method: ASK

RFID Frequency Range: 13.56 MHz

MAX Power Transmission (RFID): 13.56 MHz:≤42dBuA/m @10 m
