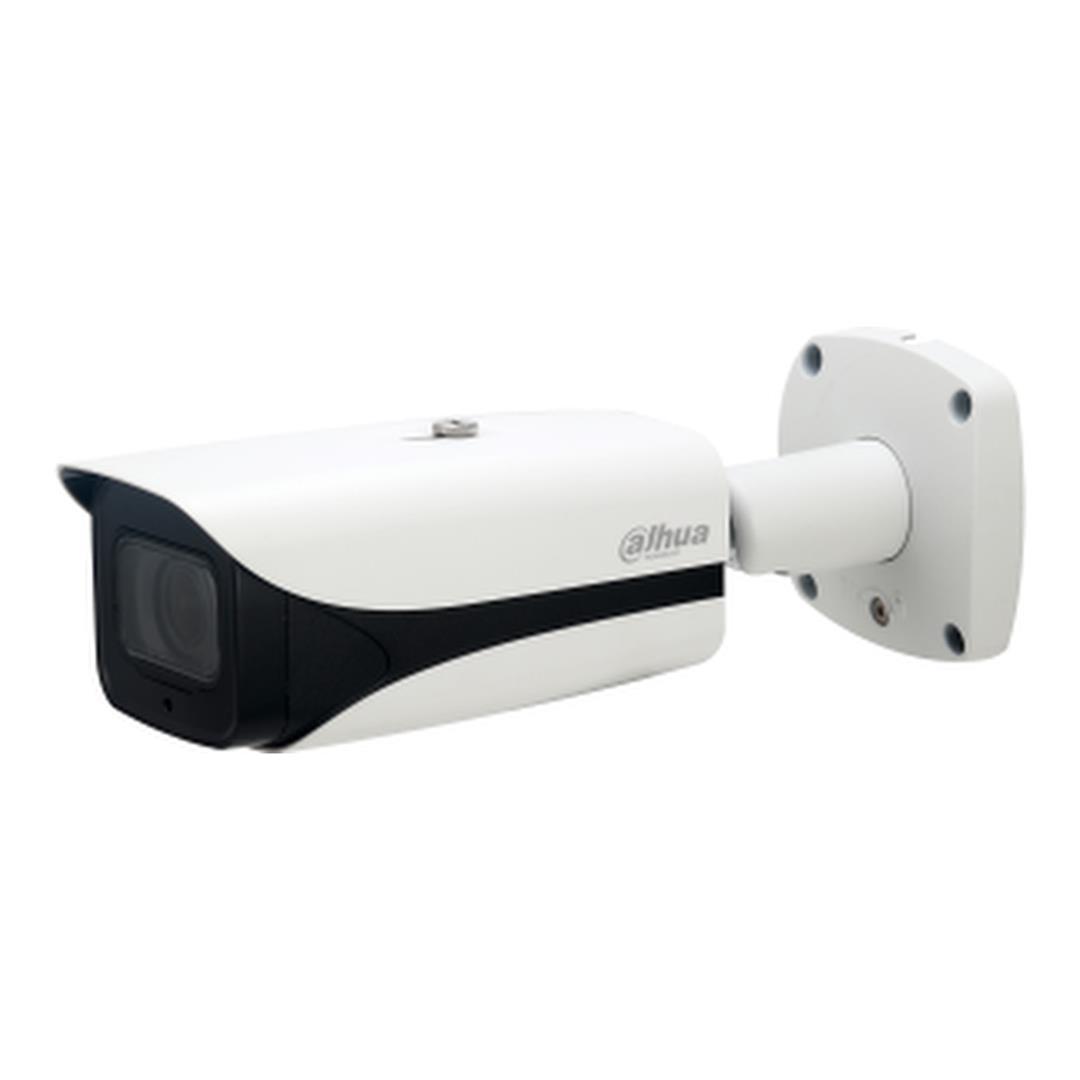

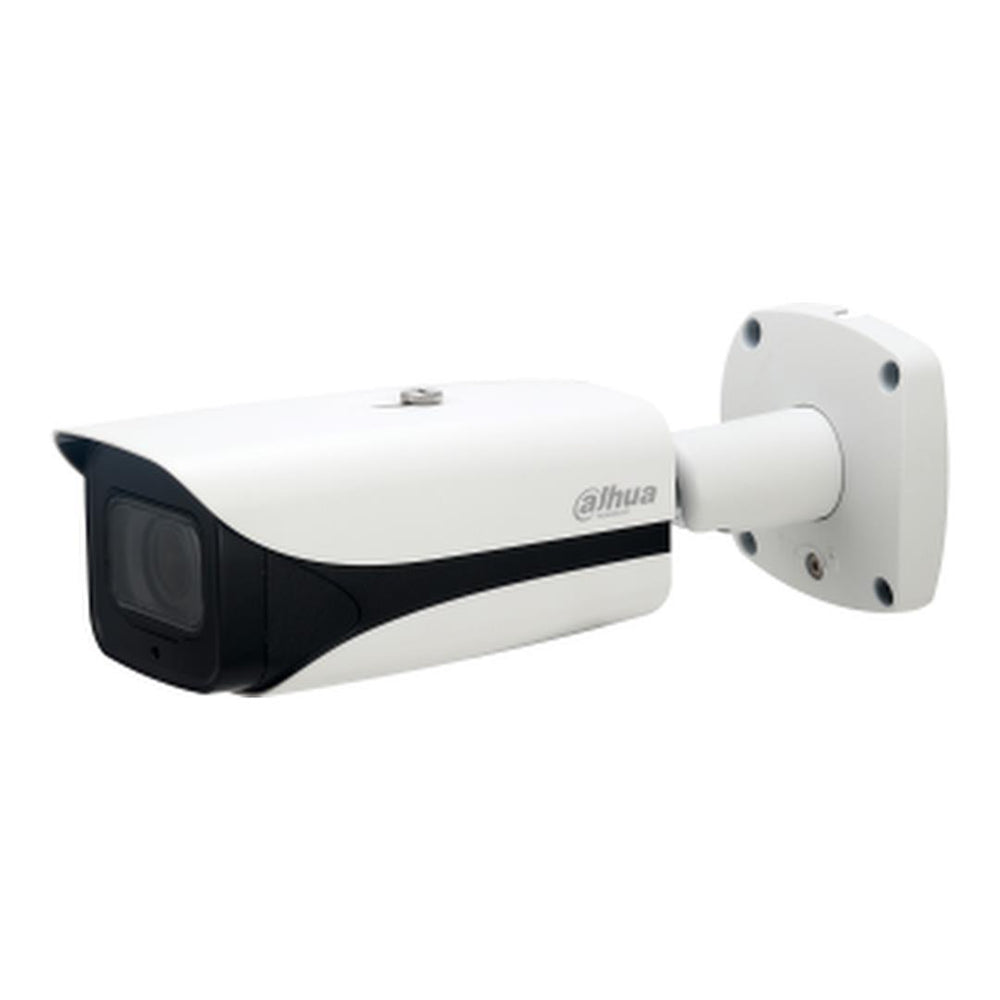

Dahua IPC-HFW5241E-Z12E 2MP 5.3mm IR Vari-focal Bullet WizMind Network Camera

Dahua IPC-HFW5241E-Z12E 2MP 5.3mm IR Vari-focal Bullet WizMind Network Camera

The Dahua IPC-HFW5241E-Z12E is a 2MP WizMind bullet network camera developed for long-range outdoor surveillance and intelligent video monitoring. Its 5-60 mm motorised vari-focal lens allows operators to adjust the field of view from a wider scene to a tightly focused telephoto view, making it suitable for property perimeters, entrances, roads and other extended monitoring areas.

The camera combines a maximum 1920 × 1080 resolution with Dahua AI-powered image processing, 120 dB wide dynamic range and infrared illumination reaching up to 150 metres. Deep-learning functions include perimeter protection, SMD 3.0, face detection, video metadata, people counting and intelligent sound detection.

Long-range Motorised Vari-focal Lens

The 5-60 mm motorised vari-focal lens provides a horizontal field of view ranging from approximately 59° at the wide setting to 5° at the telephoto setting. Automatic iris control and remote focal adjustment allow the camera to be configured for an overview of the monitored area or detailed observation of distant targets.

Up to 150 Metres of Infrared Illumination

Four integrated infrared LEDs provide a maximum illumination distance of 150 metres. Automatic, manual and zoom-priority illumination controls help adapt the infrared output to the selected zoom level and monitored scene.

AI-powered Perimeter Protection

Deep-learning perimeter protection supports intrusion, tripwire and fast-moving rules with human and vehicle classification. The camera also supports loitering, people gathering and parking detection, helping compatible surveillance systems concentrate on relevant activity within restricted areas.

Face Detection and Video Metadata

Face detection can track, capture and select suitable face images while extracting supported face attributes. Video metadata functions can detect and classify motor vehicles, non-motor vehicles, people and faces, with supported attribute extraction available for compatible monitoring and management systems.

People Counting and Heat Mapping

People-counting functions support entrance and exit statistics, people counting within an area and queue management. Compatible management software can generate daily, weekly, monthly or yearly reports, while heat-map functionality provides additional information about activity within the monitored area.

Clear Imaging in Challenging Conditions

The camera combines AI-powered image processing with 120 dB wide dynamic range, highlight compensation, backlight compensation, electronic image stabilisation, defog and 3D noise reduction. These functions help improve image usability in scenes affected by changing light, vibration, haze or strong backlighting.

Flexible Recording and Integration

Smart H.265+, Smart H.264+ and AI coding options help manage bandwidth and storage requirements. Four video streams are supported, while recordings can be stored on a MicroSD card with a capacity of up to 512 GB, a compatible network-attached storage system or supported network recording equipment.

Integrated Audio and Alarm Connections

A built-in microphone enables audio capture without requiring a separate microphone. The camera also provides one external audio input, one audio output, two alarm inputs and one alarm output for integration with compatible security equipment.

Key Features:

• 2MP CMOS sensor with video output up to 1920 × 1080 at 25/30 fps.
• 5-60 mm motorised vari-focal lens with automatic iris control.
• Four integrated IR LEDs provide night-time illumination at distances up to 150 metres.
• WizMind intelligence includes perimeter protection, face detection, video metadata, SMD 3.0 and people counting.
• Smart sound detection can identify supported sounds such as screams and breaking glass.
• Built-in microphone, external audio connections and configurable alarm inputs and output.
• MicroSD card support up to 512 GB, four video streams and ONVIF interoperability.
• IP67 and IK10-rated metal enclosure for demanding outdoor installations.
• Supports 12 VDC, IEEE 802.3af PoE and Dahua ePoE power.

Technical Specifications:

The MicroSD card, 12 VDC power adapter, junction box, pole-mount bracket and other accessories are optional unless supplied separately by the retailer.

Extend intelligent surveillance across entrances, boundaries and other long-range areas with this adaptable WizMind bullet camera, and add it to your cart today.
