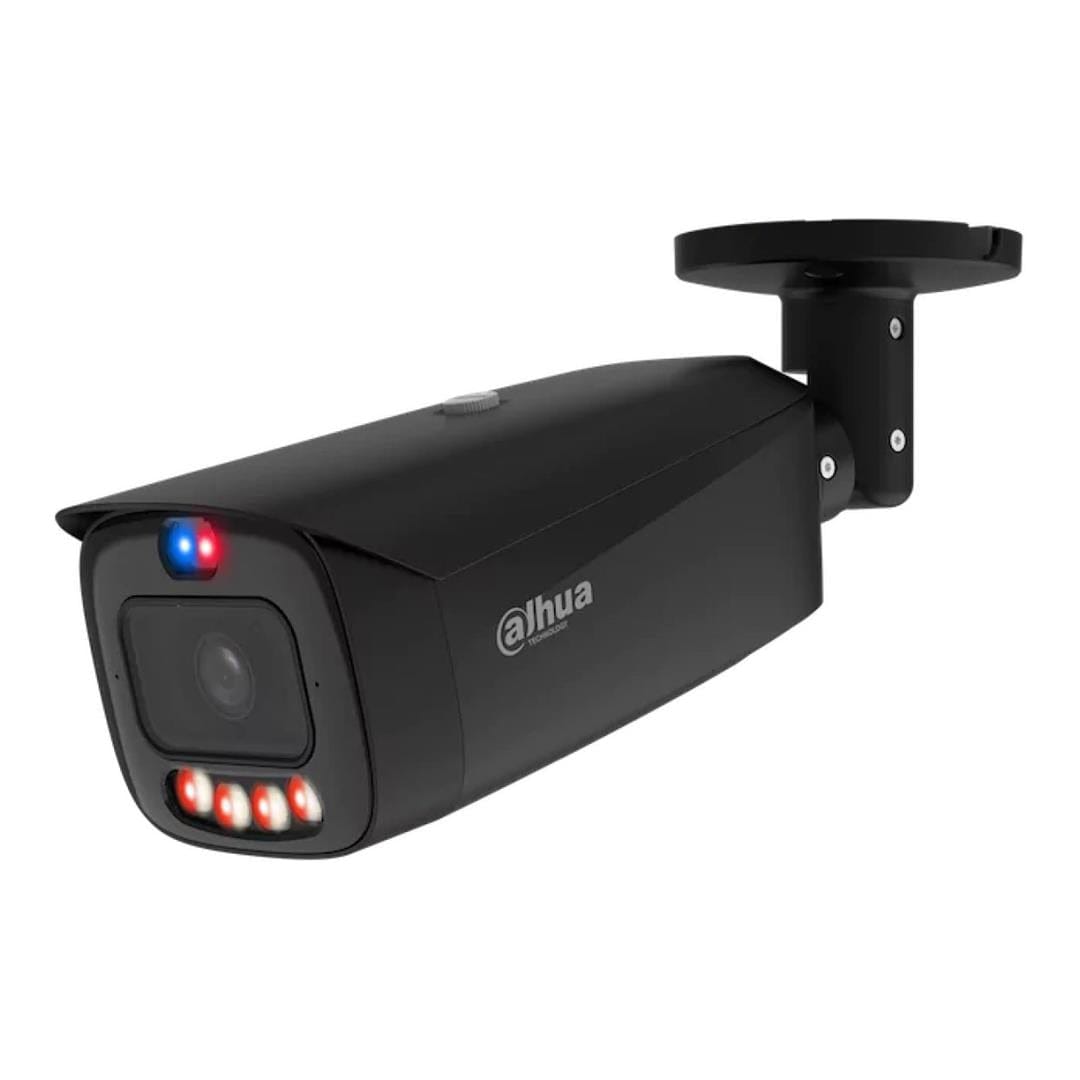

Dahua IPC-HFW3649T1P-AS-PV WizSense 6MP 2.8mm WizColor TiOC PRO Fixed-focal Bullet Network Camera

Dahua IPC-HFW3649T1P-AS-PV WizSense 6MP 2.8mm WizColor TiOC PRO Fixed-focal Bullet Network Camera

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Acupick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

WizColor Technology

Dahua WizColor Technology seamlessly combines with the powerful AI-ISP, large pixel size sensor and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances.

Siren and Light Active Deterrence

Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

SMD 4.0

Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

AI-ISP

With AI ISP technology, the camera is able to easily adapt to scenes,producing high quality images that reveal the fine details of targets.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 3288(H) × 1850 (V)

ROM: 256 MB

RAM: 2 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.0005 Lux@F1.0 (Color, 30IRE)
• 0.0004 Lux@F1.0 (B/W, 30IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance

• Up to 50 m (164.04 ft) (IR)
• Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control: Auto;Manual

Illuminator Number: 4 (Multi-core (IR + warm) light)

Angle Adjustment

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M16

Focal Length: 2.8 mm

Max. Aperture: F1.0

Field of View: 2.8 mm: H: 109°; V: 59°; D: 131°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 3.2 m (10.50 ft)

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability: ONVIF (Profile S; Profile G; Profile T); CGI

User/Host: 20 (Total bandwidth: 64 M)

Storage: FTP;SFTP; Micro SD card (support max. 512 GB); NAS

Browser:

• IE: IE11
• Chrome
• Firefox

Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client: iOS;Android

Cyber Security: Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
