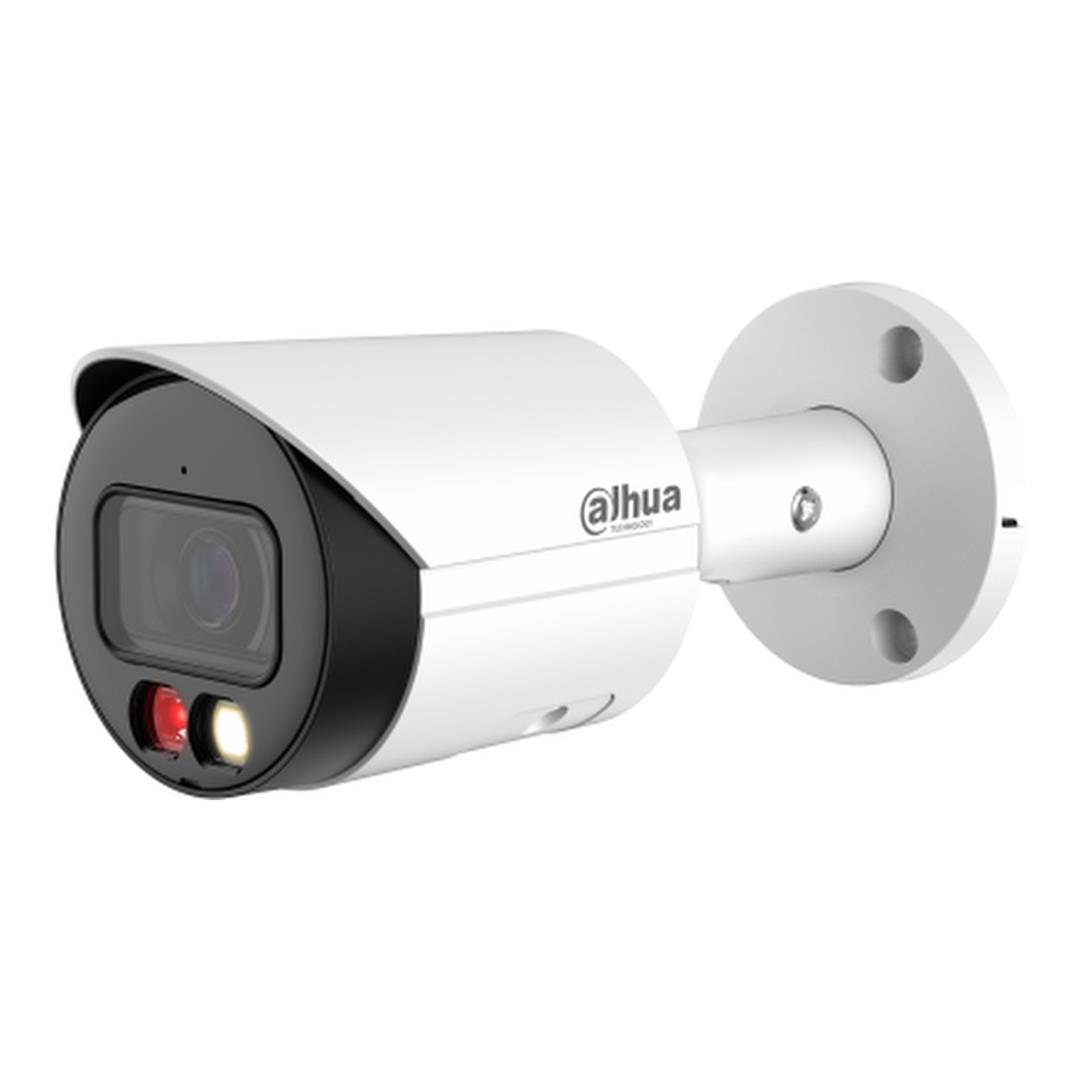

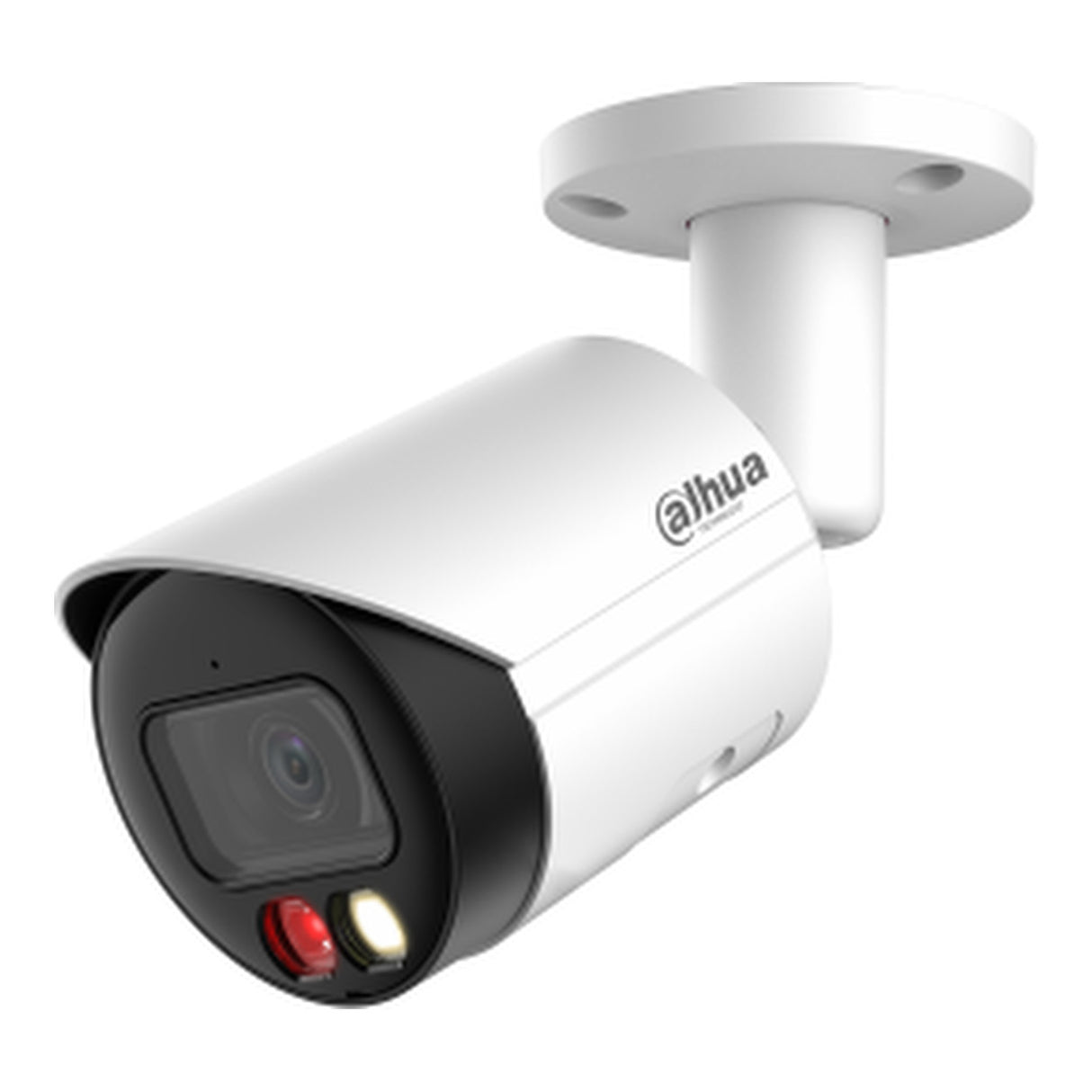

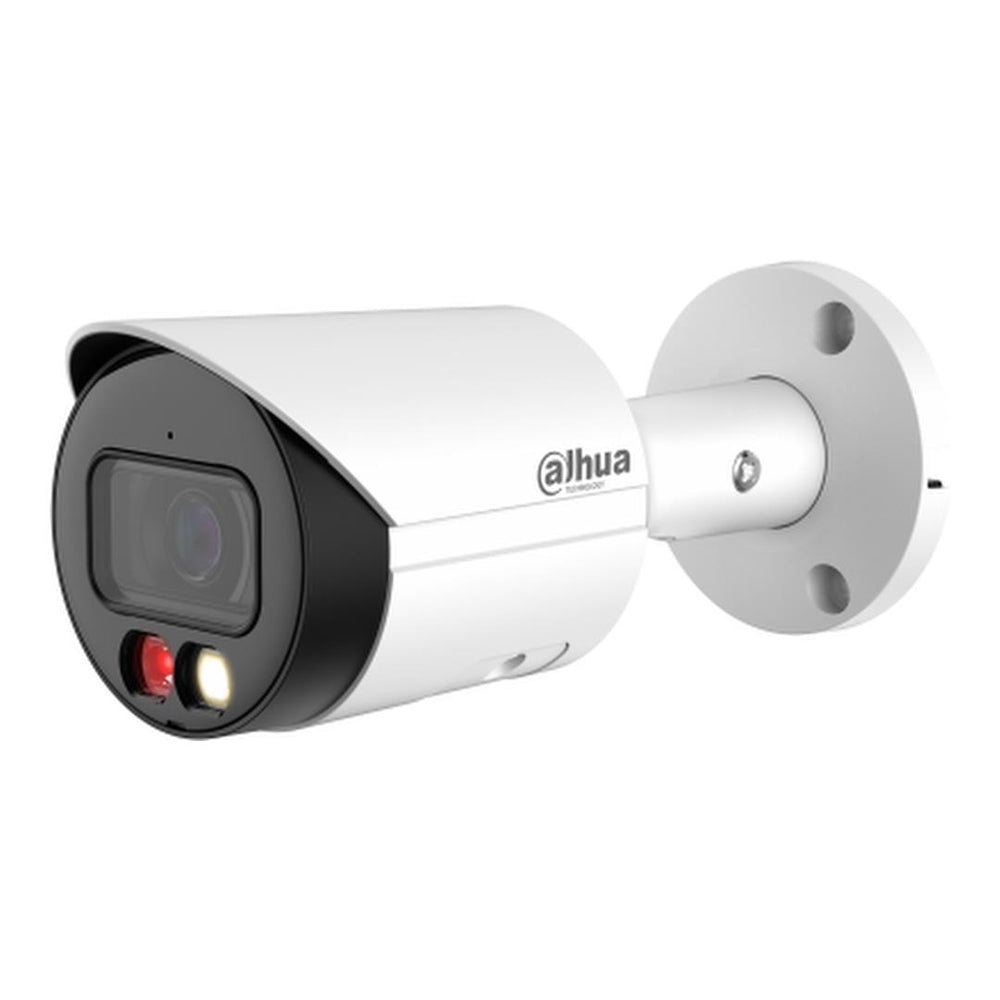

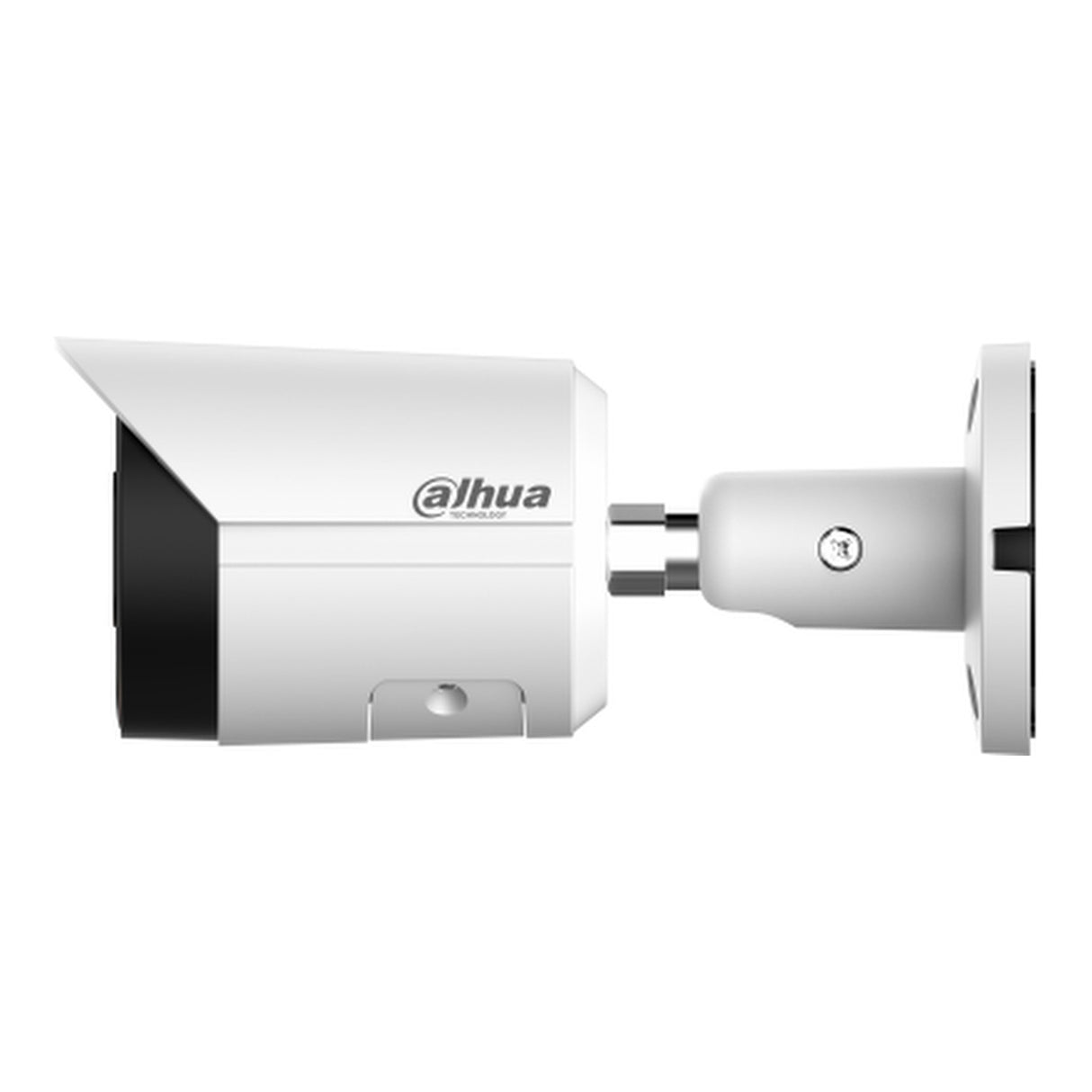

Dahua IPC-HFW2249S-S-IL 2MP 2.8mm WizSense Smart Dual Light Fixed-focal Bullet Network Camera

Dahua IPC-HFW2249S-S-IL 2MP 2.8mm WizSense Smart Dual Light Fixed-focal Bullet Network Camera

The Dahua IPC-HFW2249S-S-IL is a 2MP WizSense bullet network camera designed for intelligent monitoring of entrances, driveways, shops, offices and other indoor or outdoor areas. Its wide-angle 2.8 mm fixed-focal lens provides a 107° horizontal field of view, while Smart Dual Light technology combines infrared and warm-white illumination to support effective night-time monitoring.

Human and vehicle classification helps users focus on relevant tripwire, intrusion and motion-detection events. The camera also provides 120 dB Wide Dynamic Range, Smart H.265+ encoding, a built-in microphone, microSD recording, PoE installation and an IP67-rated metal enclosure.

Smart Dual Light Monitoring

Smart Dual Light technology normally uses infrared illumination for discreet black-and-white night monitoring. When a supported target enters the configured area, the warm light can activate so the camera records the event in colour. Once the target leaves, the warm light switches off and infrared monitoring resumes, helping limit unnecessary visible light.

Clear Full HD Video

The 1/2.8-inch CMOS sensor captures video at up to 1920 × 1080 resolution and 25 or 30 frames per second. The F1.6 lens supports low-light imaging, while 120 dB Wide Dynamic Range helps retain detail when bright and dark areas appear within the same scene.

Wide-angle 2.8 mm Coverage

The fixed-focal 2.8 mm lens provides a 107° horizontal, 56° vertical and 127° diagonal field of view. This wide perspective is suitable for monitoring entrances, rooms and open areas where broad scene coverage is required.

Human and Vehicle Classification

WizSense perimeter protection applies human and vehicle classification to supported tripwire and intrusion rules. SMD Plus categorises motion-detection targets and filters unrelated movement, helping operators concentrate on relevant human and vehicle activity.

Infrared and Warm-light Illumination

The camera includes one infrared LED and one warm-light illuminator. Both illumination systems have a rated maximum distance of 30 metres, providing a choice between discreet infrared monitoring and visible colour illumination.

Efficient Recording and Storage

Smart H.265+ and Smart H.264+ encoding help reduce bandwidth and recording-storage requirements while maintaining useful video quality. Footage can be saved to a compatible microSD card with a capacity of up to 256 GB or sent to supported FTP and SFTP storage.

Integrated Audio

A built-in microphone captures audio alongside the video feed without requiring a separate external microphone. Supported audio-compression formats include G.711a, G.711Mu, PCM and G.726.

Flexible Outdoor Installation

The camera can be powered using 12 V DC or IEEE 802.3af PoE, allowing power and network connectivity to share a single compatible Ethernet cable. Its metal enclosure carries an IP67 ingress-protection rating and is specified for operation from −40 °C to +60 °C.

Key Features:

• 2MP CMOS sensor captures video at up to 1920 × 1080 at 25 or 30 fps.
• 2.8 mm F1.6 fixed-focal lens provides a wide 107° horizontal field of view.
• Smart Dual Light combines infrared monitoring with event-triggered warm illumination.
• SMD Plus and perimeter protection support human and vehicle classification.
• Infrared and warm-light illumination each provide a rated range of up to 30 metres.
• Built-in microphone adds audio to compatible monitoring and recording systems.
• MicroSD storage, PoE and an IP67-rated metal enclosure support flexible installation.

Technical Specifications:

Please note: The mounting, power and storage accessories listed above are optional and are not confirmed as part of the camera package.

Add the Dahua IPC-HFW2249S-S-IL to your cart for intelligent Full HD surveillance with adaptable dual-light illumination, integrated audio and flexible PoE installation.
