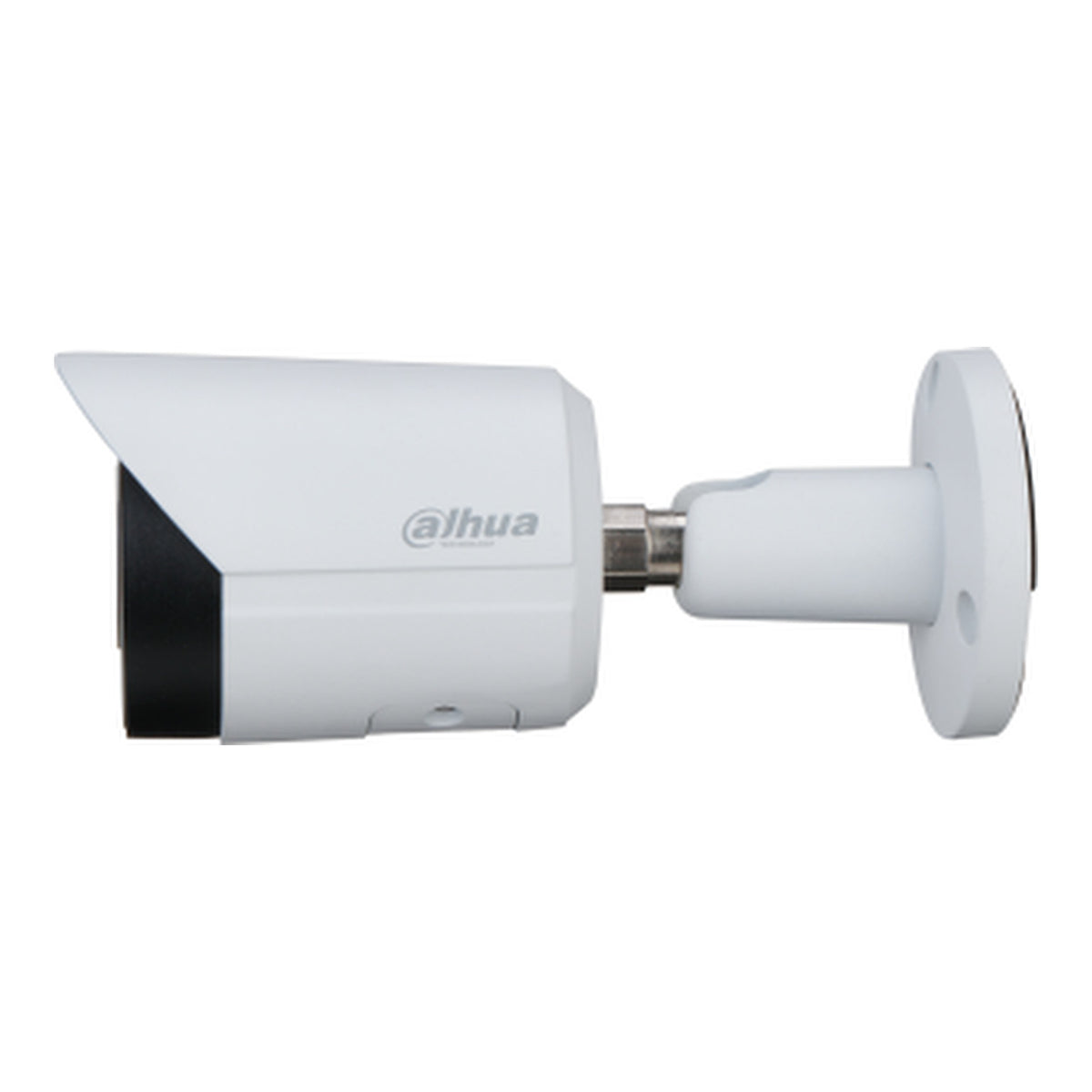

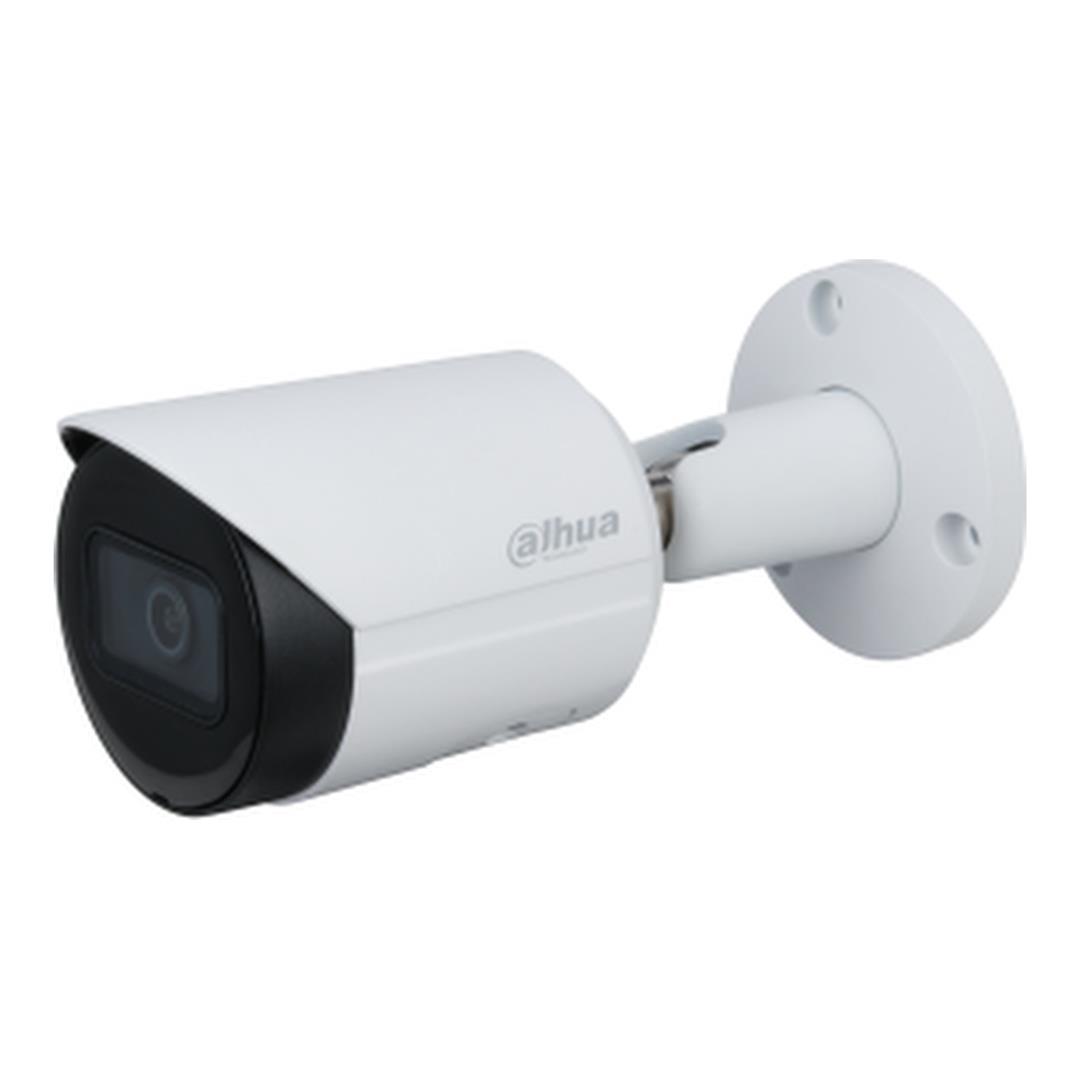

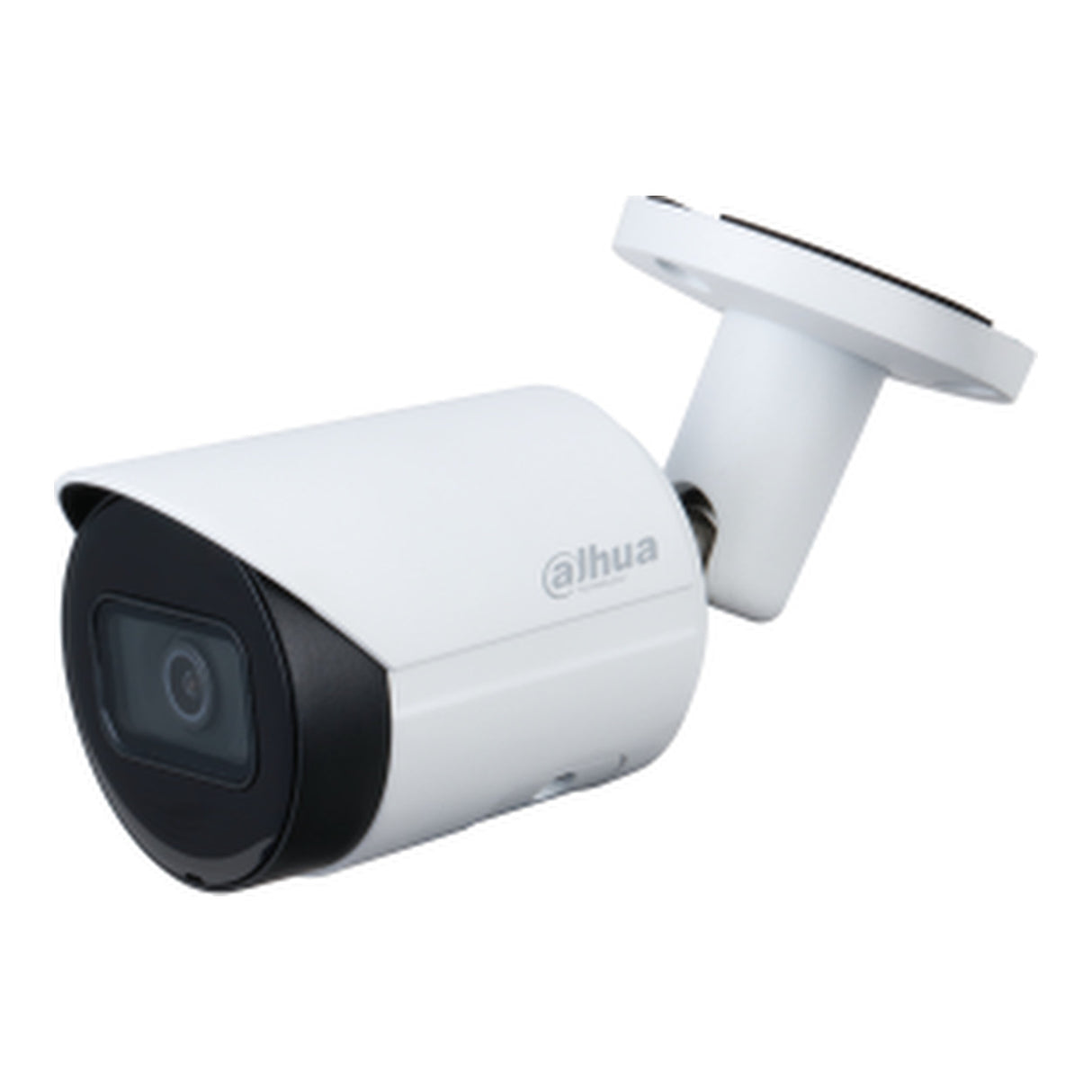

Dahua IPC-HFW2230S-S-S2 2MP 3.6mm Lite IR Fixed-focal Bullet Network Camera

Dahua IPC-HFW2230S-S-S2 2MP 3.6mm Lite IR Fixed-focal Bullet Network Camera

The Dahua IPC-HFW2230S-S-S2 is a compact 2MP bullet network camera designed for monitoring homes, offices, shops and other indoor or outdoor areas. Its 3.6 mm fixed-focal lens provides a focused 88° horizontal field of view, while Starlight imaging and built-in infrared illumination support surveillance in challenging lighting conditions.

Smart H.265+ and Smart H.264+ encoding help manage network bandwidth and recording storage more efficiently. The camera also supports PoE installation, local microSD recording, intelligent tripwire and intrusion detection, and an IP67-rated metal enclosure.

Clear 2MP Video Surveillance

The 1/2.8-inch CMOS sensor captures video at up to 1920 × 1080 resolution and 25 or 30 frames per second. This provides clear Full HD footage for monitoring entrances, passages, parking areas and other important locations.

Starlight and Infrared Imaging

Dahua Starlight technology supports colour imaging in low-light environments, with a rated minimum illumination of 0.005 lux in colour mode. When lighting falls further, the integrated infrared illuminator provides black-and-white monitoring at distances of up to 30 metres.

Efficient Video Encoding

Smart H.265+ and Smart H.264+ codecs are designed to reduce bandwidth and storage requirements while retaining useful video detail. Region of Interest functionality allows selected parts of the image to receive additional encoding attention.

Intelligent Monitoring

Tripwire and intrusion detection can help identify activity within configured areas. Additional event functions include motion detection, video tampering detection, network disconnection, IP conflict, illegal access and storage-related alerts.

Flexible Recording and Integration

Recordings can be stored on a compatible microSD card with a capacity of up to 256 GB, or sent to supported FTP, SFTP and NAS destinations. ONVIF Profile S, G and T interoperability assists with integration into compatible network video systems.

Outdoor-ready Construction

The metal housing carries an IP67 ingress-protection rating and is specified for operating temperatures from −40 °C to +60 °C. Power can be supplied through 12 V DC or IEEE 802.3af PoE, helping simplify installation where a separate local power connection is inconvenient.

Key Features:

• 2MP CMOS sensor captures video at up to 1920 × 1080 resolution.
• 3.6 mm fixed-focal F1.6 lens provides an 88° horizontal field of view.
• Starlight technology supports clearer colour imaging under low illumination.
• Built-in infrared LED provides illumination at distances of up to 30 metres.
• Smart H.265+ and Smart H.264+ encoding help reduce bandwidth and storage requirements.
• Tripwire and intrusion detection support intelligent event monitoring.
• PoE, microSD storage and an IP67-rated metal housing support flexible installations.

Technical Specifications:

Add the Dahua IPC-HFW2230S-S-S2 to your cart for practical Full HD network surveillance with low-light imaging, local recording and flexible PoE installation.
