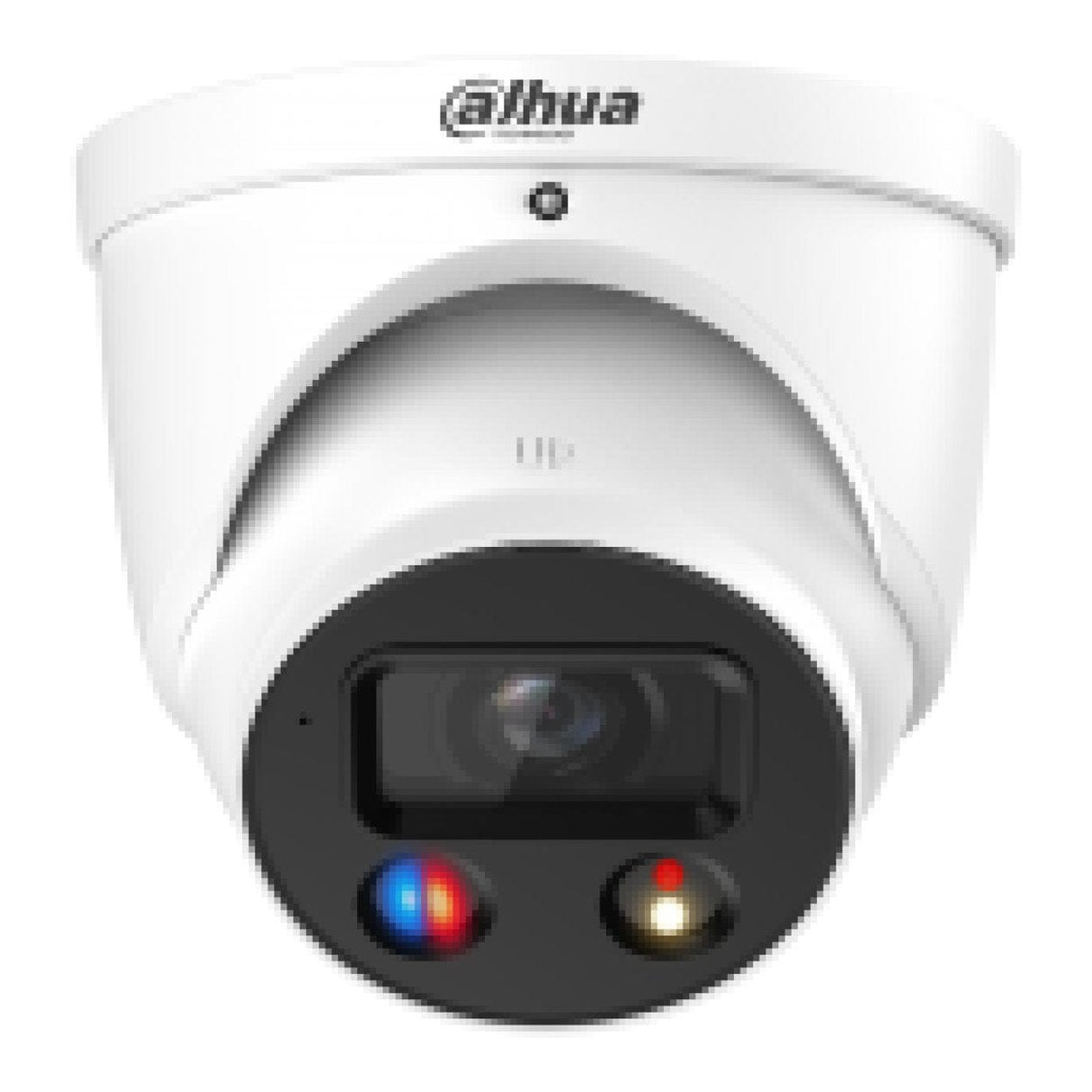

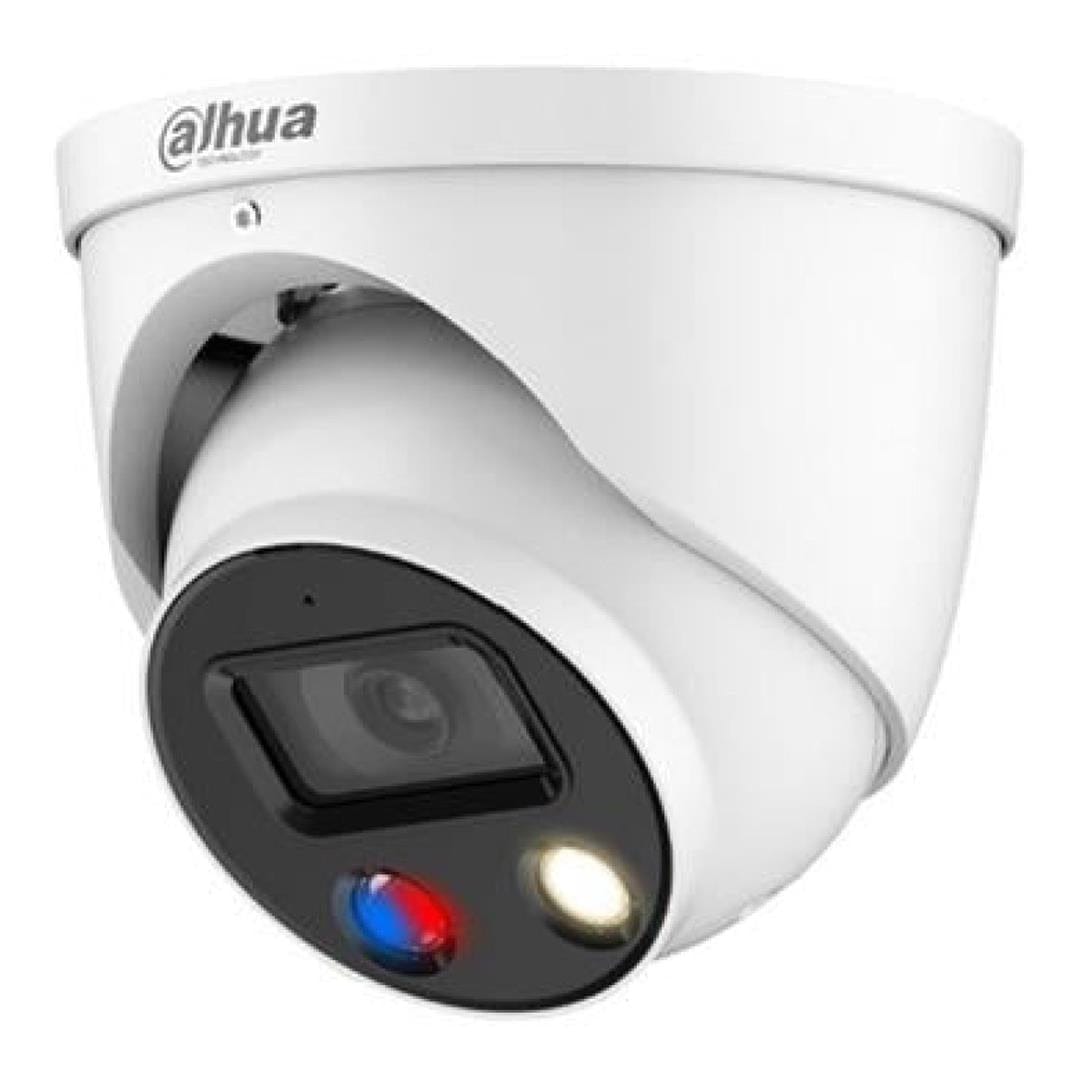

Dahua IPC-HDW3549HP-AS-PV WizSense 5MP 2.8mm Fixed-focal Eyeball Network Camera

Dahua IPC-HDW3549HP-AS-PV WizSense 5MP 2.8mm Fixed-focal Eyeball Network Camera

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color

With high-performance sensor and large aperture lens, Dahua Full-colour technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colourful image details.

Siren and Light Active Deterrence

Dahua siren and light active deterrence network camera supports light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Specifications:

Image Sensor: 1/2.7" 5Megapixel progressive CMOS

Max. Resolution: 2592 (H) × 1944 (V)

ROM: 128 MB

RAM: 512 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination: 0.003 Lux @ F1.0

S/N Ratio: > 56 dB

Illumination Distance: 30 m (98.4 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 1 (Warm light)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Mount Type: M12

Focal Length: 2.8 mm

Max. Aperture: F1.0

Field of View: 2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°

Iris Type: Fixed

Close Focus Distance: 2.8 mm: 1.2 m (3.9 ft)

Network: RJ-45 (10/100 Base-T)

SDK and API: Yes

Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host: 20 (Total bandwidth: 80 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 G);NAS

Browser

• IE: IE8 and later
• Chrome
• Firefox
• Safari: Safari 12 and later

Management Software: Smart PSS; DSS; DMSS
