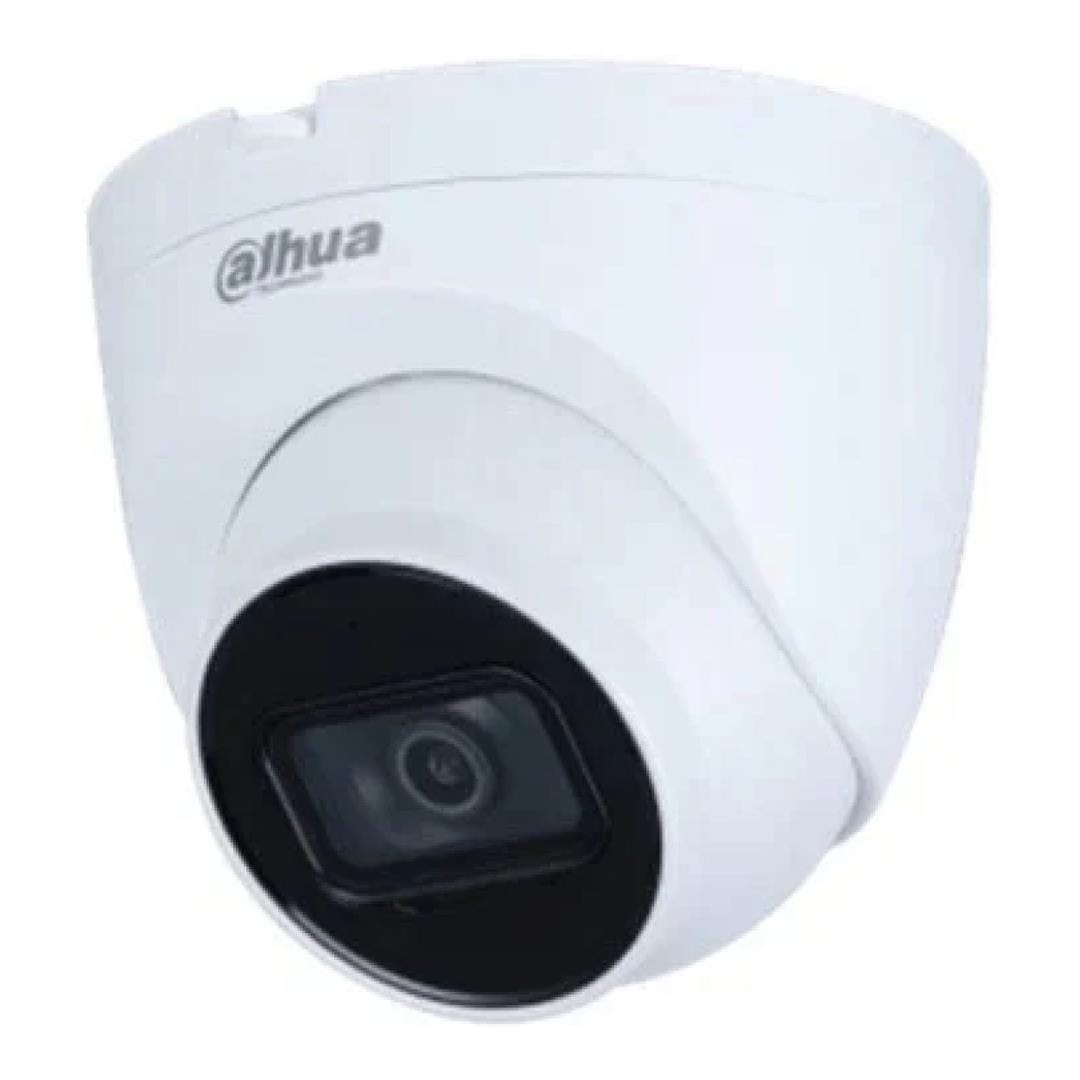

Dahua IPC-HDW2230T-A-E 2MP 2.8mm Lite IR Fixed-focal Eyeball Camera

Dahua IPC-HDW2230T-A-E 2MP 2.8mm Lite IR Fixed-focal Eyeball Camera

The Dahua DH-IPC-HDW2230T-A-E is a 2MP Lite-series fixed-focal eyeball IP camera designed for reliable, cost-effective surveillance. Featuring a 2.8mm wide-angle lens, built-in IR illumination, and efficient H.265 video compression, it delivers clear Full HD monitoring for residential and small-to-medium business environments.

• 2MP Full HD Resolution (1920 × 1080) – Clear and detailed video output
• 2.8mm Fixed Lens – Wide-angle coverage ideal for general surveillance
• Smart H.265+/H.264+ Compression – Reduces bandwidth and storage usage
• IR Night Vision (up to ±30m) – Reliable monitoring in low-light or complete darkness
• Built-in Microphone – Supports audio recording for enhanced security
• PoE (Power over Ethernet) – Simplified installation with a single cable for power and data
• IP67 Weatherproof Rating – Suitable for indoor and outdoor deployment
• Basic AI Features (WizSense) – Supports motion detection and smart event triggers

The Dahua DH-IPC-HDW2230T-A-E forms part of Dahua’s Lite Series, offering a balance between performance and affordability. It uses a 1/2.8" CMOS sensor to deliver high-definition video with improved low-light performance, supported by Dahua’s Starlight technology for enhanced image clarity in dim environments.

The 2.8mm fixed lens provides a wide field of view, making it suitable for monitoring entrances, corridors, retail floors, and office spaces. Integrated IR LEDs enable night vision up to approximately 30 metres, ensuring continuous surveillance regardless of lighting conditions.

With Smart H.265+ compression, the camera significantly reduces storage and bandwidth requirements while maintaining image quality—ideal for systems with limited storage capacity or remote monitoring setups.

The inclusion of a built-in microphone enhances situational awareness by capturing audio alongside video, while PoE support simplifies installation by reducing cabling complexity.

Designed with IP67-rated housing, the camera is resistant to dust and water, making it reliable for both indoor and outdoor use in various environmental conditions.

Specifications:

Image Sensor: 1/2.8" CMOS

Resolution: 2MP (1920 × 1080 @ 25/30fps)

Lens: 2.8mm fixed focal

Night Vision: IR up to ±30m

Video Compression: H.265+/H.264+

Audio: Built-in microphone

Connectivity: Ethernet (PoE supported)

Weather Rating: IP67

Power Supply: 12V DC / PoE

Use Type: Indoor / Outdoor
