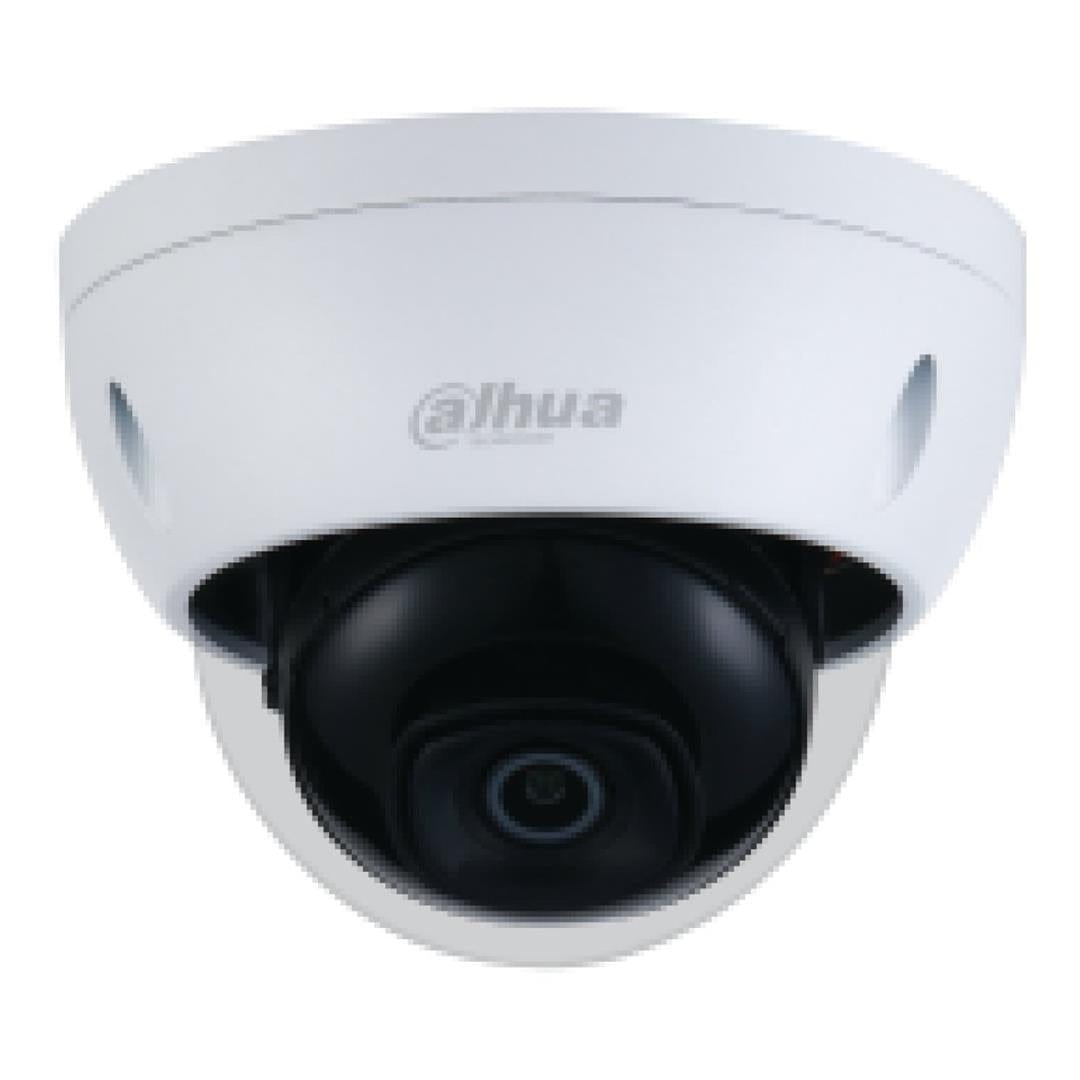

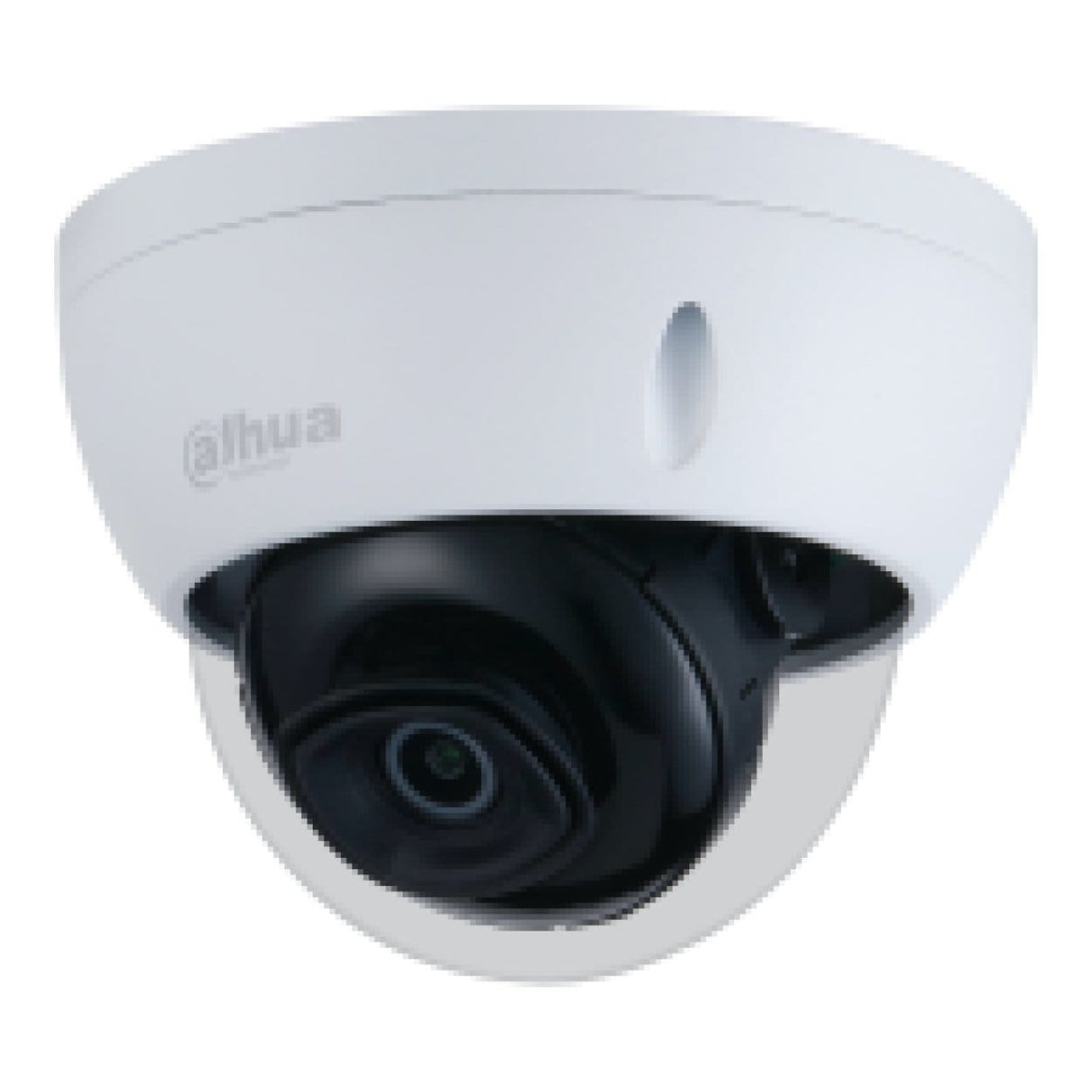

Dahua IPC-HDBW2231E-S 2MP 2.8mm Lite IR Fixed-focal Dome Network Camera

Dahua IPC-HDBW2231E-S 2MP 2.8mm Lite IR Fixed-focal Dome Network Camera

IPC-HDBW2231E-S-S2 EoL-L 2MP Lite IR Fixed-focal Dome Network Camera

• 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
• Outputs 2MP (1920 × 1080) @ 25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
• Max. 256 GB Micro SD card
• 12V DC/PoE power supply
• IP67, IK10 protection

Specifications:

Image Sensor: 1/2.8" CMOS

Max. Resolution: 1920 (H) × 1080 (V)

ROM: 128 MB

RAM: 128 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.002 Lux@F1.6 (Color, 30 IRE)
• 0.0002 Lux@F1.6 (B/W, 30 IRE)
• 0 Lux (Illuminator on)

S/N Ratio: > 56 dB

Illumination Distance: 30 m (98.43 ft) (IR)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 3 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–355°
• Tilt: 0°–65°
• Rotation: 0°–355°

Lens

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm

Max. Aperture: 2.8 mm: F1.6

Field of View: 2.8 mm: Horizontal: 107°; Vertical: 56°; Diagonal: 127°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 0.7 m (2.30 ft)

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host: 20 (Total bandwidth: 48 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

• IE
• Chrome
• Firefox

Management Software: Smart PSS; DSS; DMSS

Mobile Client: IOS; Android
