Dahua IPC-HDBW2230E-S-S2 2MP 2.8mm Lite IR Fixed-focal Dome Network Camera

Dahua IPC-HDBW2230E-S-S2 2MP 2.8mm Lite IR Fixed-focal Dome Network Camera

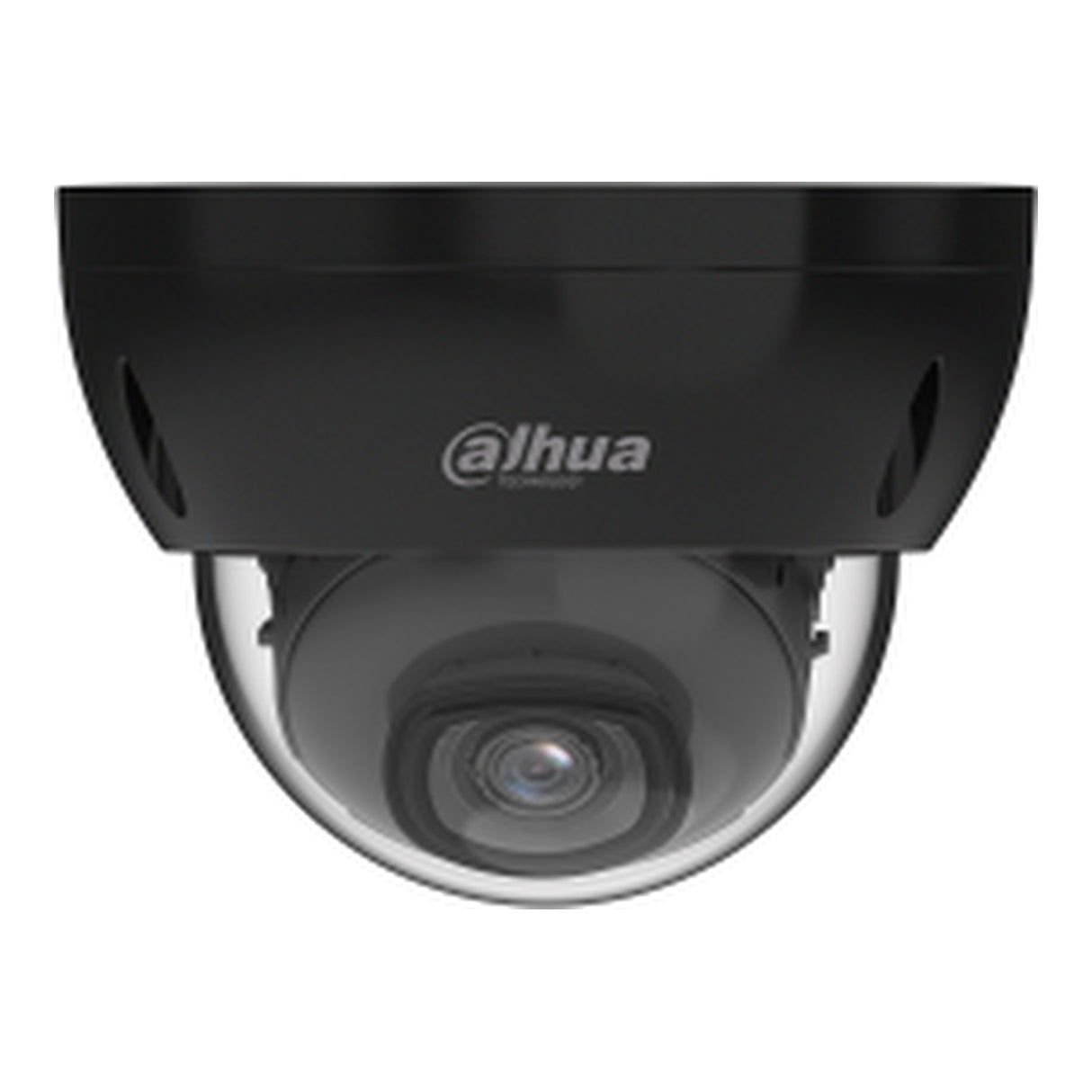

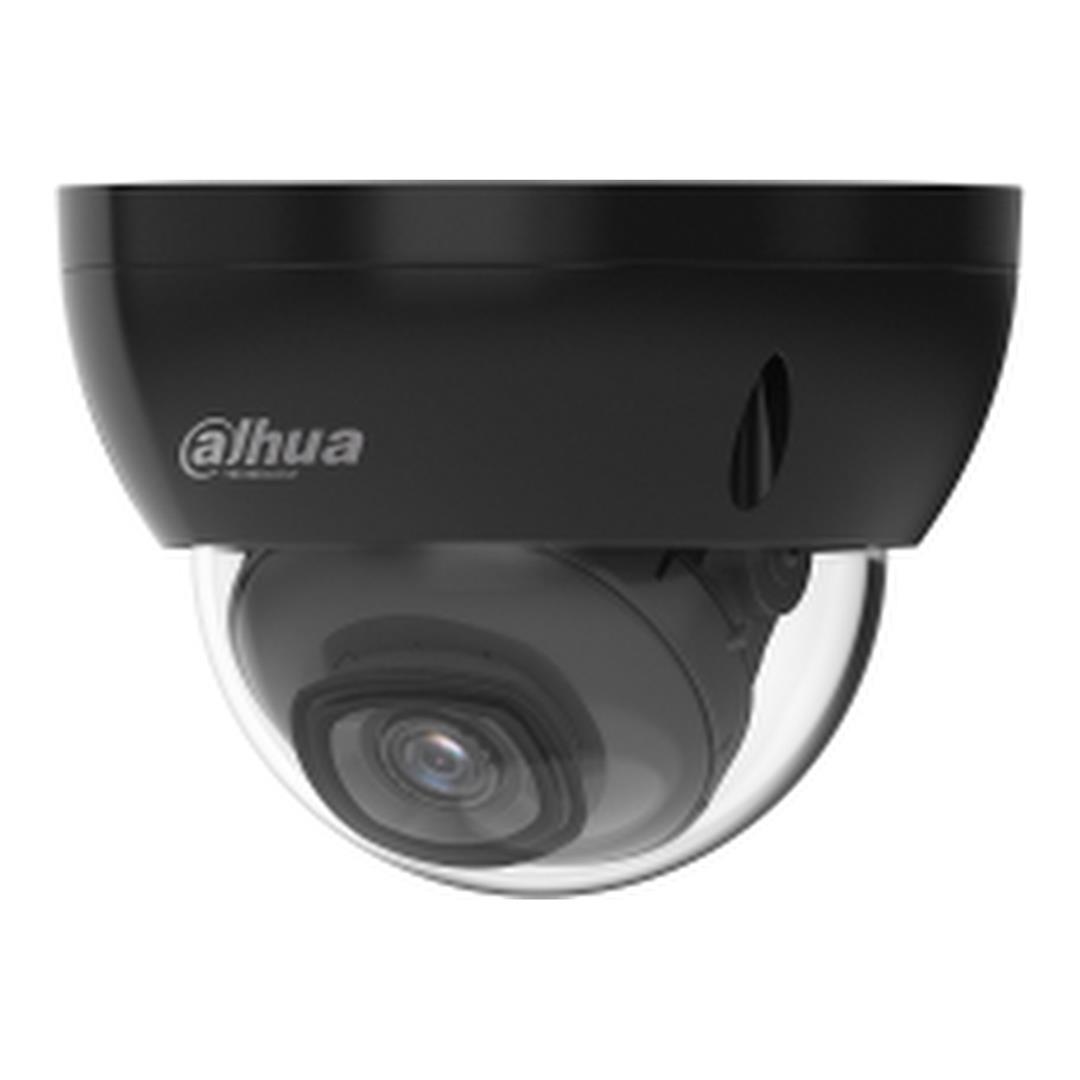

The Dahua IPC-HDBW2230E-S-S2 is a compact 2MP dome network camera designed for monitoring entrances, offices, shops, passages and exposed indoor or outdoor locations. Its wide-angle 2.8 mm fixed-focal lens captures a 108° horizontal field of view, while Starlight imaging and built-in infrared illumination support surveillance across changing light conditions.

Smart H.265+ and Smart H.264+ encoding help manage recording storage and network bandwidth. The camera also provides PoE installation, microSD recording, intelligent tripwire and intrusion detection, and an IP67 and IK10-rated metal enclosure for demanding installations.

Wide-angle Full HD Monitoring

The 1/2.8-inch CMOS sensor captures video at up to 1920 × 1080 resolution and 25 or 30 frames per second. Its 2.8 mm lens provides a wide 108° horizontal viewing angle, making the camera suitable for monitoring rooms, entrances and other areas where broad scene coverage is required.

Starlight Low-light Imaging

Dahua Starlight technology supports colour imaging in low-light environments, with a rated minimum illumination of 0.005 lux in colour mode. When the available light falls further, three integrated infrared LEDs provide black-and-white illumination at distances of up to 30 metres.

Efficient Video Compression

Smart H.265+ and Smart H.264+ encoding are designed to reduce video bandwidth and storage requirements while retaining useful image detail. Region of Interest functionality can prioritise selected parts of the scene during encoding.

Intelligent Event Detection

Built-in IVS functions support configurable tripwire and intrusion rules. The camera can also report motion detection, video tampering, storage errors, network disconnection, IP conflicts, illegal access attempts and other supported abnormal events.

Local and Network Recording

A compatible microSD card with a capacity of up to 256 GB can be used for local recording. The camera also supports FTP, SFTP and NAS storage, while ONVIF Profile S, G and T interoperability assists with integration into compatible network video systems.

Weather and Impact Protection

The metal dome enclosure carries an IP67 ingress-protection rating and an IK10 impact-resistance rating. It is specified for operating temperatures from −40 °C to +60 °C, supporting installation in a wide range of indoor and outdoor environments.

Key Features:

• 2MP CMOS sensor records at up to 1920 × 1080 resolution.
• 2.8 mm fixed-focal F1.6 lens provides a wide 108° horizontal field of view.
• Starlight technology supports clearer colour imaging in low-light conditions.
• Three built-in infrared LEDs provide illumination at distances of up to 30 metres.
• Smart H.265+ and Smart H.264+ encoding help reduce bandwidth and storage requirements.
• Tripwire and intrusion detection support intelligent event monitoring.
• IP67 and IK10-rated metal enclosure provides weather and impact protection.

Technical Specifications:

Add the Dahua IPC-HDBW2230E-S-S2 to your cart for wide-angle Full HD surveillance with infrared imaging, local recording and a weather- and impact-resistant dome enclosure.
