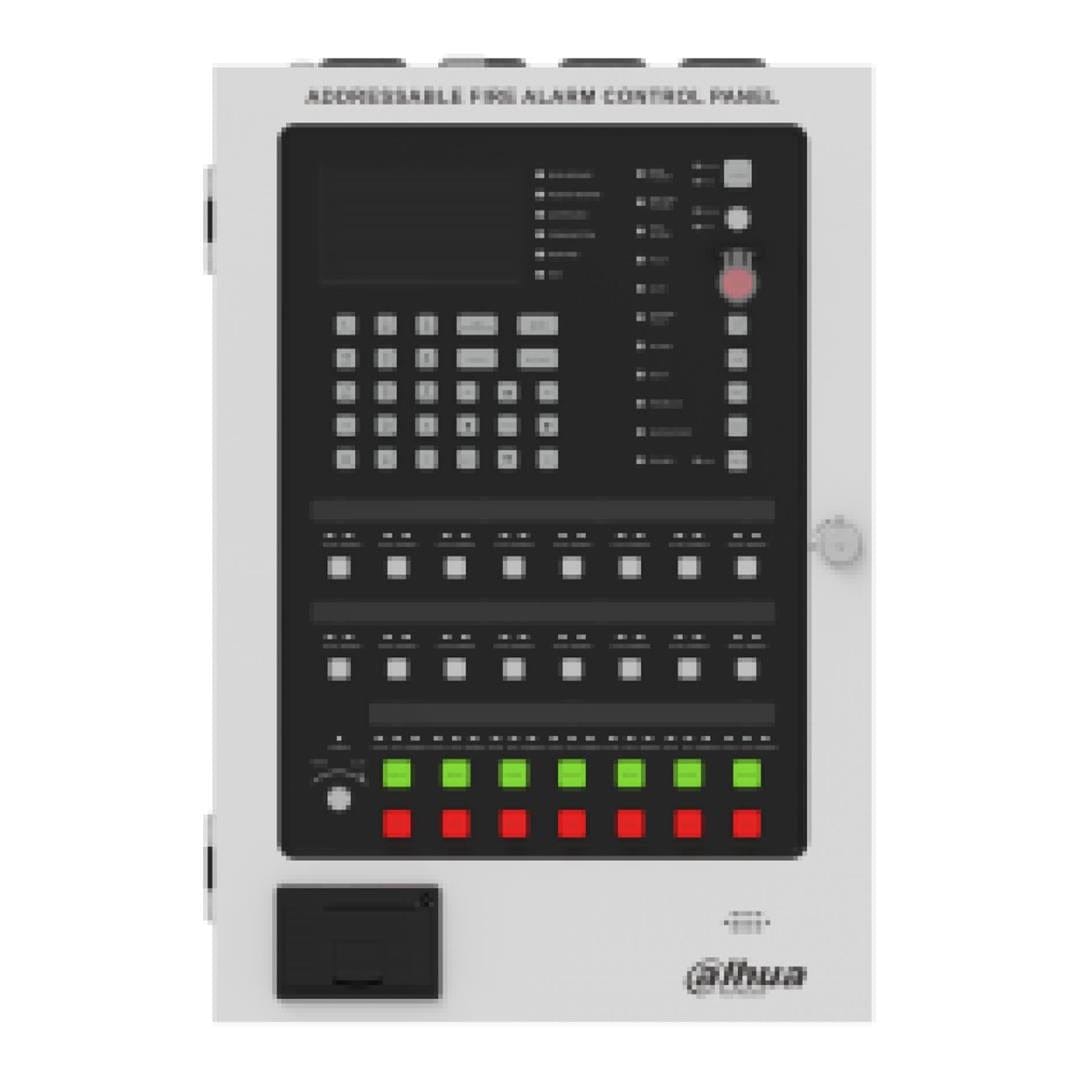

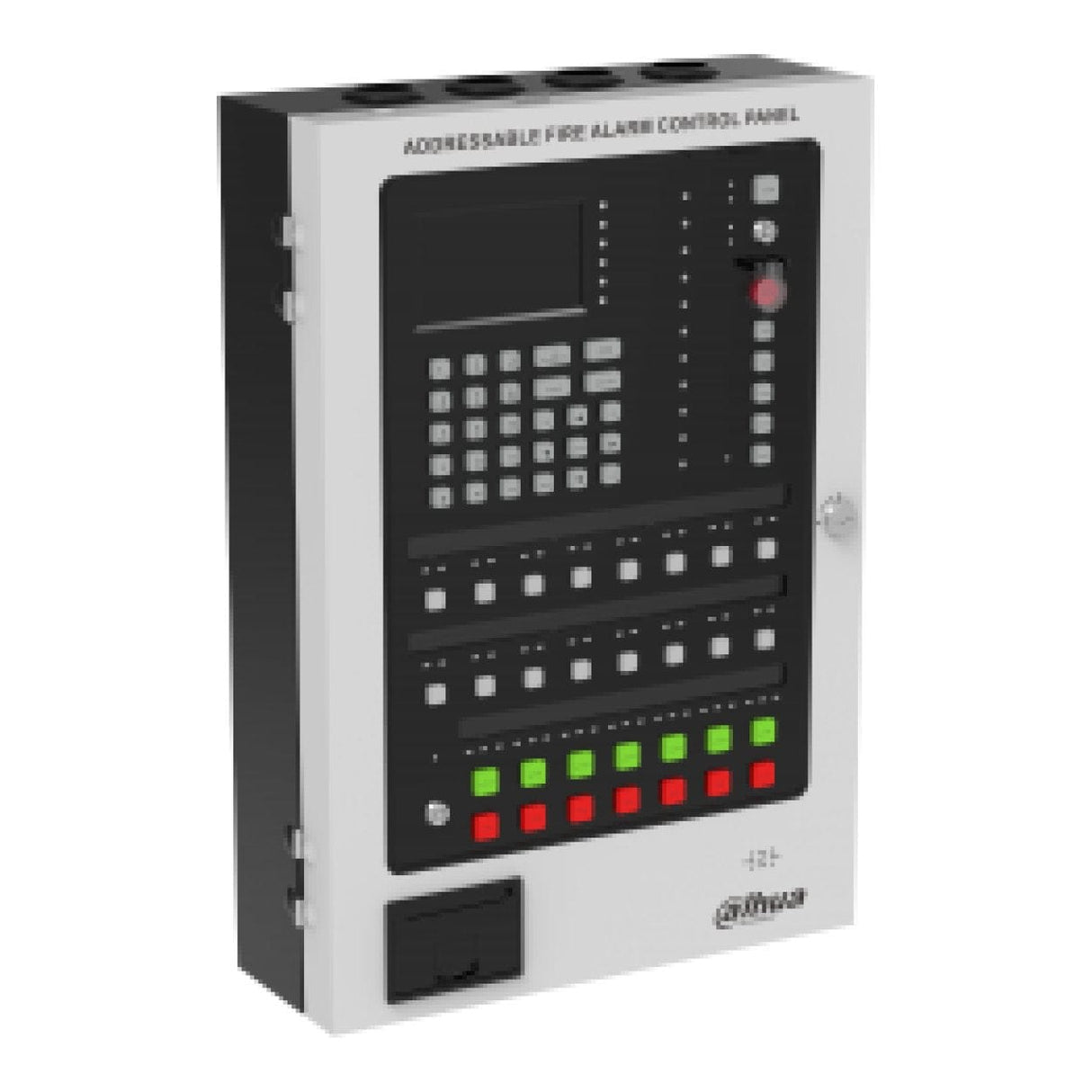

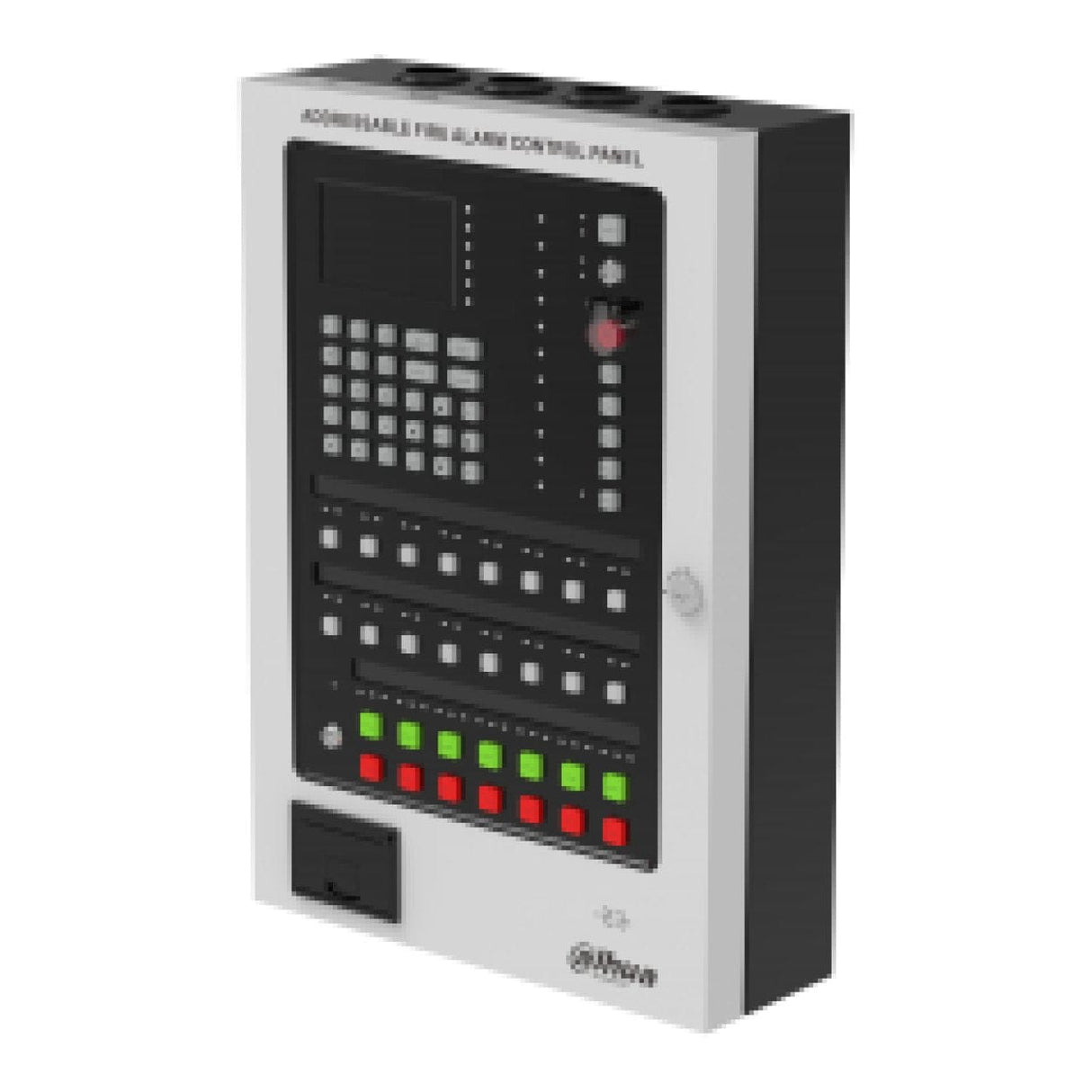

Dahua HY-1025R WisuAlarm Addressable Control Panel

Dahua HY-1025R WisuAlarm Addressable Control Panel

Specifications:

Working Voltage: 16V DC–28V DC

System Capacity: Max. 254 devices for one loop

Main Power: AC90-240V/50Hz, 60Hz

Backup Power: 2×12V/5Ah lead-acid battery

Log Record: Max. 2048

Fire Alarm Terminal: NO/NC

Fire Fault Terminal: NO/NC

Communication Distance: Max. 1500m

Max Cascade: 128 Panels By RS-485

Cable Specs: 2×1.5 mm²

Display: 480 × 272 4.3’’ LCD screen

Printer (optional): Micro thermal printer *Not included.

Dimensions: 333.0 mm×115.0 mm×480.0 mm

Operating Temperature: –10°C to +40°C

Operating Humidity: ≤ 95% RH (no condensation)

Protection Grade: IP30

Weight: 7 kg; 10 kg (with 2 batteries)

Compliance Standard: EN54-2, EN54-4

Loop Number:

• 1 loop for DHI-HY-1022(R)
• 2 loops for DHI-HY-1025(R)

Topology Mode:

• Class A for DHI-HY-1022R and DHI-HY-1025R
• Class B for DHI-HY-1022 and DHI-HY-1025

Loop Capability: Max. 254 sensors and modules for each loop

Optional Buit-in Micro Thermal Printer:

• Option 1: With printer by default
• Option 2: Without printer by default

Simulated Zone:

• Every 32 addresses form a zone
• Applicable only to panels with a printer

Panel Cascading: Max. 128 panels to cascade

Solution Verification:

• With the help of Dahua Fire (Wisualarm) Presale Tool
• Performance Limitations
• Communication Distance
• Required Battery Specifications

Configurable Alarm Linkage: With the help of ControlConfig Tool

Solution:

• Online Solution: Wisualarm Cloud Platform
• Local Solution: DSS Pro Platform V8.5-V8.7 (Server is required)

Compatible Cable Specifications: 2X1.5mm² /2X16AWG

Communication Distance: 1500m (standard) - 3000m (extendable)

Telephone&Broadcast System: Optional peripheral system
